Product data
Galvanised steel · Pair for 1 drawer · Up to 25 kg

Drawer runners ball bearing 550mm - H35 (right and left side)

This pair of 550 mm ball bearing drawer runners provides 100% full extension access for wooden drawers weighing up to 25 kg.

  • Length550 mm
  • Maximum weight25 kg
  • Full extensionYes
  • MaterialGalvanised steel
  • Material thickness0.8 mm
  • Additional mechanismRubber brake
Drawer runners ball bearing 550mm - H35 (right and left side)
  • 35mm height

550 mm full extension runners with integrated rubber brake

Precision drawer runners engineered with steel ball bearings and an integrated rubber brake for a smooth, controlled gliding action in deep 550 mm cabinets.

  • Full extension opening: Pulls out completely so the entire 550 mm drawer depth is easily visible and accessible right to the back.

  • 25 kg load capacity: Sturdy 0.8 mm thick steel runners reliably support everyday kitchenware, office stationery, or workshop tools.

  • Detachable sliding arm: Allows you to separate the inner runner from the cabinet profile with a quick-release lever for simple drawer removal.

  • Integrated rubber brake: Cushions the end of the closing stroke to prevent the drawer from slamming or rolling open unexpectedly.

Where to install 550 mm ball bearing drawer slides

  • KitchenDeep cutlery and pan drawers

    Reaches the back of full-depth base units, keeping heavy pots and utensil trays fully accessible.

  • OfficeDesk pedestals and filing units

    Handles documents and heavy office supplies smoothly with a dependable 25 kg weight rating.

  • WorkshopTool storage cabinets

    Zinc-coated steel provides corrosion resistance for heavy-duty hand tools and organiser boxes.

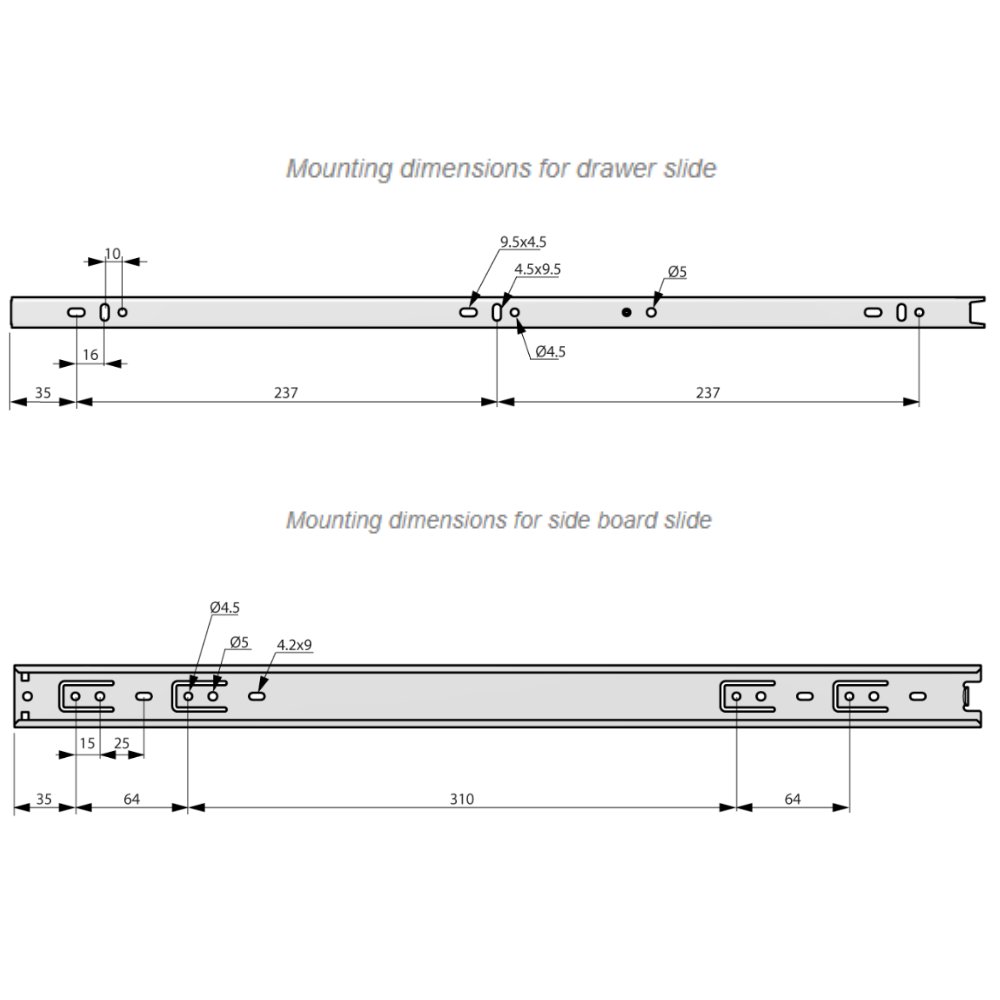

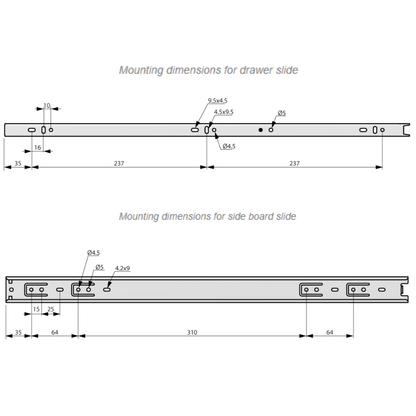

Fitting the drawer runners

Supplied as a matched pair for left and right cabinet sides.
  1. 1
    Separate the runners

    Press the release lever on the detachable sliding arm to pull the inner drawer rail away from the outer carcass rail.

  2. 2
    Fix the carcass rails

    Position the outer rails horizontally on the inside walls of your cabinet at the required height and screw them securely in place.

  3. 3
    Attach and engage

    Screw the inner rails to the drawer sides, then align both rails and slide the drawer into the cabinet until the mechanism clicks locked.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Rubber damper
Manufacturer
Furnica
Detachable sliding arm
Yes
Detachable sliding arm
Yes
Full extension
Yes
Height
35mm
Length
250-600mm
Material
Galvanised steel
Material thickness
0.8/0.8/0.8mm
Maximum weight
25kg
EAN
5060857452648
SKU
PK35N-A-550
