110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Name: 110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors
Brand: Furnica
SKU: F01SSC110CFS-K
Price: 1.05 GBP
Availability: InStock
Rating: 5.0 (24 reviews)

110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

5.0 24 reviews

£1.05 Incl. VAT

Soft-close damping: Yes

Yes
No

Model: 110° Soft-Close overlay doors

Buy more, save more

5 pcs

10 pcs

20 pcs

50 pcs

4 more to reach −5 % (£1.00 / pc.)

Estimated delivery time: 2–5 working days

Free delivery over £49.99

14-day returns

Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data

Overlay doors · Ø 35 mm cup · EURO screws included

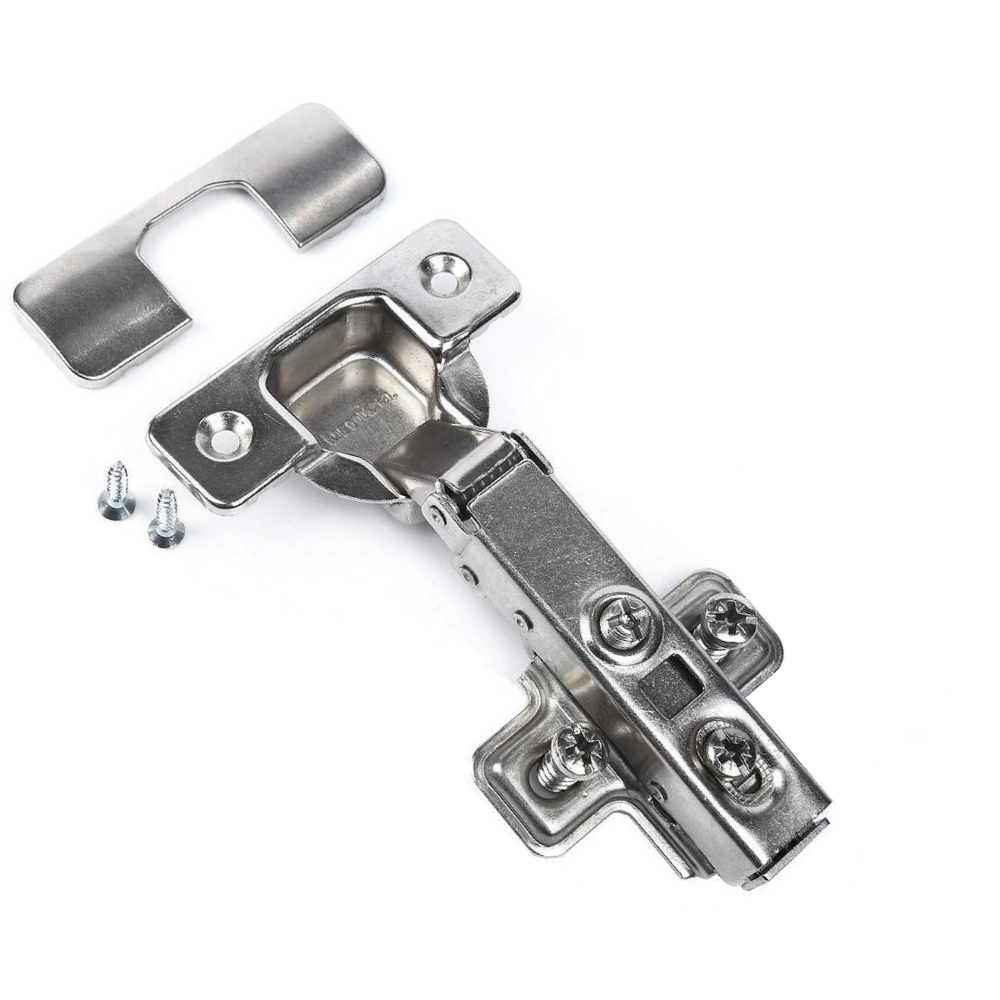

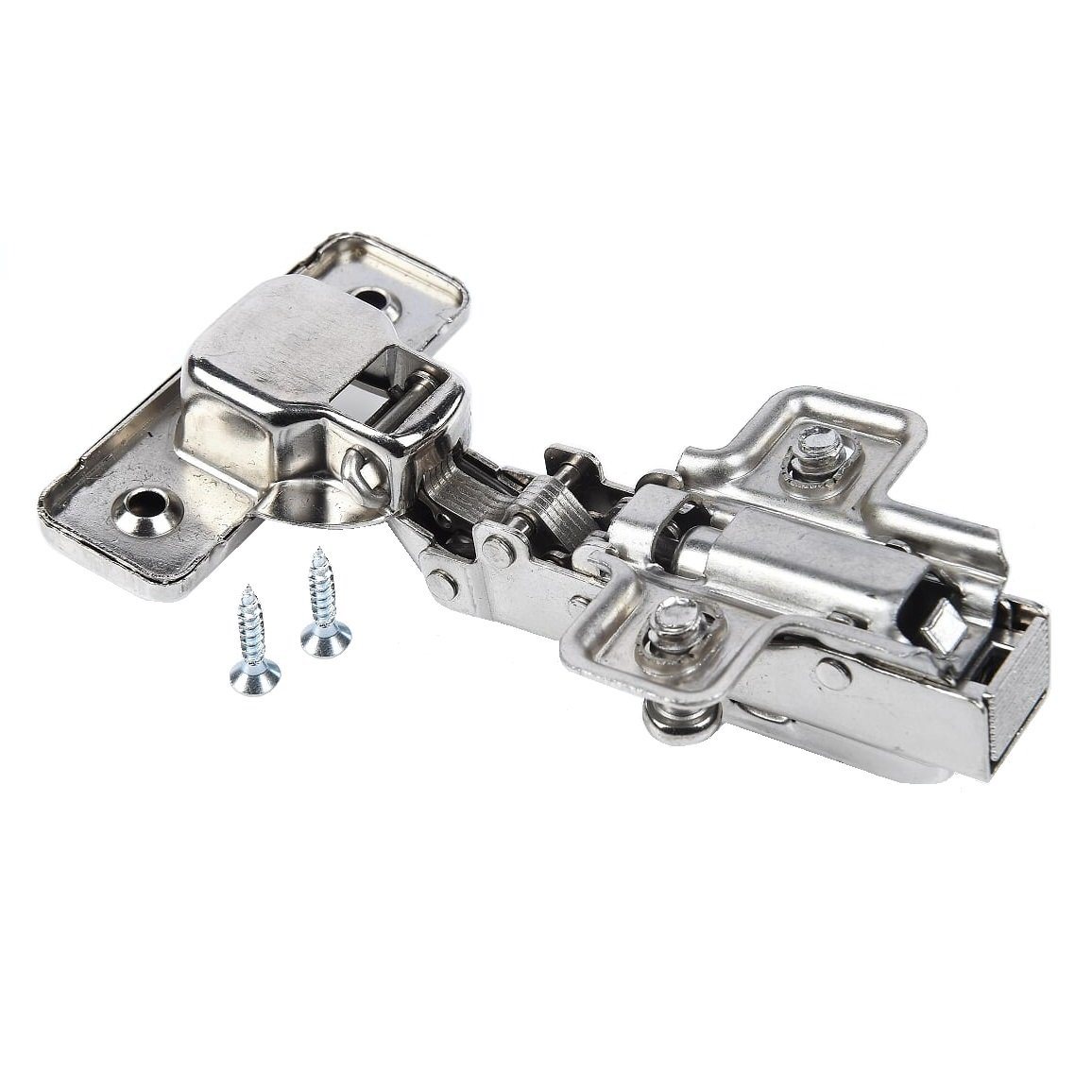

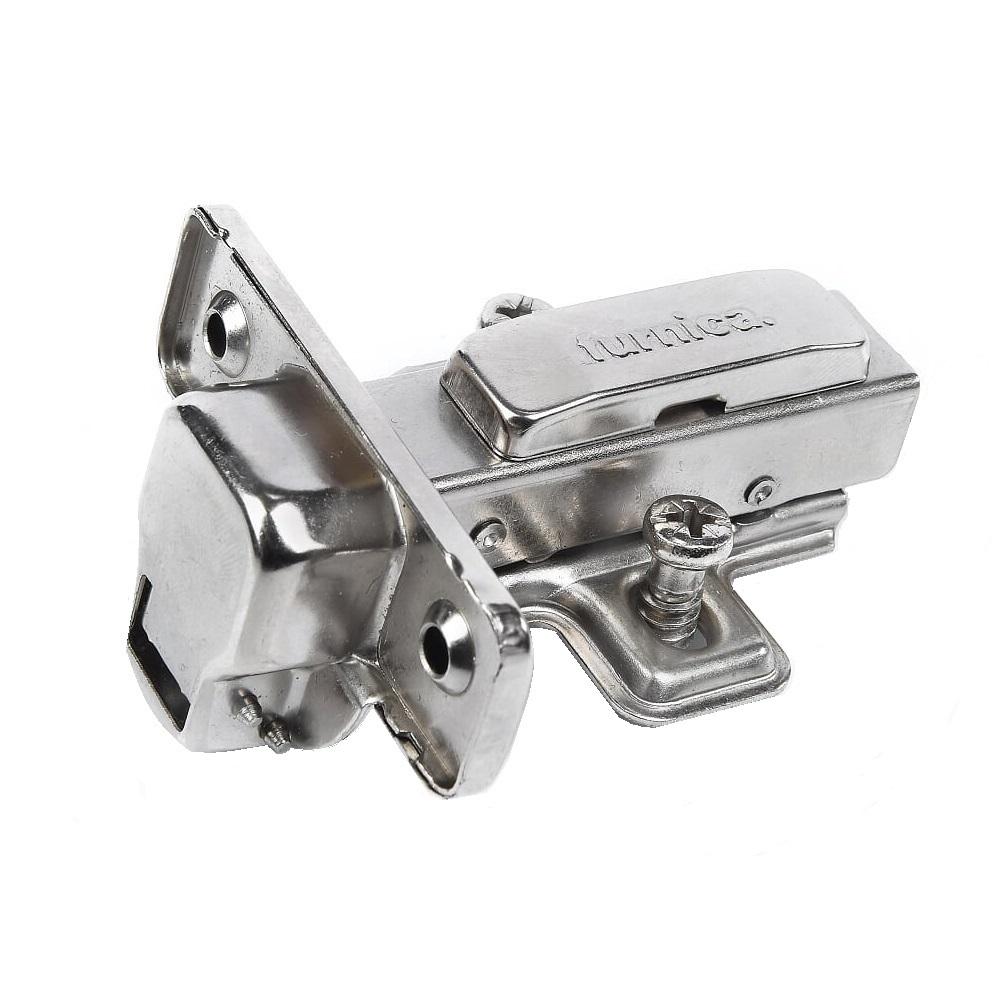

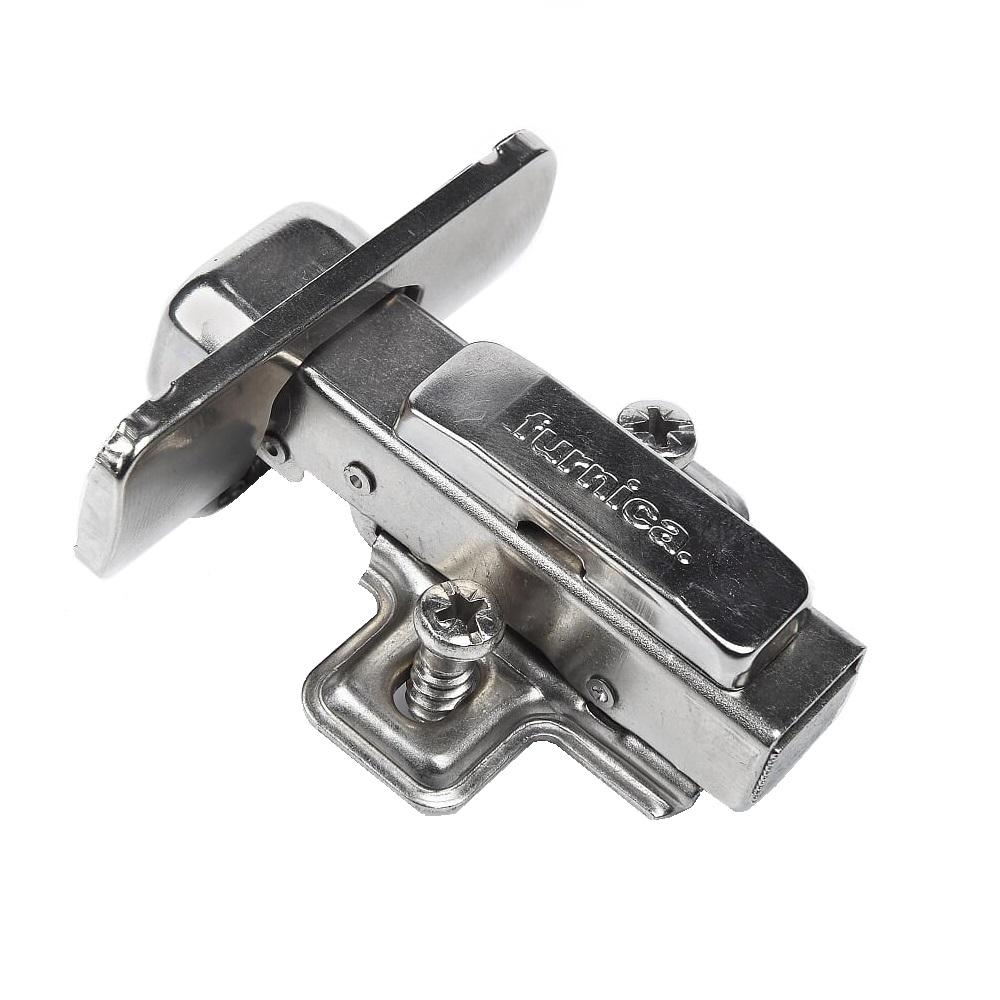

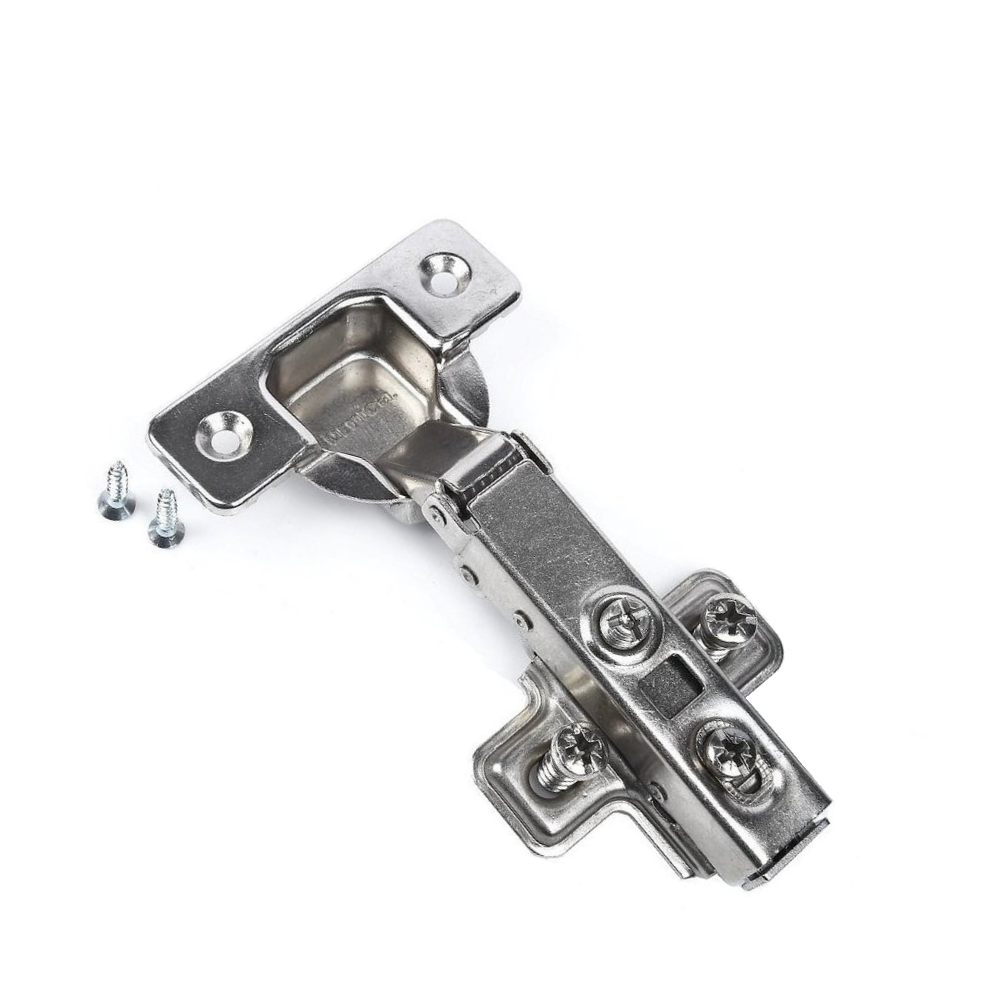

110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Concealed 110° kitchen cabinet hinges with integrated soft-close damping for smooth, silent shutting on standard overlay doors. Features a clip-on H0 mounting plate and includes EURO screws for a quick, precise installation.

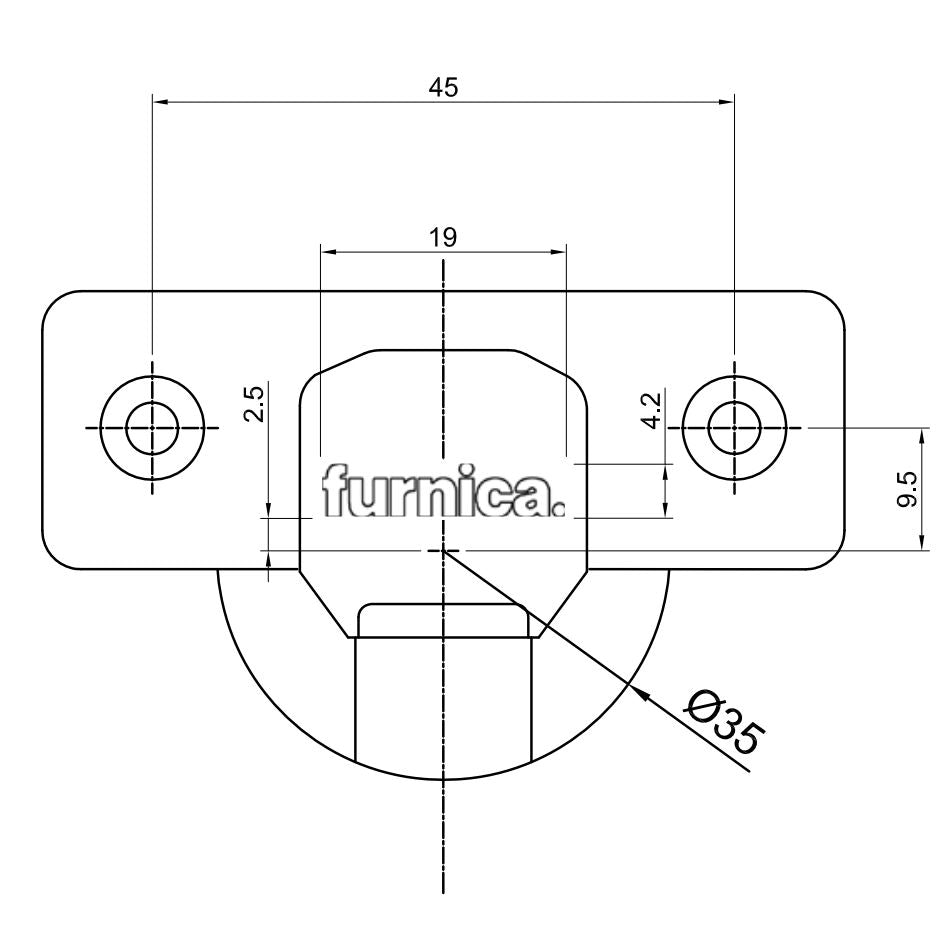

Hinge cup diameterØ 35 mm
Opening angle110°
Suitable forOverlay doors
Mounting plate typeClip-On

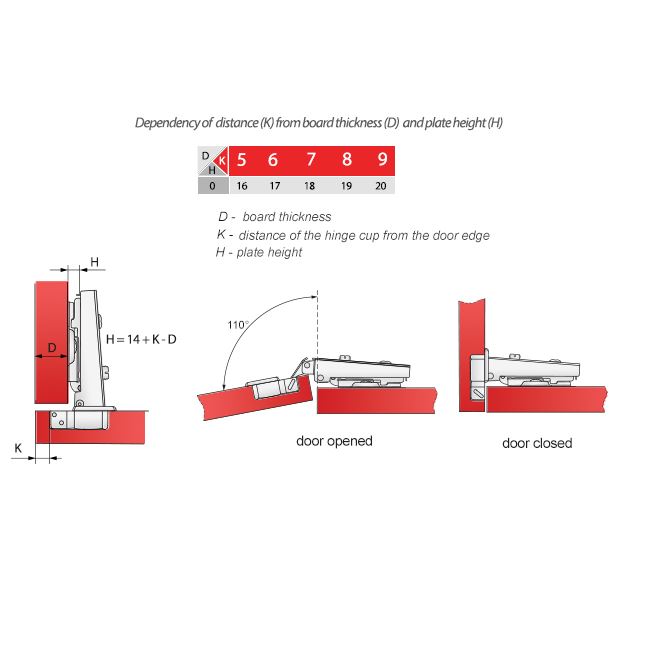

Mounting plate heightH0
MaterialNickel coated steel

110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Clip-on 110° hinge with Ø 35 mm cup for overlay doors

This 110° soft close hinge combines built-in hydraulic damping with durable nickel coated steel construction for overlay cupboard doors. It attaches swiftly to the included H0 clip-on mounting plate using EURO screws.

Integrated soft close: Internal hydraulic damping catches the closing front and pulls it shut silently without slamming.

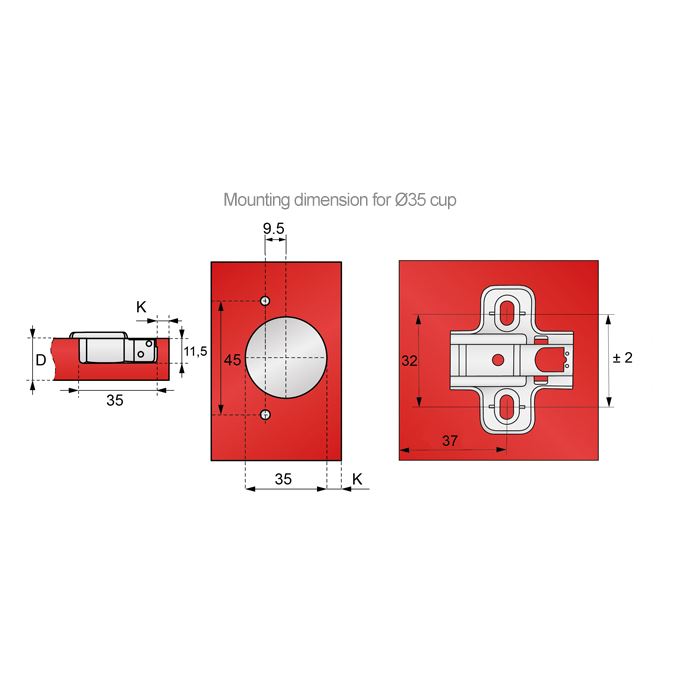

Standard Ø 35 mm cup: Fits industry-standard 35 mm cup drillings for straightforward fitting and direct replacements.
Quick clip-on attachment: The hinge arm clips directly onto the H0 base plate, allowing tool-free door removal whenever required.
Complete mounting set: Comes supplied with matching EURO screws for fixing the mounting plate to the carcass.

Where to install 110° overlay hinges

KitchenKitchen wall cupboards
Prevents loud door banging in high-traffic kitchens with integrated soft-closing action.
CabinetryFull overlay cabinet doors
Designed specifically for carcass layouts where the door front fully covers the outer cabinet edge.
RetrofitReplacing worn hinges
Upgrades standard 35 mm door drillings to soft-close operation using the existing layout.

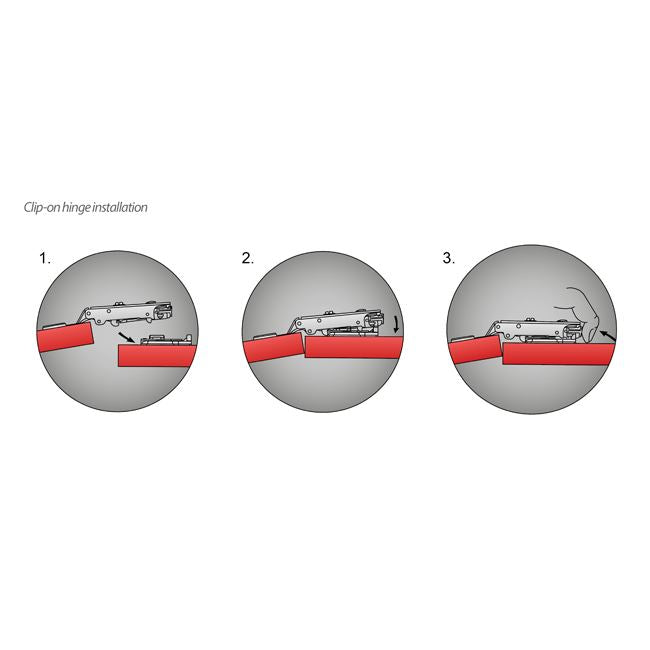

Fitting the 110° clip-on hinge

EURO screws included in the pack.

1
Fix the H0 plate
Secure the H0 mounting plate to the cabinet carcass using the provided EURO screws.
2
Insert the hinge cup
Place the 35 mm hinge cup into the pre-drilled door hole and screw it firmly into position.
3

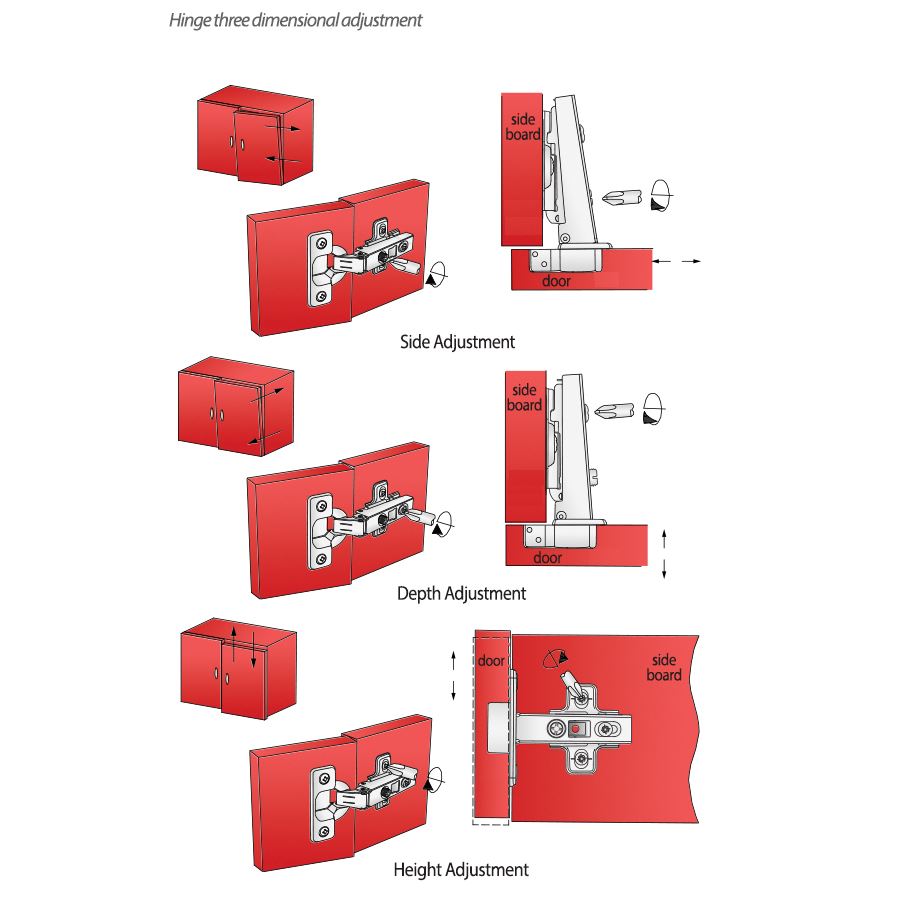

Clip on and adjust
Clip the hinge arm onto the mounting plate without tools, then adjust the door alignment.

2–5 working daysEstimated delivery time
Free deliveryon orders over £49.99
14 daysReturns & exchanges
Shop Pay · Apple PayGoogle Pay & cards

Technical data

Attribute	Value
Soft-close damping	Yes
Included in set	Euro screws
Colour	Chrome
Hinge cup diameter	Ø35 mm
Material	Nickel-coated steel
Model	110° Soft-Close overlay doors
Mounting plate height	H0
Mounting plate type	Clip-on mounting
Opening angle	110°
Made for	Corner mounting
EAN	5060685600532
SKU	F01SSC110CFS-K

Reviews (24)

5 Based on 24 reviews

5★ 24

4★ 0

3★ 0

2★ 0

1★ 0

Wolfgang✓ Verified2026-06-08

Das Scharnier gleitet sanft und schließt von selbst. Danke, alles bestens.

Frank✓ Verified2026-05-05

Alles bestens

Thomas✓ Verified2026-03-15

Das Scharnier ist genau wie beschrieben.

Silvia✓ Verified2026-03-09

La cerniera è impeccabile. Lo ricomprerei.

Uwe✓ Verified2025-12-09

Super! Das Scharnier rastet satt ein und hält.

Heike✓ Verified2025-11-02

Das Scharnier sieht richtig gut aus. Top Kauf.

Mia✓ Verified2025-09-27

Super! Das Scharnier ist top verarbeitet. Top Kauf.

Paolo✓ Verified2025-09-21

Bene

Martina✓ Verified2025-09-15

La cerniera vale il suo prezzo. Come nuovo dopo settimane.

Petra✓ Verified2025-03-30

Das Scharnier macht einen wertigen Eindruck. Preis-Leistung stimmt.

Markus✓ Verified2025-03-18

Wie beschrieben

Manon✓ Verified2025-03-15

La charnière tient toutes ses promesses.
