Product data
Nickel-coated steel · EURO screws included

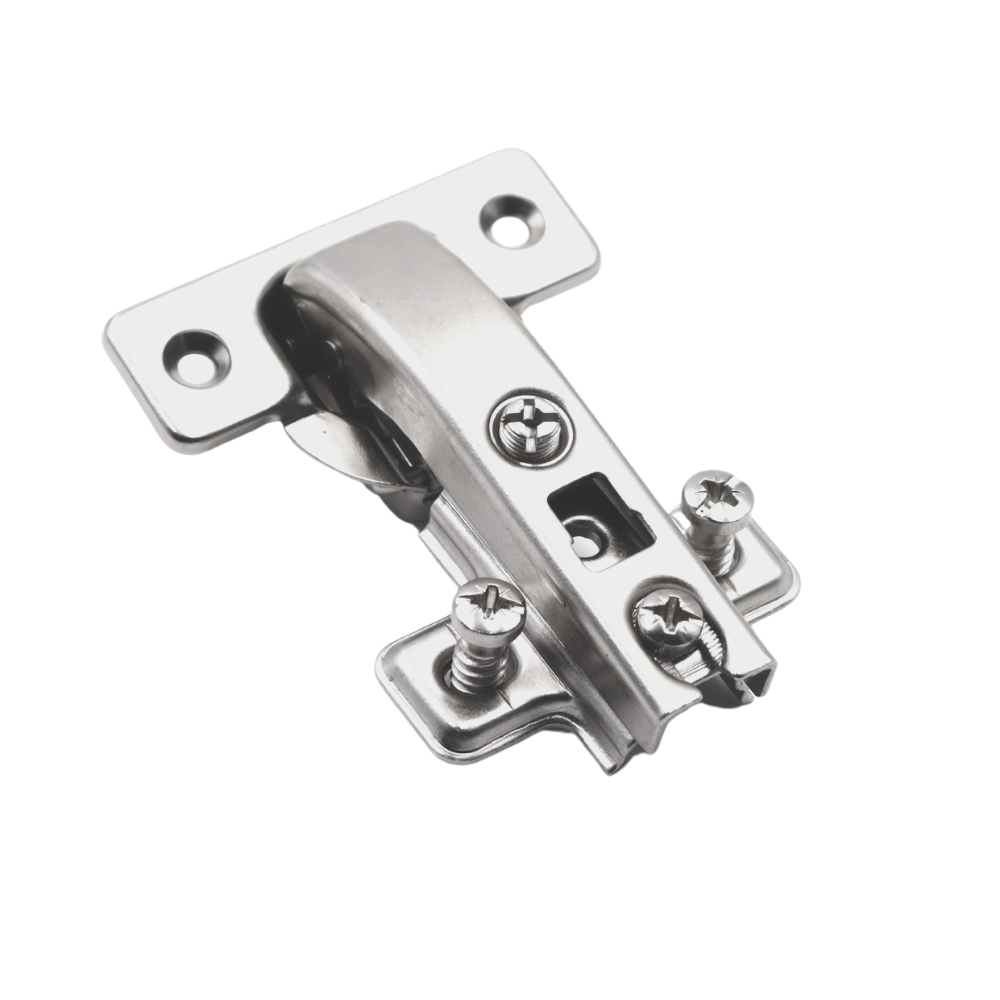

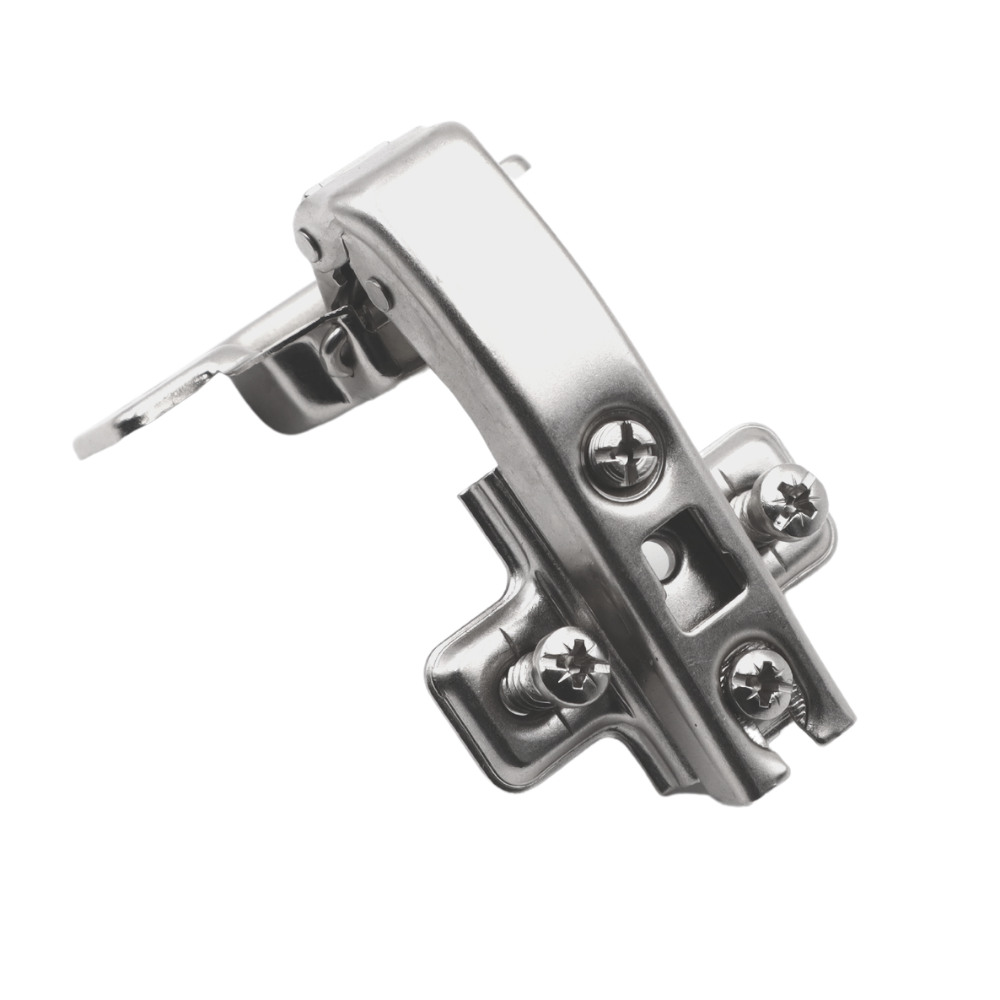

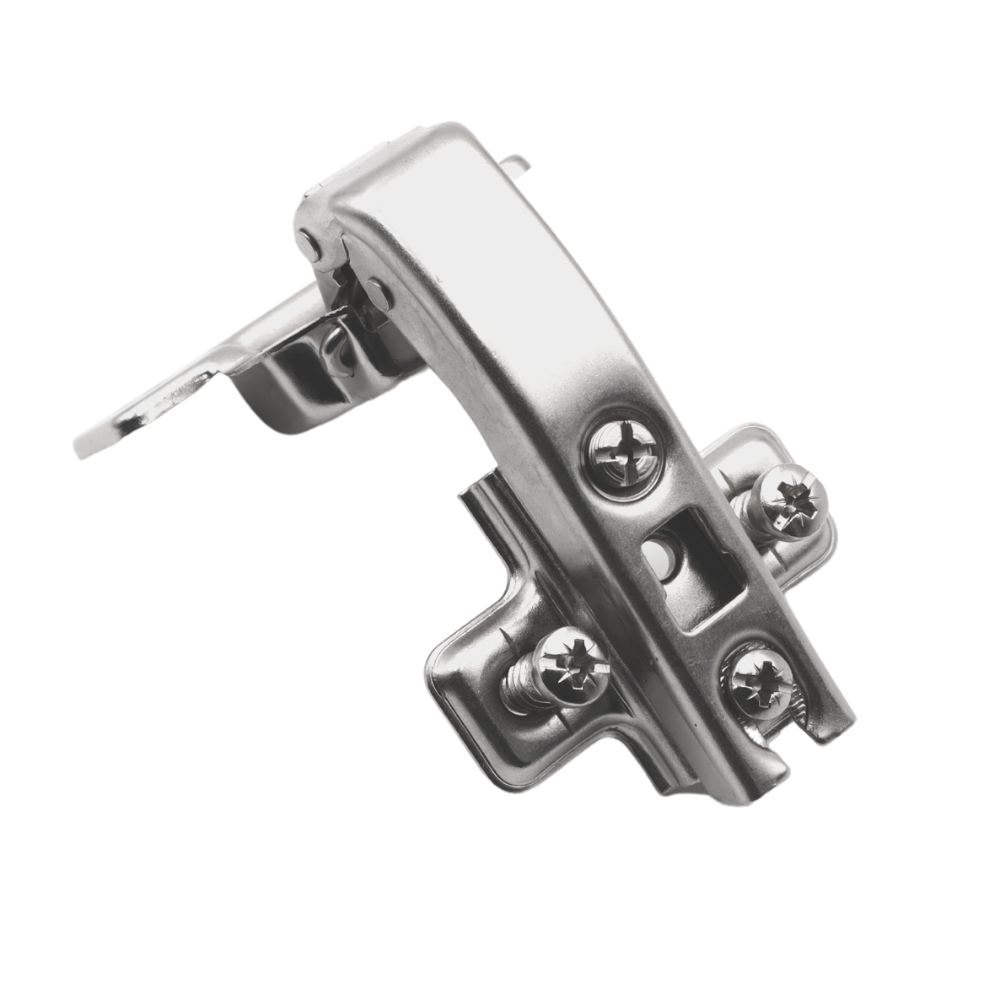

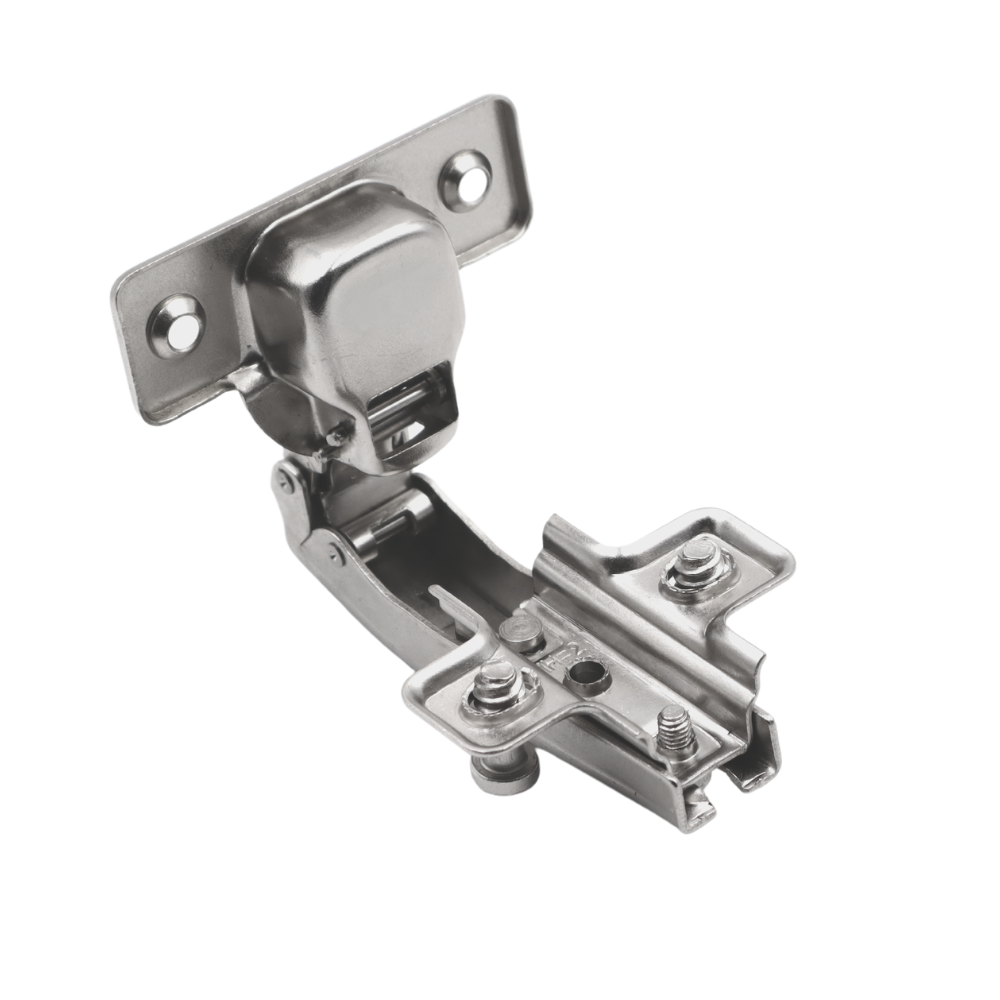

Hinge, H2 Mounting Plate with EURO Screws, Parallel Doors

This parallel door hinge is designed specifically for door fronts that sit in line with fixed blind panels or flush cabinet walls. Supplied with an H2 slide-on mounting plate and pre-fitted EURO screws for direct fitting into system hole lines.

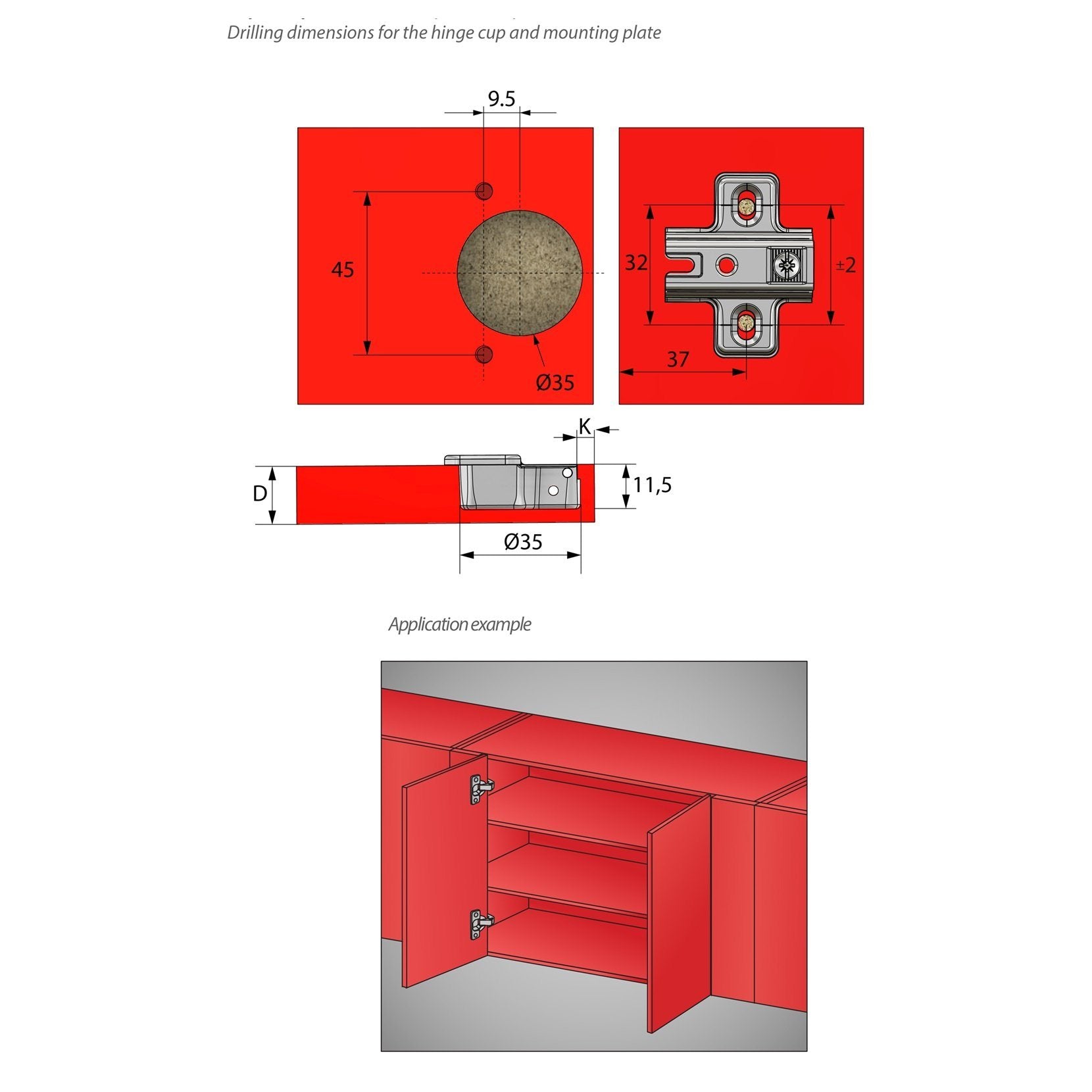

  • Hinge cup diameterØ 35 mm

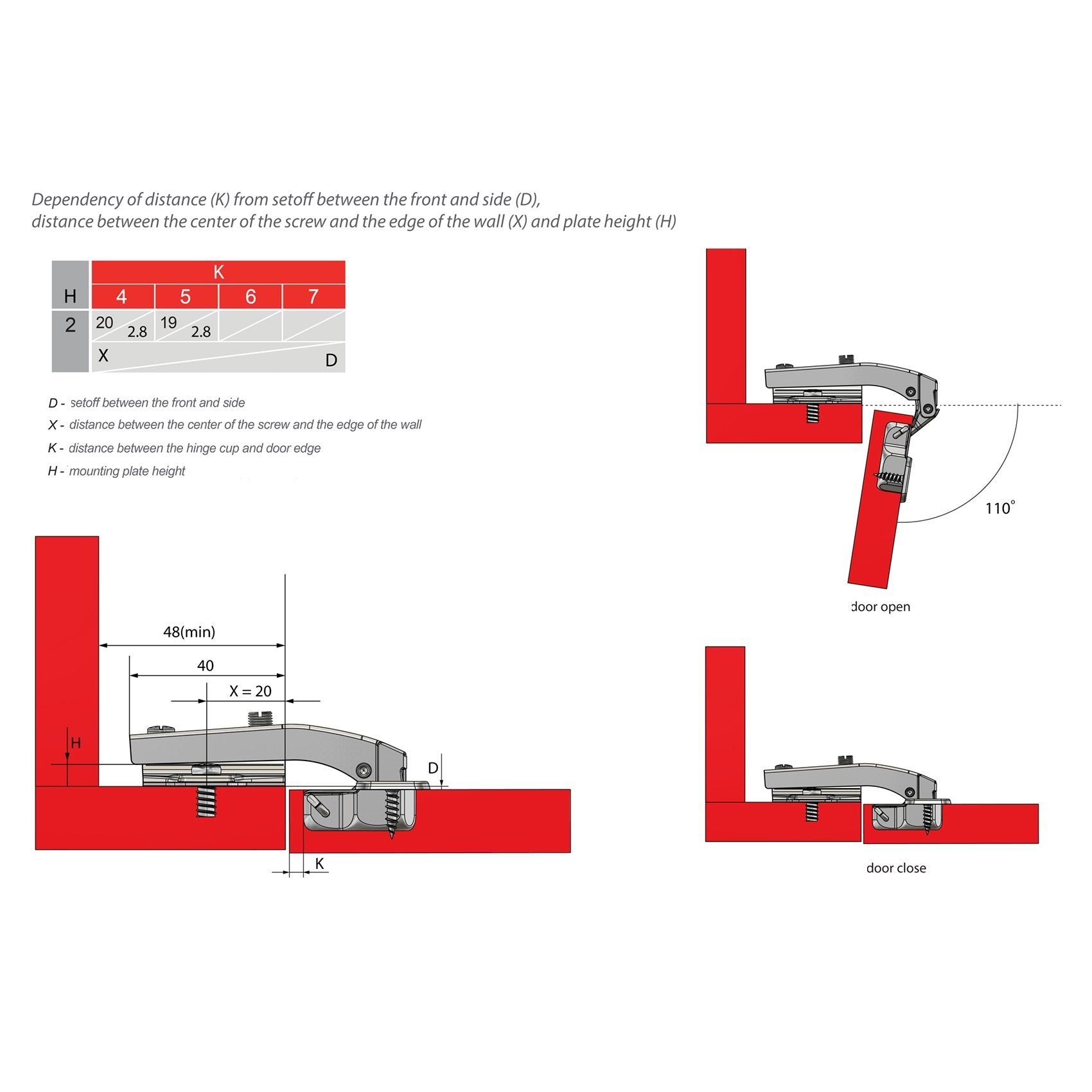

  • Opening angle110°
  • Suitable forParallel doors
  • Mounting plate typeSlide-On
  • MaterialNickel-coated steel
  • Included partsEURO screws
Hinge, H2 Mounting Plate with EURO Screws, Parallel Doors

Concealed 110° hinge for parallel door fronts

Designed for in-line cabinet constructions, this specialised fitting allows cupboard doors to mount flush alongside adjoining corner posts or blanking panels. The standard Ø 35 mm hinge cup fits standard concealed hinge mortises, making it straightforward to install on kitchen and storage cabinets.

  • Parallel door geometry: Engineered specifically to hang doors flush alongside inline filler panels and blind corner posts.

  • Standard Ø 35 mm cup: Fits industry-standard cup drillings directly without the need for bespoke door routing.

  • Supplied with EURO screws: Allows secure, wobble-free fixing of the mounting plate directly into pre-drilled 5 mm cabinet holes.

  • Wide 110° opening: Provides clear, unobstructed access to the cupboard interior when the door is fully opened.

Where to install parallel door hinges

  • KitchenBlind corner kitchen base units

    Ideal when a door must open adjacent to a static corner blanking panel in an L-shaped kitchen layout.

  • JoineryCupboards with structural side posts

    Provides the required clearance and pivot point for fronts mounted parallel to continuous cabinet pillars.

  • OfficeModular storage units with system holes

    The included EURO screws fix directly into pre-drilled side panel holes for fast cabinet assembly.

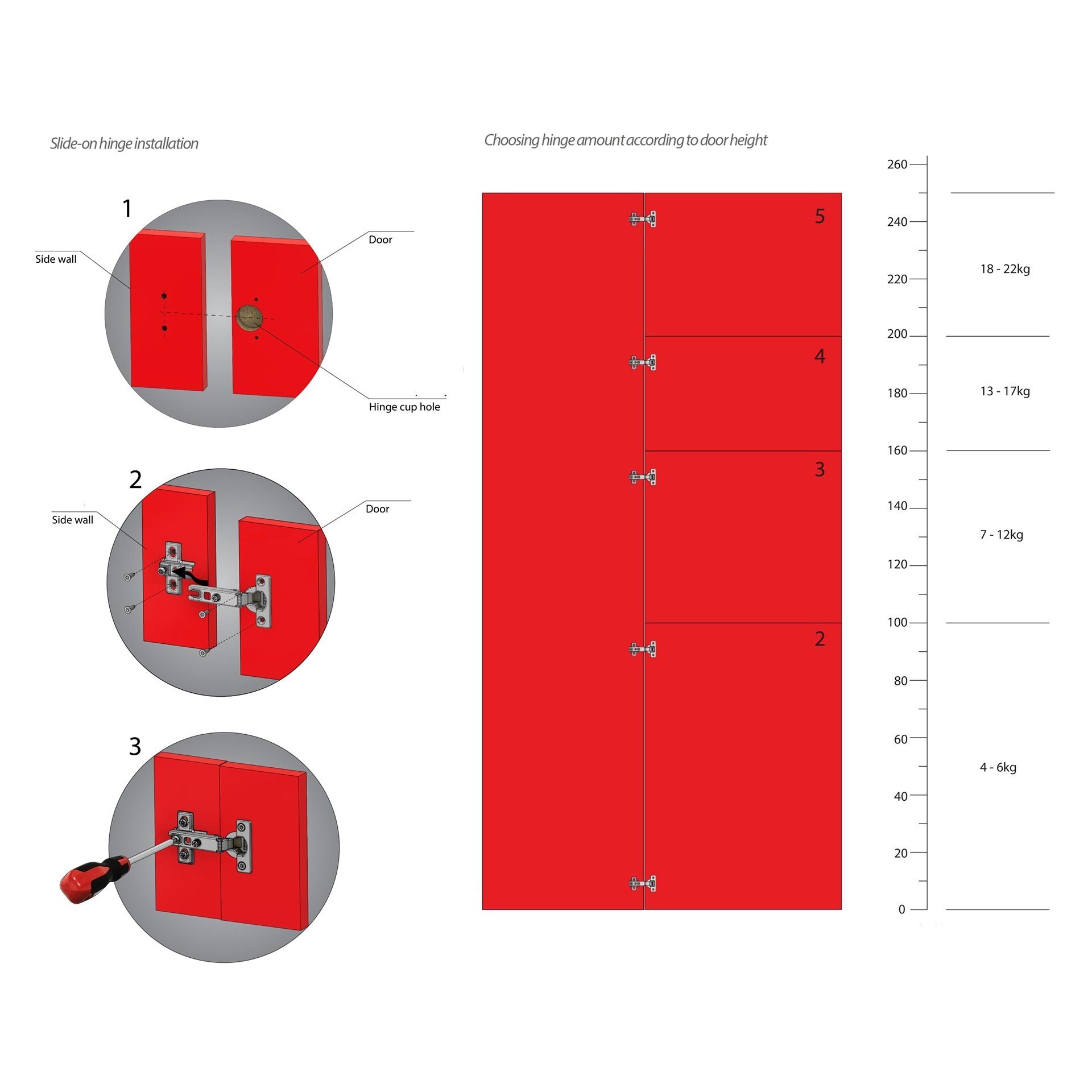

Fitting the parallel door hinge

Includes H2 mounting plate and EURO screws
  1. 1
    Fit the hinge cup

    Insert the Ø 35 mm cup into the pre-drilled door hole and secure it using fixing screws.

  2. 2
    Attach the mounting plate

    Fasten the H2 mounting plate to the cabinet side panel using the supplied EURO screws.

  3. 3
    Slide on and adjust

    Slide the hinge arm onto the mounting plate and tighten the fixing screw to lock the door in position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
No
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35 mm
Material
Nickel-coated steel
Model
Parallel doors
Mounting plate height
H0
Mounting plate type
Slide-on
Opening angle
110°
Made for
Parallel doors
EAN
5060685600471
SKU
ZP08-H2E
