Full overlay cabinet hinges

Full overlay cabinet hinges

Full overlay cabinet hinges are another kind of hinges dedicated for kitchen units, especially those ones that should have covered the entire cabinet opening in when the front is closed. In this category you can see the best, highest quality full overlay cabinet hinges available at great price!

The main feature of this type of mounting accessories is that they guarantee a greater extension of the furniture front while keeping it tightly closed when closing the cabinet. As the name suggests, this mechanism works like an overlay. You will notice that the front of the cabinet will slide more forward when opened compared to using the standard, simplest hinges.



Soft Close

110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Technical data: Cabinet hinge 110° Soft-Close  Opening Angle: 110°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H0  Designed For: Overlay doors  Material: Nickel...

Technical data: Cabinet hinge 110° Soft-Close  Opening Angle: 110°  Soft-Close Yes  Cup...

In Stock
£1.01
Add to cart
Soft Close

110° Soft-Close Hinge, H0 Mounting Plate with EURO Screws and Covers, Overlay Doors

Technical data: Cabinet hinge 110° Soft-Close + Cover  Opening Angle: 110°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H0  Designed For: Overlay doors...

Technical data: Cabinet hinge 110° Soft-Close + Cover  Opening Angle: 110°  Soft-Close Yes...

In Stock
£1.05
Add to cart
Standard

165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

Technical data: Cabinet hinge 165° Overlay Doors  Opening Angle: 165°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H2  Designed For: Overlay doors  Material:...

Technical data: Cabinet hinge 165° Overlay Doors  Opening Angle: 165°  Soft-Close No  Cu...

In Stock
£2.14
Add to cart
Soft Close

Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Parallel Doors

Technical data: Cabinet hinge 110° Soft-Close Parallel Doors  Opening Angle: 110°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H2  Designed For: Parallel doors...

Technical data: Cabinet hinge 110° Soft-Close Parallel Doors  Opening Angle: 110°  Soft-Cl...

In Stock
£2.68
Add to cart
Standard

110° Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Technical data: Cabinet hinge 110° Overlay Doors  Opening Angle: 110°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H0  Designed For: Overlay doors  Material:...

Technical data: Cabinet hinge 110° Overlay Doors  Opening Angle: 110°  Soft-Close No  Cu...

In Stock
£0.60
Add to cart
Standard

Hinge type "FROG"

Technical data: Cabinet hinge 90° - FROG  Opening Angle: 90°  Soft-Close No  Material: Nickel coated steel  Colour: Chrome   High quality at a great price Furnica supplies...

Technical data: Cabinet hinge 90° - FROG  Opening Angle: 90°  Soft-Close No  Material: N...

In Stock
£0.60
Add to cart
Soft Close

+45º Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

Technical data: Cabinet hinge 45° Soft-Close Angled Doors  Opening Angle: 45°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H2  Designed For: Angled doors...

Technical data: Cabinet hinge 45° Soft-Close Angled Doors  Opening Angle: 45°  Soft-Close ...

In Stock
£2.85
Add to cart
Soft Close

3D Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Technical data: Cabinet hinge 110° Soft-Close 3D  Opening Angle: 110°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H0  Designed For: Overlay doors  Material:...

Technical data: Cabinet hinge 110° Soft-Close 3D  Opening Angle: 110°  Soft-Close Yes  ...

Out Stock
Sold Out
Standard

Hinge, H2 Mounting Plate with EURO Screws, Parallel Doors

Technical data: Cabinet hinge 110° Parallel doors  Opening Angle: 110°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H2  Designed For: Parallel doors  Material:...

Technical data: Cabinet hinge 110° Parallel doors  Opening Angle: 110°  Soft-Close No  C...

In Stock
£1.34
Add to cart
Standard

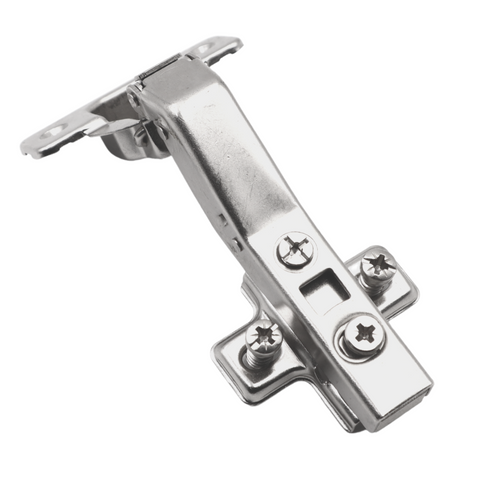

135º Angular Hinge, H2 Mounting Plate with EURO Screws, Corner Doors

Technical data: Cabinet hinge 135° Corner Doors  Opening Angle: 135°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H2  Designed For: Corner doors...

Technical data: Cabinet hinge 135° Corner Doors  Opening Angle: 135°  Soft-Close No  Cup ...

In Stock
£1.10
Add to cart
Standard

+45º Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

Technical data: Cabinet hinge 45° Angled Doors   Opening Angle: 45°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H2  Designed For: Angled doors  Material:...

Technical data: Cabinet hinge 45° Angled Doors   Opening Angle: 45°  Soft-Close No  Cup ...

In Stock
£0.91
Add to cart
Soft Close

+30º Soft-Close Hinge, H2 Mounting Plate, Angled Doors

Technical data: Cabinet hinge 30° Soft-Close Angled Doors  Opening Angle: 30°  Soft-Close Yes  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Clip-On  Mounting Plate Height: H2  Designed For: Angled doors...

Technical data: Cabinet hinge 30° Soft-Close Angled Doors  Opening Angle: 30°  Soft-Close ...

In Stock
£2.78
Add to cart
Standard

+30º Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

Technical data: Cabinet hinge 30° Angled doors  Opening Angle: 30°  Soft-Close No  Cup Hole Diameter: Ø35mm  Mounting Plate Type: Slide-On  Mounting Plate Height: H2  Designed For: Angled doors  Material:...

Technical data: Cabinet hinge 30° Angled doors  Opening Angle: 30°  Soft-Close No  Cup H...

In Stock
£0.85
Add to cart

Why should you choose full overlay cabinet hinges?

Full overlay cabinet hinges are an excellent choice if you have a furniture cabinet whose front largely covers the front edge of the cabinet's side. This type of furniture hinge will also work when you want to freely open the cabinet door so that it gently slides over the line of the frame. Moreover, the vast majority of full overlay cabinet hinges are known for their durability and reliability.

However, you must remember that the overlay doors and overlay hinges cover slightly less than half of the side of the furniture. This is the reason why full overlay cabinet hinges are mostly used in single kitchen units. By mounting these hinges to a cabinet that consists of a pair of doors, we may have more difficulty in controlling the vertical gap between the two parts of the furniture fronts.



Full overlay hinges - classic, partial wrap, institutional

Actually there are plenty of sub-types of full overlay cabinet hinges. The most common ones are probably those with H0 mounting plates and standard screw regulation mechanism. You will find them in our store in many versions such as zinc-alloy, steel, stainless steel and nickel made full overlay cabinet hinges.

We can also distinguish overlay partial wrap hinges, which are usually mounted flat to the furniture and take up very little space. The opposite are the visually less attractive institutional furniture hinges, which consist of a swivel mechanism and two mounting plates (one for the furniture frame, one for the furniture front). Do not hesitate - check all products in this category and choose the best full overlay cabinet hinges!
