165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

4.93 1,491 reviews
£2.14 Incl. VAT
£2.14 Incl. VAT
Soft-close damping: No
Model: 165° overlay doors
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£2.04 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Bestsellers

More hinges

The best-selling products in this category.

Product data
Nickel-coated steel · Wide angle · Slide-on

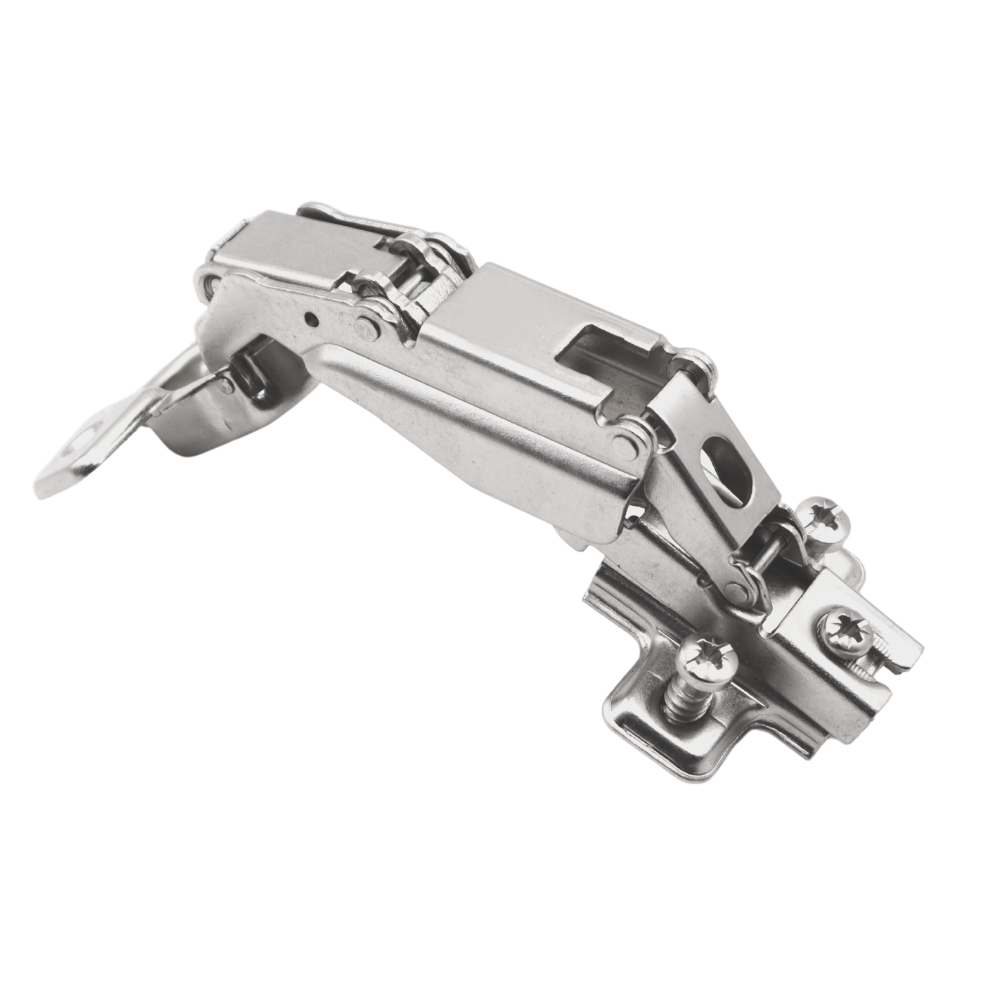

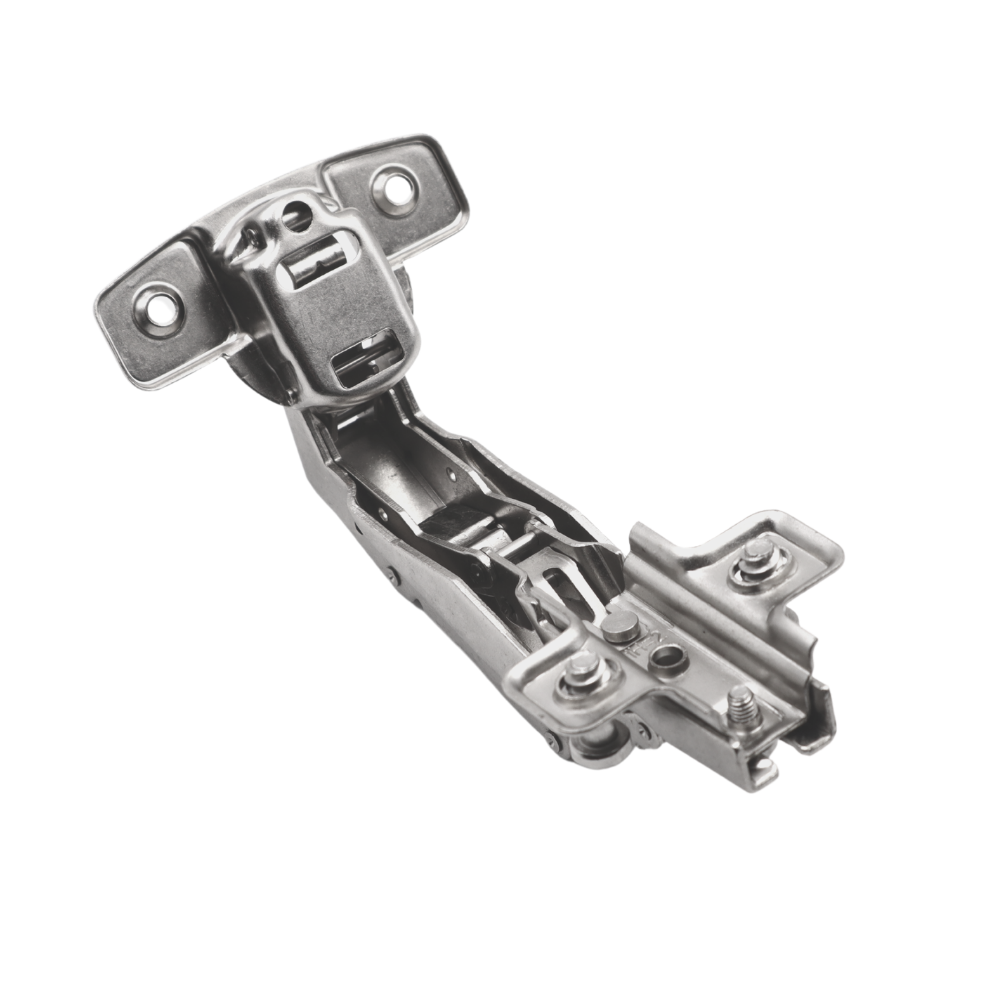

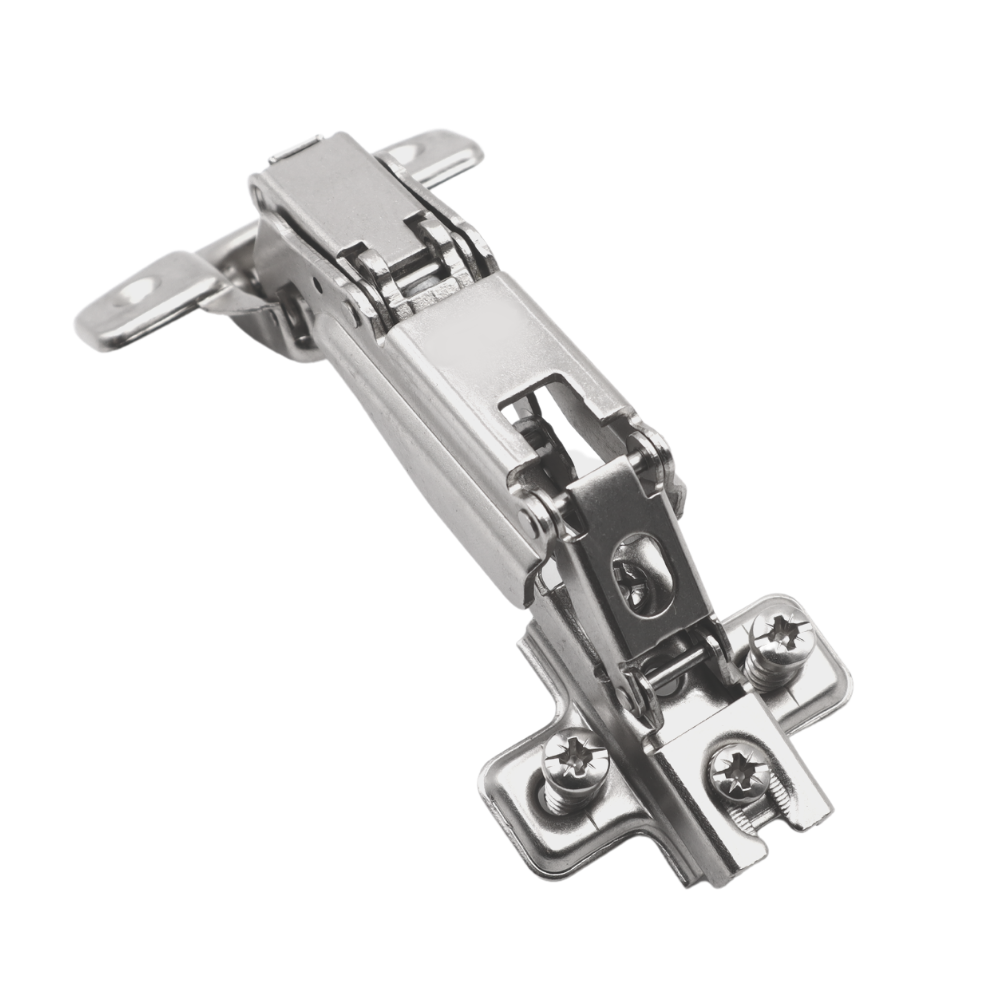

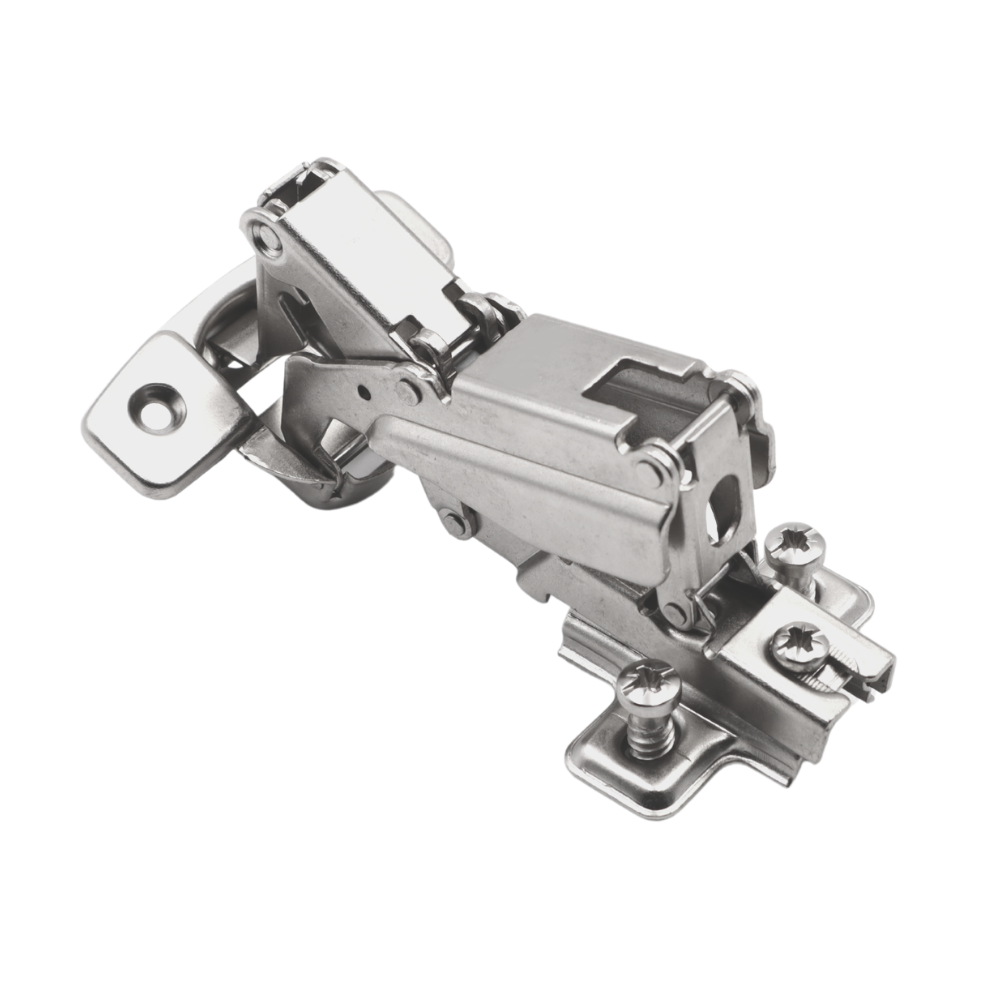

165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

A wide-opening cabinet hinge designed for overlay doors, providing a full 165° opening angle for unobstructed access to interior drawers and corner units.

  • Opening angle165°

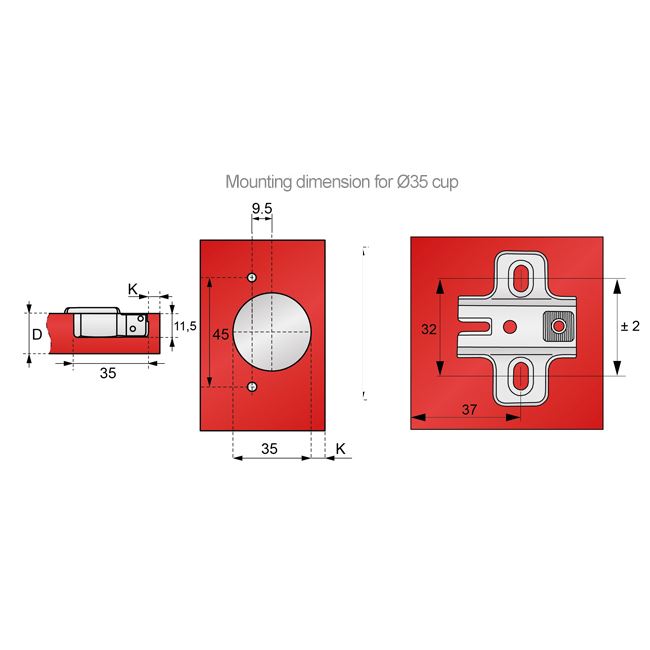

  • Hinge cup diameterØ35mm
  • Mounting plate heightH2
  • Mounting plate typeSlide-On
  • MaterialNickel-coated steel
  • Soft closeNo
165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

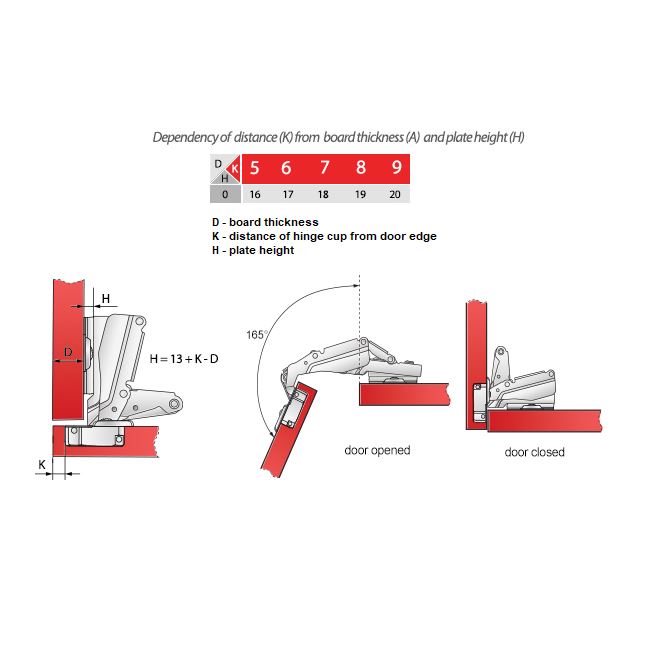

165° opening angle with H2 mounting plate

This 165º hinge door fitting allows cabinet doors to fold back completely out of the frame opening. It is built from nickel-coated steel with a chrome finish and attaches to standard overlay doors using an H2 slide-on mounting plate.

  • Wide 165° opening: Clears the doorway completely so internal drawers and pull-out wirework can extend without catching the door edge.

  • Standard Ø35mm cup: Fits industry-standard Ø35mm hinge drillings for straightforward replacement of worn fittings.

  • Included EURO screws: Supplied with matching EURO screws to secure the H2 slide-on plate firmly into pre-drilled cabinet system holes.

  • Durable steel build: Nickel-coated steel construction ensures rigid support and smooth daily movement for heavy-use doors.

Where a 165° overlay hinge is required

  • KitchenCabinets with internal pull-outs

    Allows kitchen cabinet hinges to swing doors wide open so inner wire baskets and cutlery drawers slide out freely.

  • StorageCorner cupboards

    Provides broad access across wide corner openings where standard limited-angle hinges restrict reaching inside.

  • RetrofitReplacing standard hinges

    Upgrades standard kitchen cupboard hinges on overlay cabinets to wide-angle access using the existing Ø35mm door routings.

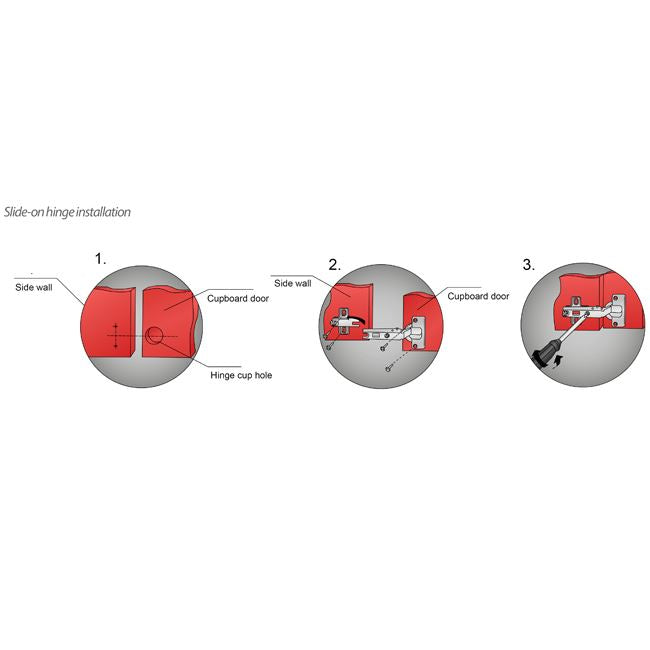

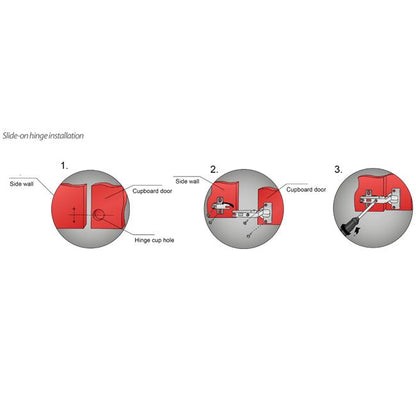

Fitting the hinge and mounting plate

Includes H2 slide-on mounting plate and EURO screws
  1. 1
    Fit the hinge cup

    Insert the Ø35mm hinge cup into the pre-drilled recess on the back of the overlay door and fix it securely.

  2. 2
    Attach the H2 plate

    Fasten the H2 mounting plate to the cabinet side panel using the supplied EURO screws.

  3. 3
    Slide on and adjust

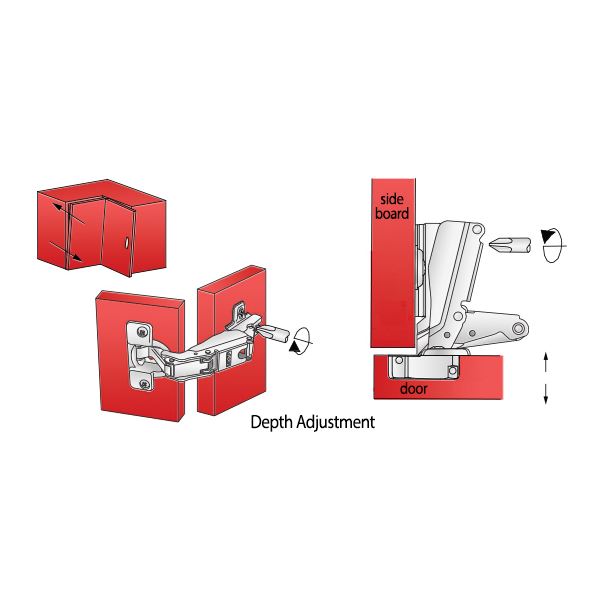

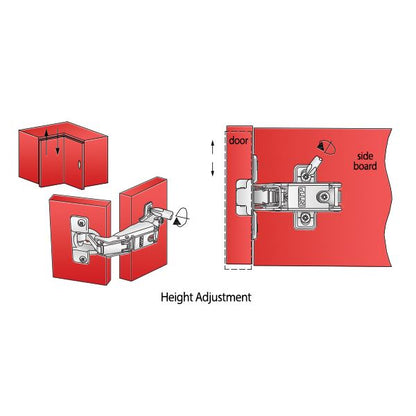

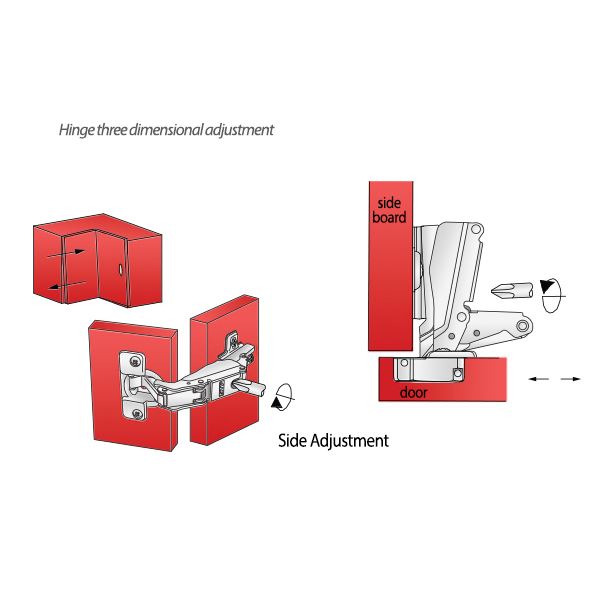

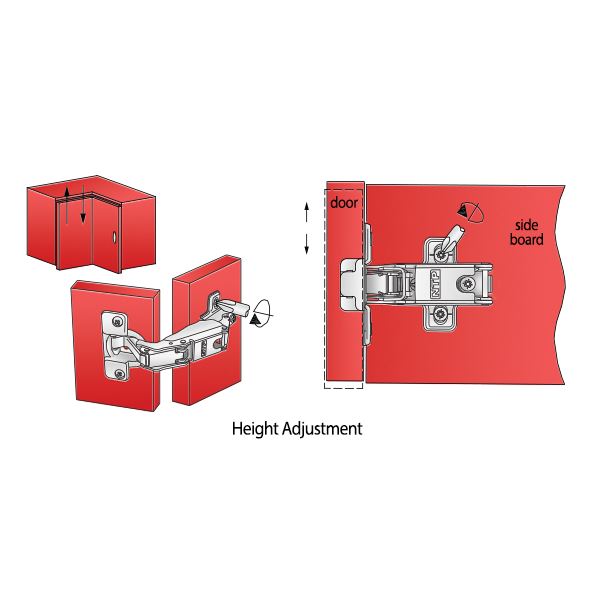

    Slide the hinge arm onto the H2 plate, tighten the fixing screw to lock it, and adjust the door alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
No
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35mm
Material
Nickel-coated steel
Model
165° overlay doors
Mounting plate height
H2
Mounting plate type
Slide-on
Opening angle
165°
Made for
Corner mounting
EAN
5060685600396
SKU
ZP04-H2E
