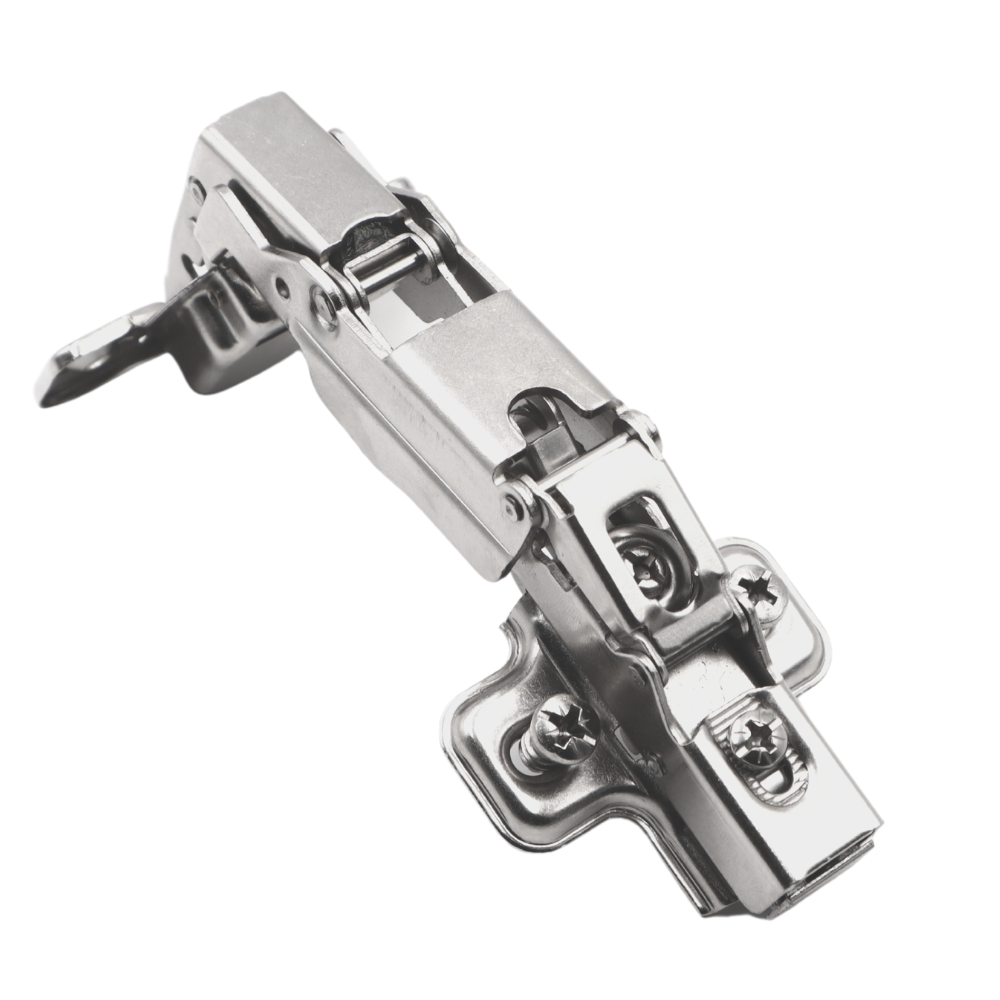

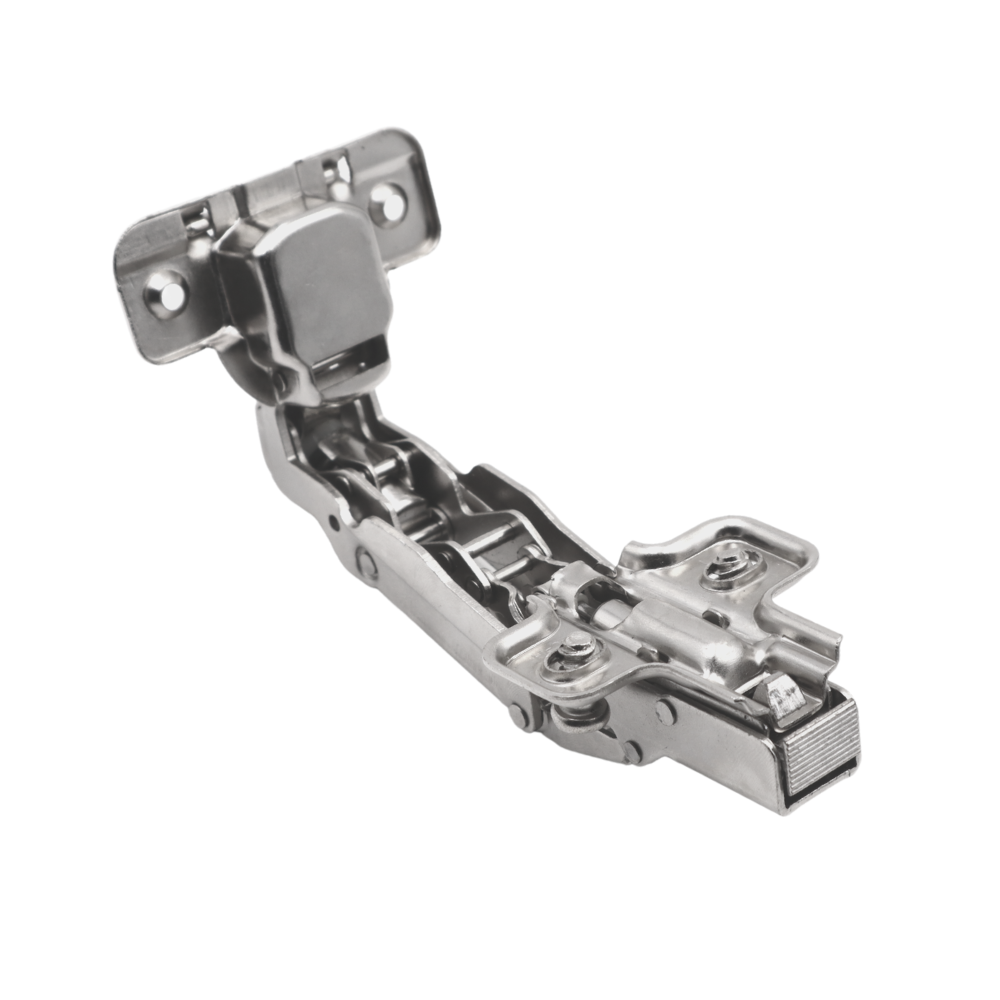

165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

Name: 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors
Brand: Furnica
SKU: ZPCS04R-H2E
Price: 4.70 GBP
Availability: InStock
Rating: 4.93 (1491 reviews)

4.93 1,491 reviews

£4.70 Incl. VAT

Soft-close damping: Yes

Model: 165° 3D Soft-Close overlay doors

Buy more, save more

5 pcs

10 pcs

20 pcs

50 pcs

4 more to reach −5 % (£4.47 / pc.)

Estimated delivery time: 2–5 working days

Free delivery over £49.99

14-day returns

Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Bestsellers

More hinges

The best-selling products in this category.

Product data

Steel · Overlay doors · EURO screws included

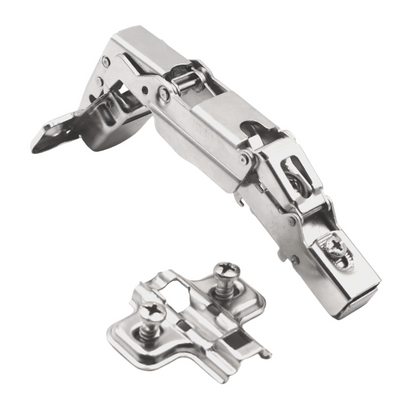

165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

This wide-angle soft close hinge opens up to 165° to give unhindered access to corner cabinets and internal drawers. Supplied with an H2 clip-on mounting plate and EURO screws for overlay door setups.

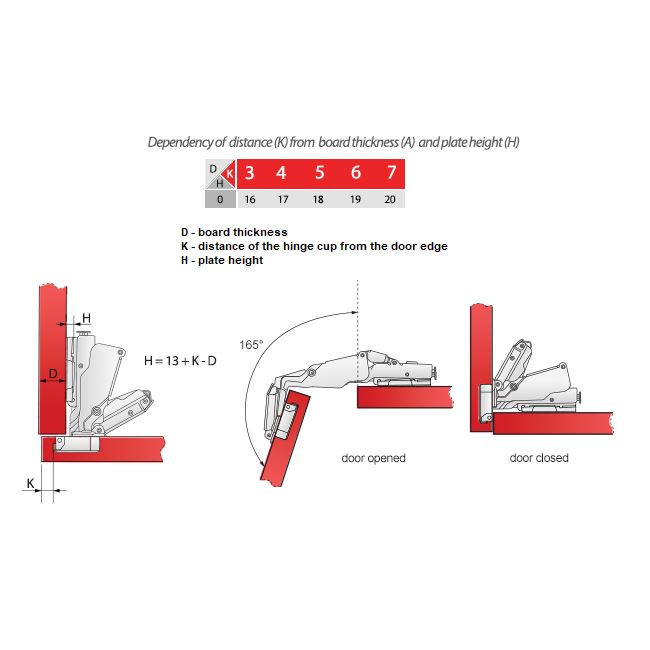

Opening angle165°
Hinge cup diameterØ 35 mm
Soft closeYes
Suitable forOverlay doors
Mounting plate heightH2
MaterialNickel coated steel

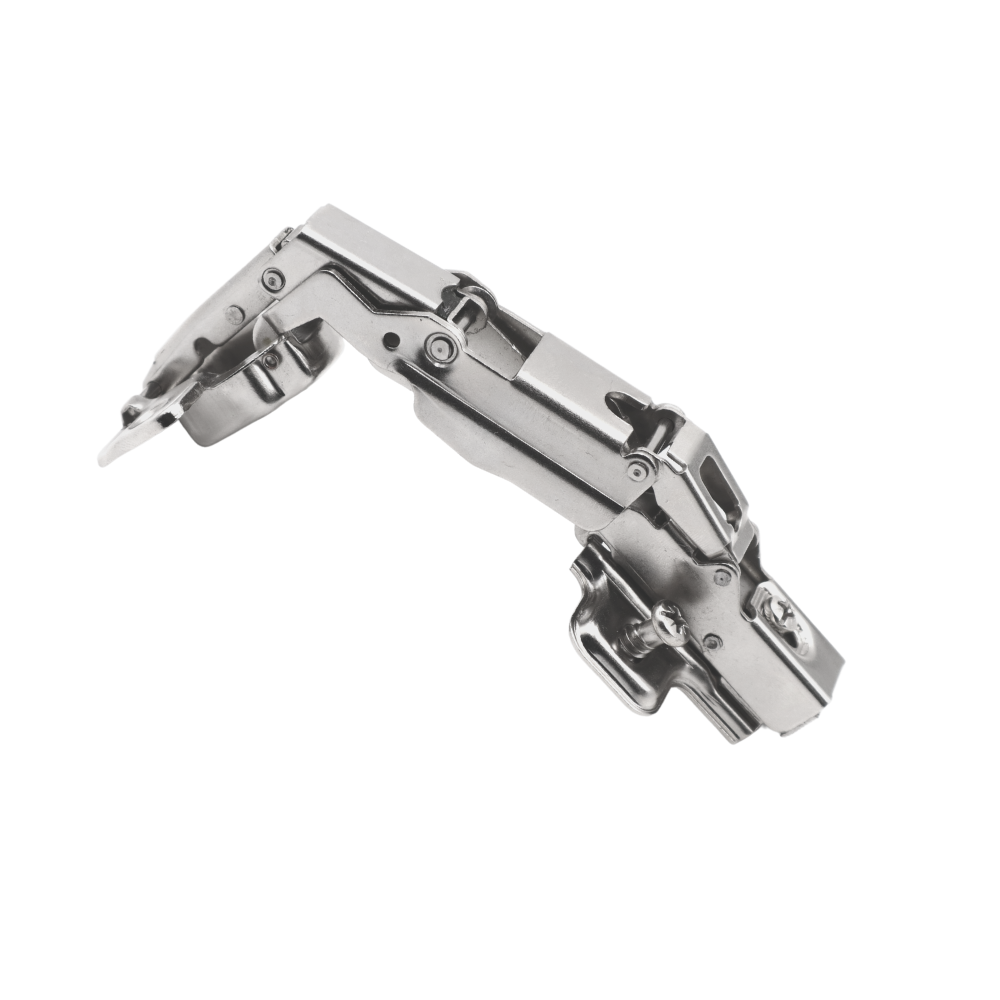

165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

165° wide-angle hinge for Ø 35 mm cup holes

The 165° soft close hinge is designed for overlay cabinet doors requiring an extra-wide opening angle. Built from nickel coated steel in a chrome finish, it features integrated damping for quiet, controlled closing.

165° wide opening angle: Moves the door completely clear of the cabinet opening so internal drawers and pull-outs slide out without obstruction.
Integrated soft-close mechanism: Cushions the door during closure to prevent slamming and pull the front shut smoothly.
Standard Ø 35 mm cup: Fits standard 35 mm hinge drillings for straightforward replacements or new kitchen cabinet builds.
H2 plate with EURO screws: Includes an H2 clip-on mounting plate and matching EURO screws for a secure hold in pre-drilled side panels.

Ideal applications for 165° overlay hinges

KitchenCorner cabinets and larder units
Allows kitchen cupboard hinges to swing wide, ensuring full reach into deep shelves and carousels.
StorageCabinets with internal drawers
Keeps the door front clear of the internal opening so pull-out trays slide freely without catching the door edge.
RetrofitUpgrading older overlay doors
Direct replacement for existing Ø 35 mm concealed hinges where soft closing and wider access are needed.

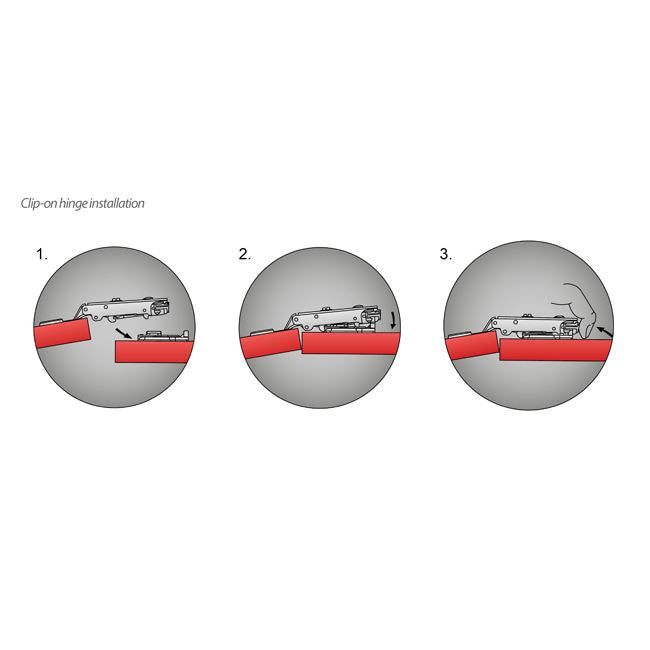

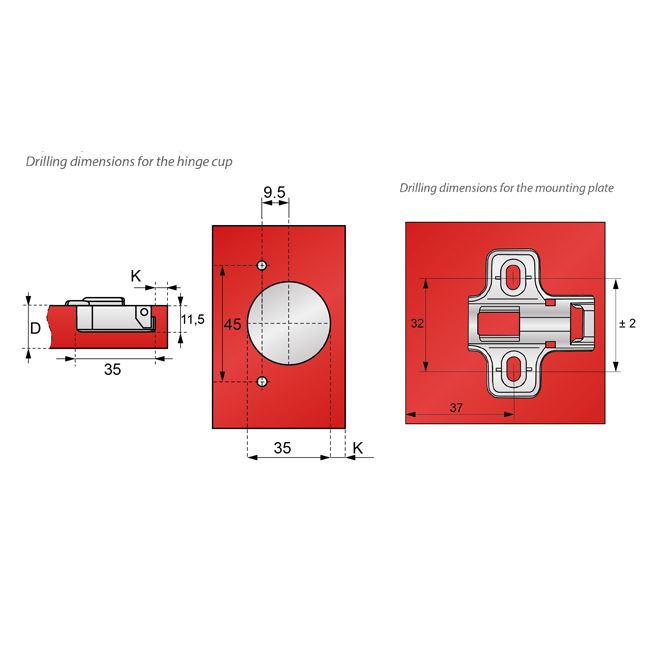

Fitting the 165° hinge and mounting plate

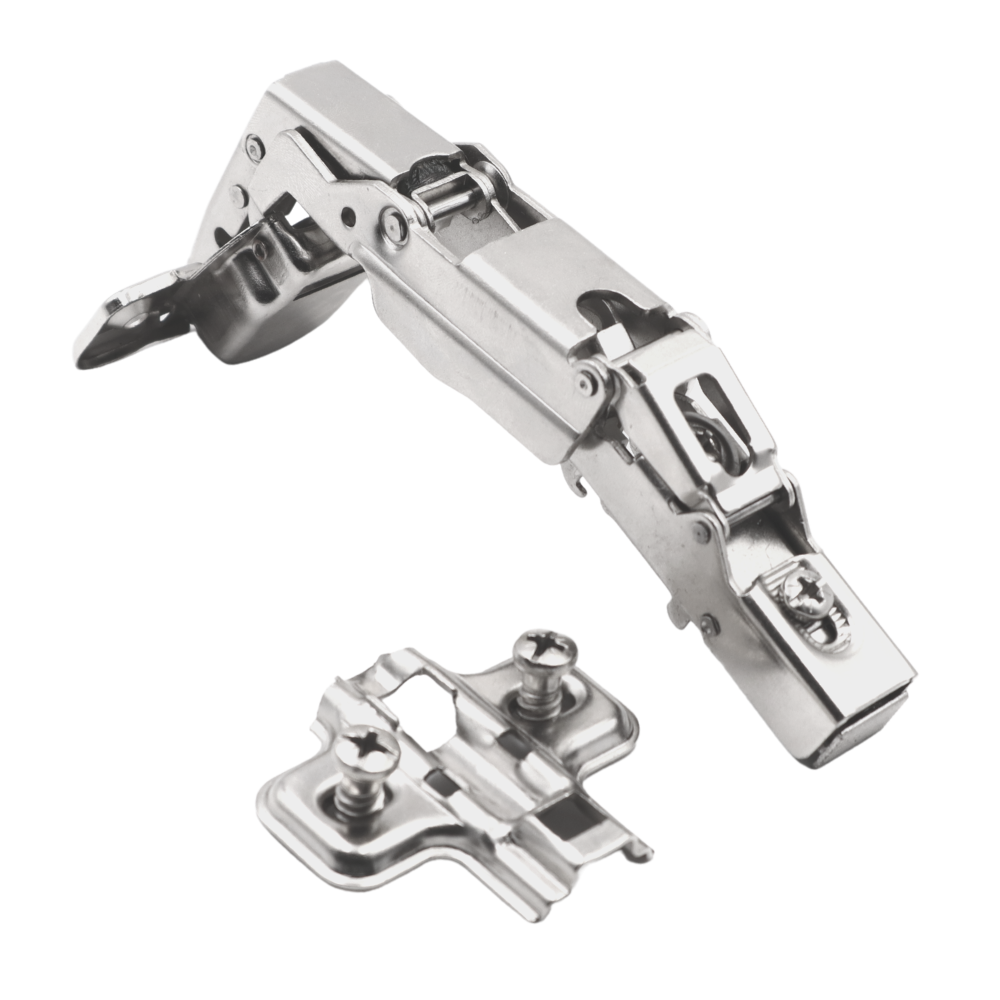

Includes H2 mounting plate and EURO screws

1
Fit the H2 mounting plate
Secure the H2 mounting plate to the cabinet side panel using the supplied EURO screws.
2
Insert the hinge cup
Place the Ø 35 mm hinge cup into the door recess and secure it firmly in alignment.
3

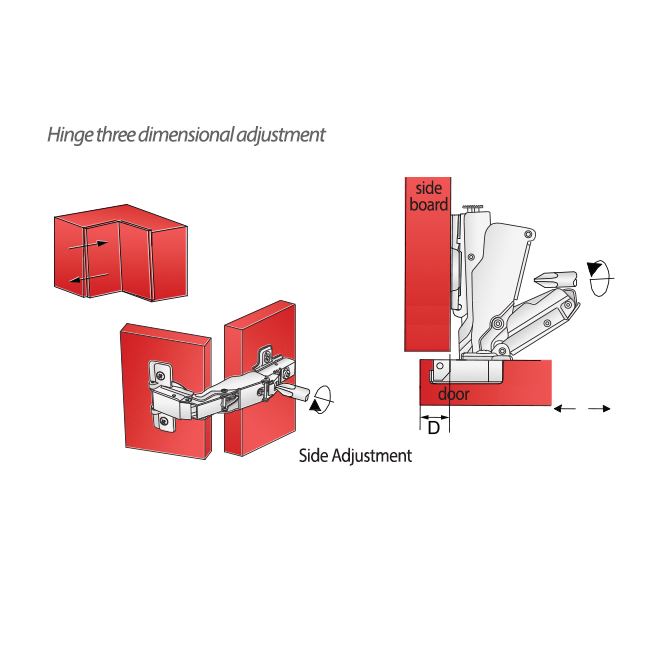

Clip on and adjust

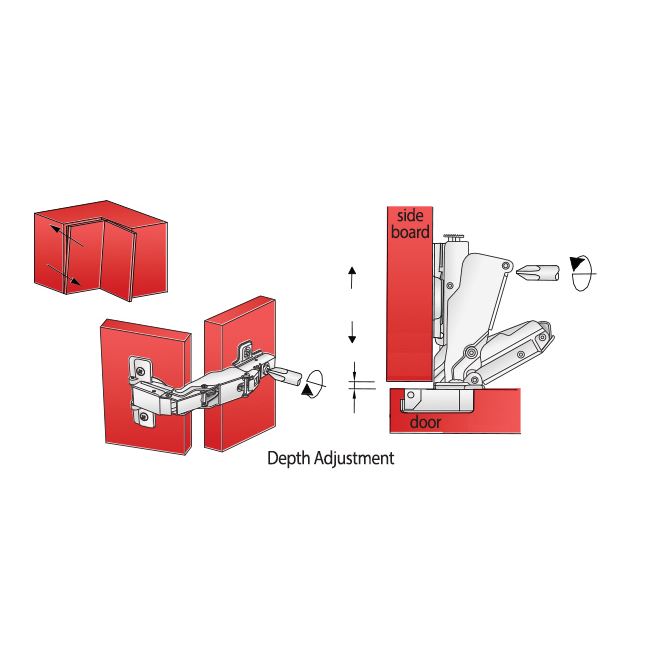

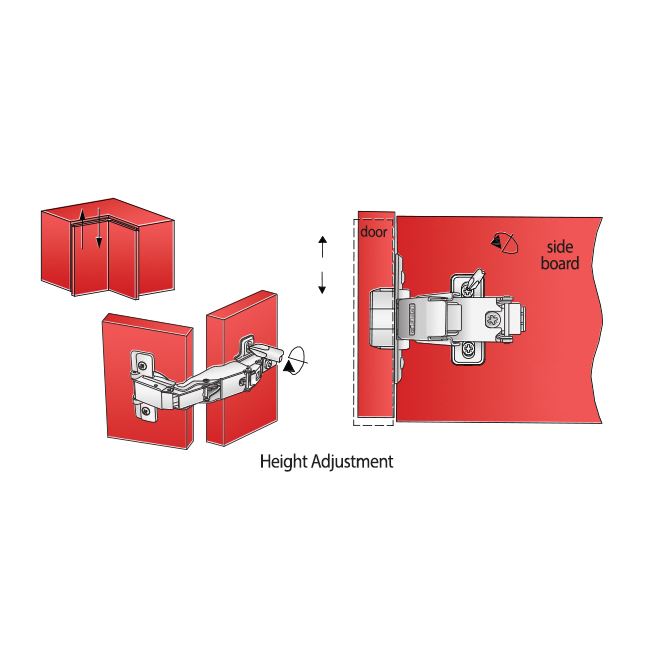

Clip the hinge arm onto the mounting plate and use the integrated adjustment screws to align the door front.

2–5 working daysEstimated delivery time
Free deliveryon orders over £49.99
14 daysReturns & exchanges
Shop Pay · Apple PayGoogle Pay & cards

Technical data

Attribute	Value
Soft-close damping	Yes
Included in set	Euro screws
Colour	Chrome
Hinge cup diameter	Ø35mm
Material	Nickel-coated steel
Model	165° 3D Soft-Close overlay doors
Mounting plate height	H2
Mounting plate type	Clip-on
Opening angle	165°
Made for	Overlay doors
EAN	5060685600389
SKU	ZPCS04R-H2E

Reviews (1491)

4.93 Based on 1491 reviews

5★ 1400

4★ 80

3★ 11

2★ 0

1★ 0

Oliver✓ Verified2026-06-12

All good

John✓ Verified2026-05-26

All good

Josh✓ Verified2026-05-21

Great! The hinge glides smoothly and quietly. Highly recommend.

Harry✓ Verified2026-05-10

Great

Kate✓ Verified2026-04-28

The hinge came fast and fits perfectly.

James✓ Verified2026-04-17

The hinge closes softly on its own.

William✓ Verified2026-04-05

Really pleased! The hinge is convincing all round. Nothing to complain about.

Sam✓ Verified2026-03-23

The hinge is a clear recommendation. Completely satisfied.

Jessica✓ Verified2026-02-17

All good! The hinge closes securely and holds well.

Ben✓ Verified2026-02-17

The hinge is really well made. Completely satisfied.

John✓ Verified2026-02-17

The hinge is worth every penny.

Liam✓ Verified2026-02-05

The hinge was quick to fit and holds firmly. Clear instructions.
