Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Flush Doors

Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Flush Doors

4.9 91 reviews
£1.19 Incl. VAT
£1.19 Incl. VAT
Soft-close damping: Yes
Model: 110° Soft-Close inset doors
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£1.14 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Nickel-coated steel · Clip-on mechanism

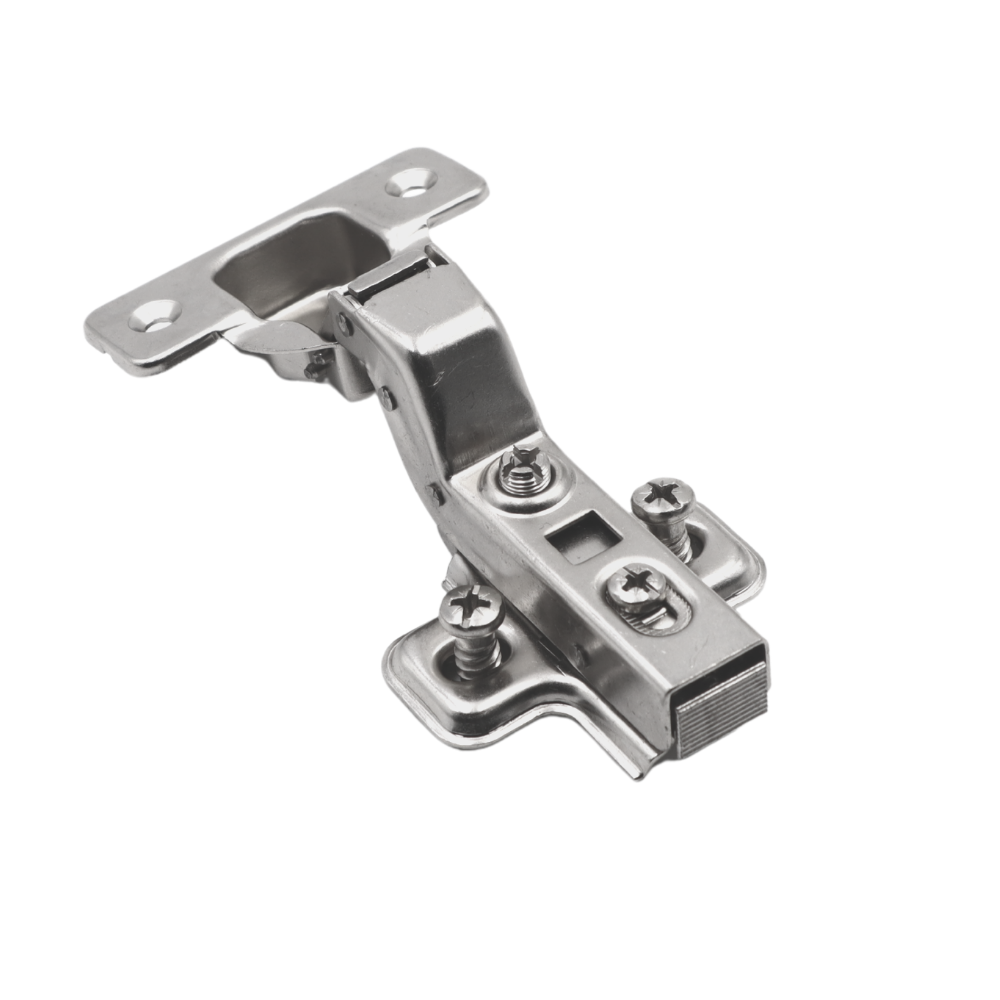

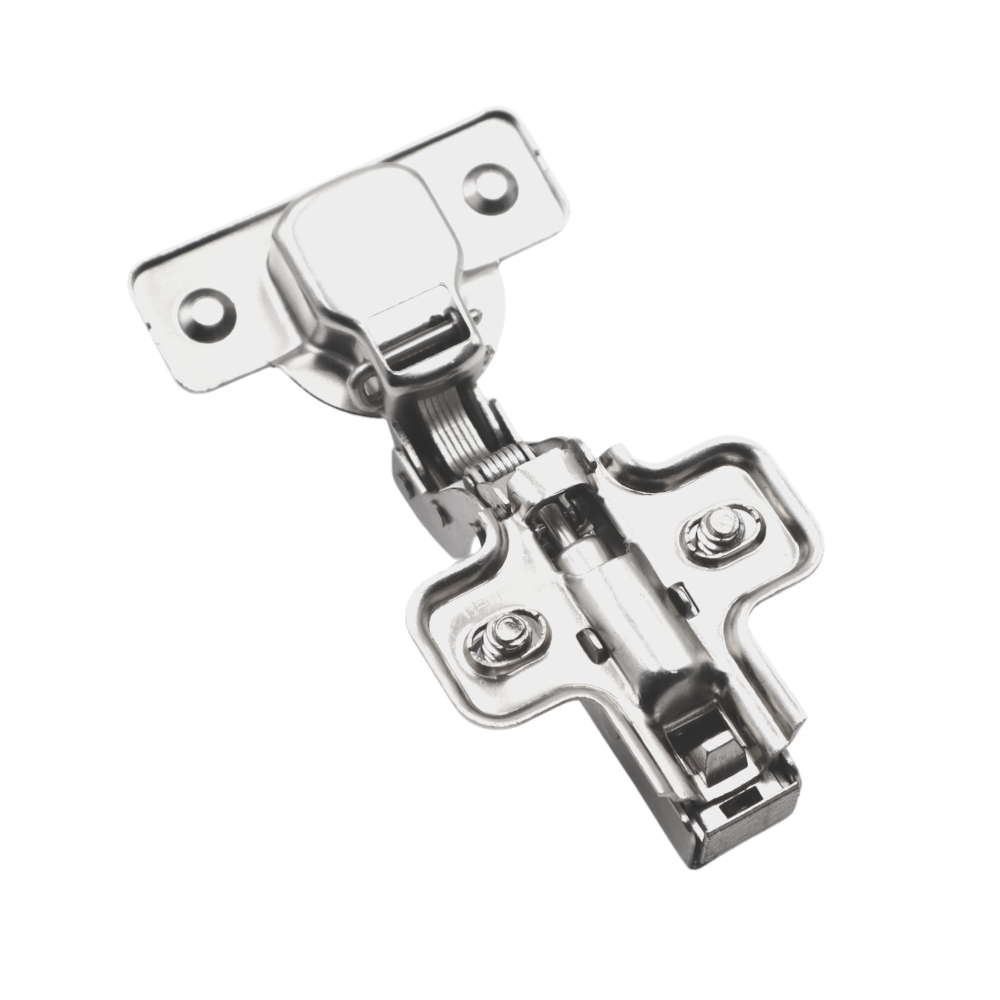

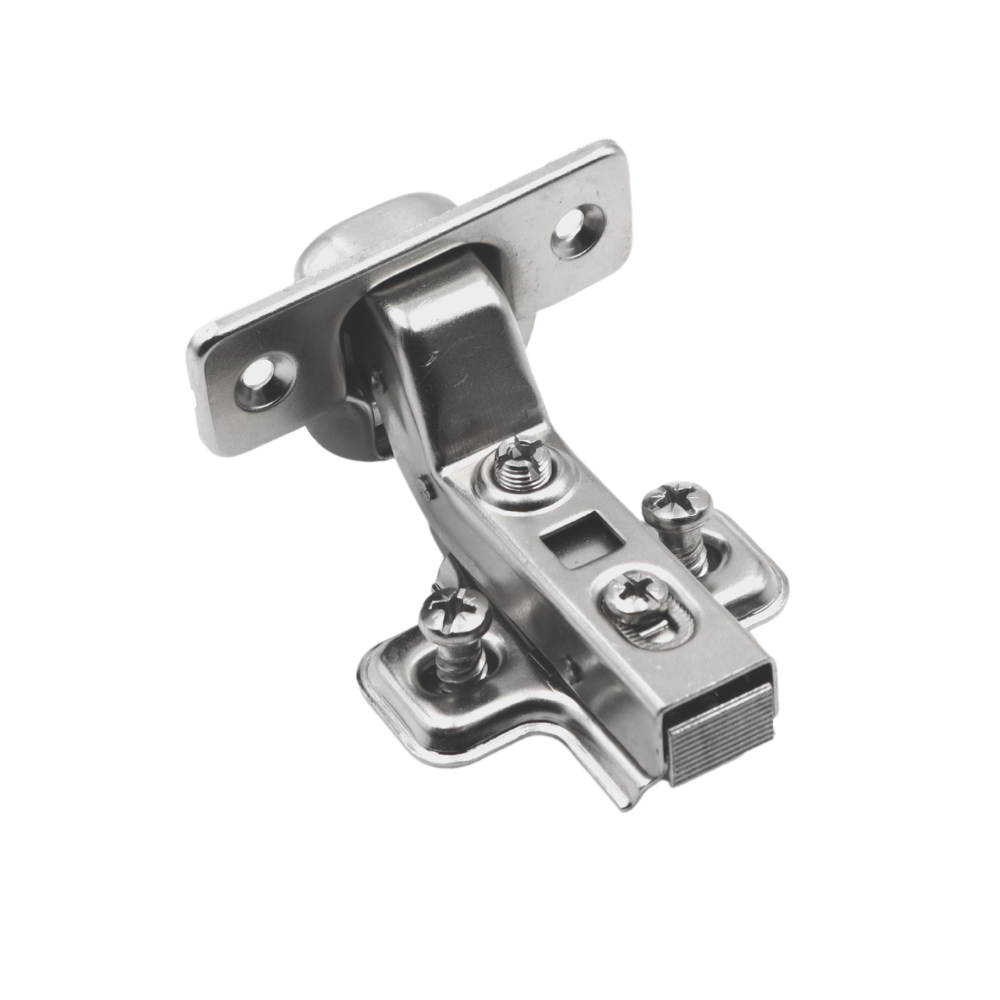

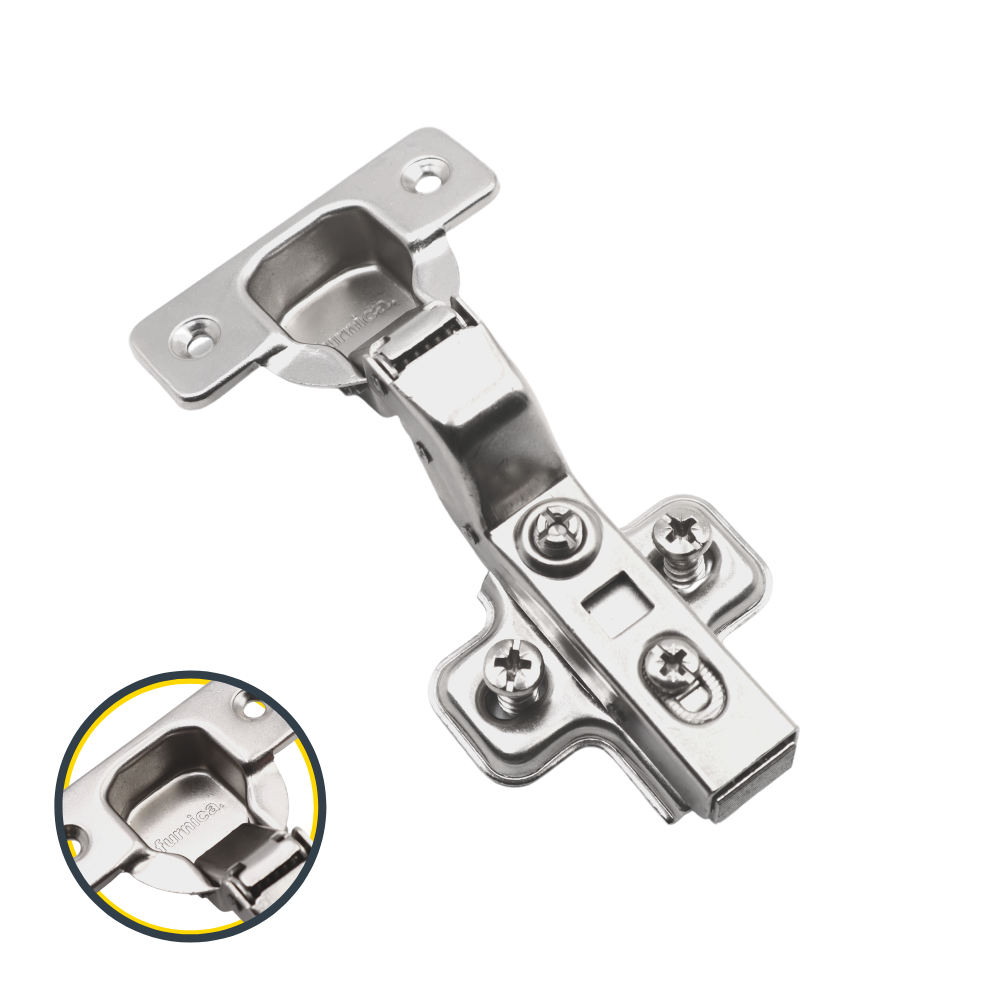

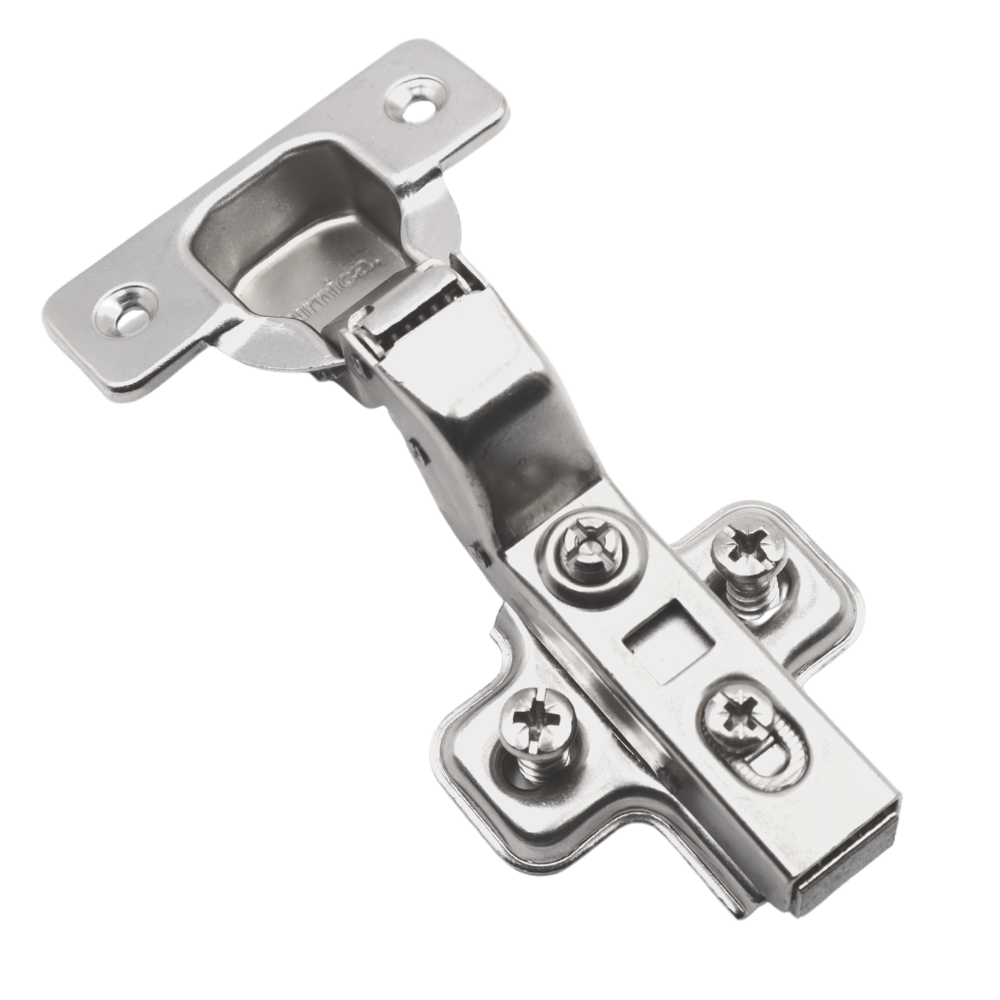

Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Flush Doors

This soft-close hinge is designed for flush doors, providing controlled, silent closing and a wide 110° opening angle. The included H0 mounting plate with EURO screws ensures rapid alignment and sturdy cabinet installation.

  • Hinge cup diameterØ 35 mm
  • Opening angle110°
  • Mounting plate typeClip-On
  • Mounting plate heightH0
  • MaterialNickel-coated steel
  • IncludedEURO screws
Soft-Close Hinge, H0 Mounting Plate with EURO Screws, Flush Doors

Concealed 110° hinge for flush doors with H0 plate

Designed specifically for inset fronts, this hinge mechanism features integrated damping to cushion door movement and prevent slamming on flush cabinet builds.

  • Integrated soft close: The built-in damper catches the door and gently pulls it shut without banging.

  • Tool-free clip attachment: The hinge arm snaps directly onto the pre-fitted H0 plate without tools.

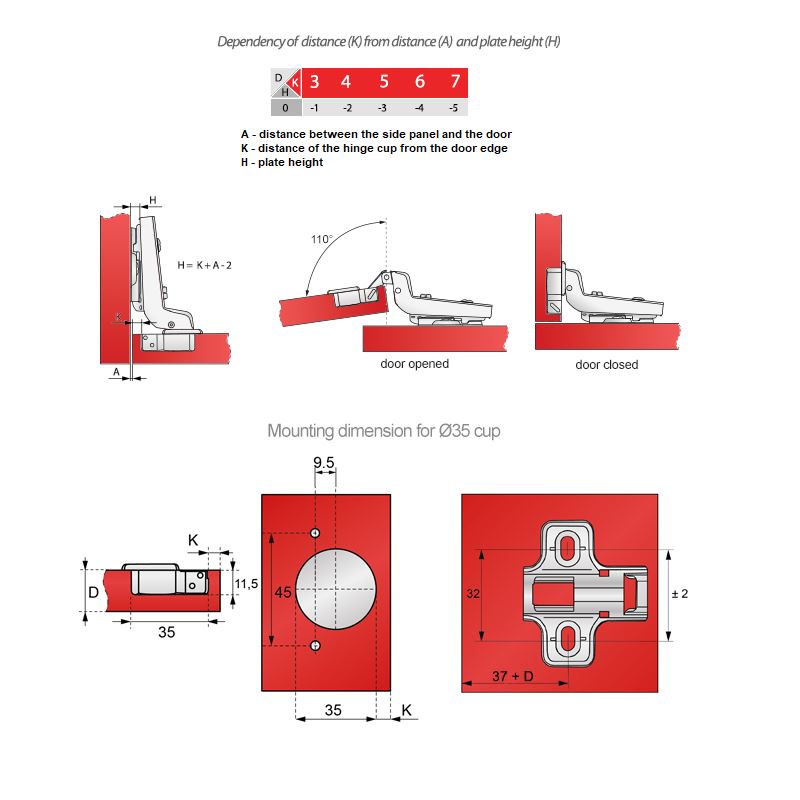

  • Standard 35 mm cup: Fits industry-standard Ø 35 mm pre-drilled recesses on cabinet door panels.

  • EURO screws included: Supplied fixing screws secure the mounting plate directly into cabinet carcass holes.

Applications for flush door cabinet hinge fittings

  • KitchenInset kitchen cabinet doors

    Equips flush-fitting kitchen cupboard hinges with quiet damping and a 110° swing.

  • BedroomWardrobes with flush fronts

    Allows smooth daily access while stopping large inset doors from slamming shut.

  • BathroomVanity units and storage

    Nickel-coated steel construction withstands everyday humidity inside bathroom cabinets.

Fitting instructions for flush door hinge plates

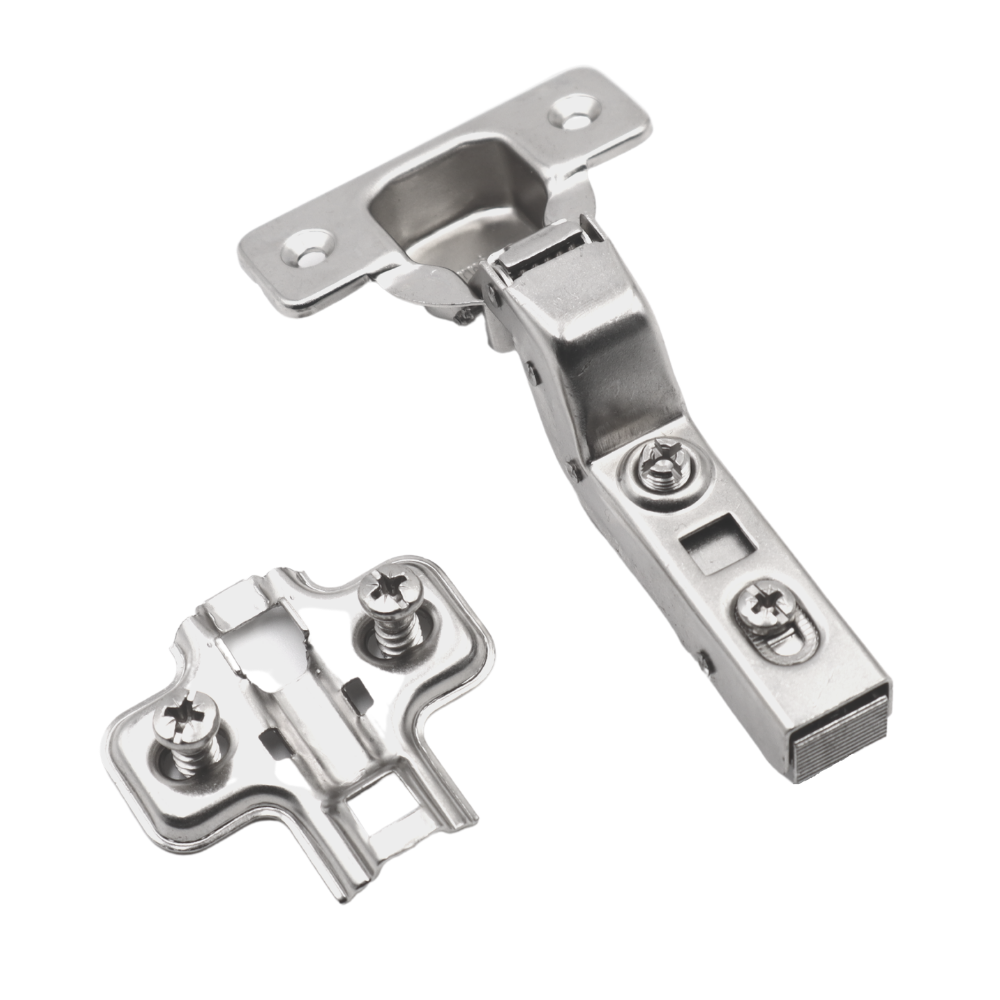

Supplied with H0 mounting plate and EURO screws
  1. 1
    Fit the hinge cup

    Insert the Ø 35 mm cup into the door recess and secure it firmly in place.

  2. 2
    Install the H0 plate

    Fix the mounting plate to the internal cabinet wall using the supplied EURO screws.

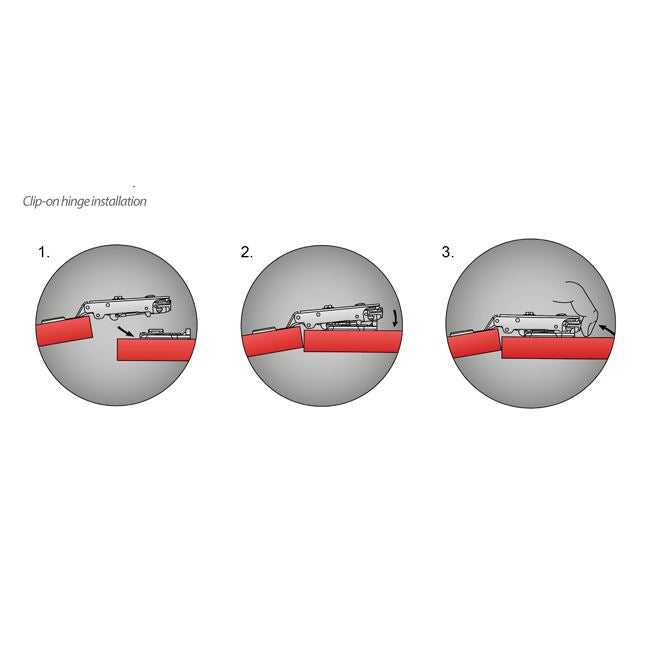

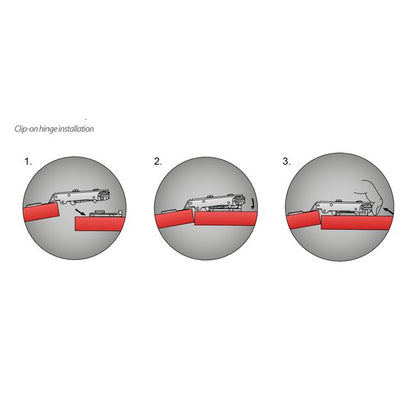

  3. 3

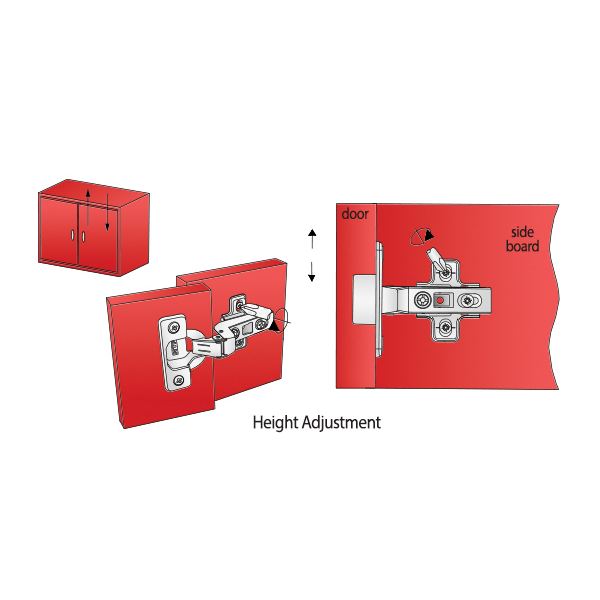

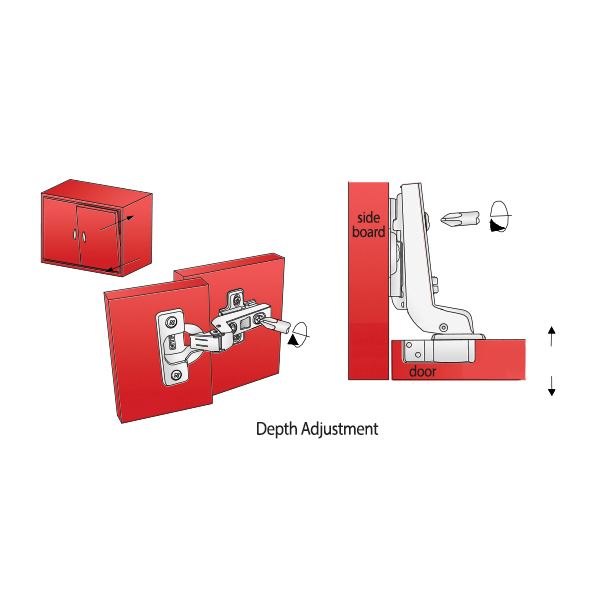

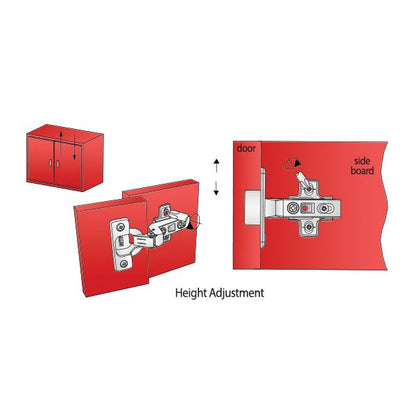

    Clip on and adjust

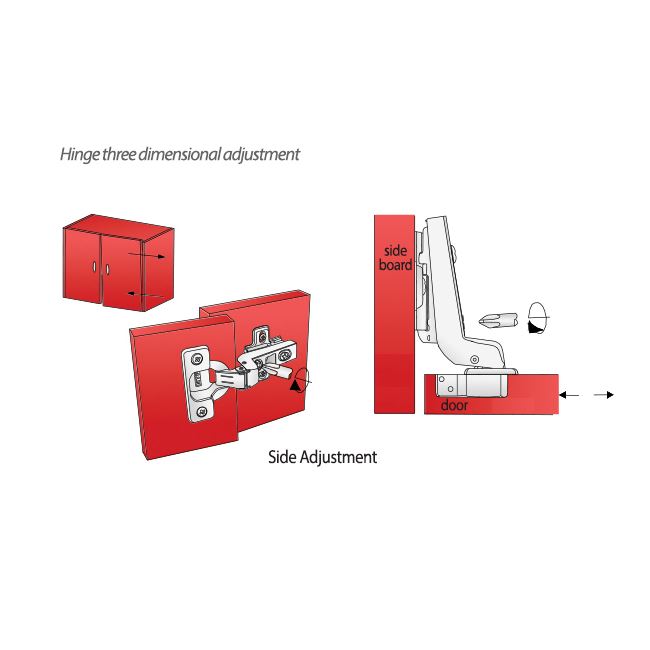

    Press the hinge arm onto the mounting plate until it clicks, then adjust the screws for clean door alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
Yes
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35 mm
Material
Nickel-coated steel
Model
110° Soft-Close inset doors
Mounting plate height
H0
Mounting plate type
Clip-on mounting
Opening angle
110°
EAN
5060685600402
SKU
ZPCS03-H0E
