Product data
For overlay doors · Includes EURO screws

110° Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

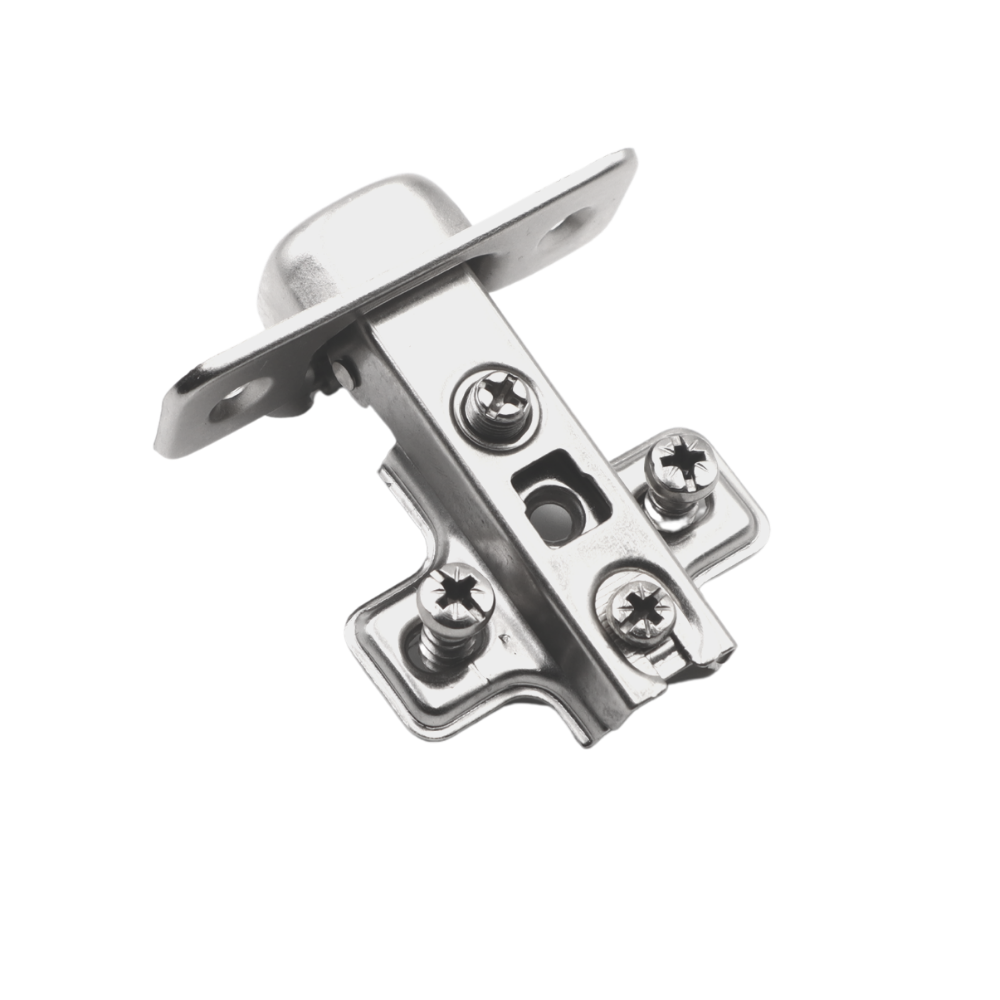

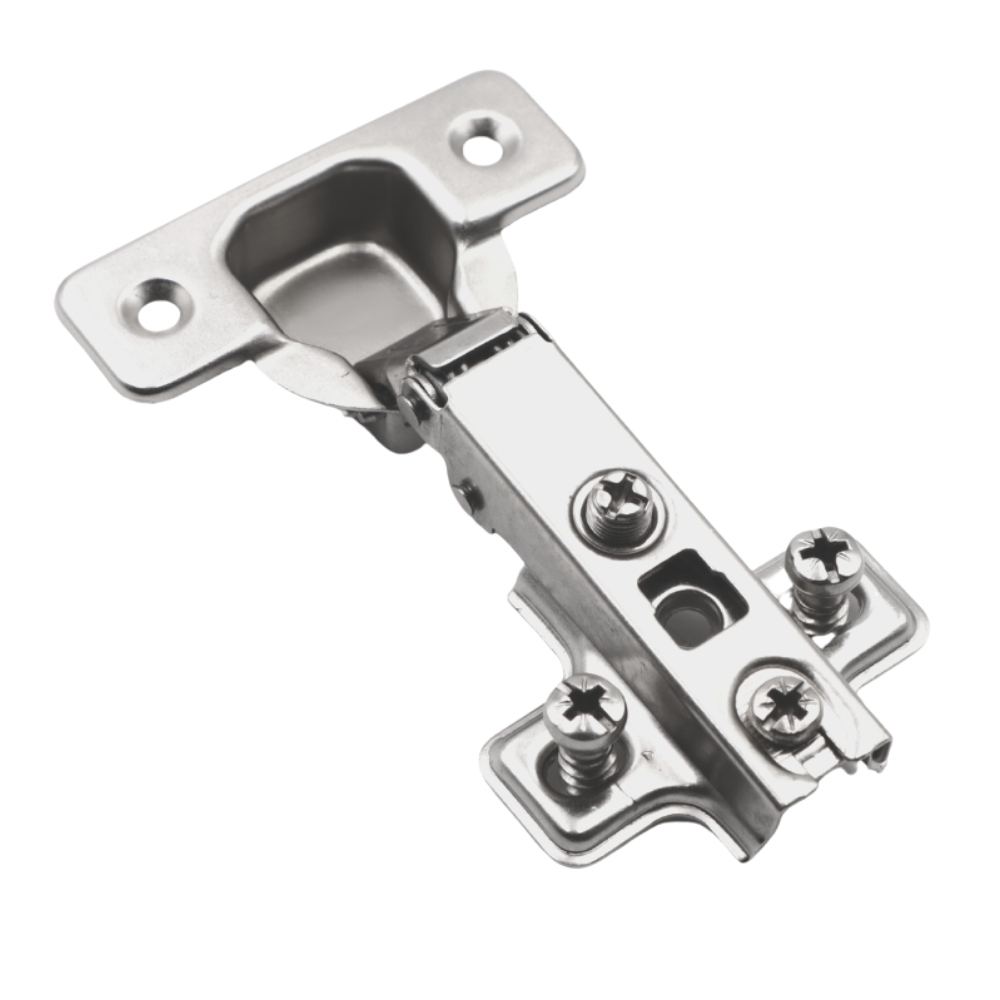

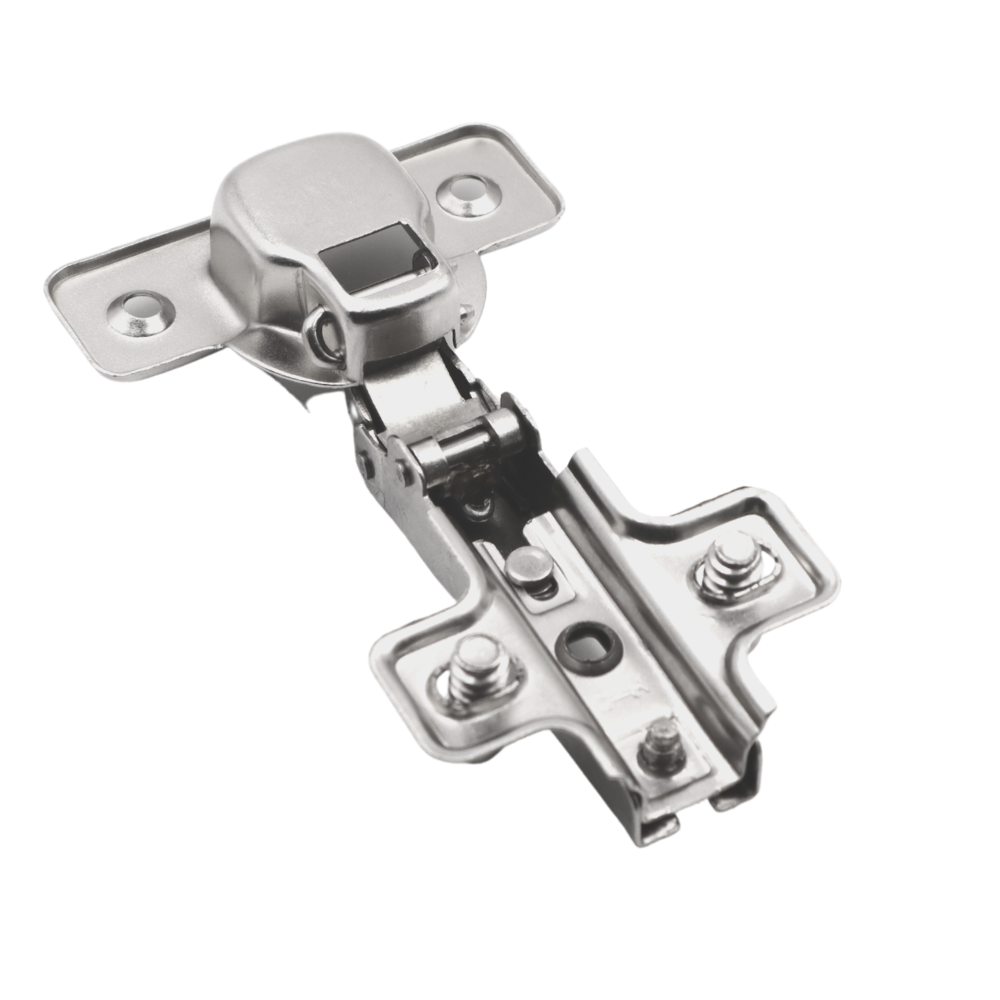

This 110° concealed cabinet hinge is designed for full overlay doors and comes complete with an H0 slide-on mounting plate and pre-packed EURO screws for direct fitting into standard cabinet pre-drills.

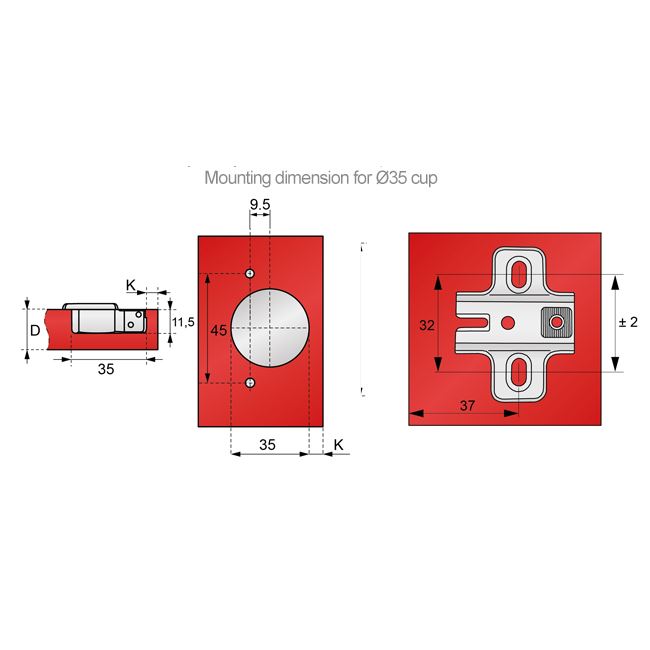

  • Hinge cup diameterØ 35 mm
  • Opening angle110°
  • Suitable forOverlay doors
  • Mounting plate heightH0
  • Mounting plate typeSlide-On
  • MaterialNickel-coated steel
110° Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Ø 35 mm cup with H0 slide-on plate for overlay doors

Designed for standard full overlay carcass constructions, this robust nickel-coated steel hinge allows the door to cover the cabinet outer frame fully while opening smoothly to 110°.

  • Standard Ø 35 mm cup: Fits directly into industry-standard 35 mm cup drillings across UK kitchen and bedroom doors.

  • 110° opening clearance: Provides broad and unobstructed access to cabinet contents without binding against adjacent furniture.

  • Slide-on H0 plate: Allows straightforward door alignment and secure fixing using the slide-on mechanism.

  • EURO screws included: Enables fast, direct mounting into pre-drilled 5 mm system holes without needing separate fixings.

Where this overlay hinge fits

  • KitchenWall and base kitchen cupboards

    Ideal for kitchen cabinet hinges on standard full overlay doors that sit fully over the carcass edge.

  • Living roomSideboards and storage units

    Provides stable, long-lasting support for daily opening on freestanding or fitted cupboard doors.

  • RetrofitReplacing worn concealed hinges

    Direct replacement for existing 35 mm cup hinges requiring an H0 plate and slide-on fitting.

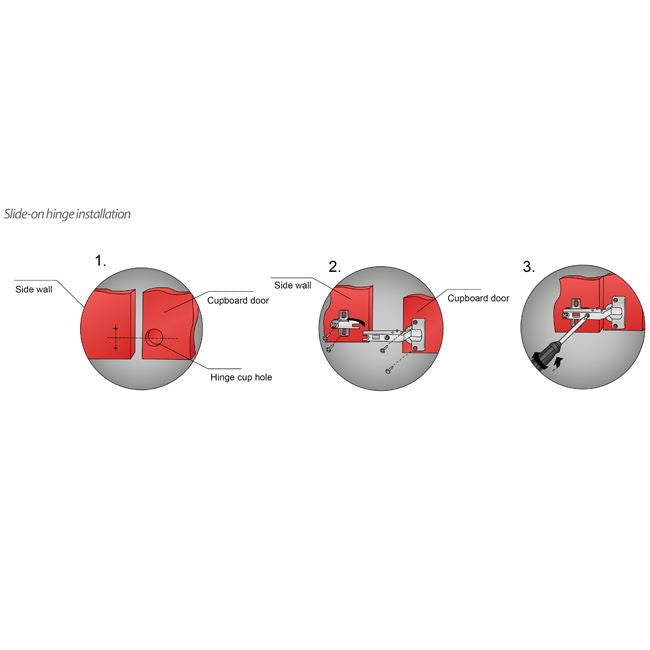

Fitting the hinge and mounting plate

Includes matching EURO screws for the carcass plate.
  1. 1
    Insert the hinge cup

    Place the Ø 35 mm cup into the pre-drilled recess on the rear of the door and ensure it sits square.

  2. 2
    Mount the H0 plate

    Secure the mounting plate to the carcass using the provided EURO screws in the pre-drilled holes.

  3. 3
    Slide on and adjust

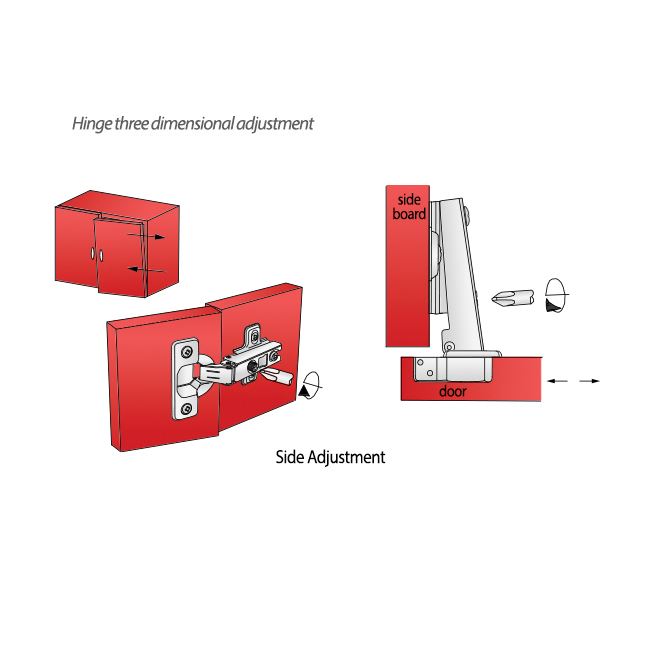

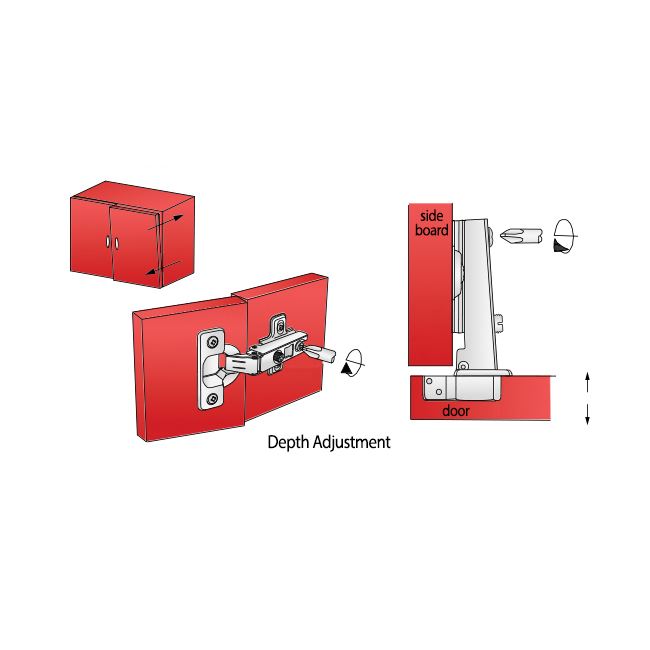

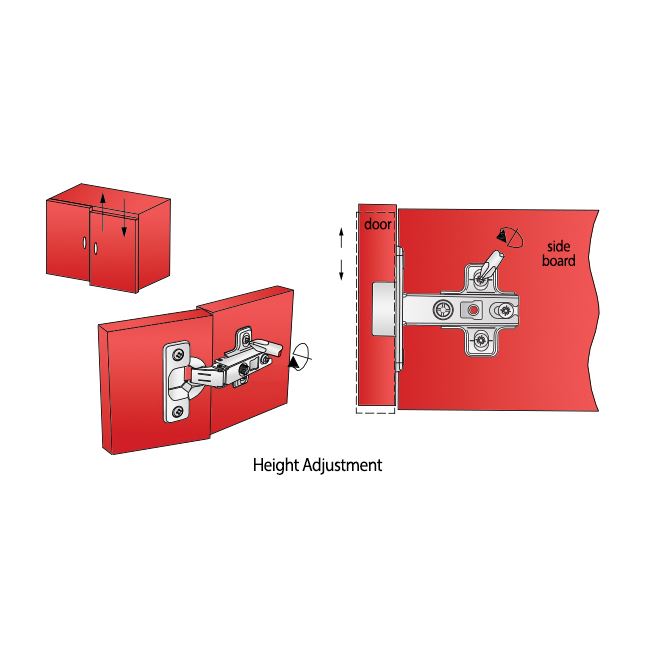

    Slide the hinge arm onto the H0 mounting plate, tighten the retaining screw, and set final door alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
No
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35 mm
Material
Nickel-coated steel
Model
110° overlay doors

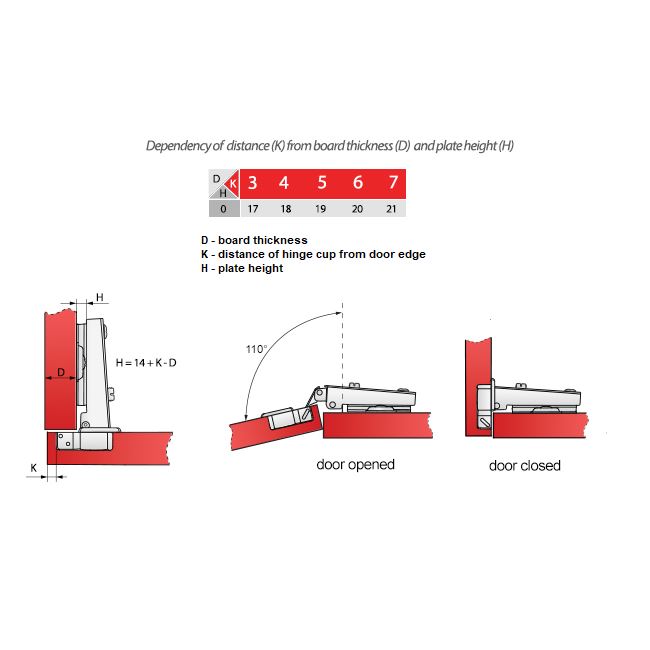

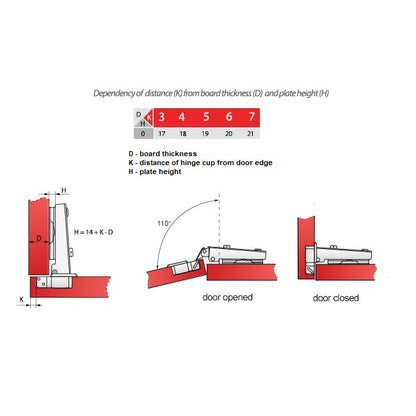

Mounting plate height
H0
Mounting plate type
Slide-on
Opening angle
110°
Made for
Corner mounting
EAN
5060685600372
SKU
ZP11-H0E
