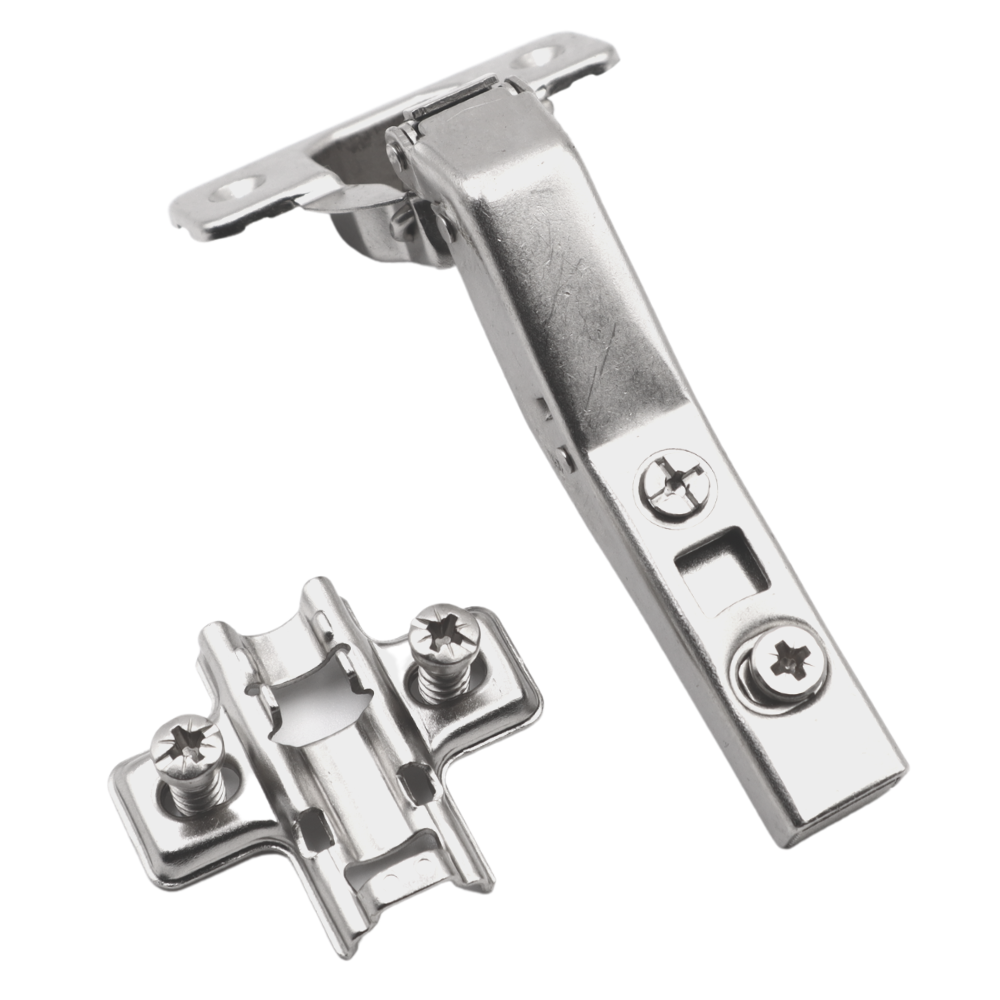

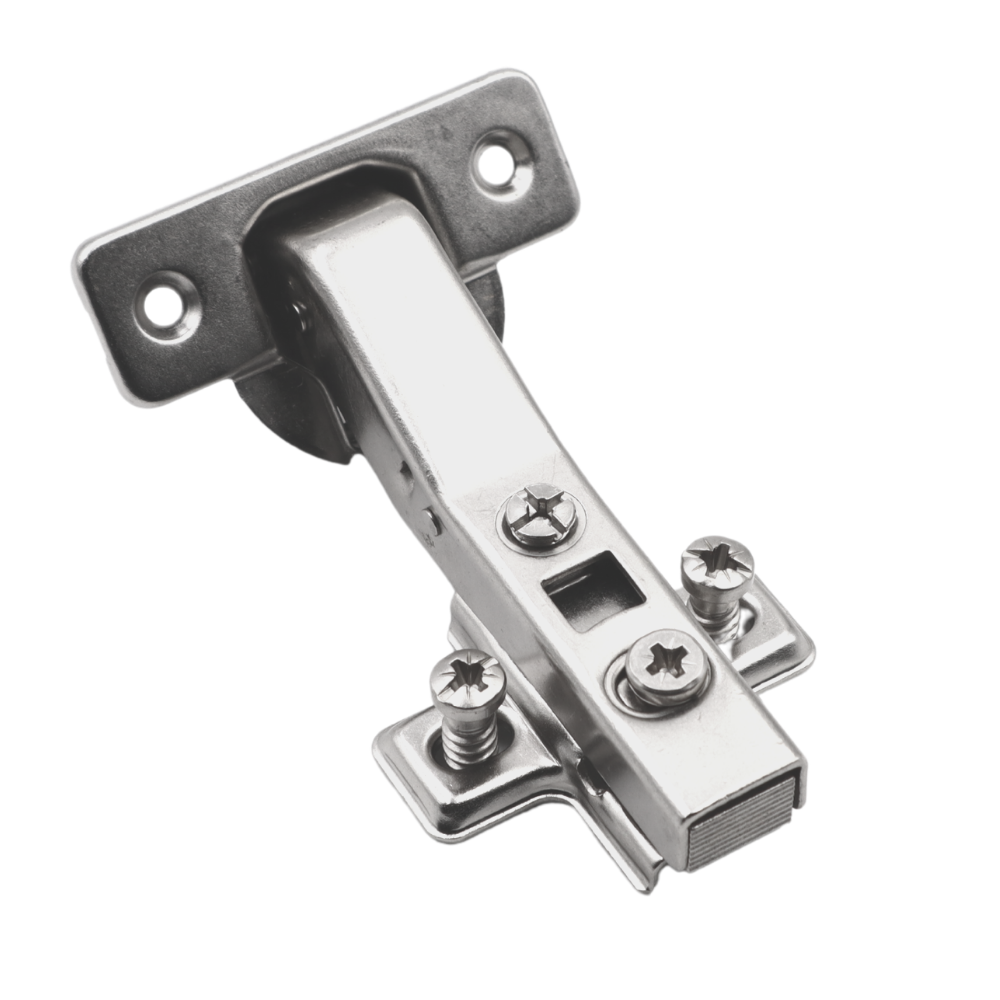

+45º Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

+45º Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

4.94 127 reviews
£2.85 Incl. VAT
£2.85 Incl. VAT
Soft-close damping: Yes
Model: +45° Soft-Close corner cabinets
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£2.71 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Nickel-coated steel · Clip-on with EURO screws

+45º Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

This angled soft close hinge is designed for corner cabinet door installations requiring a 45° opening angle. The integrated damping mechanism prevents door slamming while the clip-on H2 plate allows fast, tool-free door mounting.

  • Opening angle45°
  • Soft closeYes
  • Hinge cup diameterØ35mm
  • Mounting plate heightH2
  • Mounting plate typeClip-On
  • MaterialNickel-coated steel

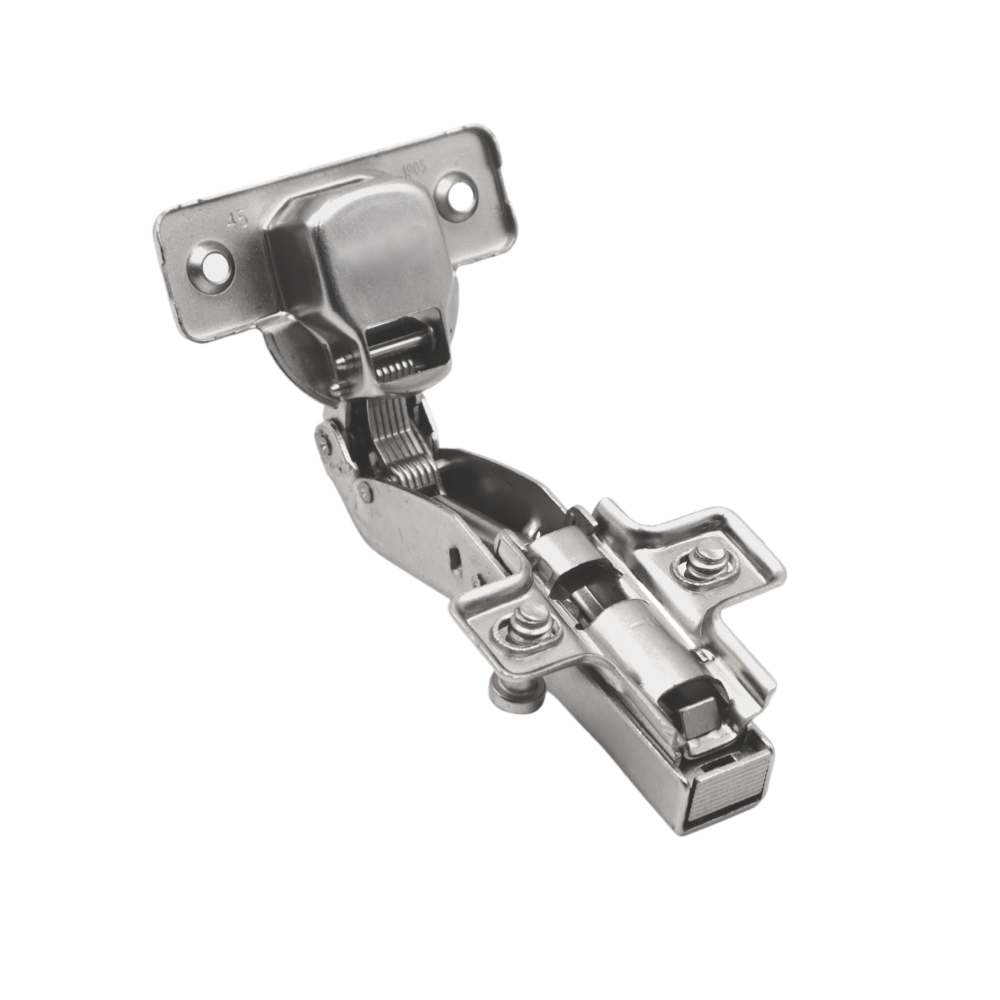

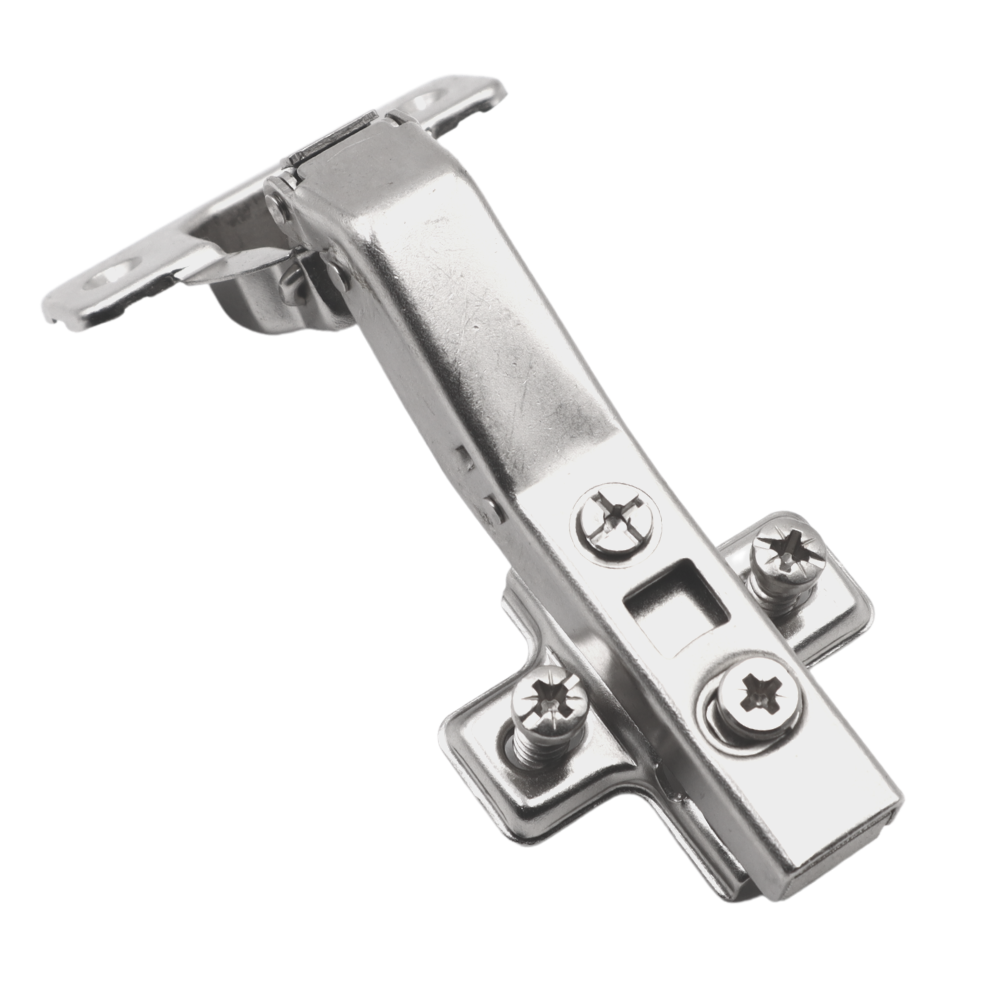

+45º Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Angled Doors

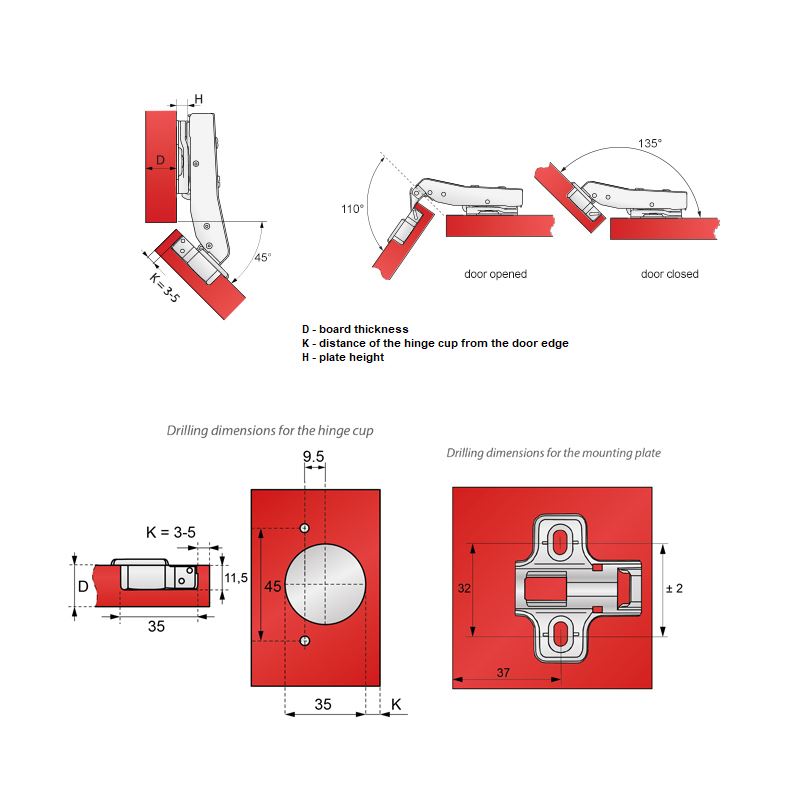

45° angle fitting with Ø35mm cup for corner units

Designed specifically for angled doors, this concealed cabinet hinge provides a controlled, quiet shut for corner cupboards using pre-drilled EURO screws and a quick-release clip mechanism.

  • Integrated soft-close damping: Brakes the door movement before contact to stop loud slamming and reduce wear on cabinet carcases.

  • Clip-on plate mounting: Allows the hinge arm to clip directly onto the H2 base plate without dismantling the fitted base.

  • Supplied with EURO screws: Matches standard pre-drilled system holes for a secure, wobble-free anchor in cabinet side panels.

  • Nickel-coated steel build: Provides solid mechanical strength and a clean chrome finish for daily domestic use.

Where this +45° angled hinge is typically installed

  • KitchenDiagonal corner base cabinets

    Fits front doors set at a 45-degree angle to the adjacent kitchen run, ensuring correct door clearance.

  • ReplacementWorn kitchen cupboard hinges

    Swaps directly into standard 35 mm drilled hinge cups on angled cabinet doors that lack soft-close action.

  • JoineryCustom corner storage units

    Provides reliable mounting and smooth closing action for bespoke angled wardrobes or display cupboards.

Fitting and adjustment steps

Includes EURO screws for base plate fixing.
  1. 1
    Secure the hinge cup

    Insert the Ø35mm hinge cup into the pre-drilled door recess and fix it firmly in place with suitable wood screws.

  2. 2
    Mount the H2 base plate

    Fasten the clip-on mounting plate to the cabinet side panel using the supplied EURO screws in standard system holes.

  3. 3

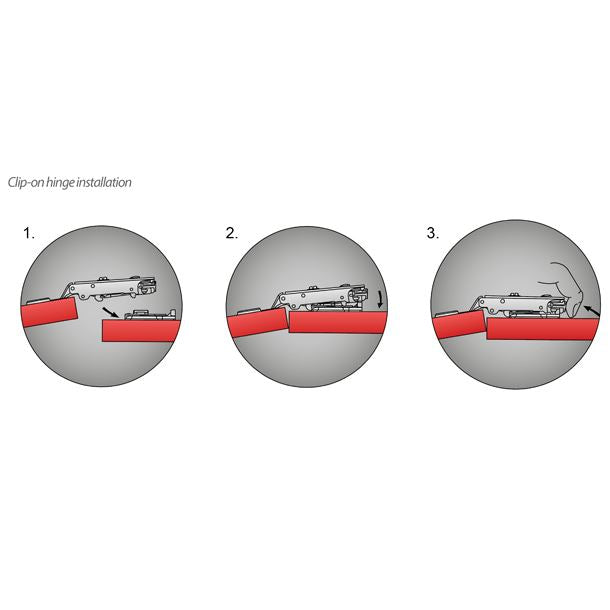

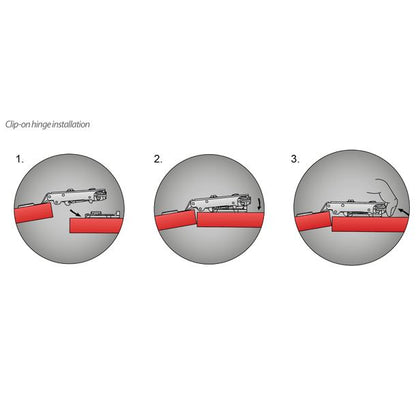

    Clip on and align

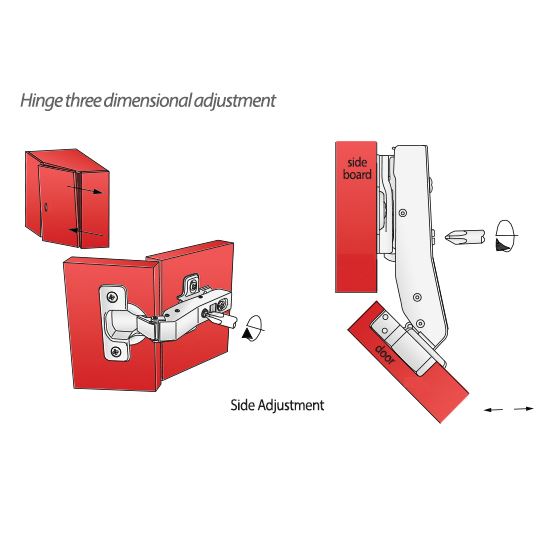

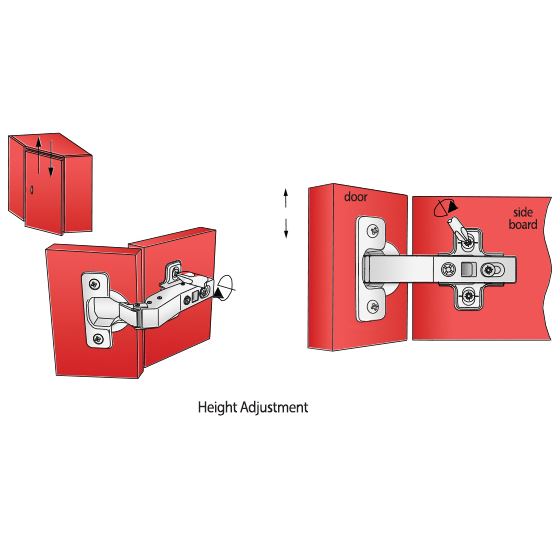

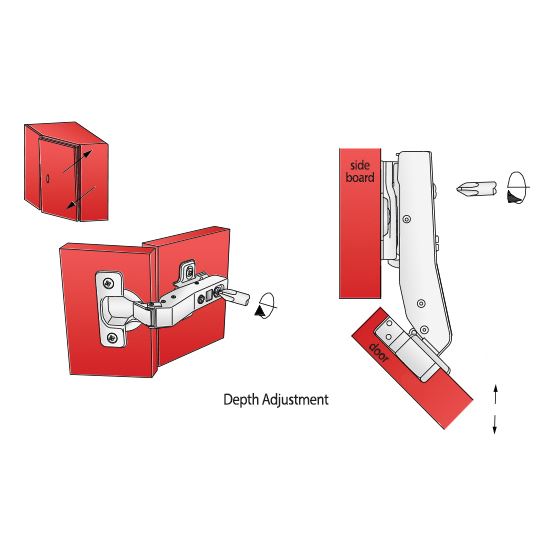

    Offer the hinge arm up to the plate until it clicks into position, then use the adjustment screws to align door gaps.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
Yes
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35mm
Material
Nickel-coated steel
Model
+45° Soft-Close corner cabinets
Mounting plate height
H2
Mounting plate type
Clip-on mounting
Opening angle
45°
Made for
Corner door
EAN
5060685600501
SKU
