ZnAl alloy · 1000 pieces pack

Furniture Cam Lock 15mm, a=7.5mm (1000 pcs)

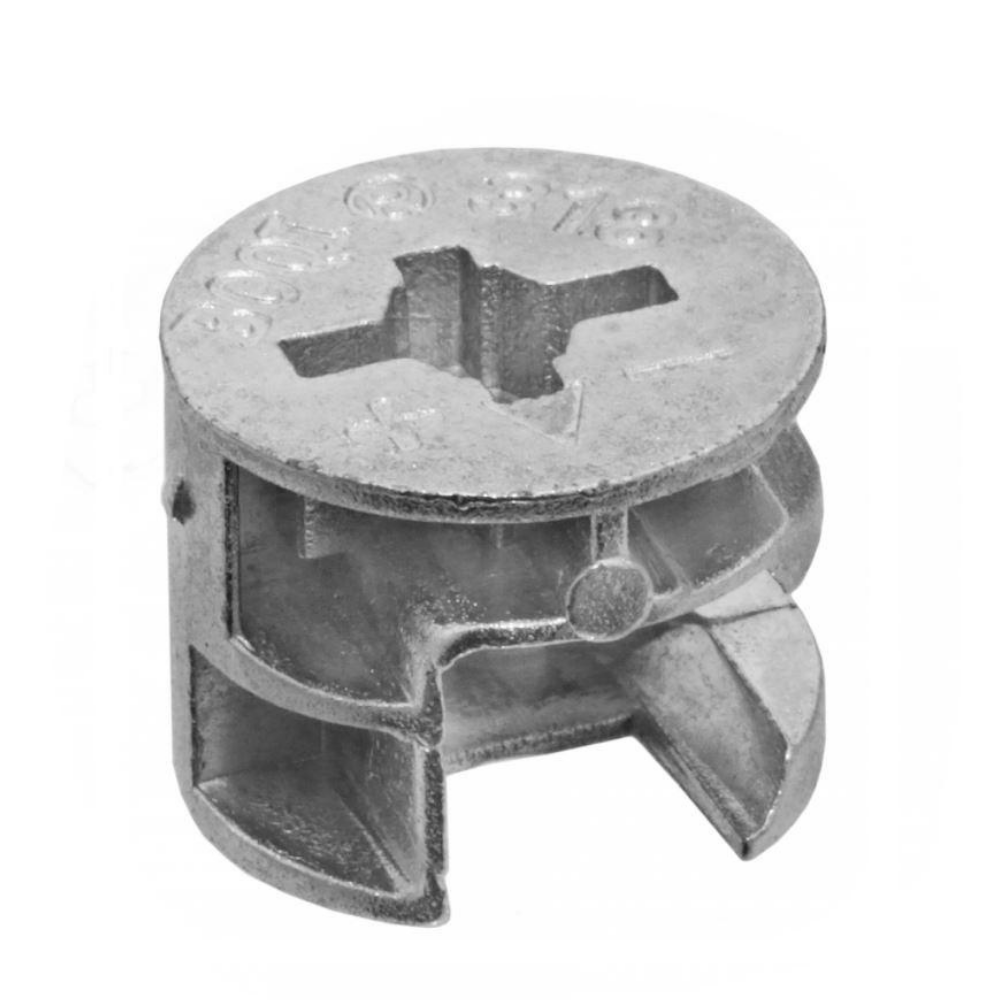

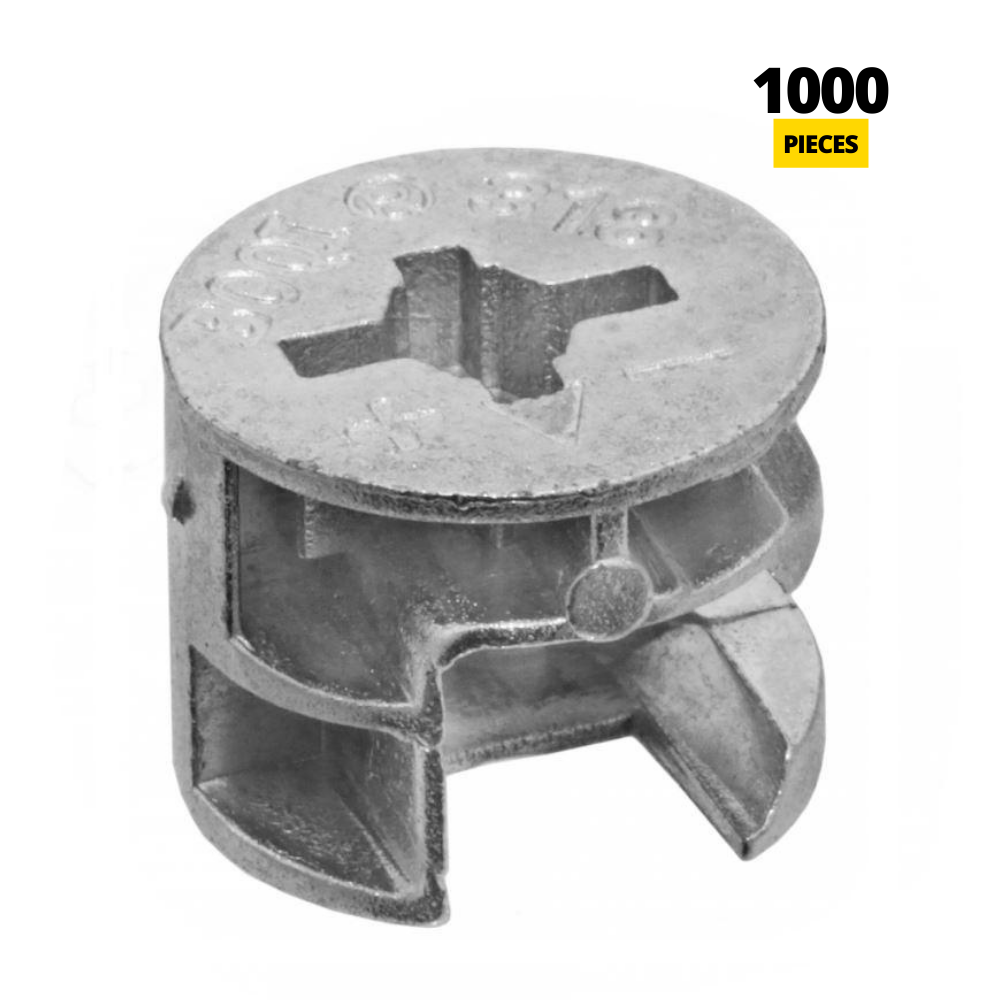

This 15 mm furniture cam lock is designed for rigid right-angle cabinet joints in standard 15 mm boards. Supplied in a bulk pack of 1000 pieces, it provides sturdy, concealed knock-down fixings for workshops and large furniture assembly projects.

  • Cam diameter15 mm
  • Height7.5 mm
  • Board thickness15 mm
  • MaterialZnAl
  • Finish colourZinc
  • Pack quantity1000 pieces
Furniture Cam Lock 15mm, a=7.5mm (1000 pcs)

Concealed 15 mm cam lock nut for 15 mm panels

The 15 mm furniture cam lock creates a robust, hidden connection in 15 mm carcass panels using a standard 7.5 mm depth drilling profile. Cast from durable ZnAl alloy, each cam nut pulls flat-pack furniture components tight for stable right-angle joints.

  • Exact 15 mm board fit: Matched precisely to 15 mm panel thickness and 7.5 mm drilling depths to sit flush with the board face.

  • Durable ZnAl construction: Manufactured from zinc alloy to resist deformation when tightened with a standard screwdriver.

  • Bulk workshop quantity: Contains 1000 pieces to supply high-volume flat-pack assembly lines, fitted furniture builds, or workshop restocks.

Where a 15 mm cam lock fitting is required

  • CabinetryKitchen and bedroom carcass assembly

    Joins 15 mm base and wall cabinet sides securely to top and bottom panels with a concealed internal fitting.

  • WorkshopBatch furniture manufacturing

    Provides trade joiners and manufacturers with a consistent 1000-piece supply for standard flat-pack furniture connectors.

  • RepairFlat-pack refurbishment

    Replaces lost, worn, or stripped 15 mm cam lock connectors in modular bookcases, desks, and wardrobes.

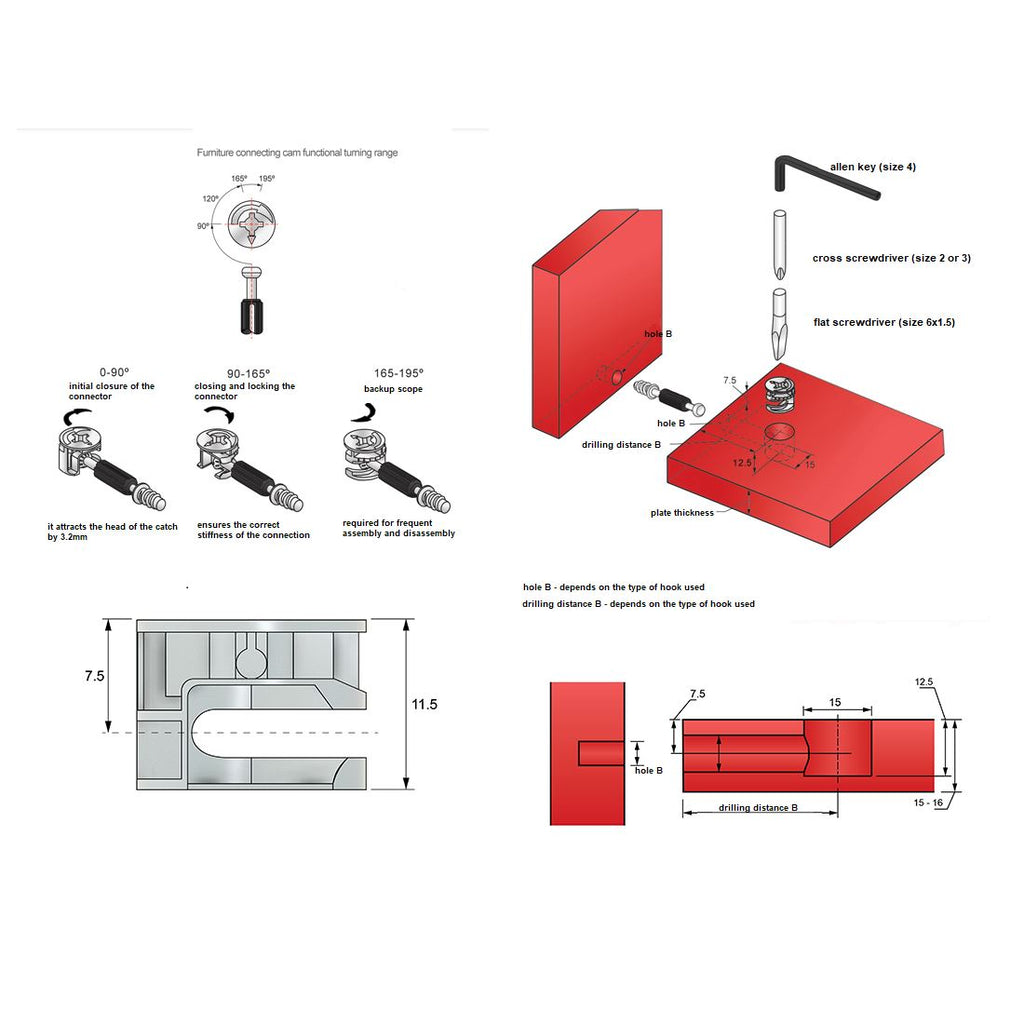

Fitting your 15 mm cam locks

Requires pre-drilled 15 mm face holes and matching connecting dowels
  1. 1
    Drill or locate housing hole

    Ensure the panel has a 15 mm diameter hole drilled to a depth of 7.5 mm, positioned to meet the edge drilling.

  2. 2
    Insert the cam lock

    Push the ZnAl cam nut into the 15 mm hole with the open receiving slot facing the incoming connecting dowel.

  3. 3
    Turn to clamp joint

    Engage a screwdriver into the drive cross and rotate clockwise until the internal ridge locks the dowel head tightly.
