Product data
Galvanised steel · Up to 35 kg

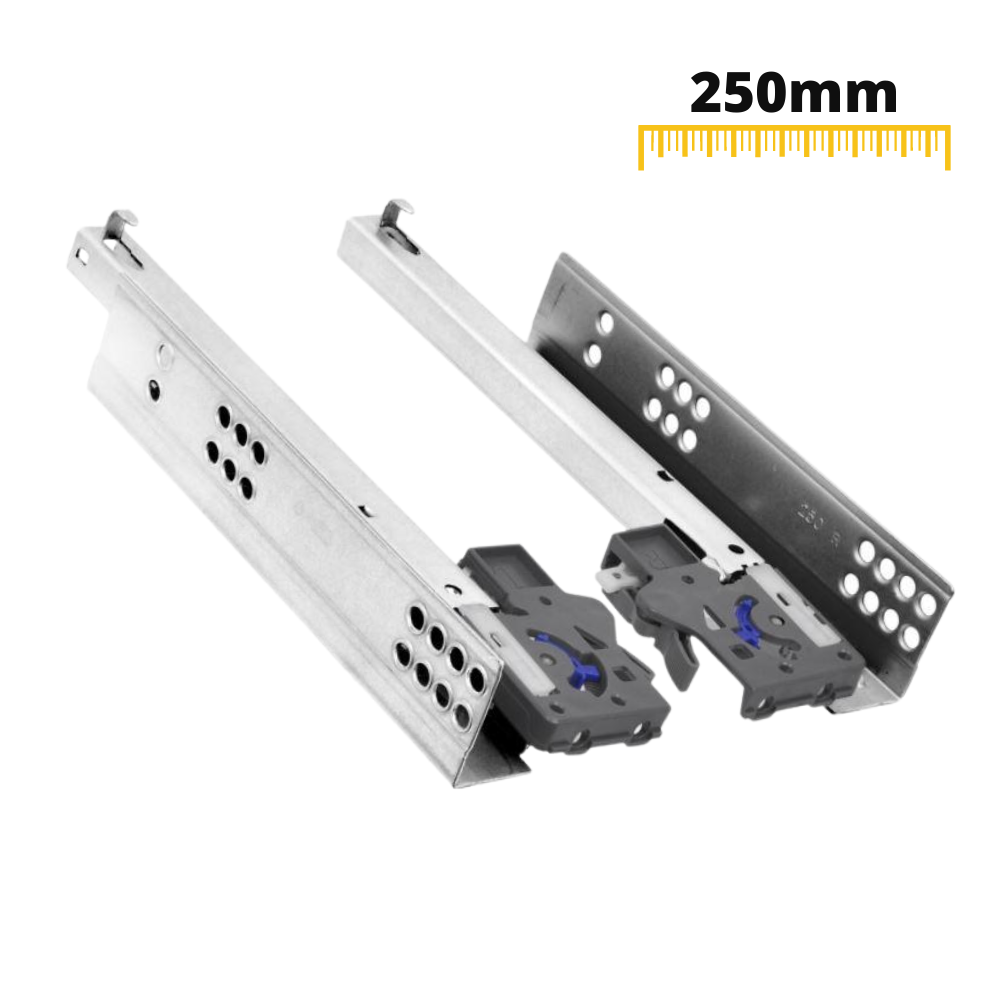

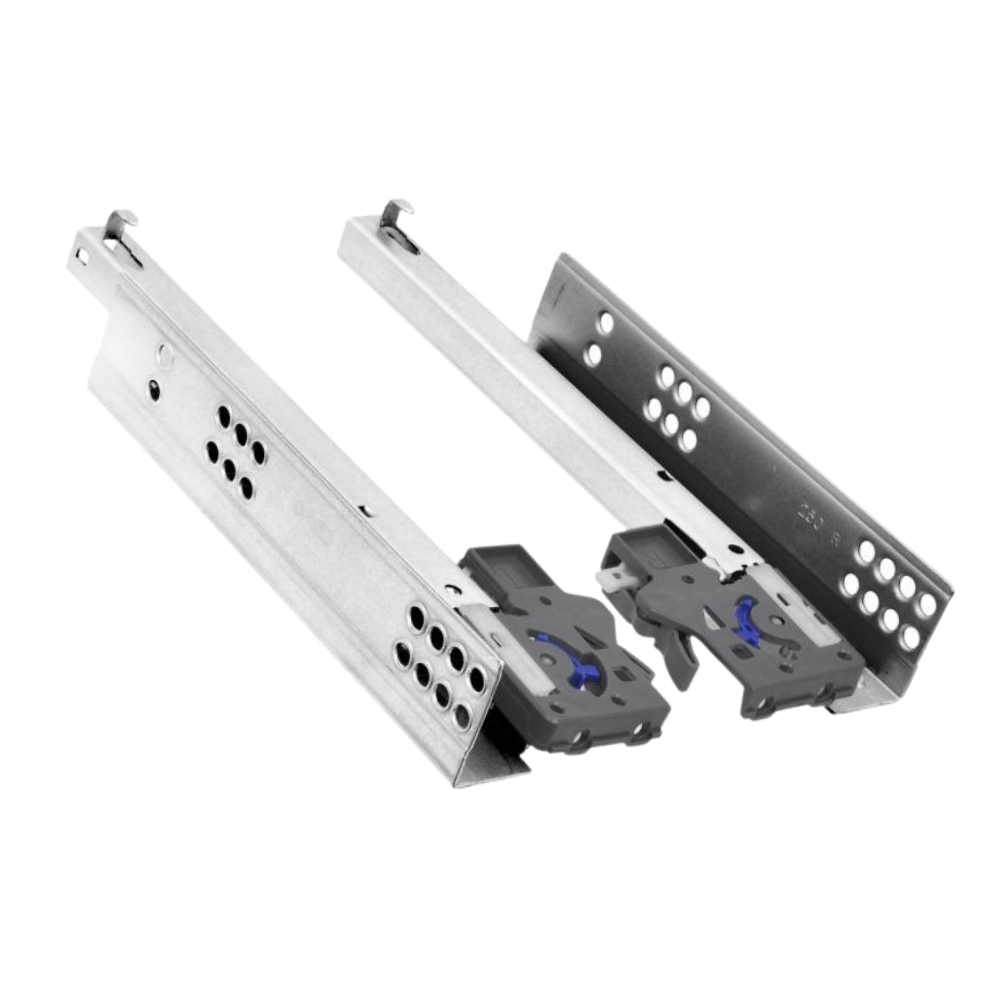

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 250mm

These 250mm concealed drawer runners mount neatly underneath the drawer base to keep all metal fittings out of sight. Built-in soft-close damping catches the drawer on entry and pulls it silently shut.

  • Length250mm
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • Maximum drawer side thickness19mm
  • MaterialGalvanised steel
  • Full extensionNo
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 250mm

Undermount runners for 19mm drawer sides

Concealed undermount drawer runners combine a smooth 3/4 extension slide with integrated soft-close damping. Fitted underneath the drawer box, they keep side panels clean while supporting loads up to 35kg.

  • Integrated soft-close damping: The built-in mechanism catches the drawer during closure and pulls it shut quietly without slamming.

  • Concealed bottom mounting: Fixing directly beneath the drawer base hides the hardware from view when the drawer is open.

  • 35kg weight capacity: Manufactured from zinc-coated steel to carry everyday household storage securely.

  • For 19mm side panels: Designed specifically to suit standard wooden drawer boxes with side material thickness up to 19mm.

Ideal applications for 250mm undermount runners

  • KitchenCompact base cabinets

    Ideal for shallow 250mm drawers holding cutlery and utensils where quiet, controlled closing is needed.

  • BedroomBedside tables and chests

    Preserves a clean timber aesthetic by keeping the running gear hidden underneath the drawer body.

  • OfficeDesk pedestal drawers

    Provides reliable 3/4 extension access for stationery trays and small office supplies.

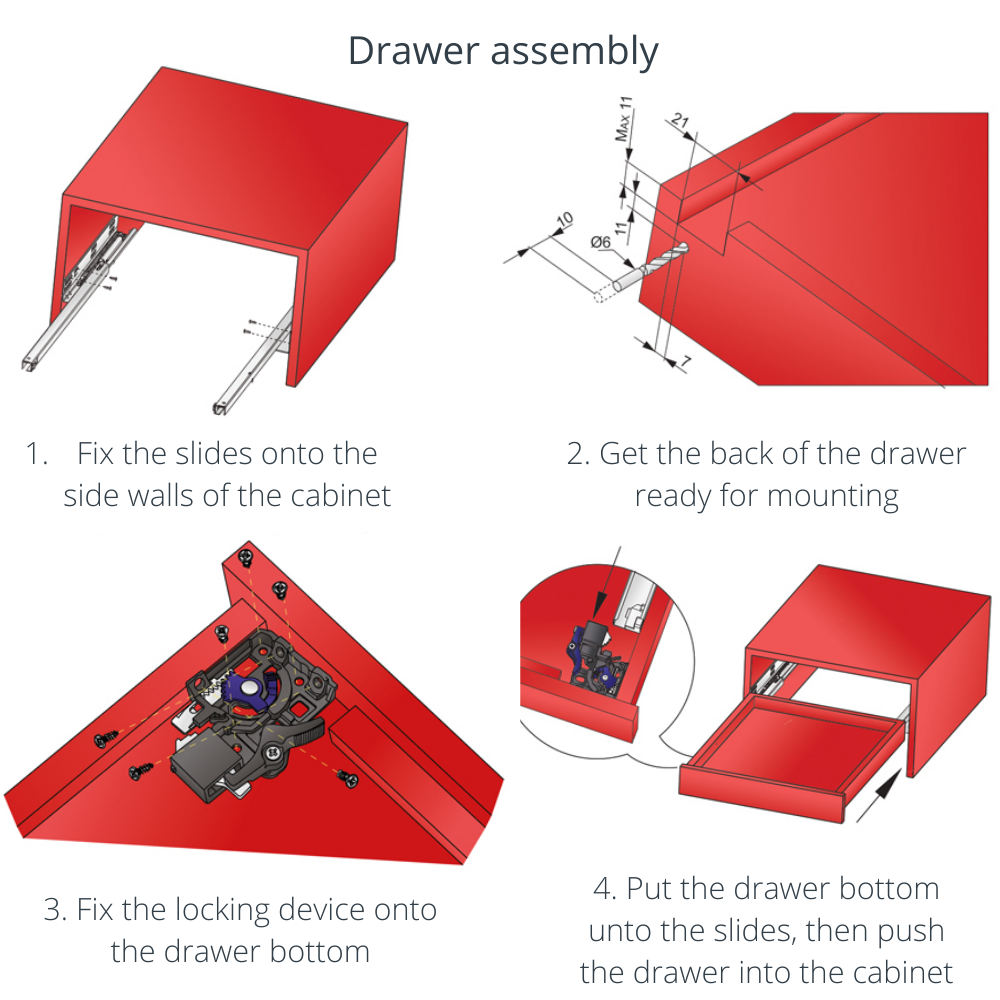

Installing concealed undermount runners

Set includes left and right runner for one drawer
  1. 1
    Fix cabinet rails

    Align both runner rails level against the inner cabinet side panels and secure with appropriate wood screws.

  2. 2
    Prepare drawer base

    Drill the necessary rear locating holes and rear notches into the underside of the drawer box.

  3. 3
    Engage the drawer

    Place the drawer onto the runners and push backwards until the undermount clips engage firmly.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

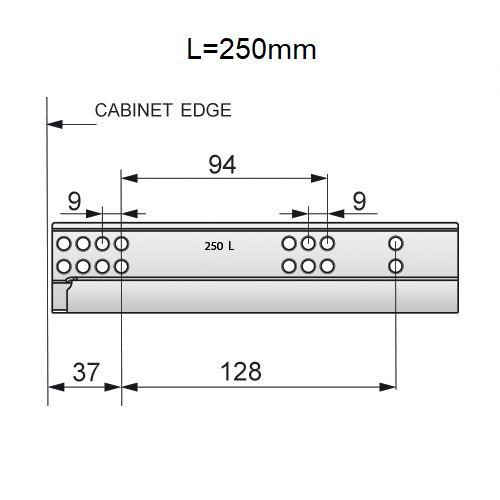

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604066
SKU
PTCS-19S-250
