Product data
Galvanised steel · Up to 35 kg

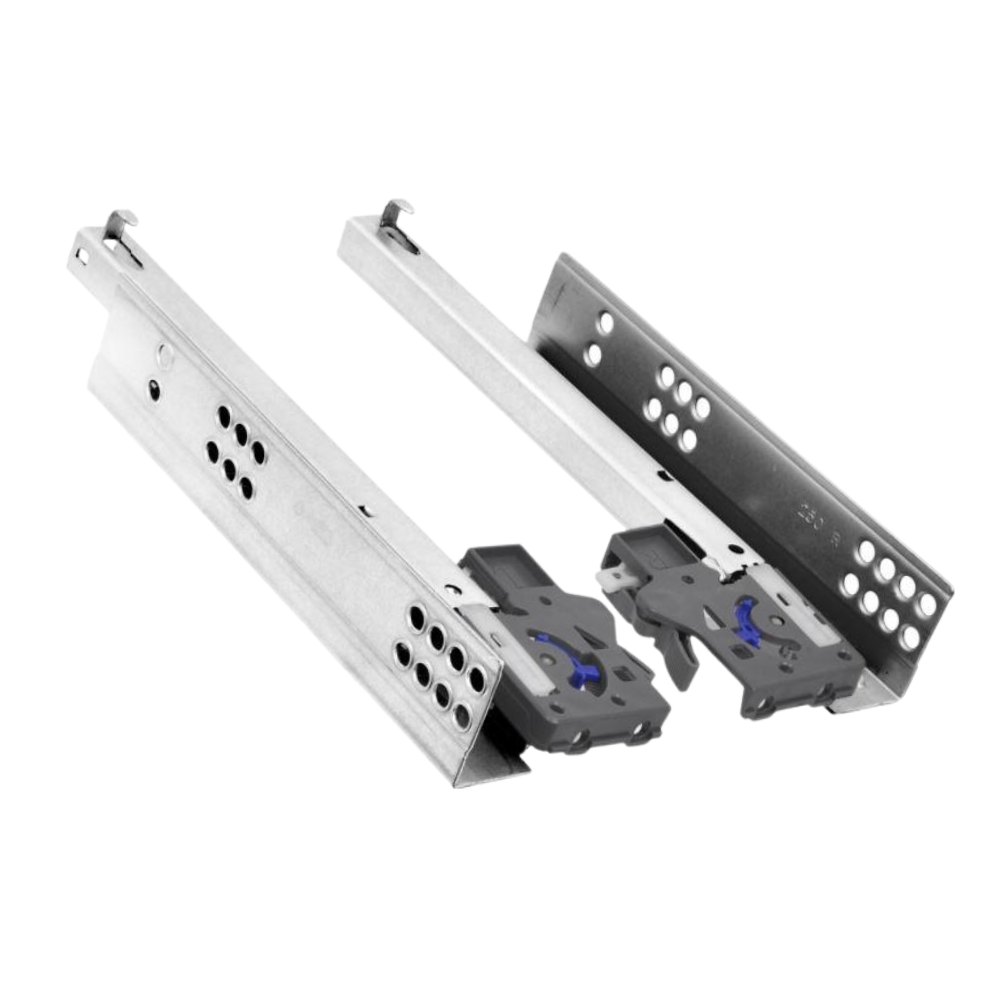

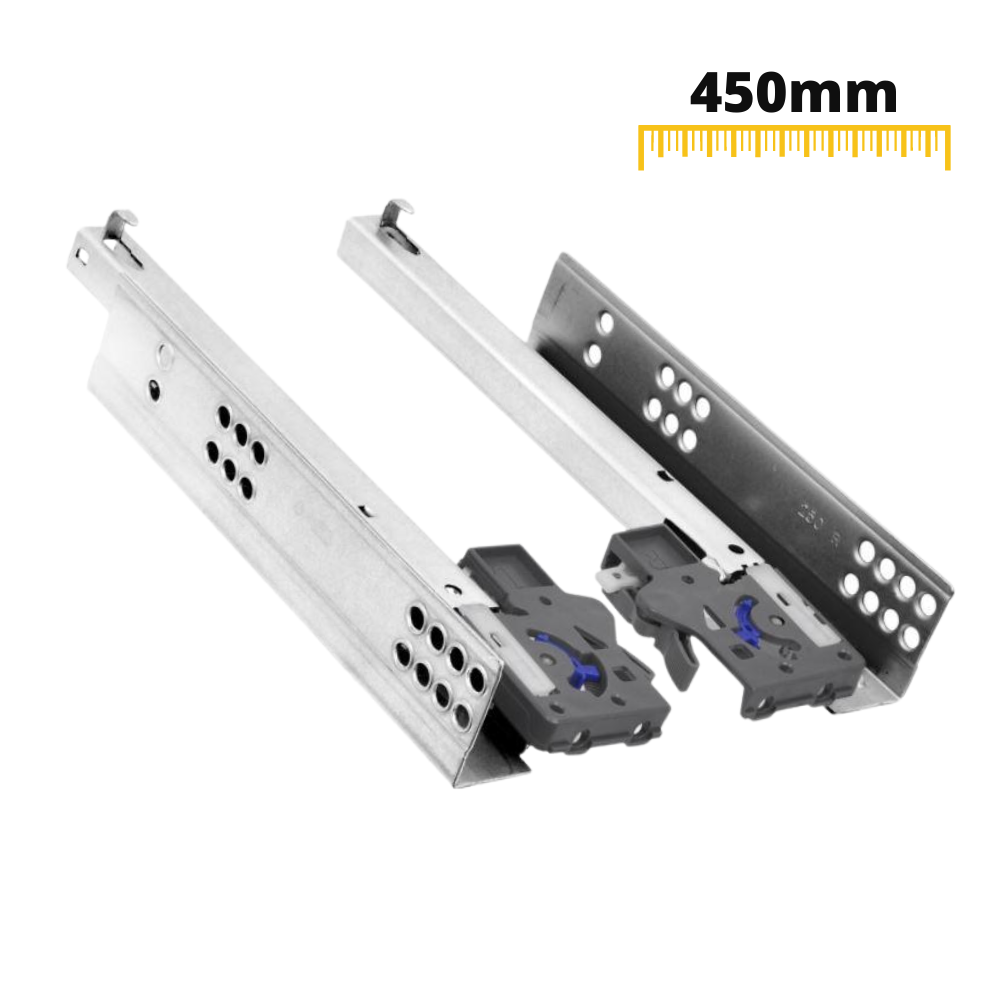

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 450mm

Concealed undermount drawer runners designed to fit beneath the drawer base, providing quiet soft-close movement and up to 35 kg load capacity.

  • Length450mm
  • Extension type3/4 extension
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • MaterialZinc coated steel

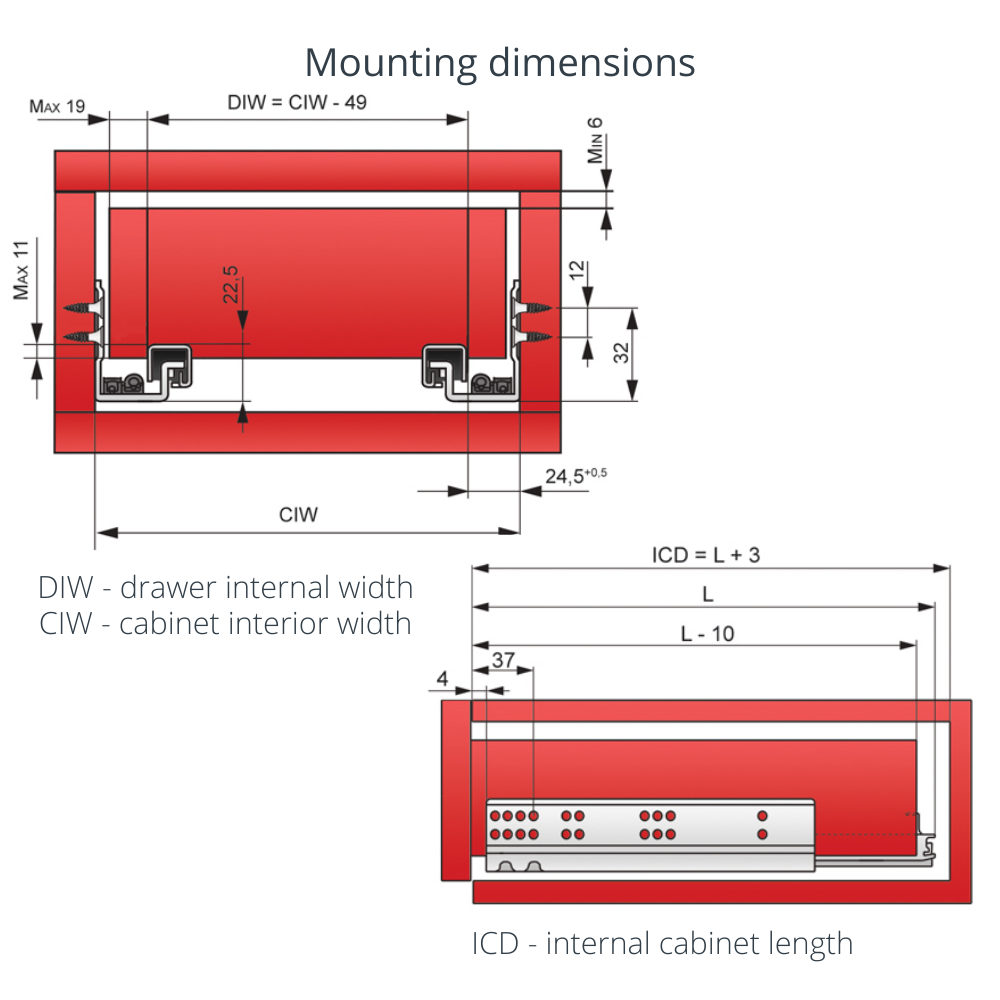

  • Maximum drawer side thickness19mm
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 450mm

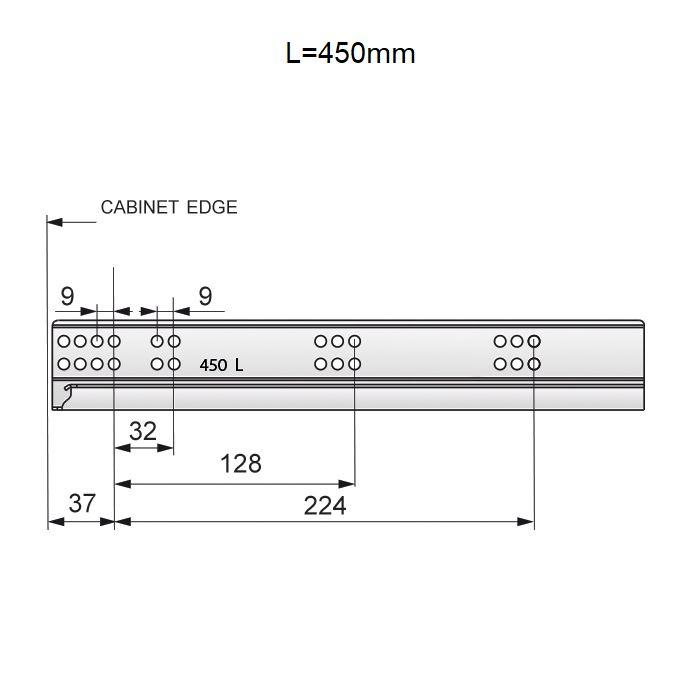

450 mm undermount runners for drawer sides up to 19 mm

These 450 mm drawer runners mount directly beneath the drawer box to keep mechanical hardware completely out of sight. Built from zinc coated steel, the mechanism incorporates soft-close damping to gently brake and draw the box shut.

  • Integrated soft-close action: The built-in damper catches the moving drawer and pulls it smoothly shut to prevent slamming.

  • Hidden undermount profile: Fitting underneath the drawer base ensures no metal hardware is visible along the outer sides.

  • Supports up to 35 kg: The zinc coated steel construction provides rigid, stable support for heavy storage loads.

  • Accommodates 19 mm sides: Specifically sized to accept timber drawer boxes with side panel thicknesses up to 19 mm.

Applications for 450 mm concealed runners

  • KitchenPan and crockery drawers

    Handles heavy kitchenware up to 35 kg while ensuring quiet, controlled closing in busy cooking areas.

  • Living roomSideboards and media units

    Concealed bottom mounting maintains clean furniture lines without visible side-mounted metal tracks.

  • BedroomWardrobe inner boxes

    Soft-close damping allows smooth opening and silent shutting without waking the household.

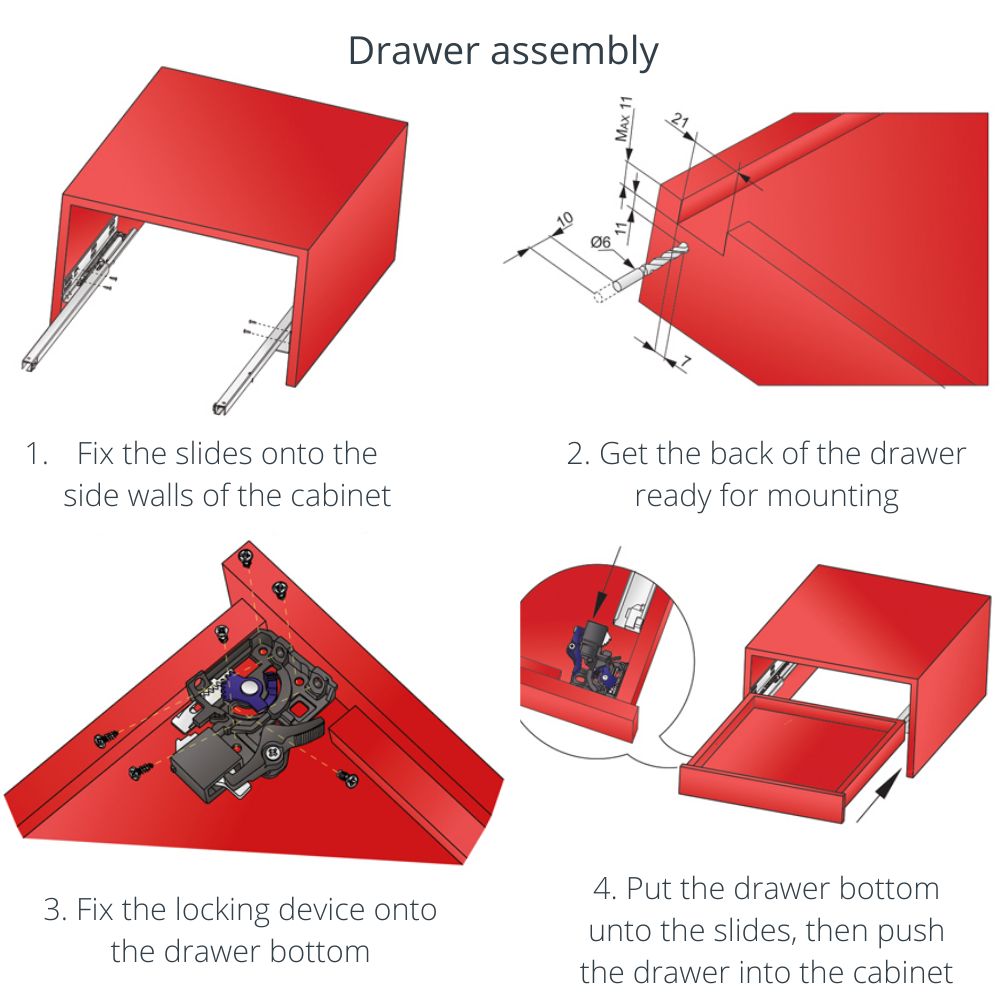

Fitting your undermount runners

Includes left and right runners for 1 drawer
  1. 1
    Fix cabinet rails

    Secure the left and right runners horizontally to the interior cabinet sides using suitable screws.

  2. 2
    Prepare drawer box

    Ensure the drawer box is prepped with the necessary rear notches and under-mount fixings.

  3. 3
    Engage and lock

    Slide the drawer onto the extended rails until the bottom clips engage securely.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604103
SKU
PTCS-19S-450
