Soft-Close Concealed Undermount Drawer Runners ECO - 350mm

Soft-Close Concealed Undermount Drawer Runners ECO - 350mm

£7.24 Incl. VAT
£7.24 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£6.88 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Concealed undermount · Up to 25 kg

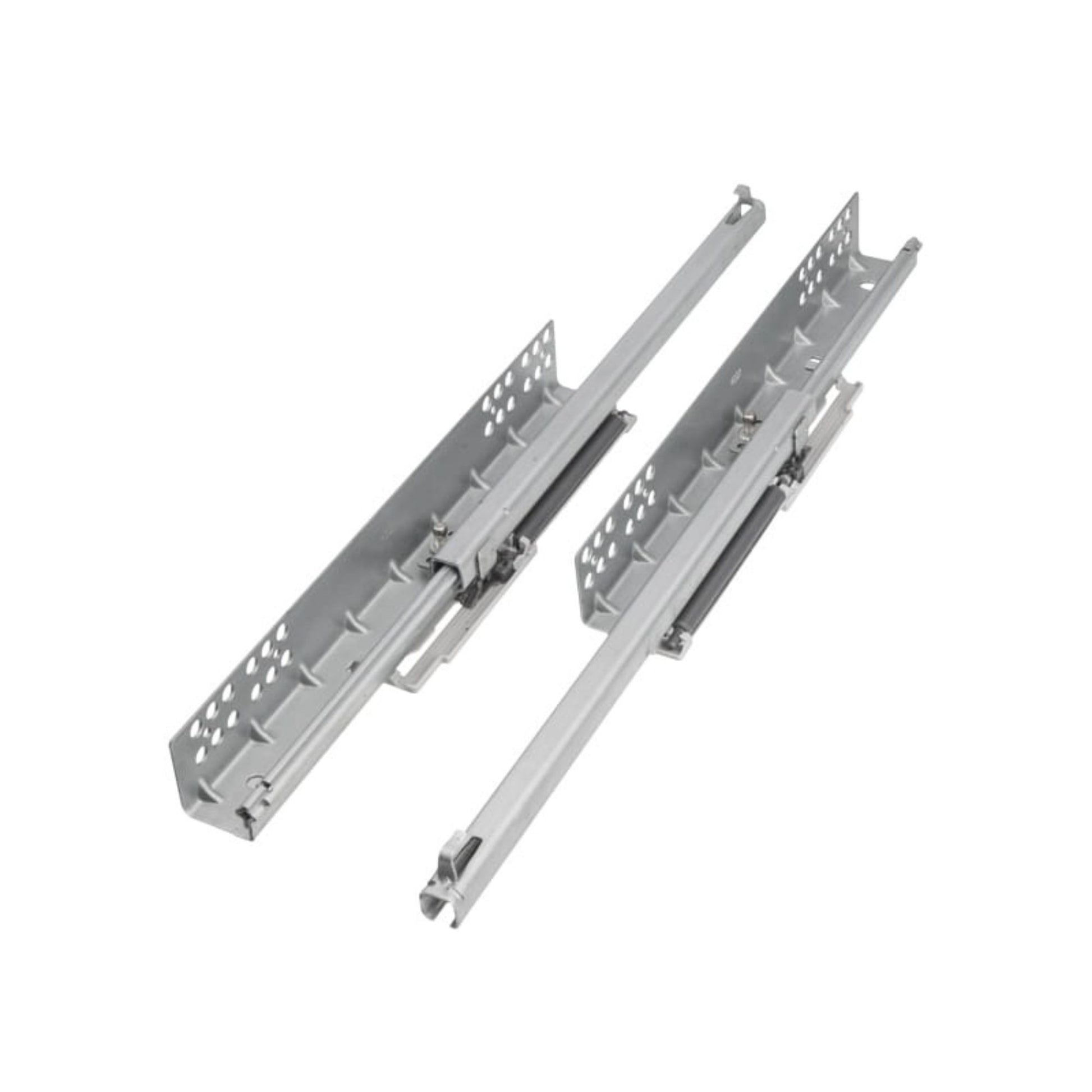

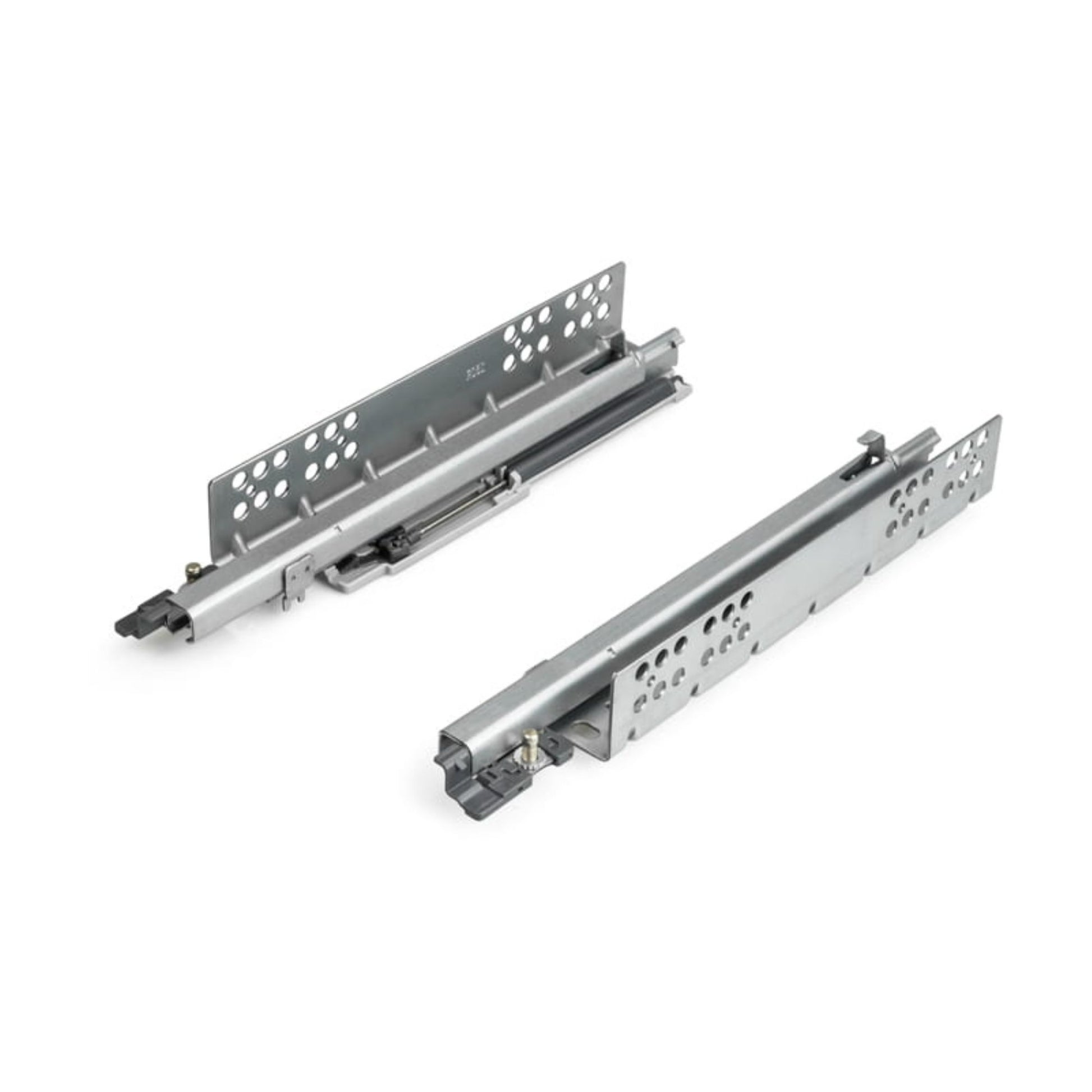

Soft-Close Concealed Undermount Drawer Runners ECO - 350mm

These concealed undermount drawer runners mount beneath the drawer box to provide smooth, quiet closing while remaining completely hidden from view.

  • Additional mechanismSoft-Close
  • Full extensionNo
  • Maximum weight25kg
  • Material thickness16mm

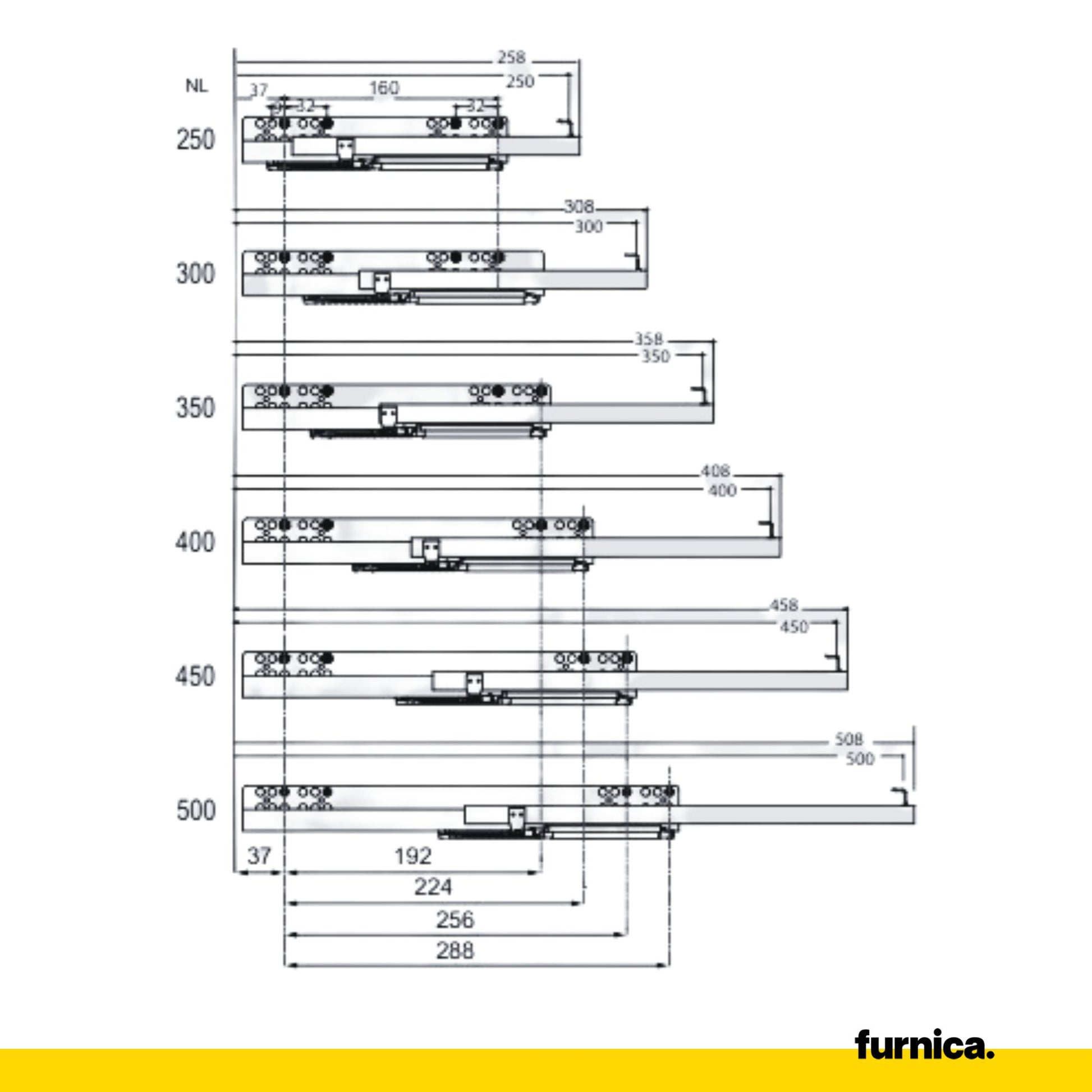

  • Length350mm
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners ECO - 350mm
  • 300mm length

Concealed 350 mm runners for drawer sides up to 16 mm

Concealed undermount drawer runners combine a discreet bottom-mounted profile with an integrated damping system to keep drawer hardware entirely out of sight. Built from zinc-coated steel, this partial-extension mechanism is engineered to support up to 25 kg in daily domestic use.

  • Undermount hidden design: The runners fit neatly underneath the drawer base so no metal tracks are visible along the outer sides of your cabinetry.

  • Integrated soft-close damping: The built-in mechanism catches the drawer as it shuts, pulling it closed quietly and preventing accidental slamming.

  • Robust 25 kg load capacity: Zinc-coated steel construction ensures dependable support and rigid movement even when the drawer is fully loaded.

  • Standard 16 mm side compatibility: Designed to fit timber drawer boxes with side wall material thickness of up to 16 mm for straightforward installation.

Where 350 mm undermount runners fit best

  • KitchenCompact base cabinets

    Fits seamlessly into shallow 350 mm base units and cutlery drawers where exposed side metalwork would spoil clean front edges.

  • BedroomSideboards and chests of drawers

    Soft-close action prevents rattling and structural shocks across bedroom storage units, ensuring smooth and silent closing.

  • Home OfficeDesk and pedestal drawers

    Offers stable, smooth-running storage for stationery, paperwork, and office accessories within the 25 kg capacity.

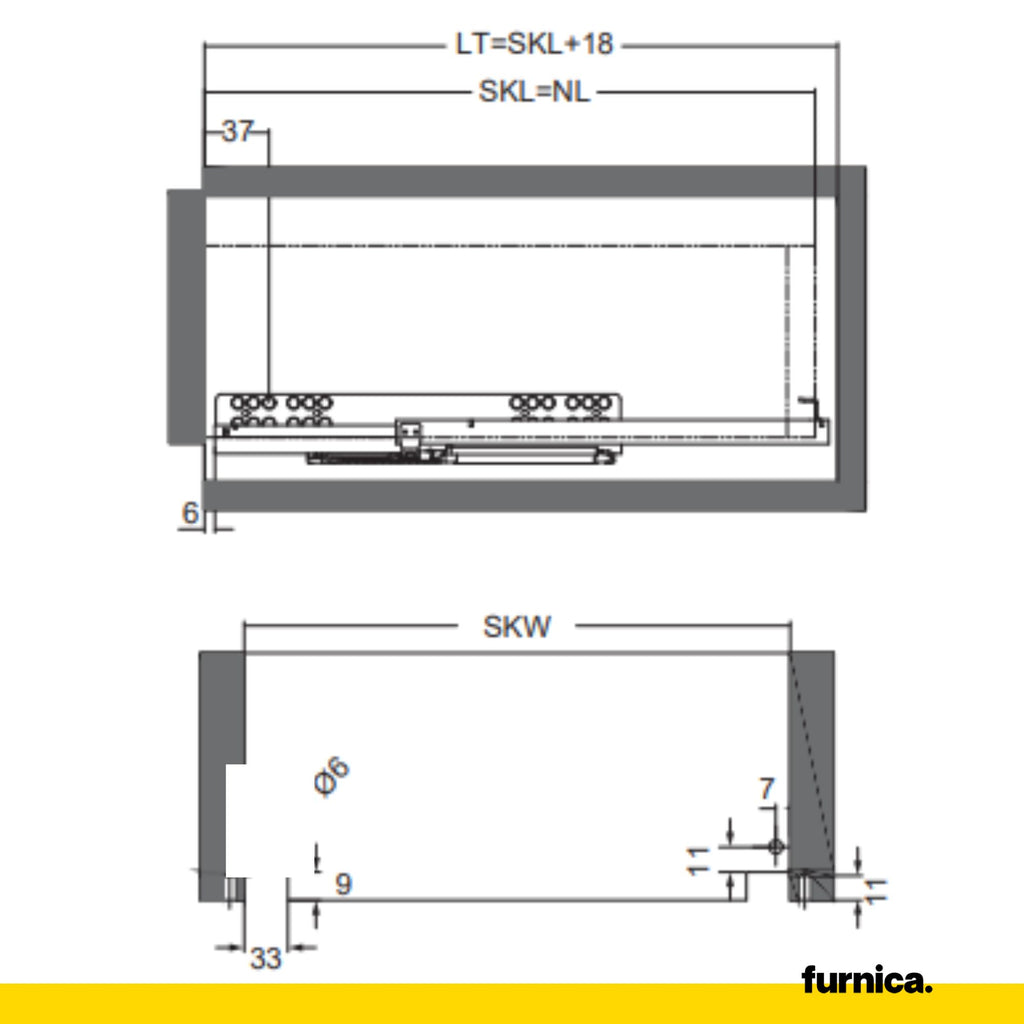

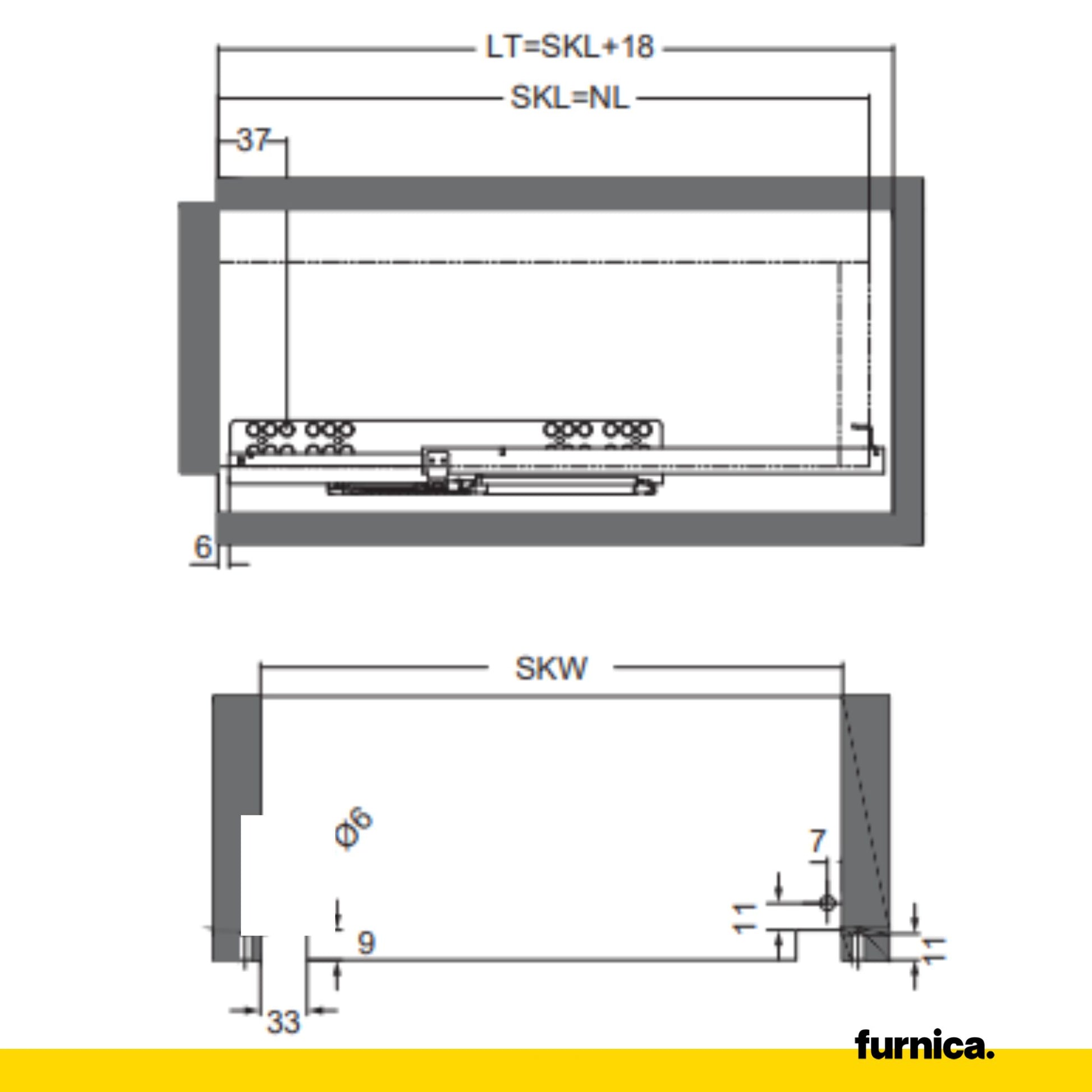

Fitting your undermount drawer runners

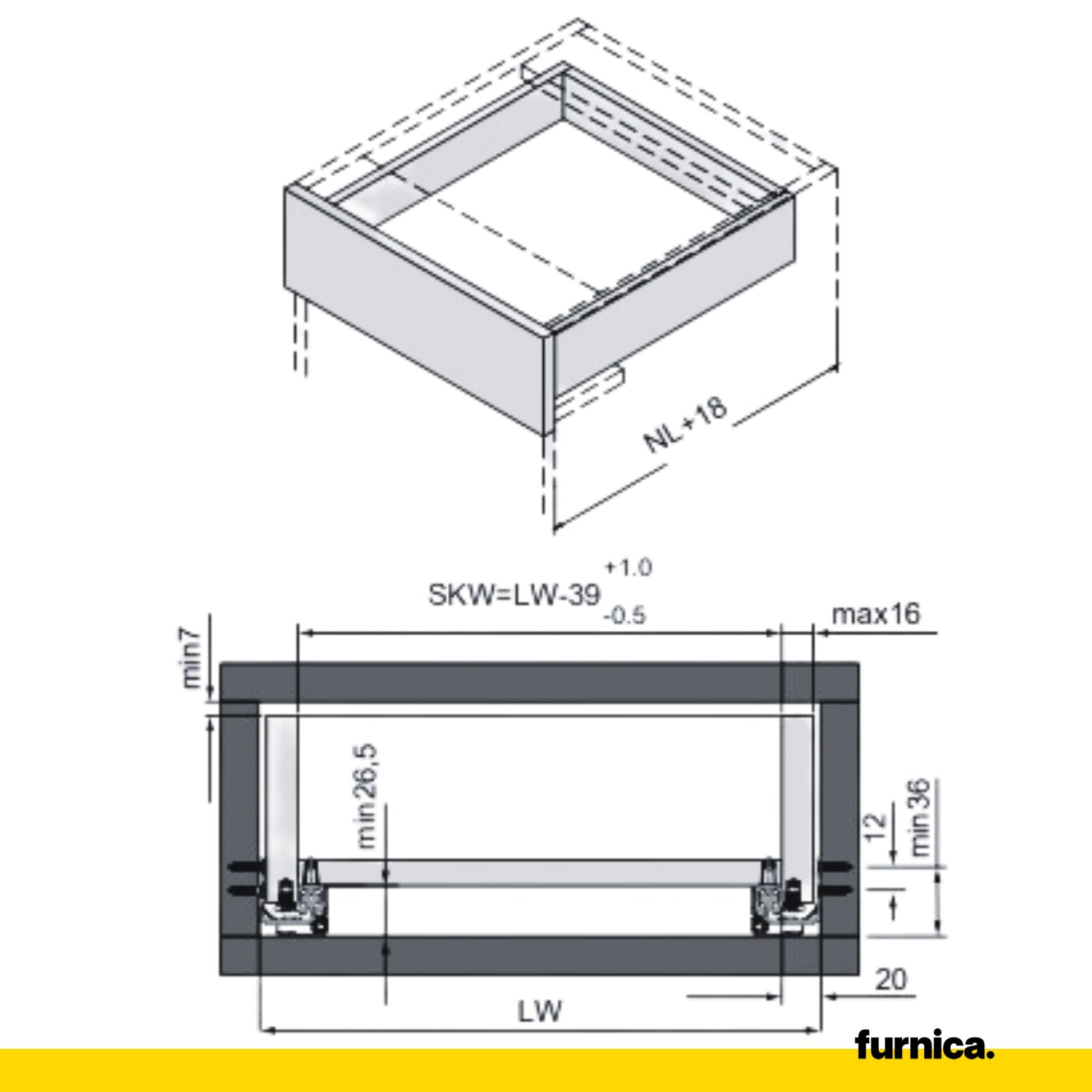

For standard drawer construction with side panels up to 16 mm thick.
  1. 1

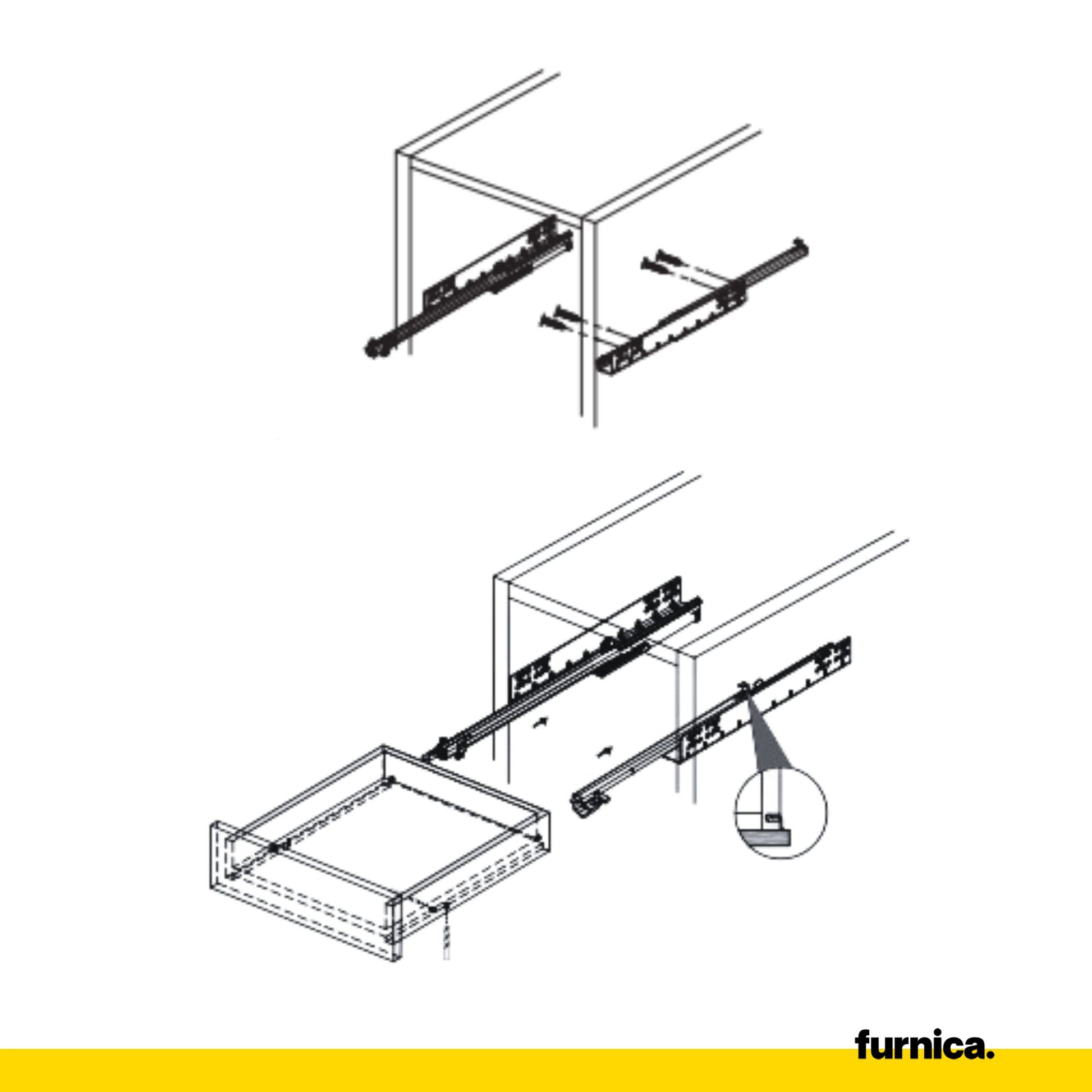

    Mount the cabinet tracks

    Fix the runners horizontally to the interior side panels of your cabinet carcass at the required height using appropriate wood screws.

  2. 2
    Prepare the drawer box

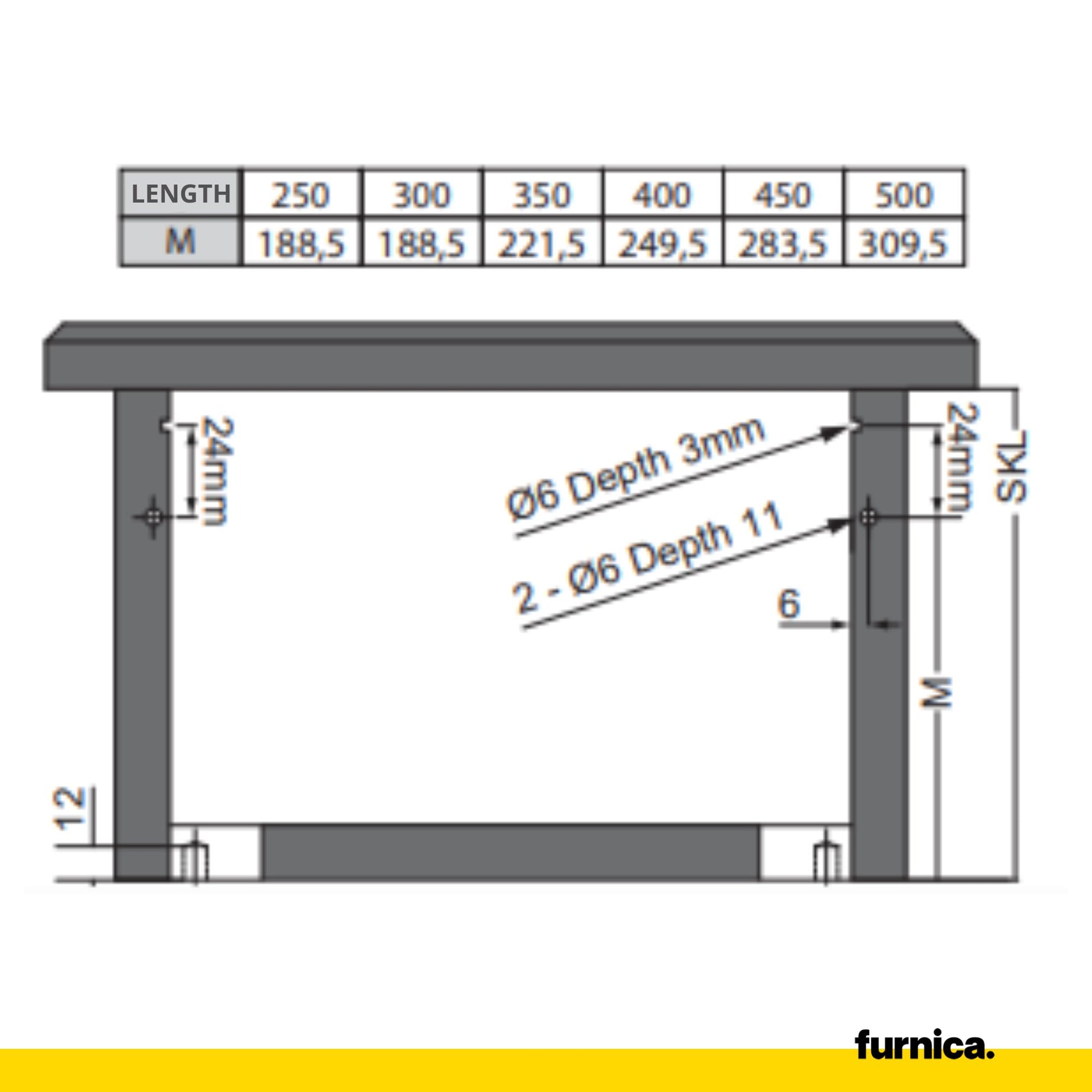

    Ensure your drawer base and rear panel are notched and drilled according to standard undermount specifications to accept the rear hooks.

  3. 3
    Engage and lock into position

    Slide the drawer box onto the runners until the rear hooks engage and the front fixings click firmly into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Manufacturer
Furnica
Full extension
No
Length
300mm
Material
Galvanised steel
Max. drawer side thickness
16mm
Maximum weight
25kg
Product type
Partial extension
EAN
5060685604318
SKU
PTCS-19P-350
