Product data
Zinc-coated steel · Up to 25 kg

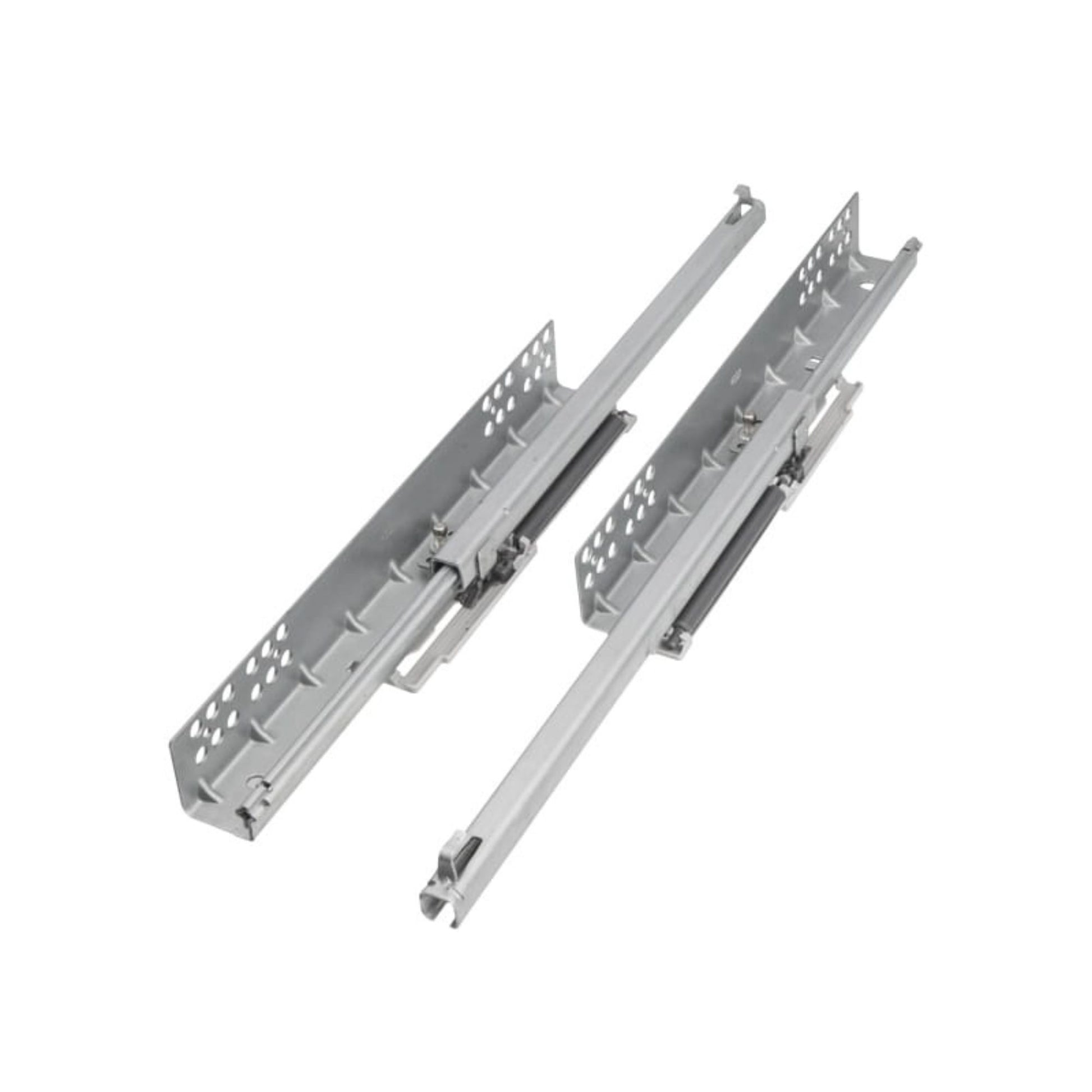

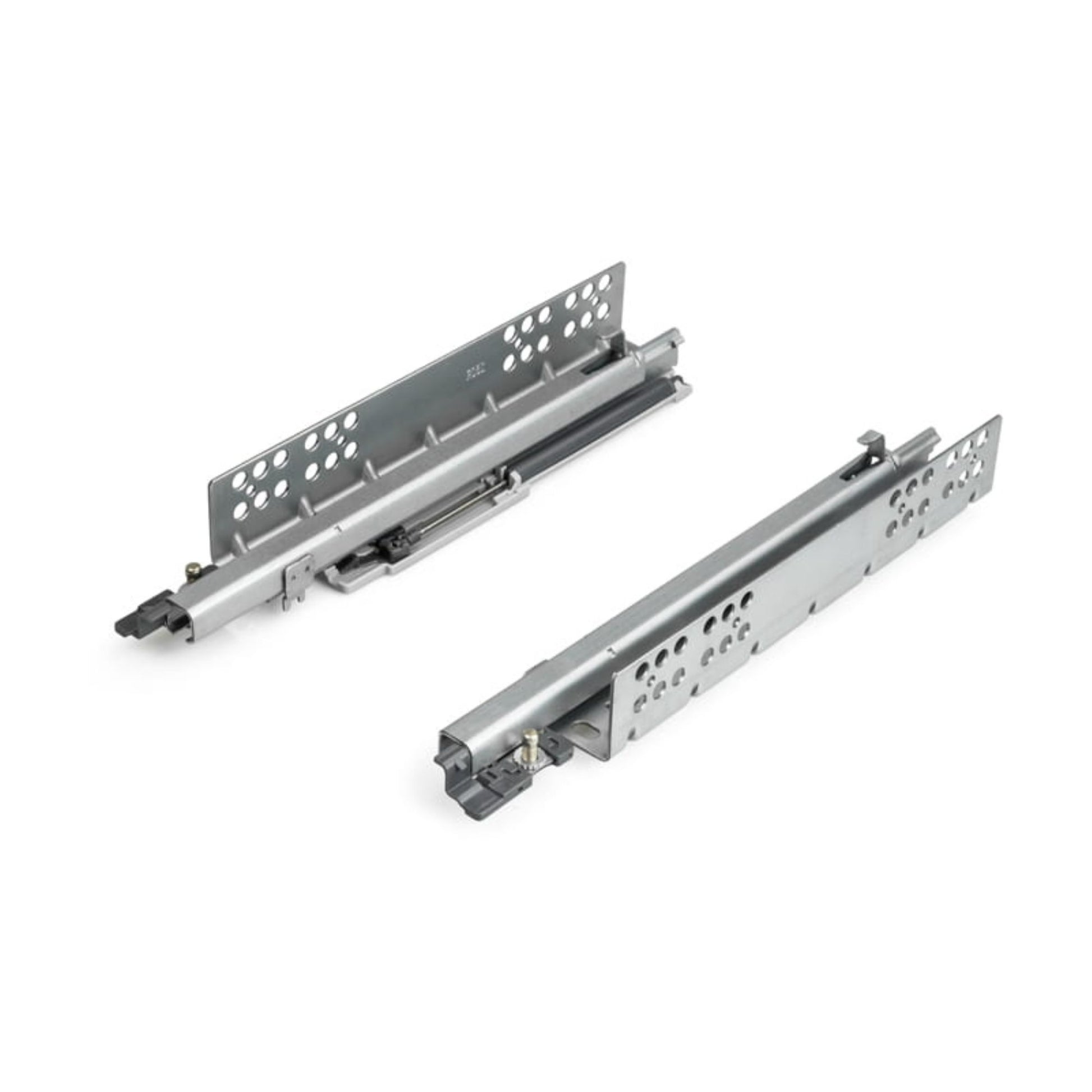

Soft-Close Concealed Undermount Drawer Runners ECO - 400mm

These concealed undermount drawer runners fit neatly beneath the drawer base to keep fittings out of sight while delivering smooth, quiet operation. The integrated soft-close damping mechanism prevents slamming and handles loads up to 25kg.

  • Extension typePartial extension
  • Additional mechanismSoft-Close
  • Maximum weight25kg
  • Maximum drawer side thickness16mm
  • MaterialZinc coated steel
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners ECO - 400mm
  • 300mm length

Concealed 400mm partial extension with soft-close for 16mm drawer sides

Concealed undermount drawer runners combine a hidden running track with a built-in soft-close mechanism for standard drawers. Manufactured from durable zinc coated steel, they are engineered for wooden drawer boxes with side panels up to 16mm thick.

  • Hidden undermount installation: Mounts directly underneath the drawer box so no metal runners are visible on the sides of your furniture.

  • Integrated soft-close mechanism: Slows the closing action in the final centimetres to pull the drawer shut quietly and smoothly.

  • 25kg load capacity: Constructed from zinc coated steel to support day-to-day contents reliably without sagging.

  • Tailored for 16mm drawer sides: Designed to fit drawer boxes constructed with side panel thicknesses up to 16mm.

Where to install 400mm undermount runners

  • KitchenCutlery and utensil drawers

    Under-drawer mounting keeps wooden drawer boxes looking clean with no visible side hardware.

  • Living roomSideboards and storage units

    Soft-close damping stops drawer fronts from slamming shut against the cabinet carcass.

  • Home officeDesk drawers and stationery units

    The 25kg load rating provides dependable support for heavier paperwork and supplies.

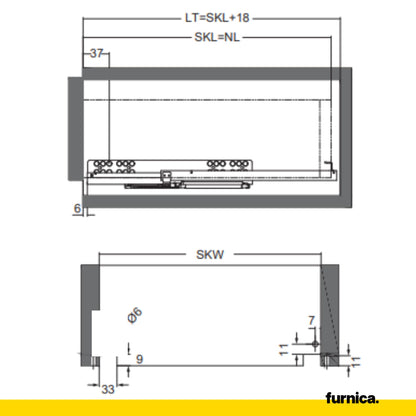

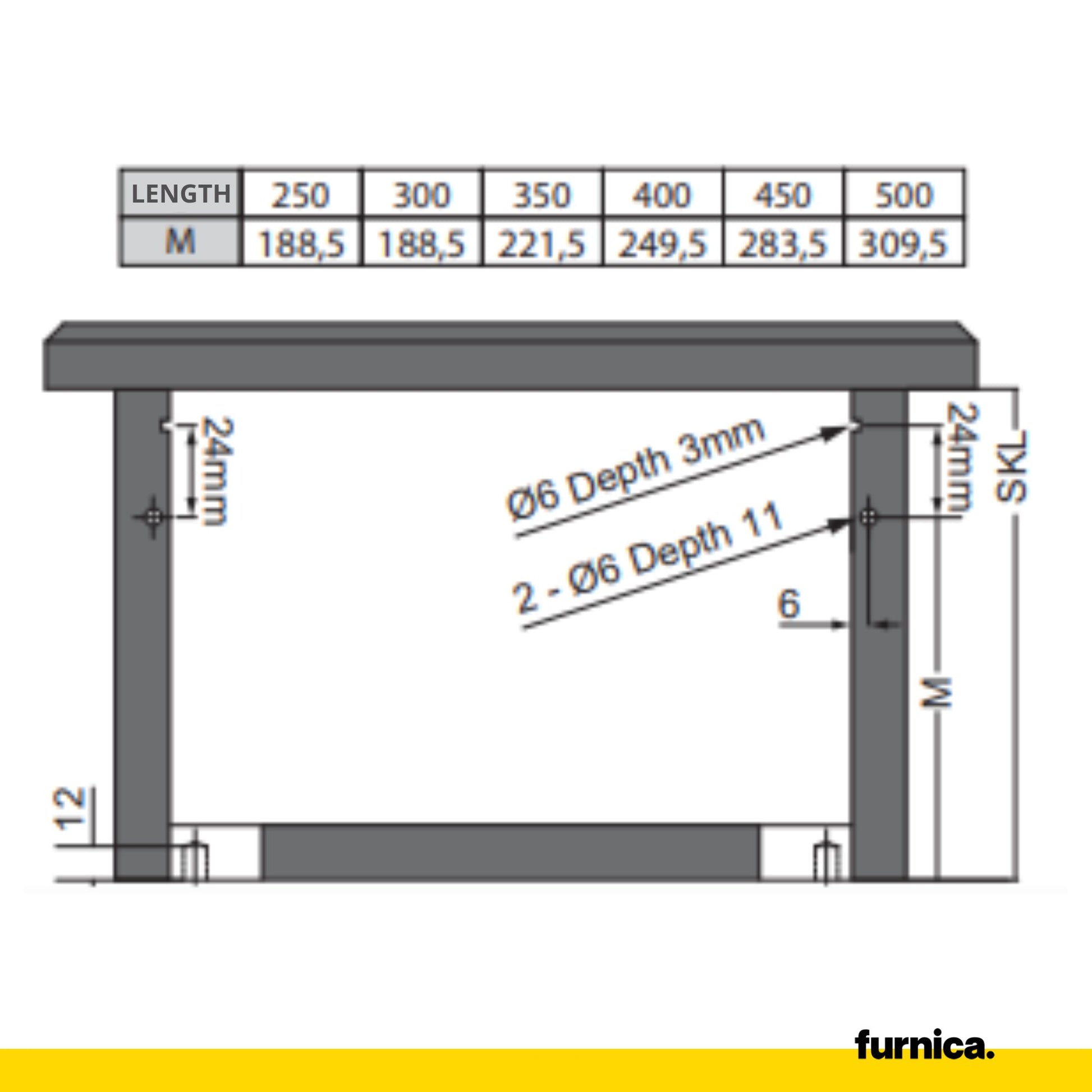

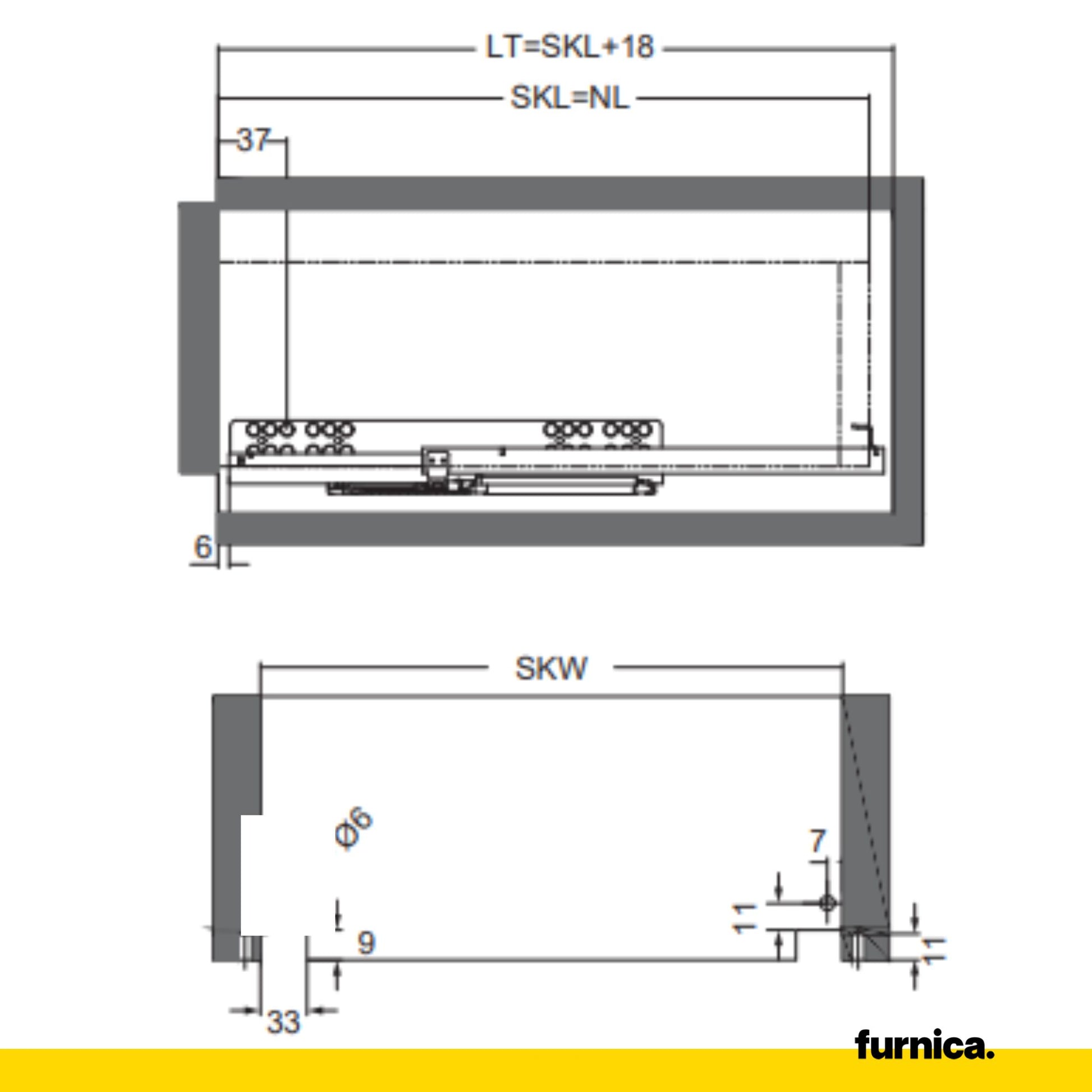

Fitting the concealed drawer runners

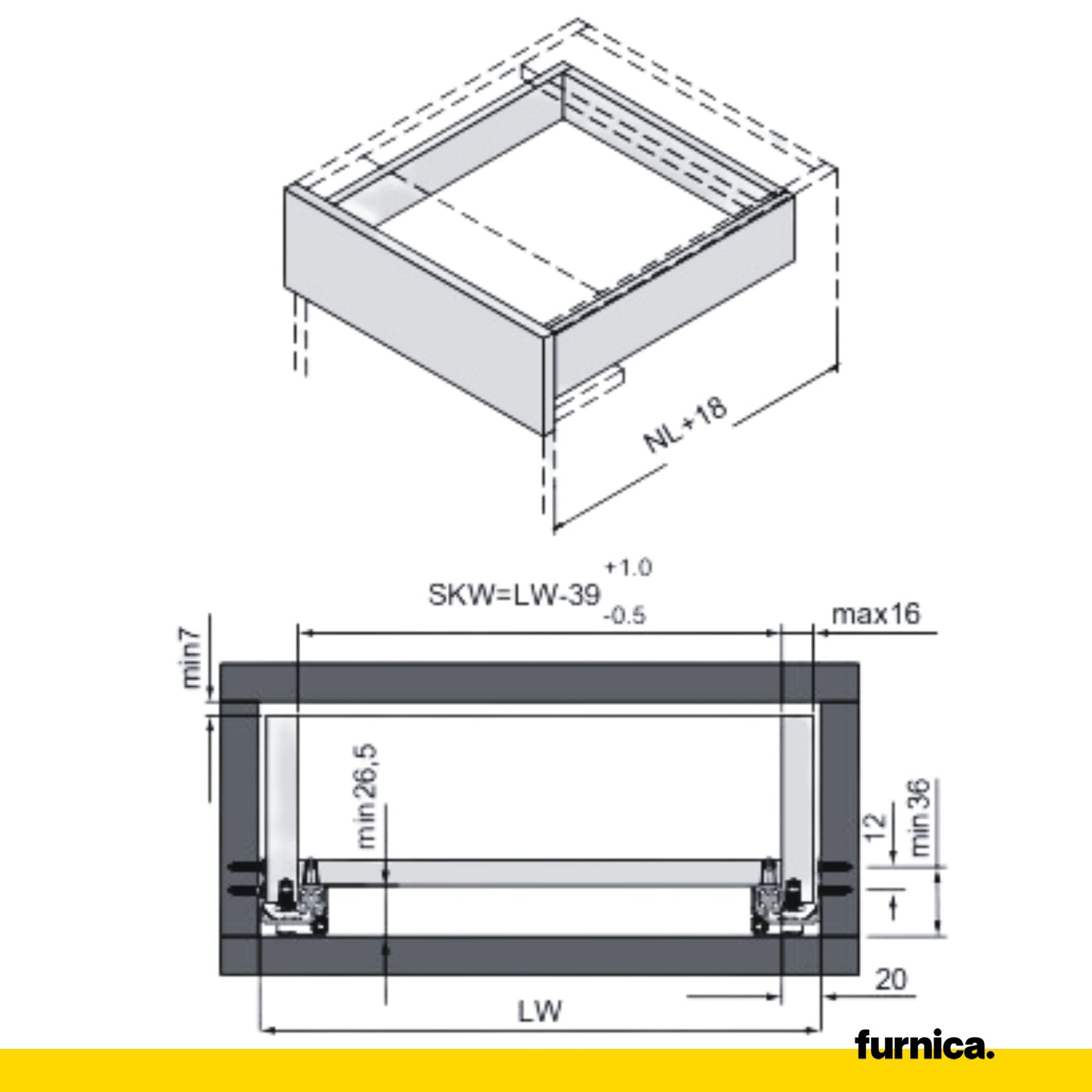

Designed for drawer side panels up to 16mm thick.

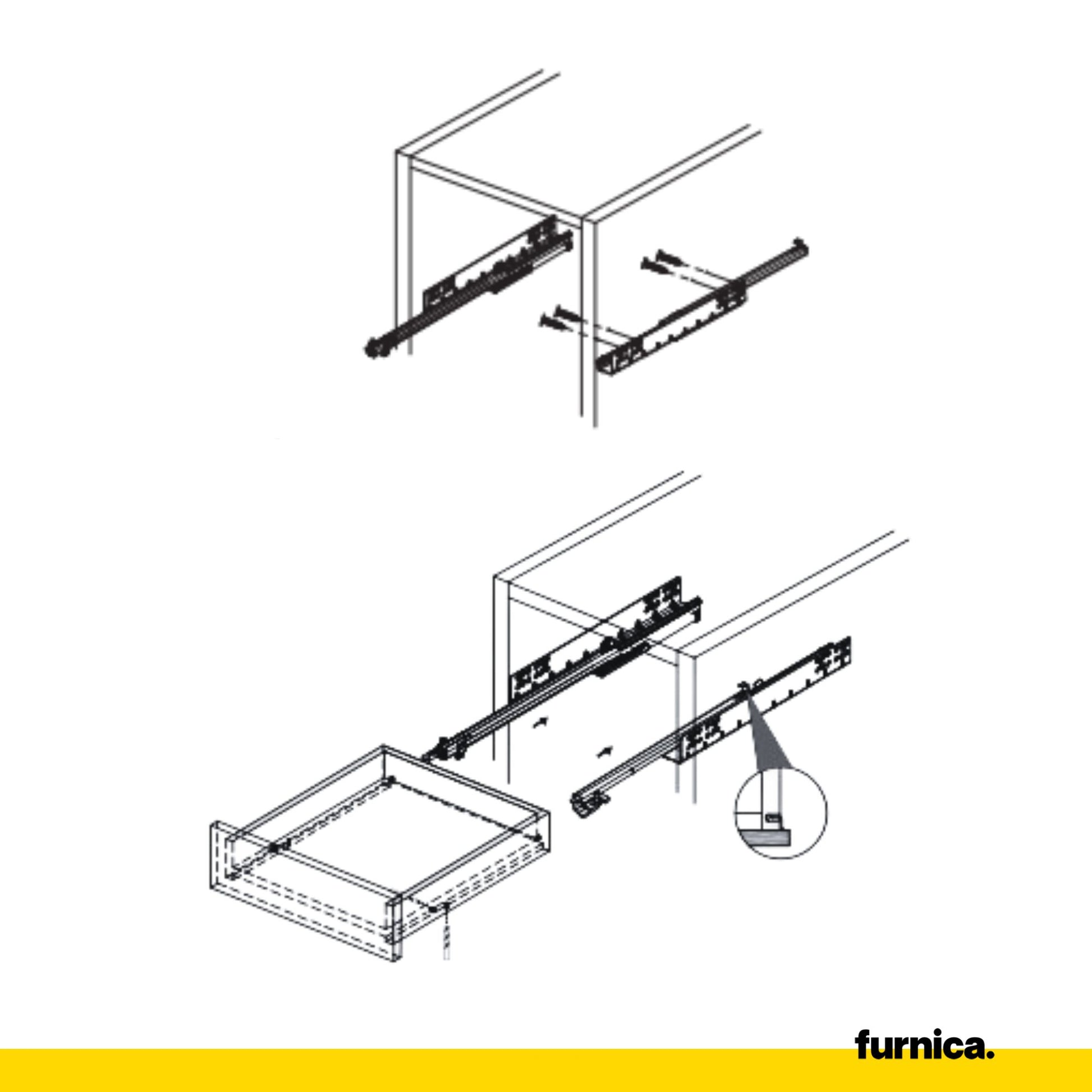

  1. 1
    Fix the cabinet runners

    Screw the runners horizontally to the inside walls of the cabinet carcass at the desired height.

  2. 2
    Prepare the drawer box

    Ensure the drawer base is prepped for undermount fittings and position the rear fixing hooks.

  3. 3
    Engage and click into place

    Slide the drawer box onto the runners until the locking mechanisms click and secure it.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Manufacturer
Furnica
Full extension
No
Length
300mm
Material
Galvanised steel
Max. drawer side thickness
16mm
Maximum weight
25kg
Product type
Partial extension
EAN
5060685604325
SKU
PTCS-19P-400
