Product data
Concealed undermount · Up to 25 kg

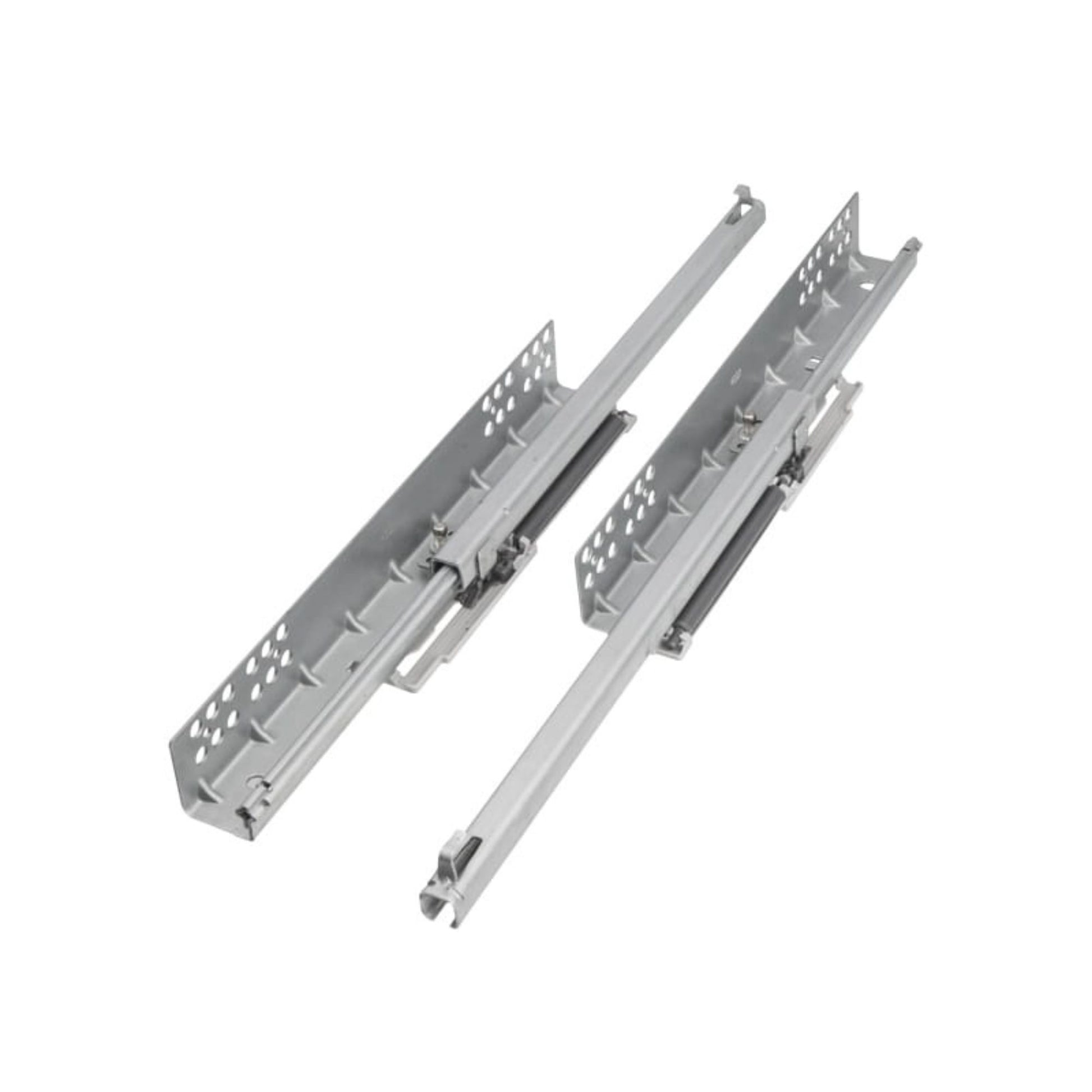

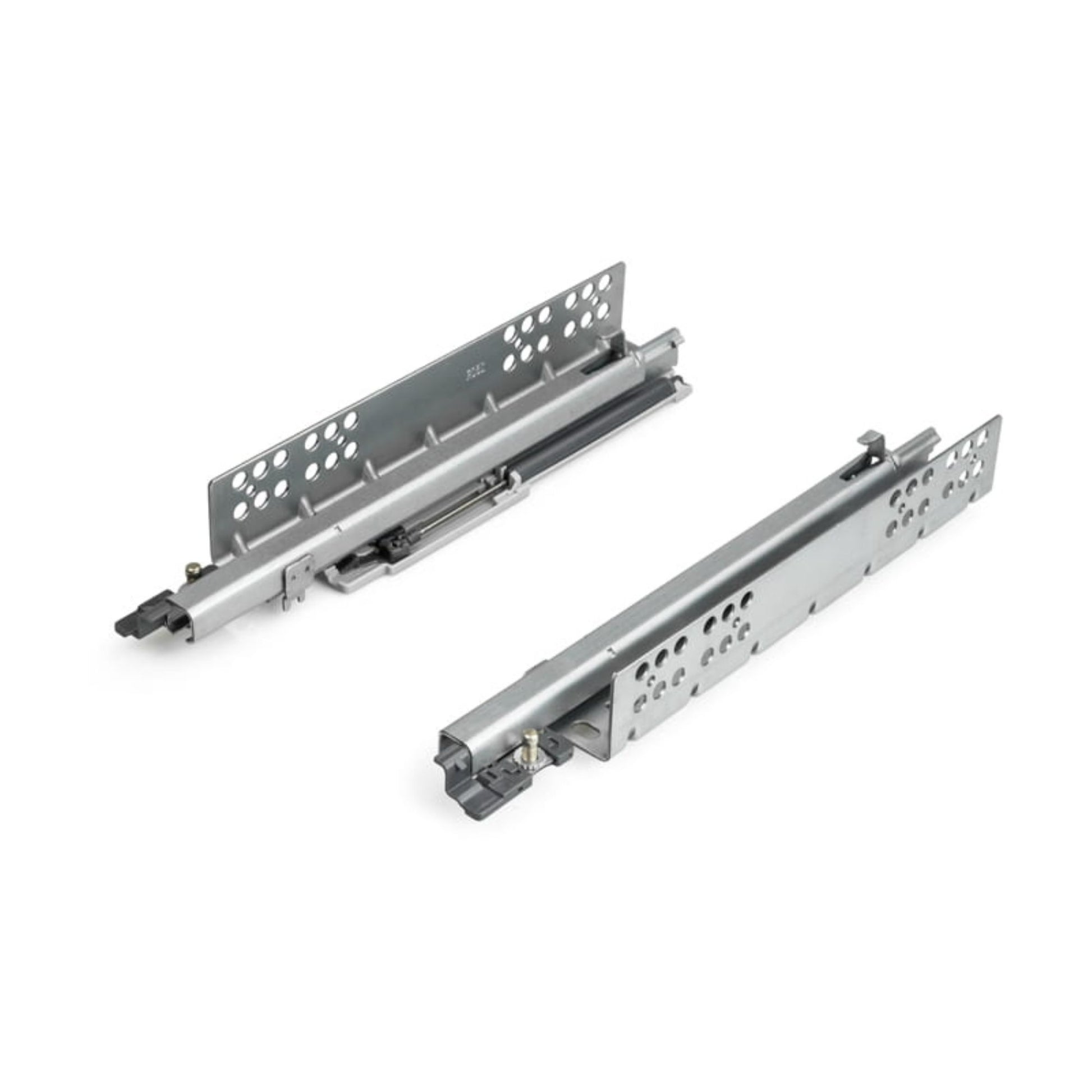

Soft-Close Concealed Undermount Drawer Runners ECO - 550mm

These concealed undermount drawer runners fit discreetly beneath the drawer box to keep hardware completely out of sight. Built from zinc coated steel with an integrated soft-close mechanism, they provide smooth and quiet closing for drawer sides up to 16 mm thick.

  • Additional mechanismSoft-Close
  • Full extensionNo
  • Maximum weight25kg
  • Material thickness16mm
  • Length550mm
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners ECO - 550mm
  • 300mm length

Partial extension soft close drawer runner for 16 mm drawer sides

Concealed undermount drawer runners mount directly beneath the drawer base rather than on the cabinet sides, preserving clean lines across your furniture. Designed as a partial extension system, they support everyday loads up to 25 kg while ensuring silent, controlled closing.

  • Concealed undermount design: Fittings mount underneath the drawer base so no metal runners are visible on the sides when opened.

  • Integrated soft-close damping: The built-in mechanism catches the drawer during closure and pulls it shut quietly without slamming.

  • 25 kg load capacity: Sturdy zinc coated steel construction supports loaded storage drawers safely throughout daily use.

  • Built for 16 mm sides: Engineered precisely to fit standard drawer constructions with side panel thicknesses up to 16 mm.

Applications for concealed undermount runners

  • KitchenBase unit pan and cutlery drawers

    Undermount fixing hides the runner mechanisms completely, maintaining a sleek, modern look inside kitchen cabinets.

  • Living roomSideboards and storage units

    The soft-close feature prevents harsh impacts against the furniture carcase, keeping living spaces peaceful.

  • OfficeDesk and filing drawers

    A reliable 25 kg load rating easily carries stationery, files and daily office essentials on 550 mm deep cabinets.

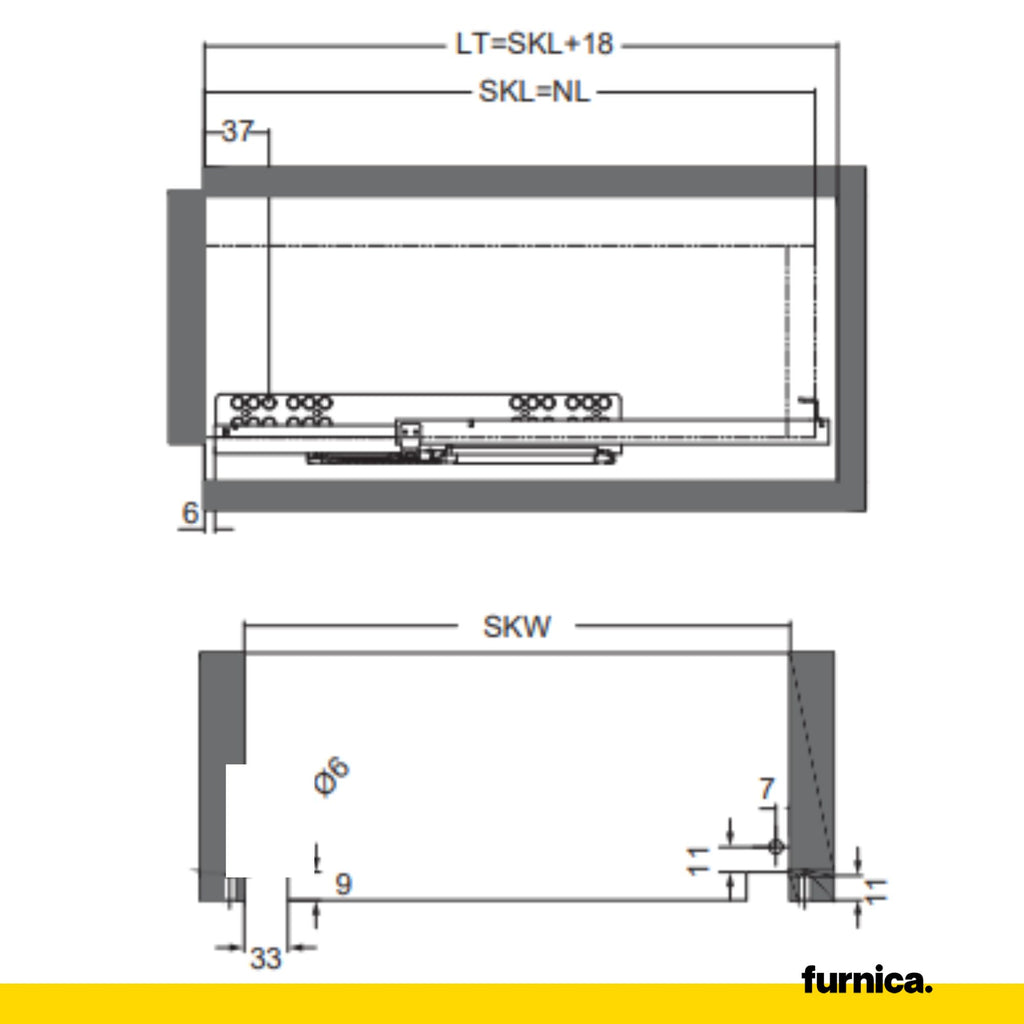

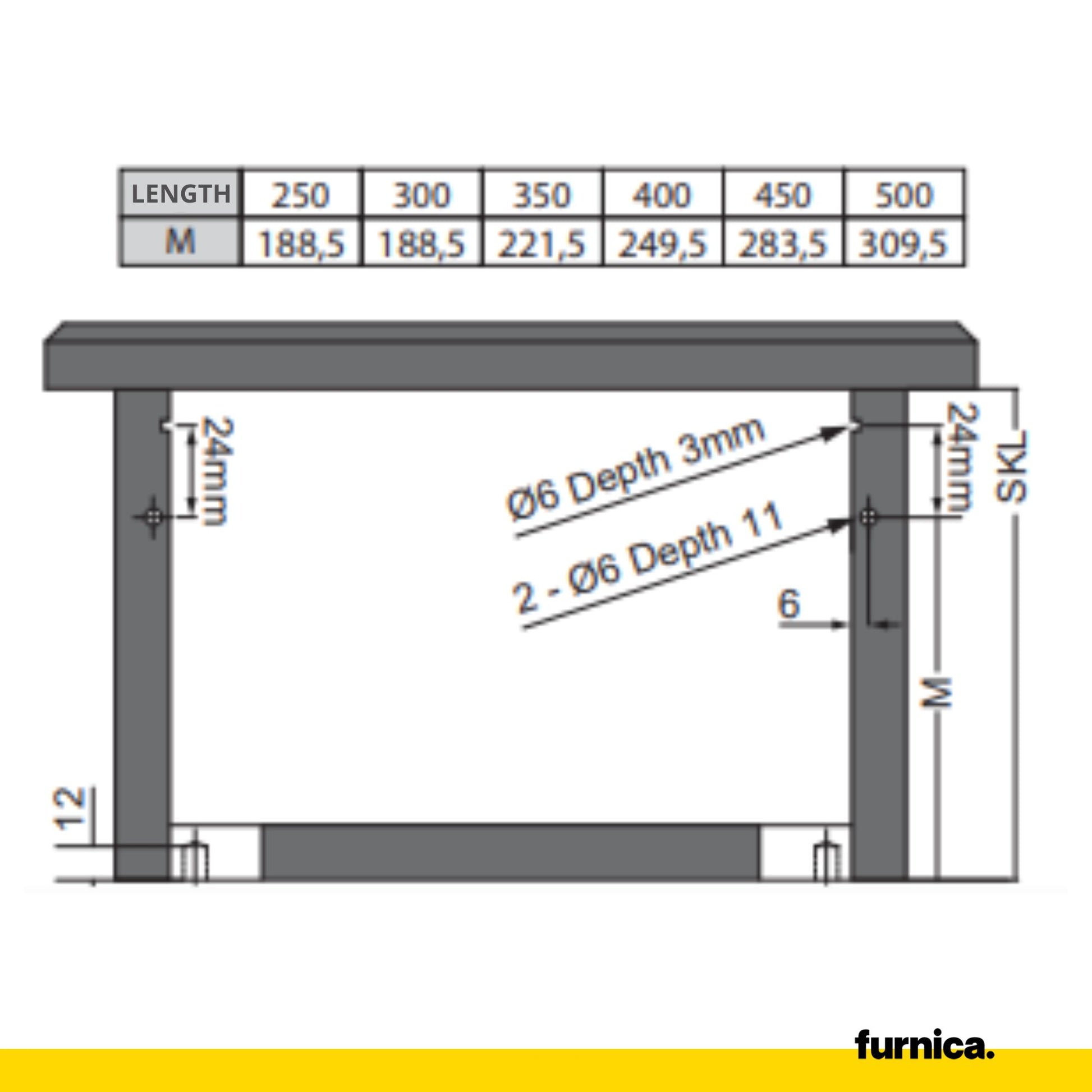

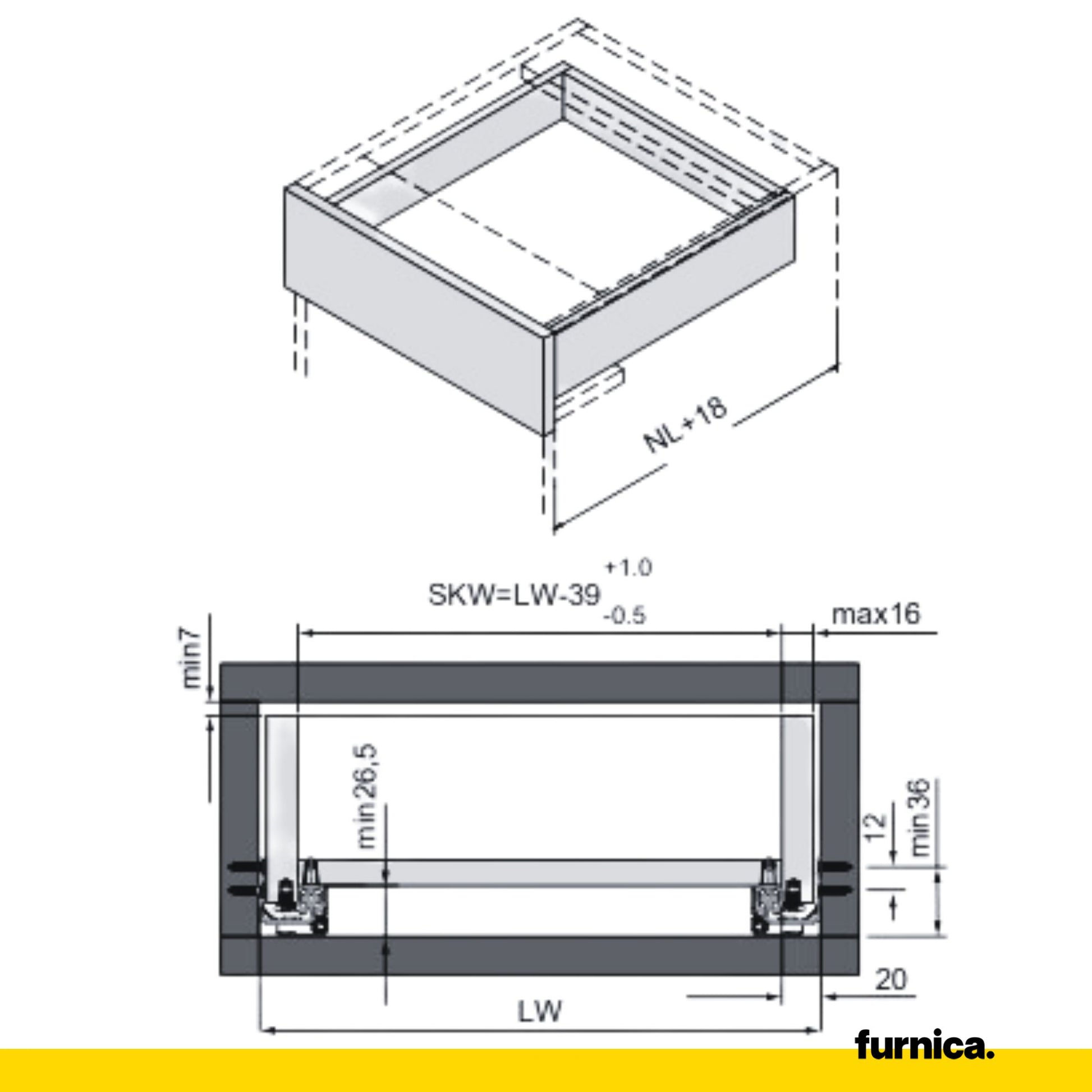

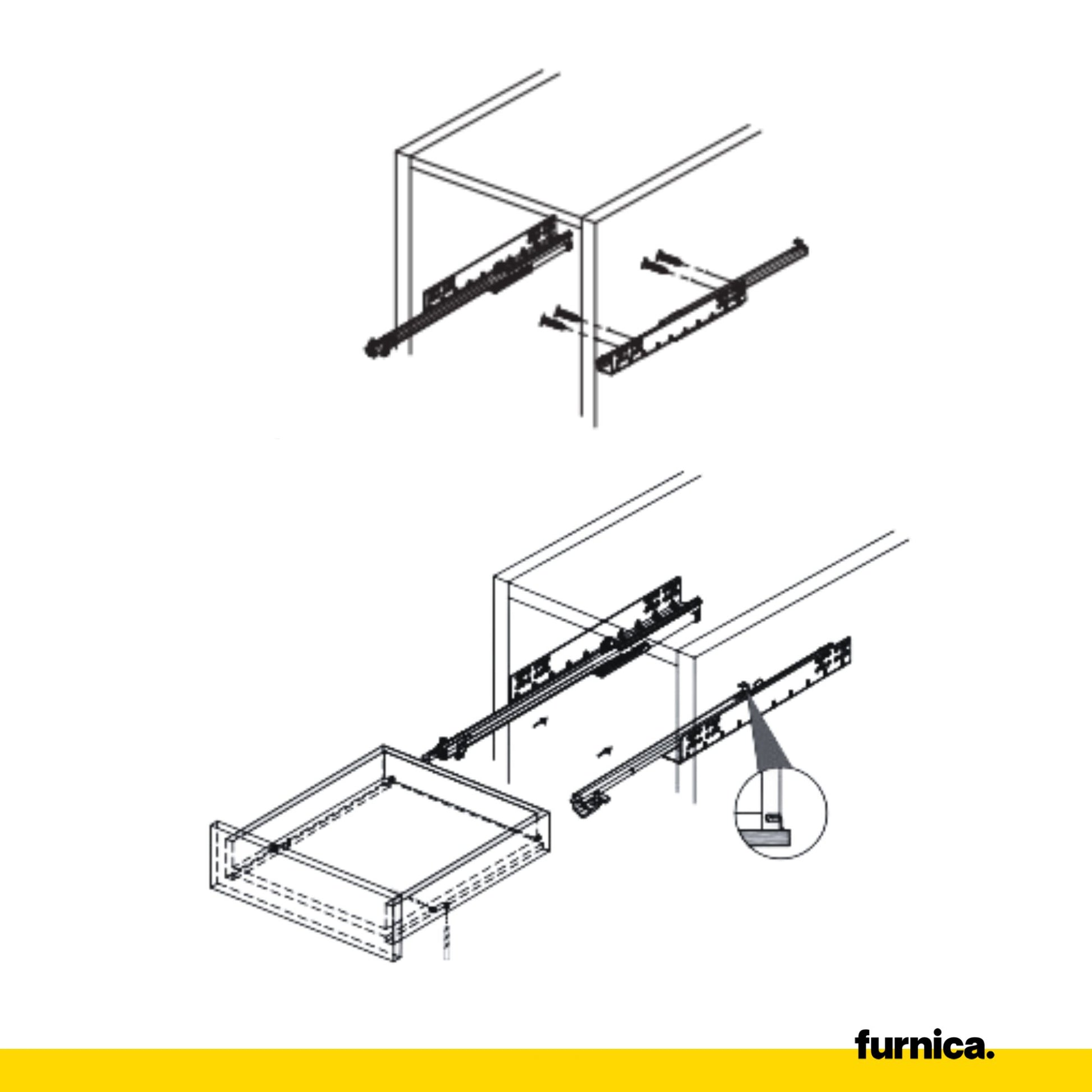

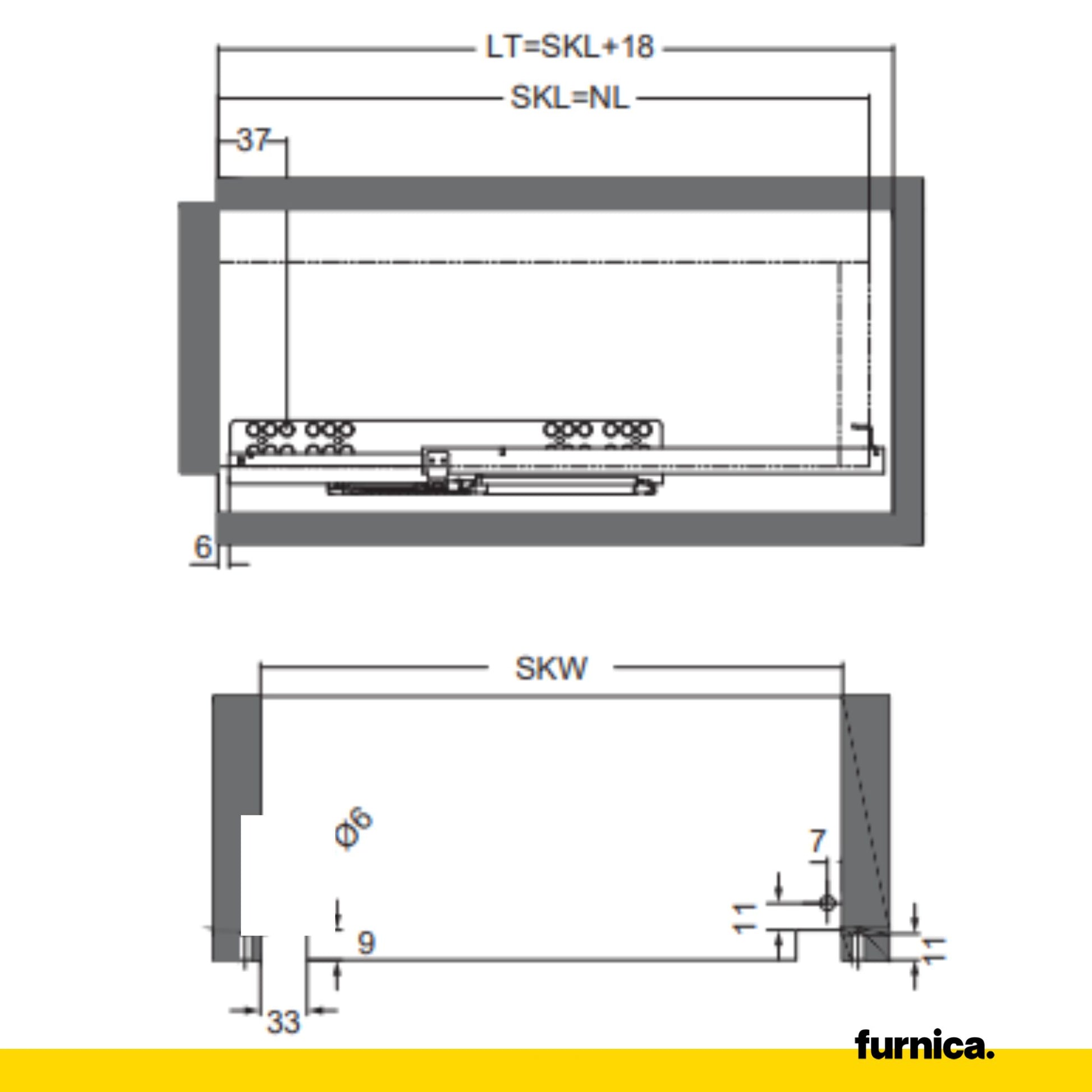

Fitting undermount drawer runners

For drawer side panels up to 16 mm thick
  1. 1
    Fix cabinet rails

    Screw the runner rails horizontally to the inner cabinet side panels at your chosen height.

  2. 2
    Prepare the drawer box

    Ensure the drawer base is notched and pre-drilled to receive undermount hooks according to specifications.

  3. 3
    Engage and secure

    Slide the drawer box onto the runners until the locking mechanisms click firmly into position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Manufacturer
Furnica
Full extension
No
Length
300mm
Material
Galvanised steel
Max. drawer side thickness
16mm
Maximum weight
25kg
Product type
Partial extension
EAN
5060857454482
SKU
PTCS-19P-550
