Cam Dowel 28mm with M6 Screw-Thread - 1 pc
Biscuits & Dowels

Cam Dowel 28mm with M6 Screw-Thread - 1 pc

Availability: Out Stock

Please ask us for availability CONTACT

Free delivery Furnica
£0.12
20% VAT included
Sold Out
Klarna
Steel · M6 metric thread

Cam Dowel 28mm with M6 Screw-Thread - 1 pc

This 28mm cam dowel with an M6 metric screw-thread provides a strong, concealed connection for flat-pack furniture and cabinetry.

  • ThreadMetric (M6)
  • MaterialSteel
  • ColourZinc
  • Quantity1 piece
Cam Dowel 28mm with M6 Screw-Thread - 1 pc
  • 28mm length

M6 dowel pin for 28mm furniture joints

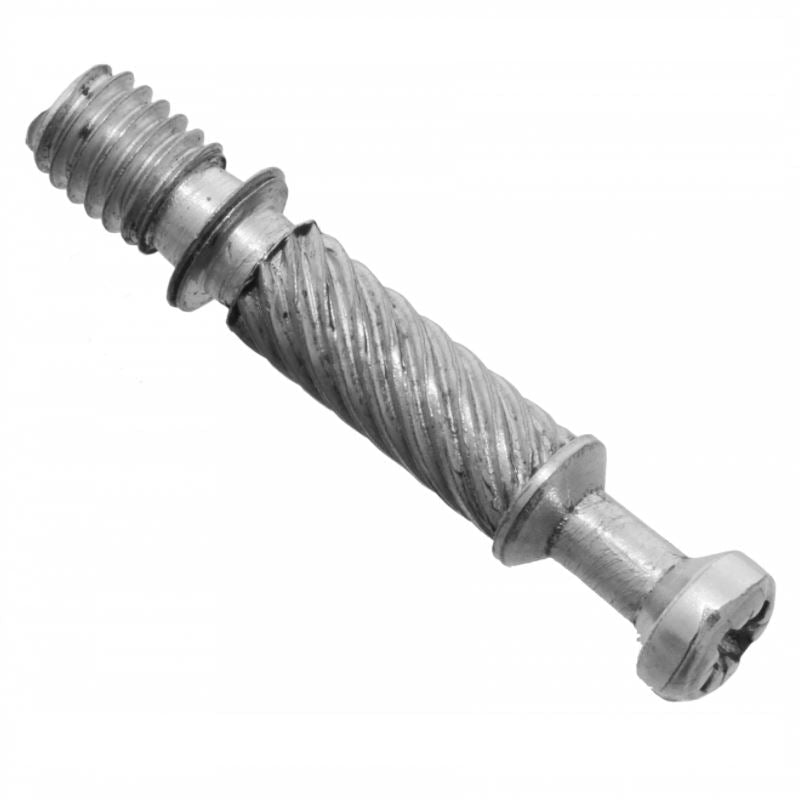

The Cam Dowel 28mm with M6 Screw-Thread creates rigid, hidden carcass joints when paired with compatible eccentric cam locks. Made from zinc-finished steel, it screws directly into pre-fitted M6 threaded inserts.

  • Metric M6 thread: Screws cleanly into matching internal M6 threads and threaded bushes for demountable carcass joints.

  • Zinc-coated steel: Durable steel core delivers dependable tensile strength and resistance against surface corrosion.

  • Concealed fastening: Locks fully inside the cabinet panel with a compatible cam lock to leave outer surfaces clean and fastener-free.

Typical applications for the 28mm M6 cam dowel

  • CabinetryCarcass panel joints

    Joins wardrobe sides, shelving units, and base panels securely to internal dividers.

  • RepairReplacing broken cam pins

    Direct single-piece replacement for stripped or missing screw dowels in existing flat-pack units.

  • WorkshopThreaded insert assemblies

    Ideal for modular furniture requiring repeated assembly and disassembly using pre-installed M6 bushes.

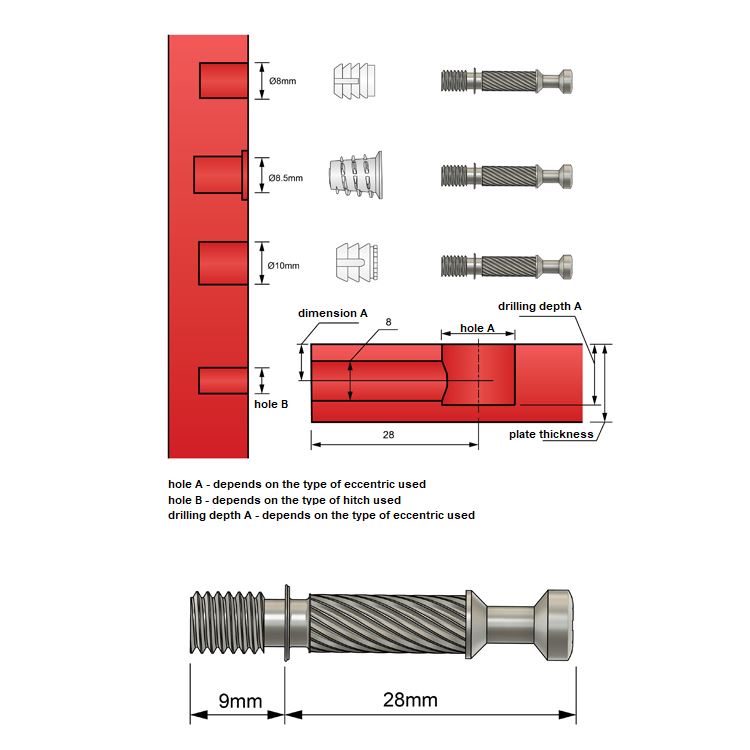

Installing the cam dowel

Requires a pre-drilled M6 threaded hole or insert bush.
  1. 1
    Check the thread

    Ensure the panel contains a clean, matching M6 internal thread or threaded insert.

  2. 2
    Screw the dowel home

    Thread the dowel straight into the M6 opening until it seats firmly at working height.

  3. 3
    Lock the joint

    Align the adjoining panel over the dowel head and turn the cam lock to draw the joint tight.
