Cam Dowel 28mm with M6 Screw-Thread - 1 pc
Biscuits & Dowels

Cam Dowel 28mm with M6 Screw-Thread - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.07
20% VAT included
£0.07
Klarna
Steel & plastic · M6 metric thread

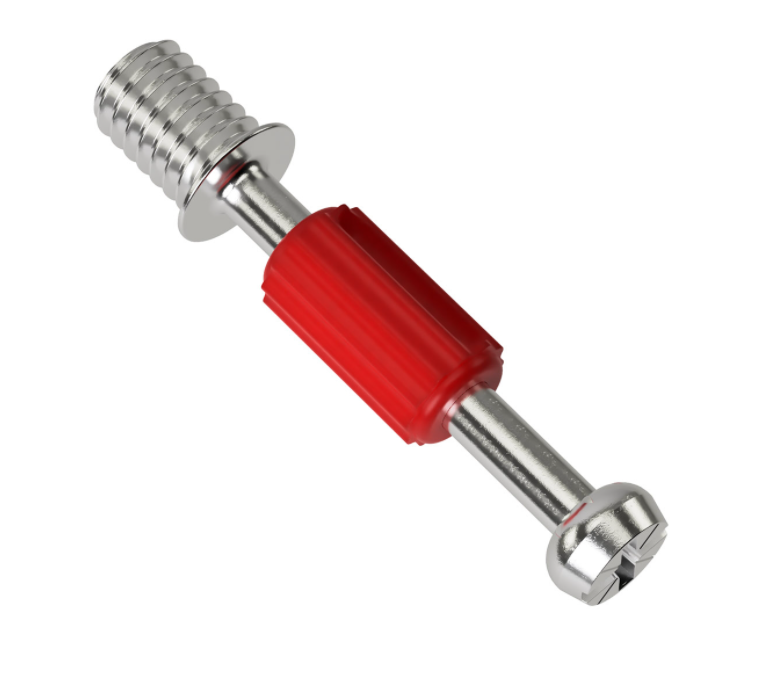

Cam Dowel 28mm with M6 Screw-Thread - 1 pc

This 28mm cam dowel provides a robust, stable joint between furniture panels using an integrated M6 metric thread.

  • Length28mm
  • ThreadMetric (M6)
  • MaterialZinc coated steel / plastic
  • ColourZinc / red
  • Quantity1 pc
Cam Dowel 28mm with M6 Screw-Thread - 1 pc

28mm length with M6 thread for panel assembly

Screw dowels provide reliable panel connections by anchoring securely into standard M6 threaded inserts or pre-tapped fittings. Built from zinc coated steel and plastic, this 28mm cam dowel ensures strong alignment across flat-pack builds and repairs.

  • Standard M6 thread: Pairs directly with pre-threaded M6 metal sleeves and furniture bushings.

  • Zinc coated steel: Provides solid structural strength and long-lasting durability in load-bearing joints.

  • Precision 28mm length: Ensures accurate engagement with matching 28mm cam lock fittings.

Where to use an M6 threaded 28mm cam dowel

  • Flat-packCabinet carcass construction

    Locks adjoining panels together firmly using an M6 threaded socket.

  • RepairReplacing a lost fitting

    Supplied as a single unit to replace a damaged or missing 28mm dowel screw without buying unnecessary multi-packs.

  • WorkshopCustom shelving units

    Offers a dependable concealed connection when building custom panel furniture.

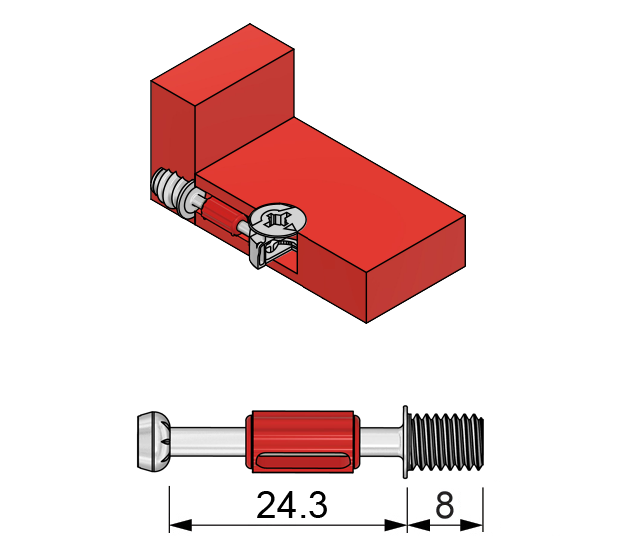

How to fit the cam dowel

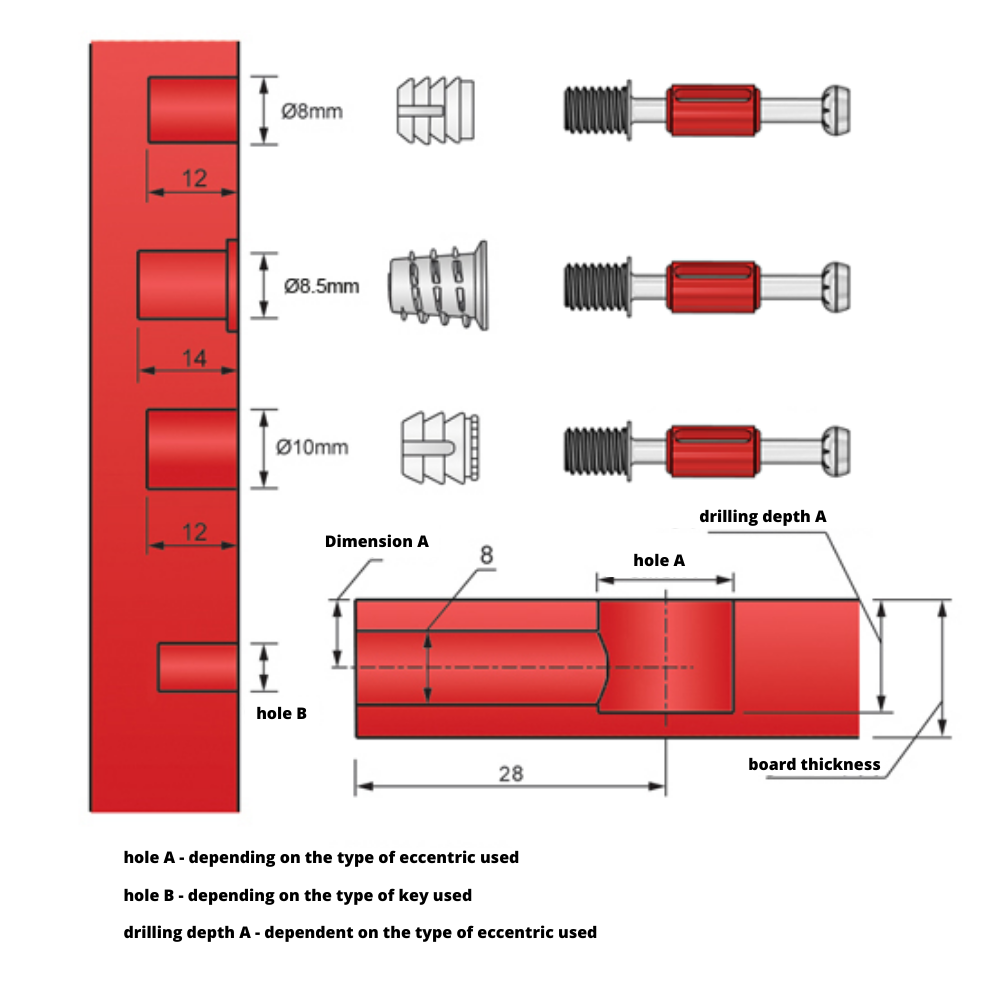

Requires a matching M6 threaded hole or insert
  1. 1
    Prepare the insert

    Ensure the receiving panel has an aligned M6 metric thread or metal insert sleeve.

  2. 2
    Screw in the pin

    Thread the M6 end of the cam dowel straight into the insert until the red plastic collar sits flush.

  3. 3
    Join the panels

    Slide the adjacent panel over the projecting 28mm dowel head and lock it in place with a compatible cam fitting.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards
