Cam Dowel 28mm with M6 Screw-Thread - 100 pcs
Biscuits & Dowels

Cam Dowel 28mm with M6 Screw-Thread - 100 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£4.52
20% VAT included
£4.52
Klarna
Zinc-coated steel & plastic · Pack of 100

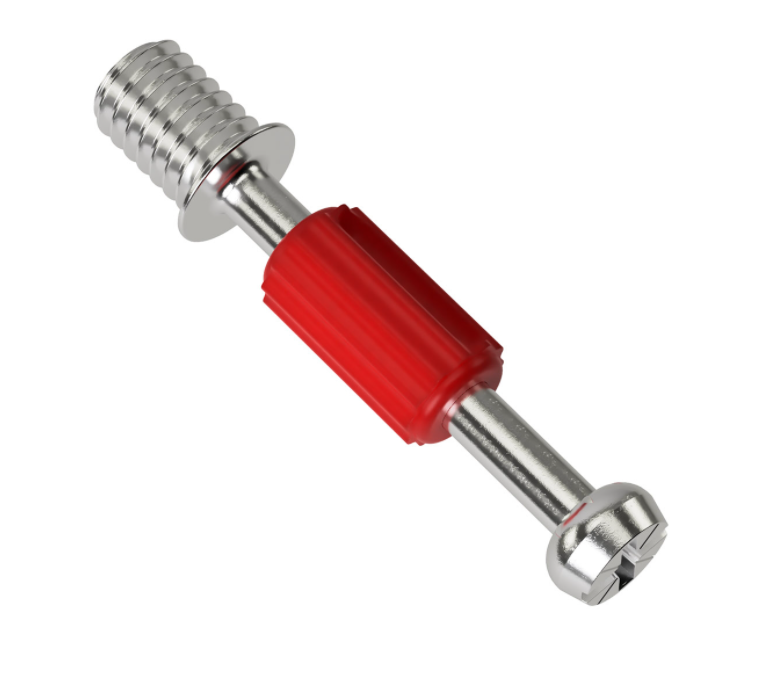

Cam Dowel 28mm with M6 Screw-Thread - 100 pcs

This 28mm cam dowel features a metric M6 screw-thread designed to create strong, concealed joints in flat-pack furniture and cabinetry.

  • Length28mm
  • Thread typeMetric (M6)
  • MaterialZinc coated steel/plastic
  • ColourZinc/red
  • Pack quantity100 pieces
Cam Dowel 28mm with M6 Screw-Thread - 100 pcs

Concealed 28mm connecting pins with M6 metric thread

These screw dowels provide robust connecting points for standard knockdown furniture assemblies requiring an M6 threaded insert. Made from zinc-coated steel with a durable red plastic collar, they ensure tight cabinet joints.

  • Standard M6 thread: Screws cleanly into pre-fitted M6 threaded sleeves or metal inserts for a secure hold.

  • Zinc-coated steel core: Provides solid structural strength to keep panels pulled firmly together under load.

  • Concealed panel jointing: Pairs with matching cam locks to keep furniture connections fully hidden from view.

  • Bulk workshop quantity: Supplied in a 100-piece pack, ideal for full wardrobe or cabinet carcass builds.

Where an M6 28mm cam pin is needed

  • CabinetryKitchen base and wall units

    Connects side gables to top and base panels where M6 metal threaded sockets are already installed.

  • Flat-packWardrobe and carcass assembly

    Provides rigid fastening across carcass panels when replacing or fitting standard furniture fixings.

  • RepairsLoose furniture joints

    Replaces damaged or bent metric pins in pre-threaded knockdown furniture to restore rigidity.

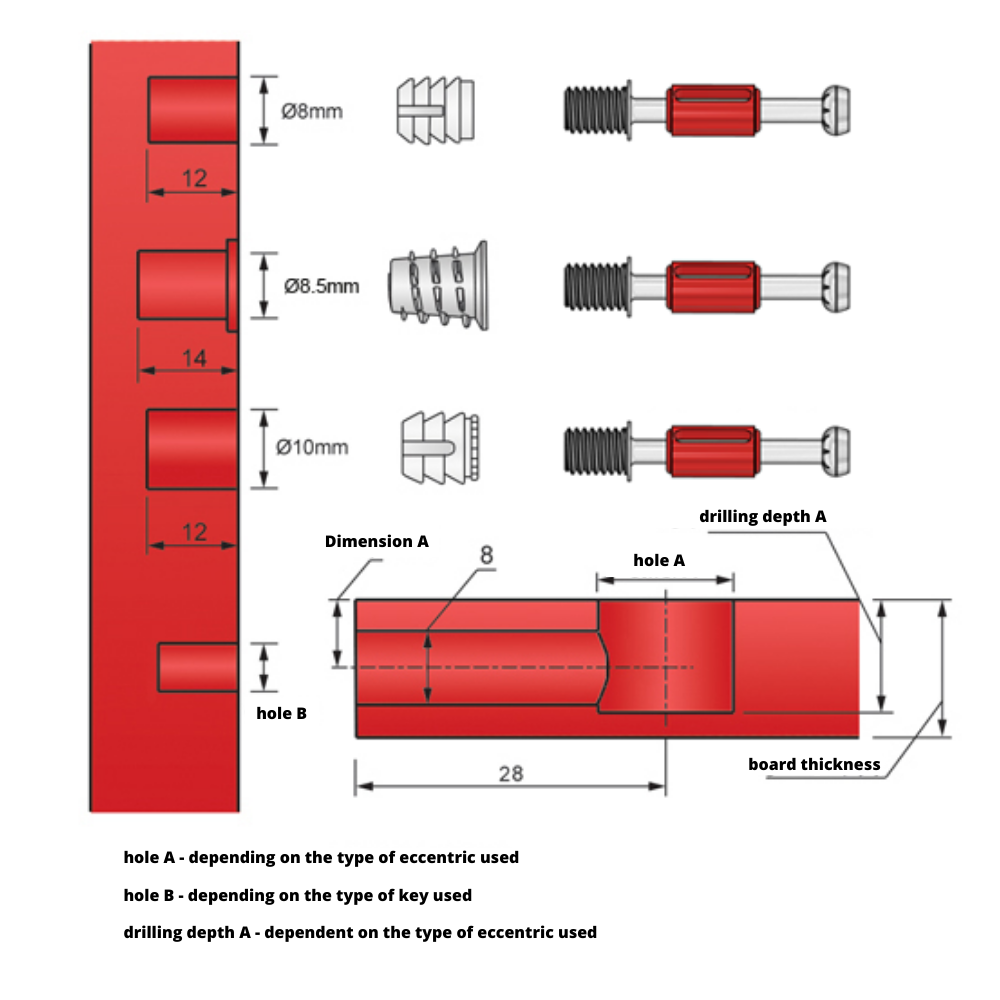

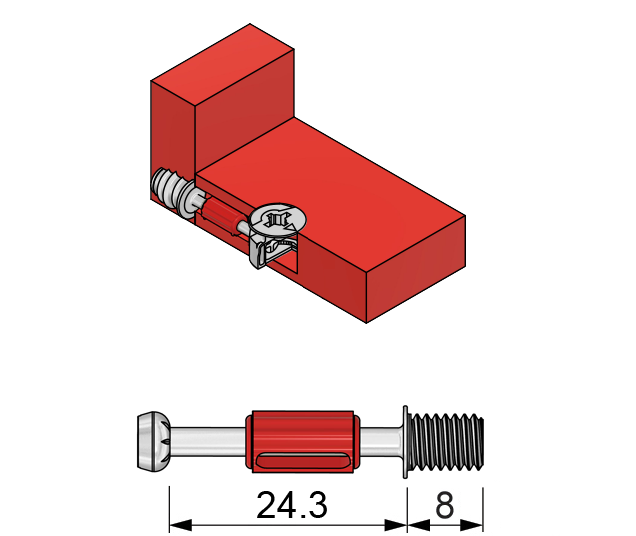

Fitting into M6 pre-threaded sockets

100 dowels included in pack
  1. 1
    Thread into panel

    Screw the metric M6 thread into your pre-installed insert until the collar sits flush against the panel.

  2. 2
    Align mating piece

    Offer up the adjacent panel, guiding the protruding 28mm pin head directly into the edge hole.

  3. 3
    Lock into place

    Turn the corresponding eccentric cam lock inside the panel to pull the joint tight and secure the connection.
