Cam Dowel 34mm with M6 Screw-Thread - 1 pc
Biscuits & Dowels

Cam Dowel 34mm with M6 Screw-Thread - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.09
20% VAT included
£0.09
Klarna
M6 metric thread · Zinc & black · 1 pc

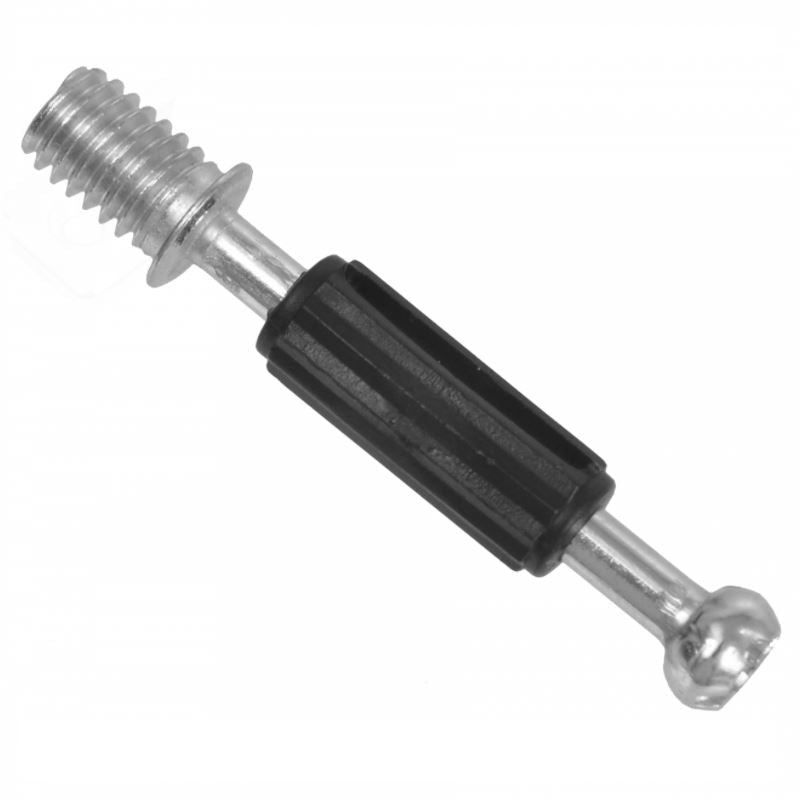

Cam Dowel 34mm with M6 Screw-Thread - 1 pc

This cam dowel features a metric M6 thread and zinc-coated steel construction to anchor cabinet panels and furniture carcasses firmly. Designed for use with standard eccentric cam fittings, it creates a robust, concealed joint between matching furniture components.

  • ThreadMetric (M6)
  • MaterialZinc-coated steel / plastic
  • ColourZinc / black
  • Quantity1 pc
Cam Dowel 34mm with M6 Screw-Thread - 1 pc
  • 34mm length

M6 metric thread for 34 mm furniture joints

The Cam Dowel 34mm with M6 Screw-Thread combines a zinc-coated steel pin with a plastic sleeve to deliver strong, pull-resistant joints in pre-threaded cabinet assemblies. It secures directly into M6 inserts to work seamlessly with standard cam locks.

  • Metric M6 thread: Screws precisely into standard M6 threaded wood inserts or metal sleeves for a secure, repeatable fit.

  • Zinc-coated steel core: Provides solid tensile strength and reliable resistance against rust in everyday furniture builds.

  • 34 mm pin length: Maintains the exact spacing needed for cam locks to grip and pull carcass panels tightly together.

  • Single-piece replacement: Supplied as 1 pc so you can replace an individual missing or stripped fitting without excess hardware.

Applications for M6 cam dowels

  • CabinetryCarcass side-panel joins

    Anchors side gables to top and bottom panels in flat-pack cupboards equipped with M6 threaded bushings.

  • RepairReplacing broken fittings

    Substitutes worn, stripped, or missing M6 screw dowels in existing modular furniture without needing rework.

  • ShelvingFixed intermediate shelves

    Locks structural shelves solidly to side panels to prevent racking and maintain wardrobe rigidity.

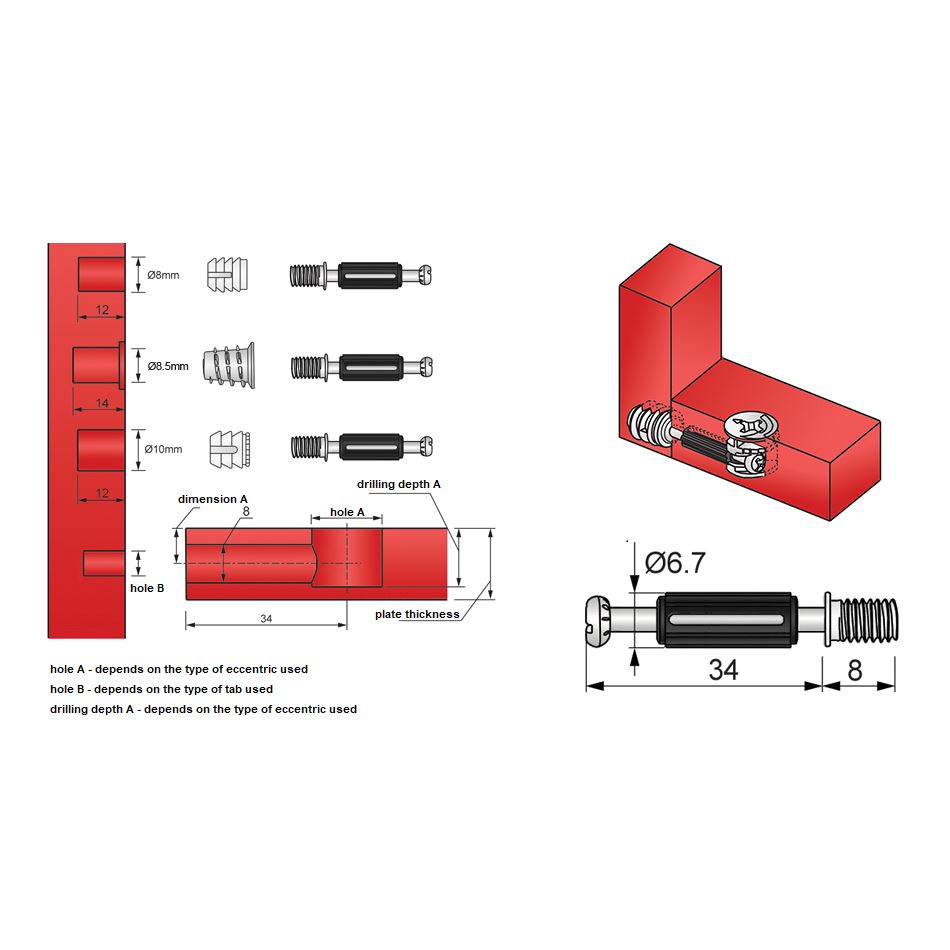

Fitting the M6 cam dowel

1 pc included per pack
  1. 1
    Check the thread insert

    Ensure the cabinet panel has a clean, pre-installed metric M6 threaded sleeve or bushing.

  2. 2
    Screw in the dowel

    Thread the M6 end of the cam dowel straight into the insert until the stop collar sits flush with the panel face.

  3. 3
    Align and lock

    Slide the mating board over the 34 mm dowel pin and rotate the internal cam fitting clockwise to lock the joint.
