M6 threaded insert 10x13mm - Zinc 1 pc
Biscuits & Dowels

M6 threaded insert 10x13mm - Zinc 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.16
20% VAT included
£0.16
Klarna
ZnAl alloy · 1 piece

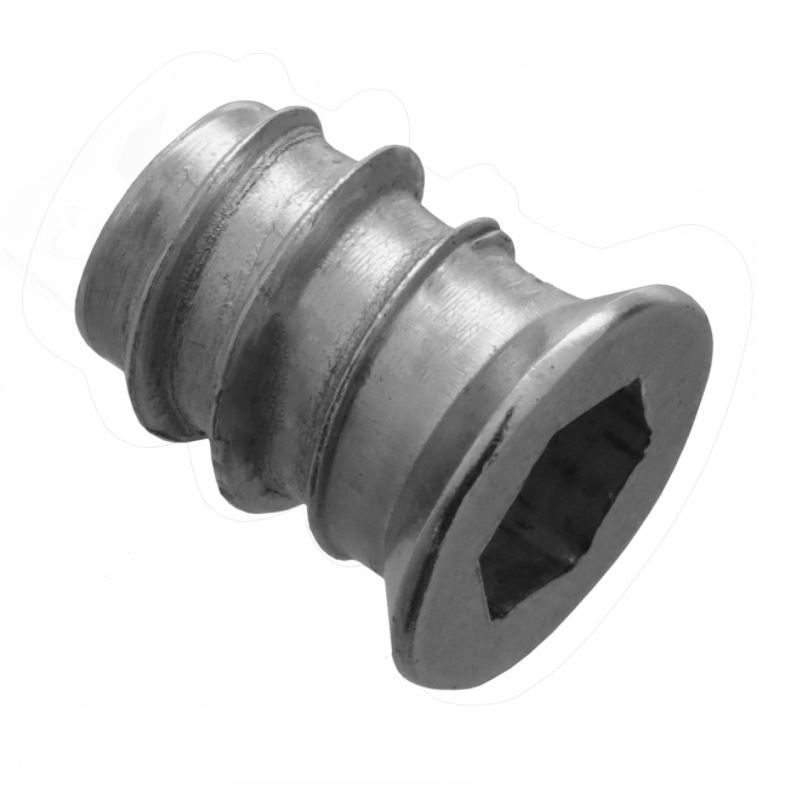

M6 threaded insert 10x13mm - Zinc 1 pc

This M6 threaded insert provides a strong metric internal thread in timber and panel materials. Sized at 10x13 mm, it creates sturdy, reusable mechanical joints in furniture construction.

  • Screw threadM6
  • Dimensions10x13mm
  • MaterialZnAl
  • ColourZinc
  • Quantity1 piece
M6 threaded insert 10x13mm - Zinc 1 pc

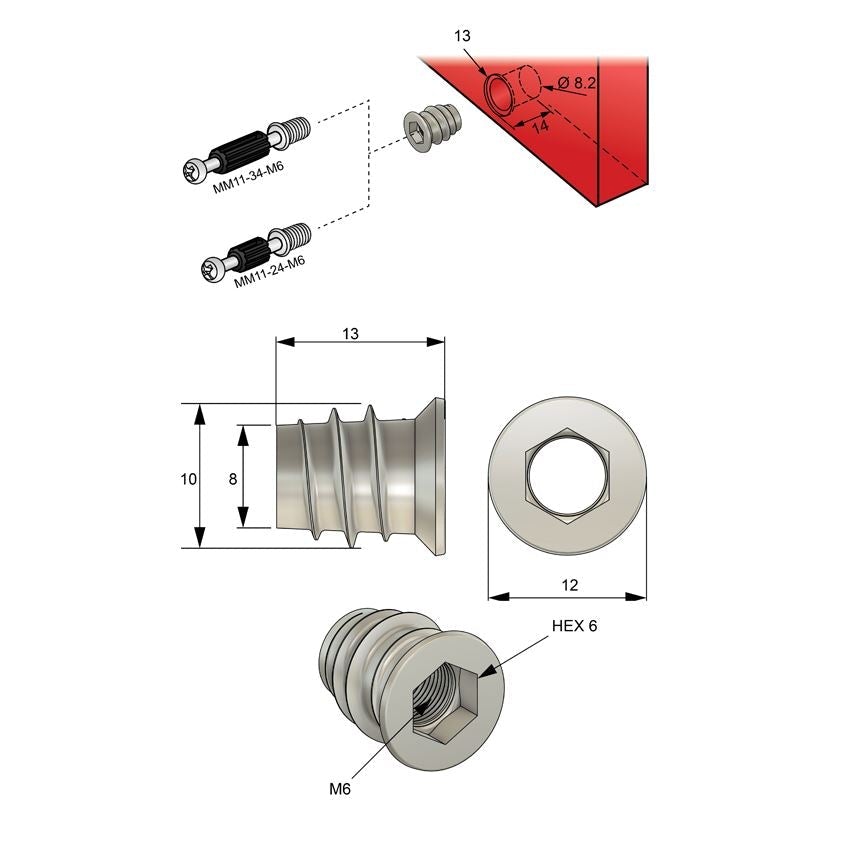

10x13 mm insert for reliable M6 furniture connections

The M6 threaded insert anchors a permanent metal thread into wood-based materials to receive standard metric fixings. It enables repeated assembly and disassembly without wearing away or stripping the surrounding timber.

  • Standard M6 thread: Accepts standard metric M6 bolts and furniture connectors securely.

  • Compact 10x13 mm dimensions: Fits neatly into common board thicknesses for stable anchor points.

  • Durable ZnAl alloy: Manufactured from zinc-aluminium alloy to withstand high tightening forces.

  • Reusable metal connection: Allows components to be assembled and dismantled repeatedly without tearing out wood fibres.

Where to use the 10x13 mm insert

  • Cabinet makingCarcass joints and shelving

    Provides solid corner and frame joints in panels using standard M6 machine screws.

  • RepairStripped screw holes

    Replaces blown or worn timber fixings to restore full mechanical strength to existing furniture.

  • WorkshopFlat-pack and modular projects

    Acts as a durable dowel insert for custom DIY builds requiring frequent disassembly.

Fitting the insert

Supplied as 1 piece
  1. 1
    Drill pilot hole

    Drill a straight hole of appropriate diameter perpendicular to the material surface.

  2. 2
    Insert the fitting

    Align the insert squarely with the pre-drilled hole and drive it flush into the board.

  3. 3
    Fasten M6 bolt

    Position the connecting component and secure it firmly in place with an M6 screw.
