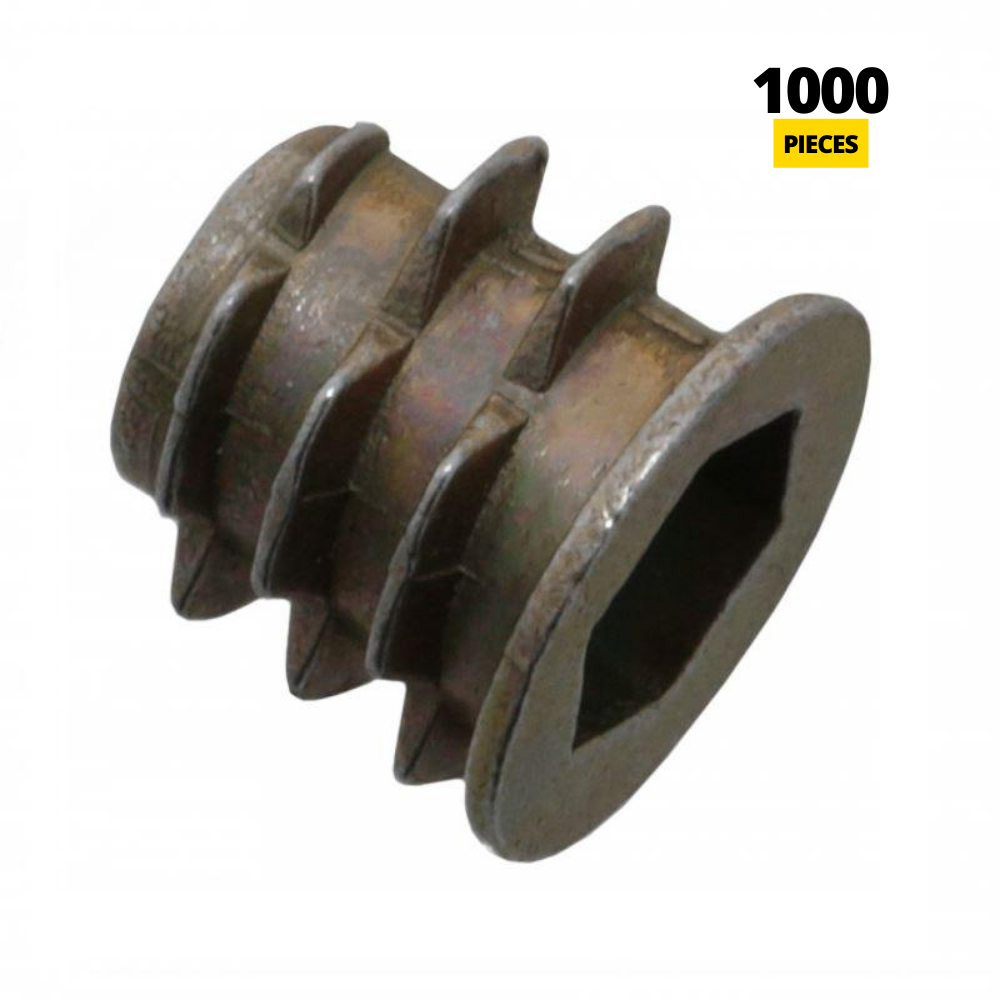

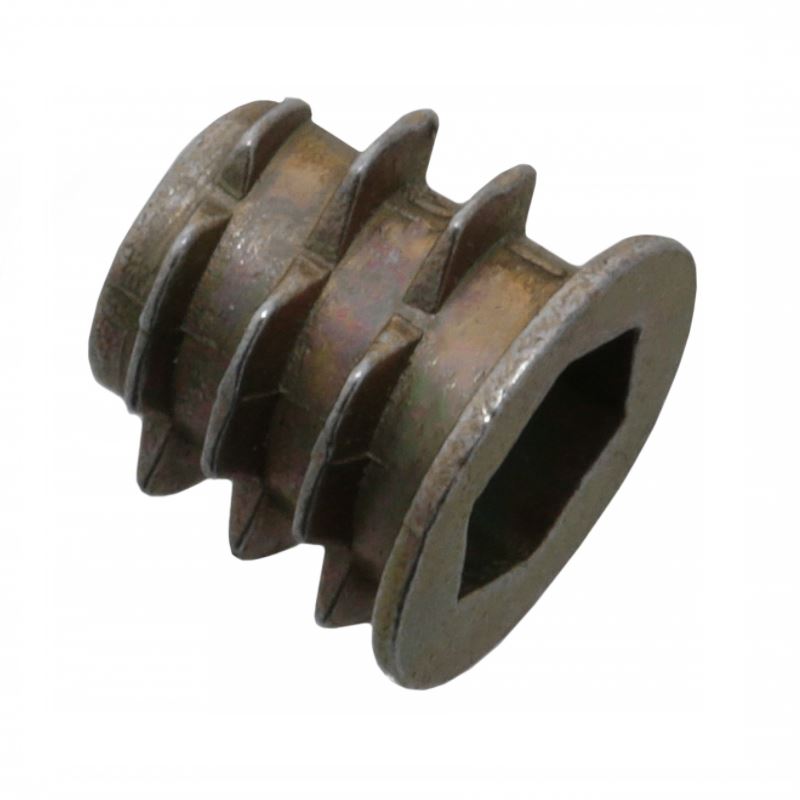

M6 threaded insert 8x10mm - 1000 pcs
Biscuits & Dowels

M6 threaded insert 8x10mm - 1000 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£65.92
20% VAT included
£65.92
Klarna
ZnAl · Pack of 1000

M6 threaded insert 8x10mm - 1000 pcs

This M6 threaded insert creates a durable metric fixing point in timber panels and furniture components. The 8x10mm profile enables strong, repeatable bolt connections without wearing out the host material.

  • DiameterM6
  • Dimensions8x10mm
  • MaterialZnAl
  • ColourZinc
  • Quantity1000 pieces
M6 threaded insert 8x10mm - 1000 pcs
  • 10mm length

ZnAl 8x10mm dowel insert for M6 bolts

The M6 threaded dowel insert provides a reliable internal thread for standard metric machine screws in wooden panels. Made from ZnAl in a zinc finish, it provides robust load transfer in knock-down cabinetry.

  • Internal M6 thread: Accepts standard M6 machine screws to allow repeated assembly and disassembly without damaging the wood fibre.

  • Compact 8x10mm body: Fits shallow panels and slim furniture components with a minimum material depth from 10 mm.

  • Durable ZnAl construction: Delivers solid dimensional stability and resistance against thread stripping during bolt tightening.

  • Bulk pack of 1000: Provides an ample supply of fixings for workshop production lines, flat-pack assembly and large joinery projects.

Where to use 8x10mm M6 threaded inserts

  • CabinetryCarcass joints and frame assemblies

    Provides strong, reusable M6 anchor points for modular cupboard panels and demountable cabinet frames.

  • WorkshopBatch furniture manufacturing

    Ideal for repetitive bolt assemblies where standard woodscrews would eventually strip out or loosen over time.

  • RepairFixing stripped timber holes

    Reinforces worn or damaged pre-drilled holes in timber components with a permanent metal internal thread.

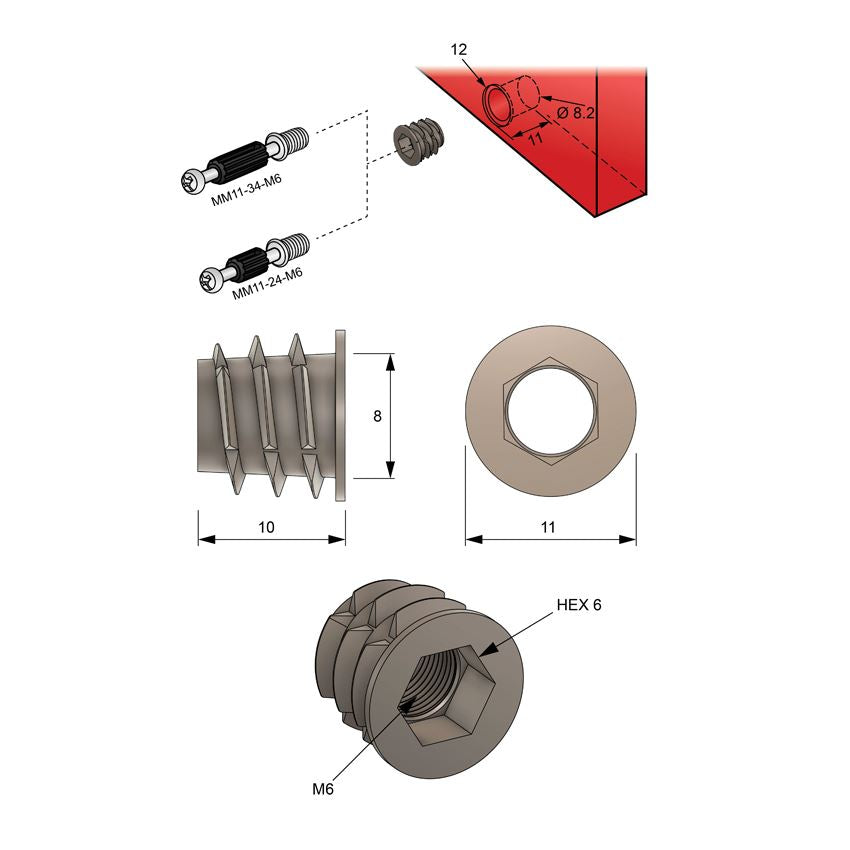

Installing the threaded insert

Requires pre-drilling before insertion
  1. 1
    Drill pilot hole

    Drill a straight hole into the timber workpiece matching the external diameter of the insert body.

  2. 2
    Insert the fitting

    Drive the threaded insert flush into the prepared hole until it sits level with the panel surface.

  3. 3
    Secure with M6 bolt

    Align the matching hardware or joining piece and tighten securely using an M6 machine screw.
