Product data
Steel · 500 mm · up to 40 kg

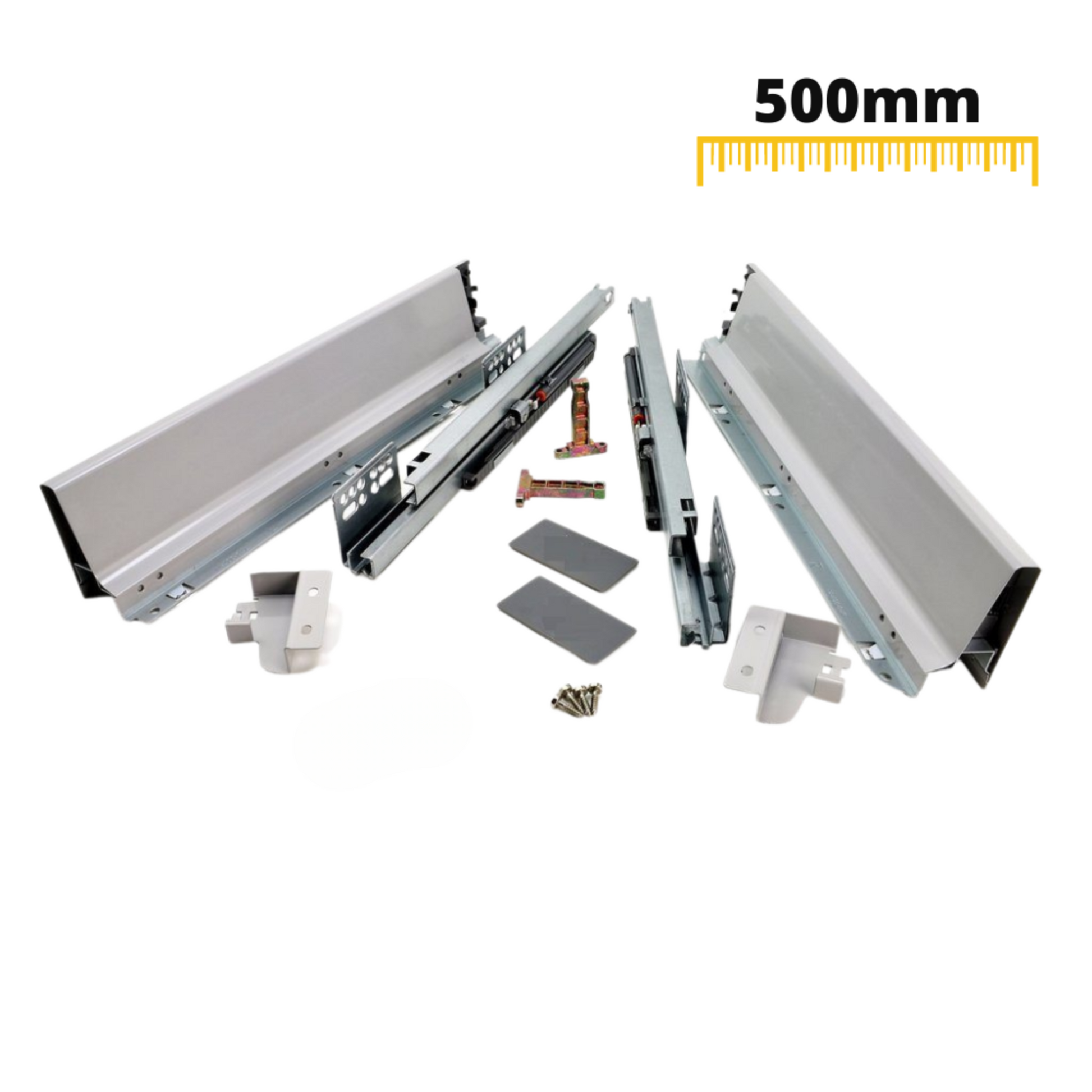

Soft-Close Drawer System, LOW, H: 68mm, Silver 500mm

This 500 mm soft-close drawer system provides a complete metal box solution with full extension runners and integrated damping. Built from robust steel with a 40 kg load capacity, it offers smooth, quiet closing and full access to your stored items.

  • Length500mm
  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight40kg
  • MaterialSteel
  • AdjustmentFull (vertical and horizontal)
Soft-Close Drawer System, LOW, H: 68mm, Silver 500mm
  • 68mm height

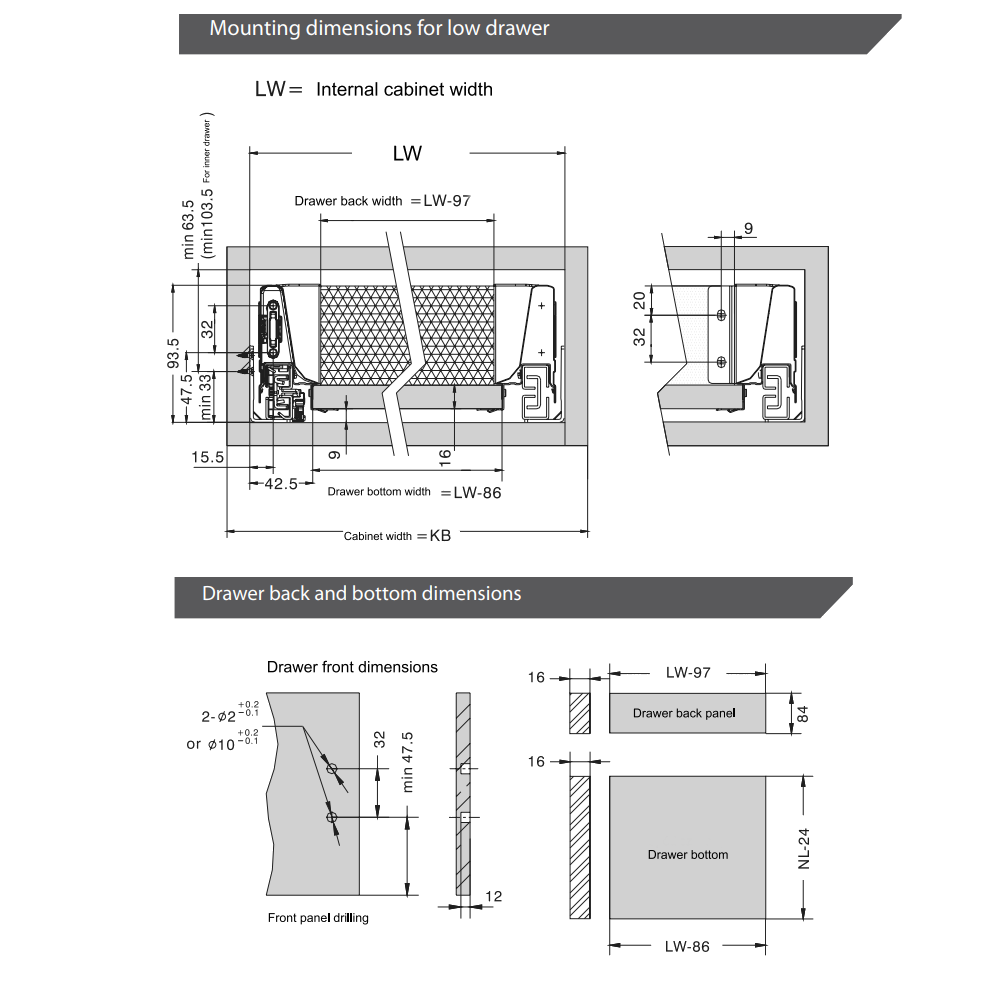

Low 68 mm sides with 500 mm drawer runners

The low soft-close drawer system combines solid steel side panels with full vertical and horizontal front adjustment for precise gap alignment. Its integrated damping mechanism gently catches the drawer and pulls it silently shut over the final centimetres.

  • Integrated soft-close action: The built-in mechanism slows the drawer down on closing and pulls it silently into the cabinet.

  • 100% full extension: The drawer runners extend completely out of the carcass so you can easily reach items stored right at the back.

  • High 40 kg capacity: Solid steel runners and sides support heavy loads securely without sagging or jamming.

  • Full 2D front alignment: Integrated vertical and horizontal adjusters allow you to level and align the front panel accurately after fitting.

Applications for low 68 mm drawer systems

  • KitchenCutlery and utensil drawers

    The low 68 mm side height fits neatly directly beneath the worktop, making it ideal for shallow cutlery trays and kitchen tools.

  • WorkshopTool and hardware storage

    A maximum 40 kg weight rating ensures heavy hand tools, screws, and metal organisers remain supported.

  • OfficeStationery and desk pedestals

    Full extension runners provide complete visibility and straightforward access across the entire 500 mm depth of the drawer.

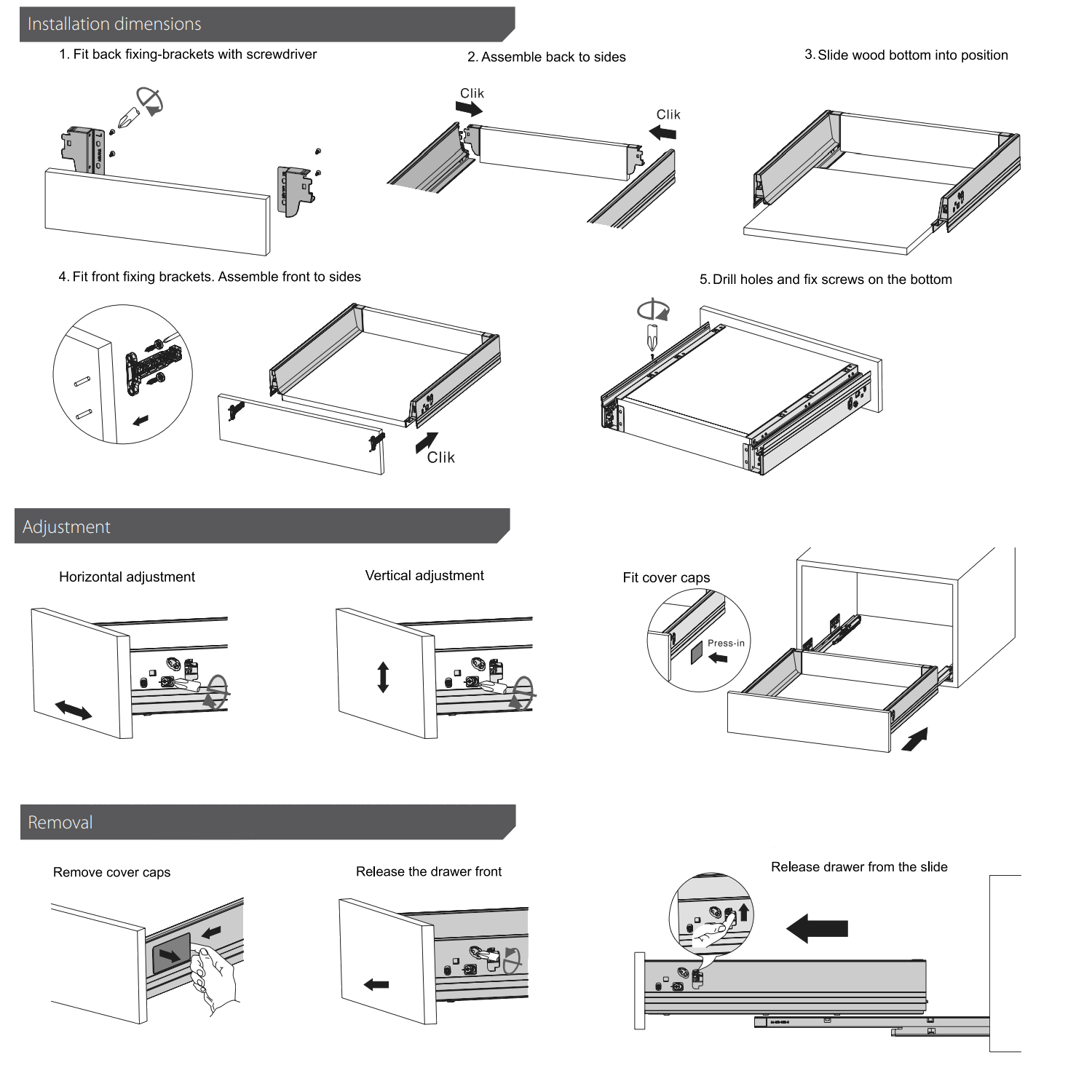

Fitting the drawer system

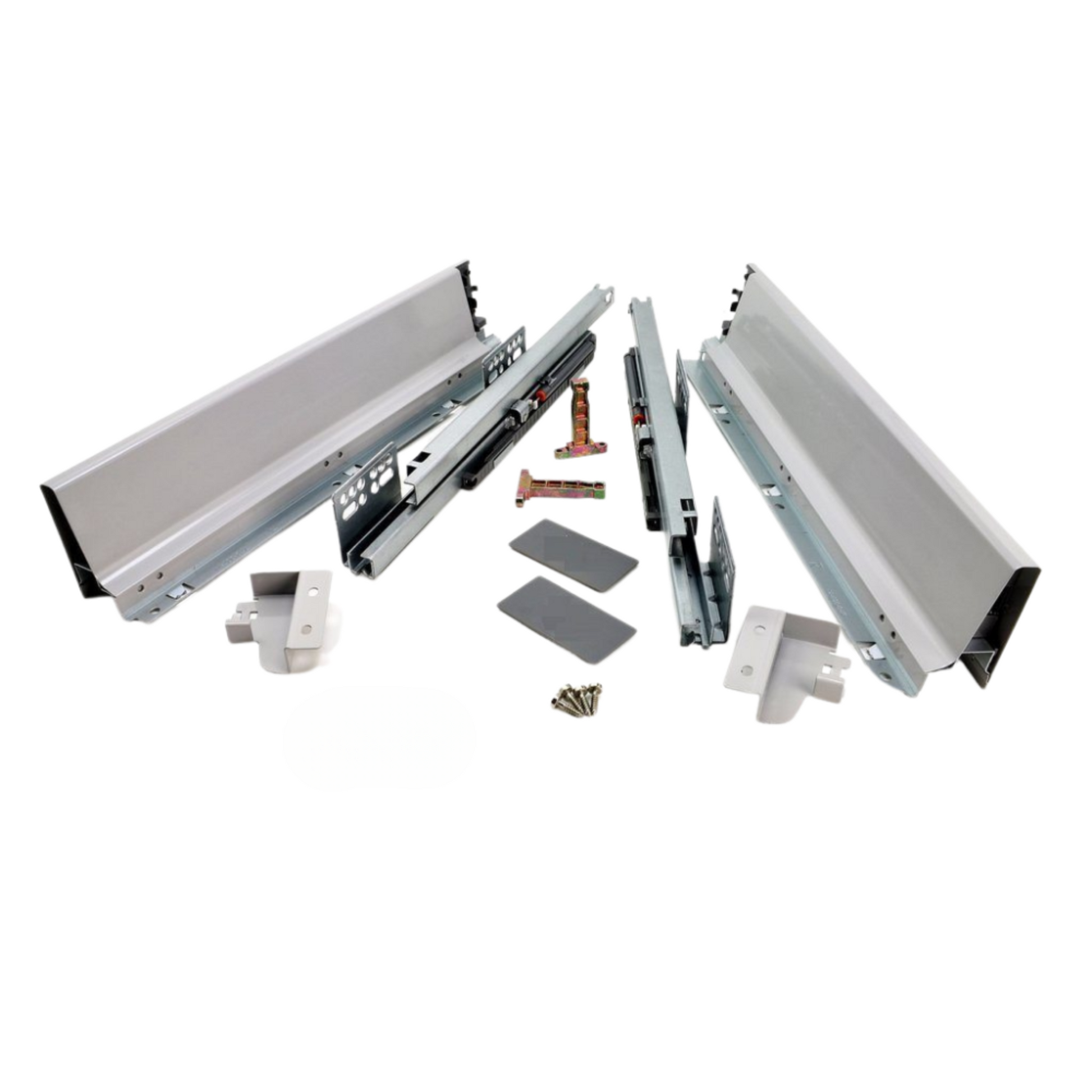

Set includes side rails and fixing screws
  1. 1
    Mount the cabinet runners

    Screw the runner tracks horizontally into the pre-drilled system holes on the inside of the cabinet carcass using the supplied fixing screws.

  2. 2
    Assemble the drawer box

    Attach the steel side rails securely to your drawer base and back panel to build the drawer body.

  3. 3
    Attach front and align

    Click the drawer front into position and use the adjustment screws on each side to fine-tune the vertical and horizontal alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Setting
Full (vertical and horizontal)
Included in set
Fixing screws, side rails
Colour
Grey
Full extension
Yes
Height
68mm
Length
270-650mm
Material
Steel
Maximum weight
40kg
Quantity
1
EAN
5060685606596
SKU
04192.500.1010-K
