Top Cabinet Lift System - Light/Medium/Strong
Lift Systems

Top Cabinet Lift System - Light/Medium/Strong

Availability: In Stock
  • SKU: SE00AL01
  • EAN: 5060685608279
  • Vendor:Furnica
  • Category: Lift Systems

Order within , and get it between and

Free delivery Furnica
£14.78
20% VAT included
£14.78
Force :
Klarna

Technical data: Top Cabinet Lift System

 Material colour: Metal
 Material: Metal + Plastic
 Cabinet height: 240-600 mm
 Max. cabinet width: 1800 mm
 Power factor - Light variant: 200-1000 LF
 Power factor - Medium variant: 500-1500 LF
 Power factor - Strong variant: 960-2350 LF

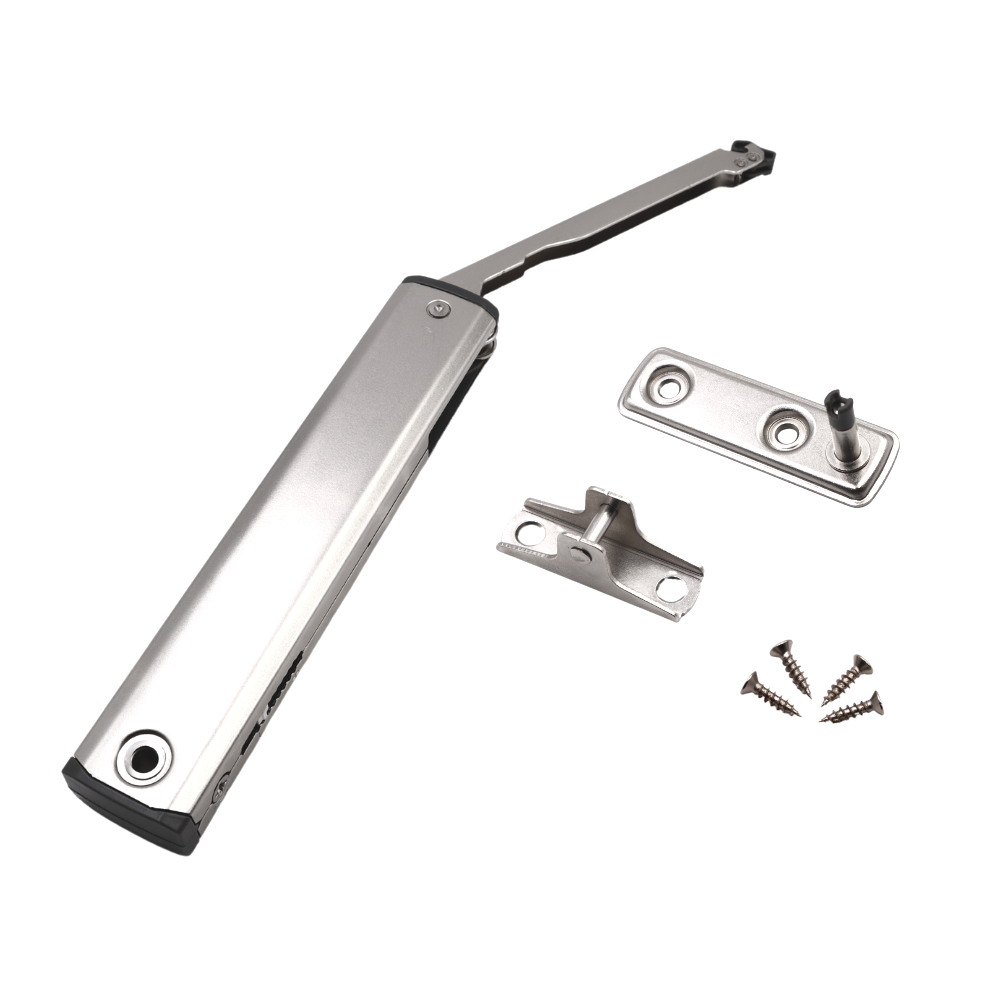

 Included: Screws, fixings
 Lifetime certificate: 40 thousand cycles



How to calculate LF (Power Factor)

LF = cabinet height x (weight door + 2x weight handle)

Example:

Cabinet height: 400mm

Weight door: 3kg

Weight handle: 0.05kg

LF = 400mm x (3kg + (2x0.05)) = 1240 LF

The power factor can be double when a second lift mechanism is used.

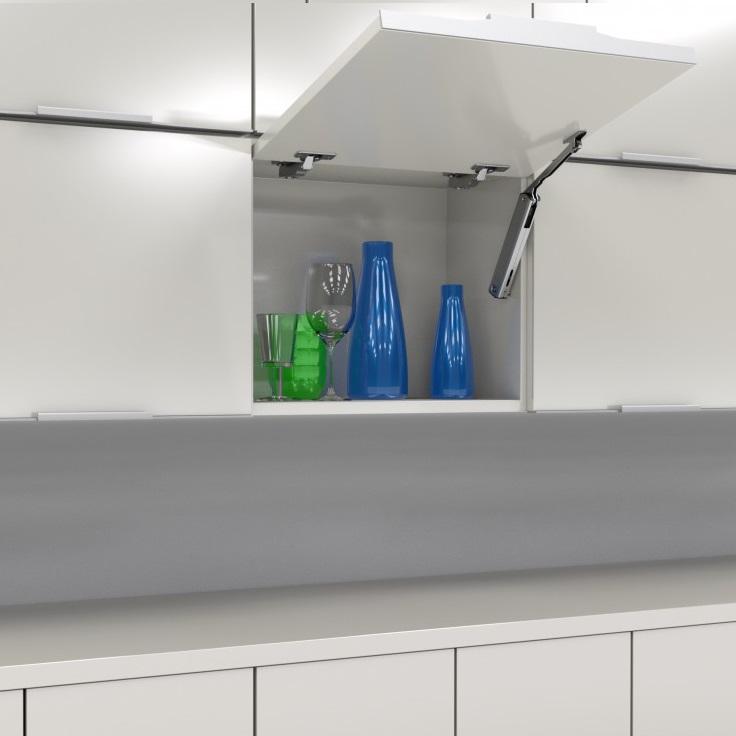

Convenient and smooth opening of top cabinets

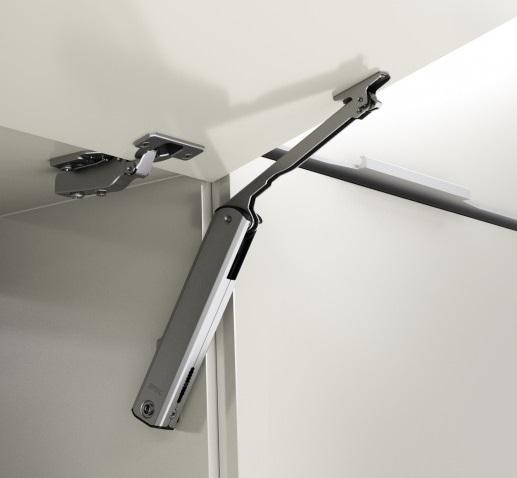

Top Cabinet Lift System provides a comfortable and functional opening and supporting of the door from the top cabinets. This mechanism makes it easy for the door to lift up and then remain fully stable when open. This lifting solution is a perfect yet simple method for making your kitchen furniture more comfortable to use. Top Cabinet Lift System is also very easy to install and available at an affordable price. It is mostly recommended to be used for the cabinets hanging high on the wall.

High quality, long performance, easy installation

Our kitchen cabinet opening system is designed in three variants due to the strength factor: light, medium, and strong. Each of them is certified for 40,000 cycles, therefore when you choose our equipment, you are guaranteed long performance and low failure rate. The kit also includes screws and fixings. Check our offer, and if in doubt, please contact our technical department, which will be more than happy to help you.
