Product data
Steel · Full extension · Up to 40 kg

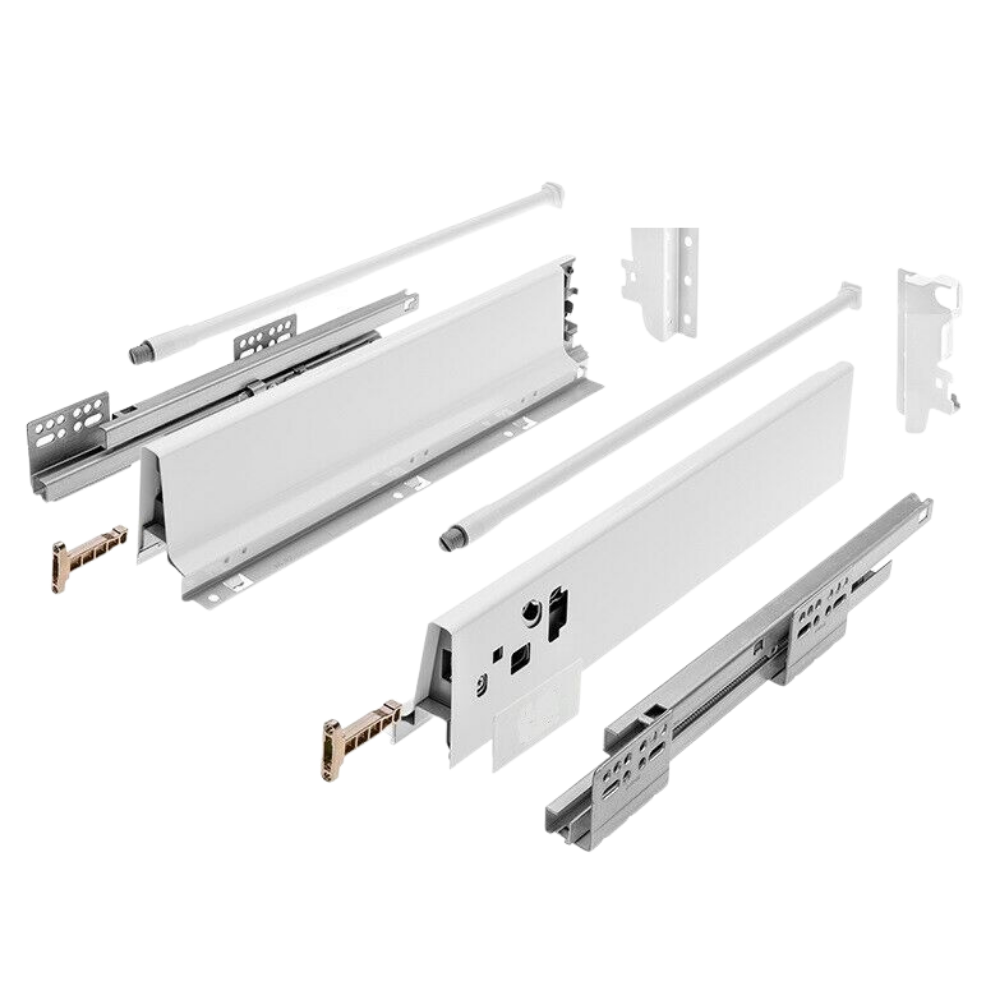

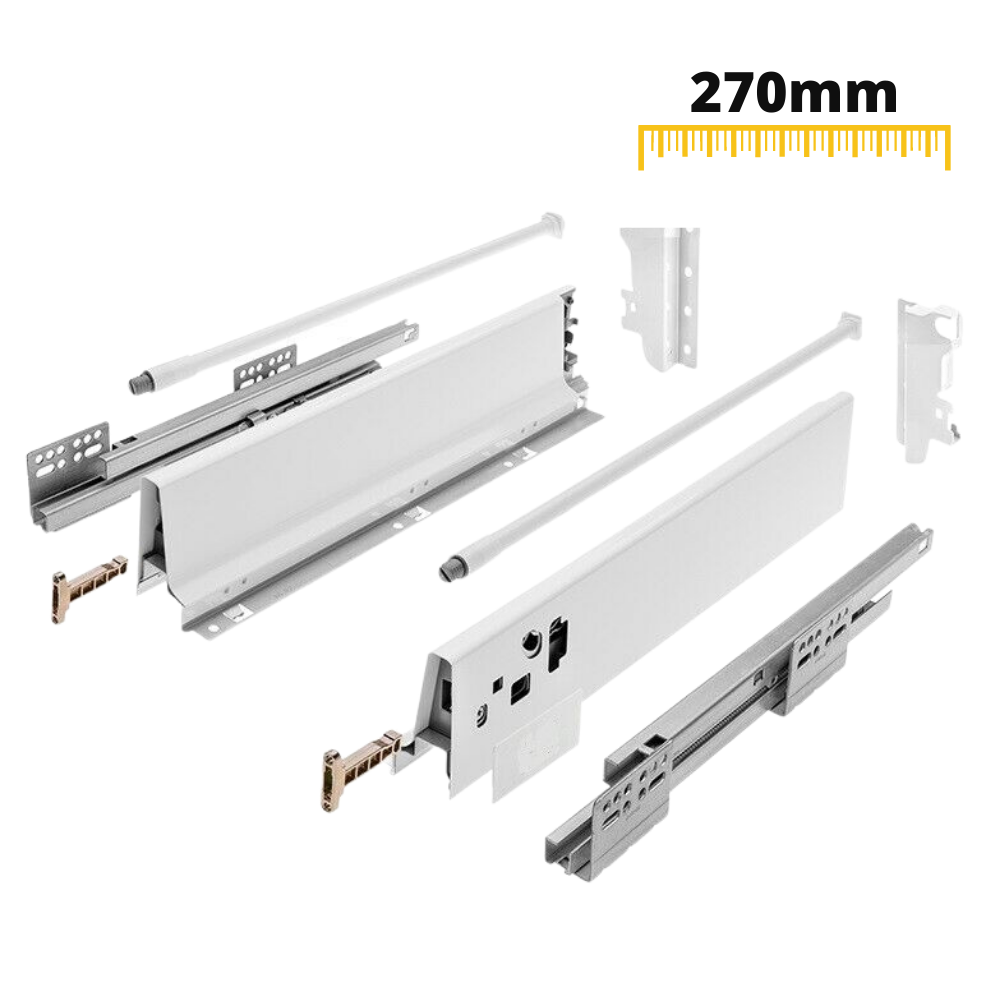

Soft-Close Drawer System, MEDIUM, H: 142mm, White 270mm

This complete white drawer system features integrated soft-close damping and smooth full extension runner action. Built from durable steel, it supports heavy loads up to 40 kg in compact furniture depths.

  • Length270mm
  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight40kg
  • MaterialSteel
  • ColourWhite
Soft-Close Drawer System, MEDIUM, H: 142mm, White 270mm
  • 142mm height

Compact 270 mm steel drawer runners with integrated damping

The Soft-Close Drawer System combines robust steel side rails with full extension runners for total access to shallow cabinets. The built-in damping mechanism gently brakes the drawer and pulls it silently shut under loads up to 40 kg.

  • Complete full extension: The drawer pulls out fully, giving unrestricted visibility and immediate reach to stored items right to the back.

  • Integrated soft-close damping: The mechanism catches the moving drawer and glides it shut smoothly without loud slamming or rattling.

  • Durable 40 kg capacity: Manufactured from solid steel to reliably carry heavy household loads without sagging or binding.

  • Full fascia adjustment: Built-in horizontal and vertical adjustment points allow precise alignment of the front panel for neat gaps.

Where to install this 270 mm soft-close drawer system

  • KitchenShallow base units and larder cupboards

    Fits compact 270 mm cabinet carcases to keep food packets, cookware, and dry goods organised with 40 kg capacity.

  • WorkshopTool storage cabinets and benches

    Handles heavy hand tools and equipment securely while remaining easy to open fully under maximum load.

  • Living roomSideboards and storage chests

    Prevents slamming noise when closing drawers in family living spaces thanks to the built-in soft-close mechanism.

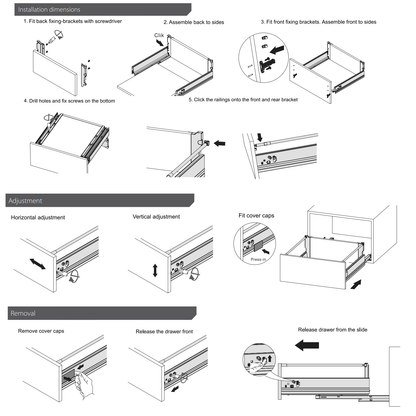

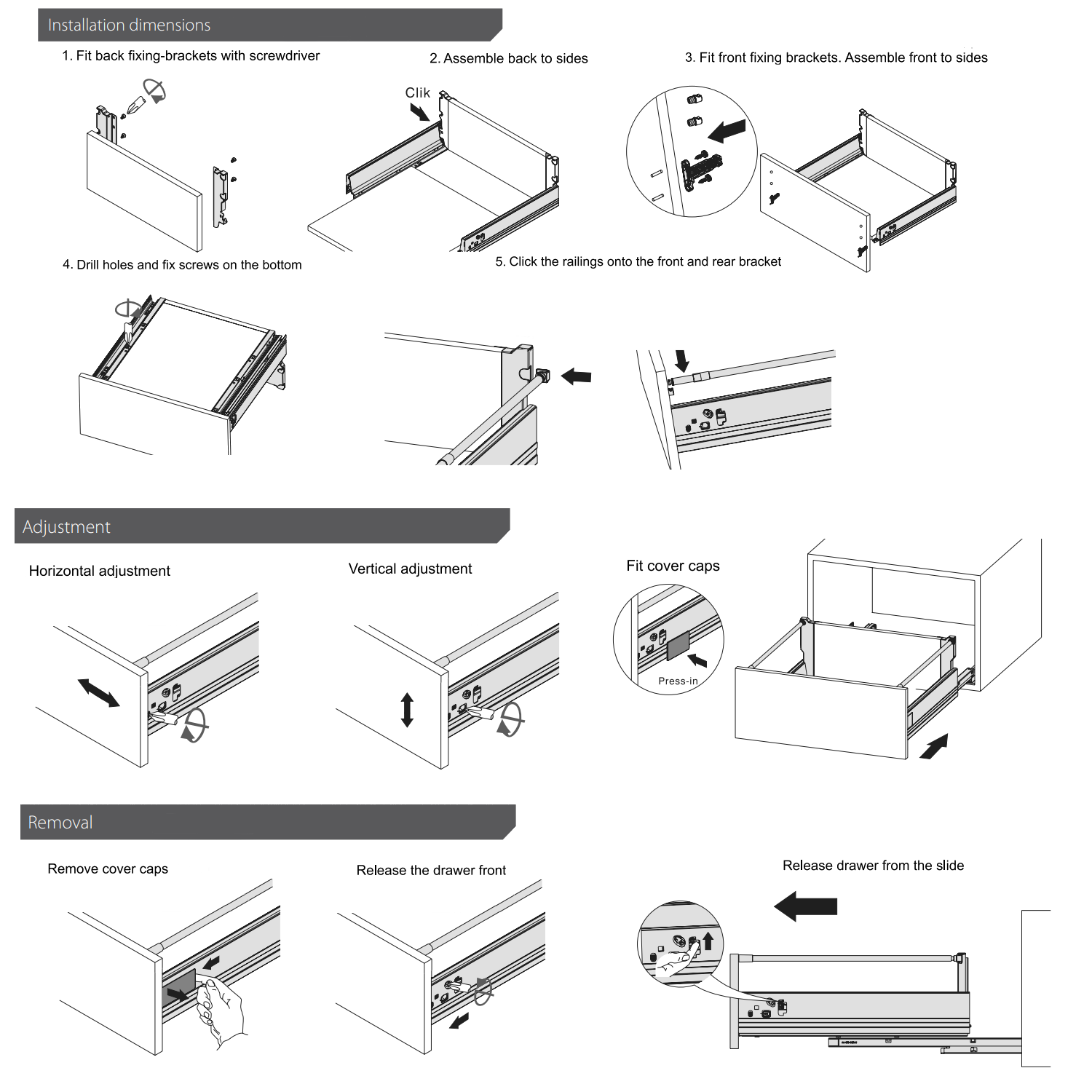

Fitting the drawer system

Includes side rails and fixing screws.
  1. 1
    Mount the cabinet runners

    Position the side rails horizontally inside the carcase and secure them using the supplied fixing screws.

  2. 2
    Insert the drawer box

    Place the drawer onto the runners and push it inward until the mechanism clicks into place.

  3. 3
    Adjust the front panel

    Fine-tune vertical and horizontal alignment screws directly on the side rails for an even front gap.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Setting
Volle (vertikal and horizontal)
Included in set
Fixing screws, side rails
Colour
White
Full extension
Yes
Height
142mm
Length
270-550mm
Material
Steel
Maximum weight
40kg
Quantity
1
EAN
5060857452235
SKU
04192.270.1011/B-K
