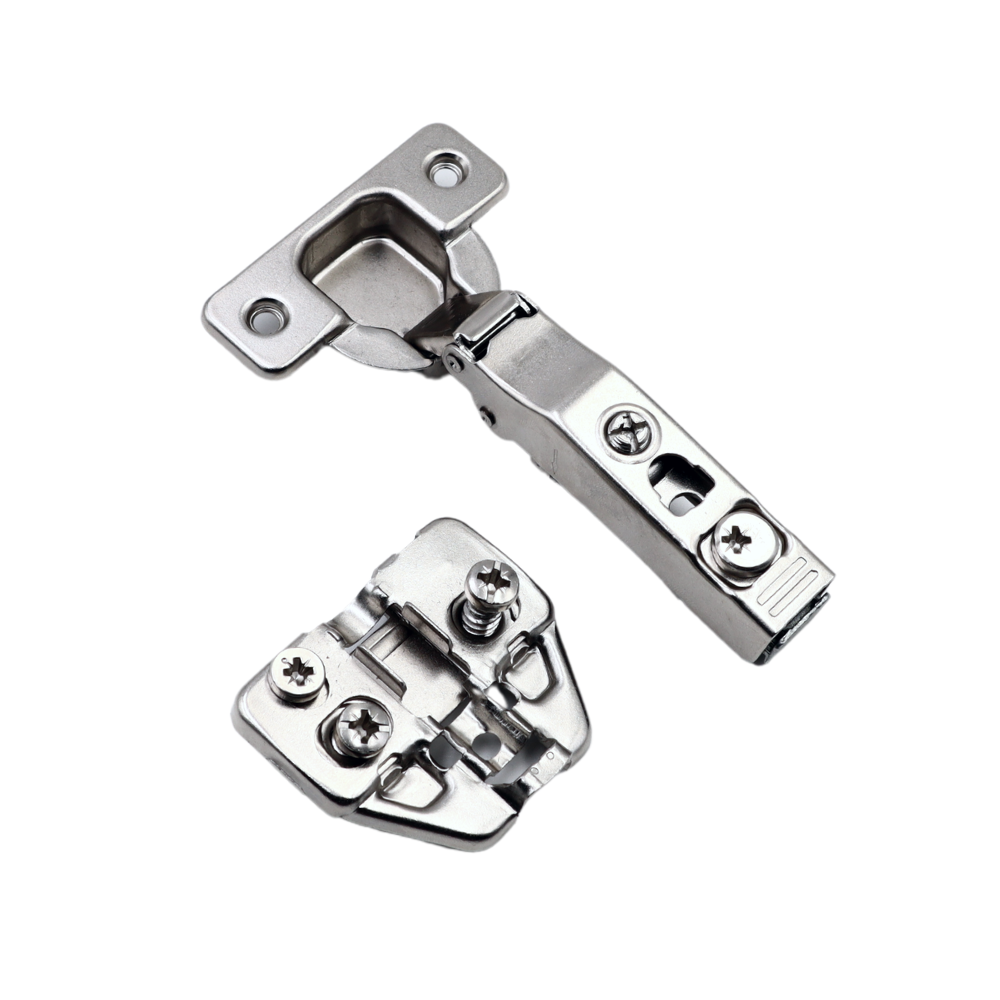

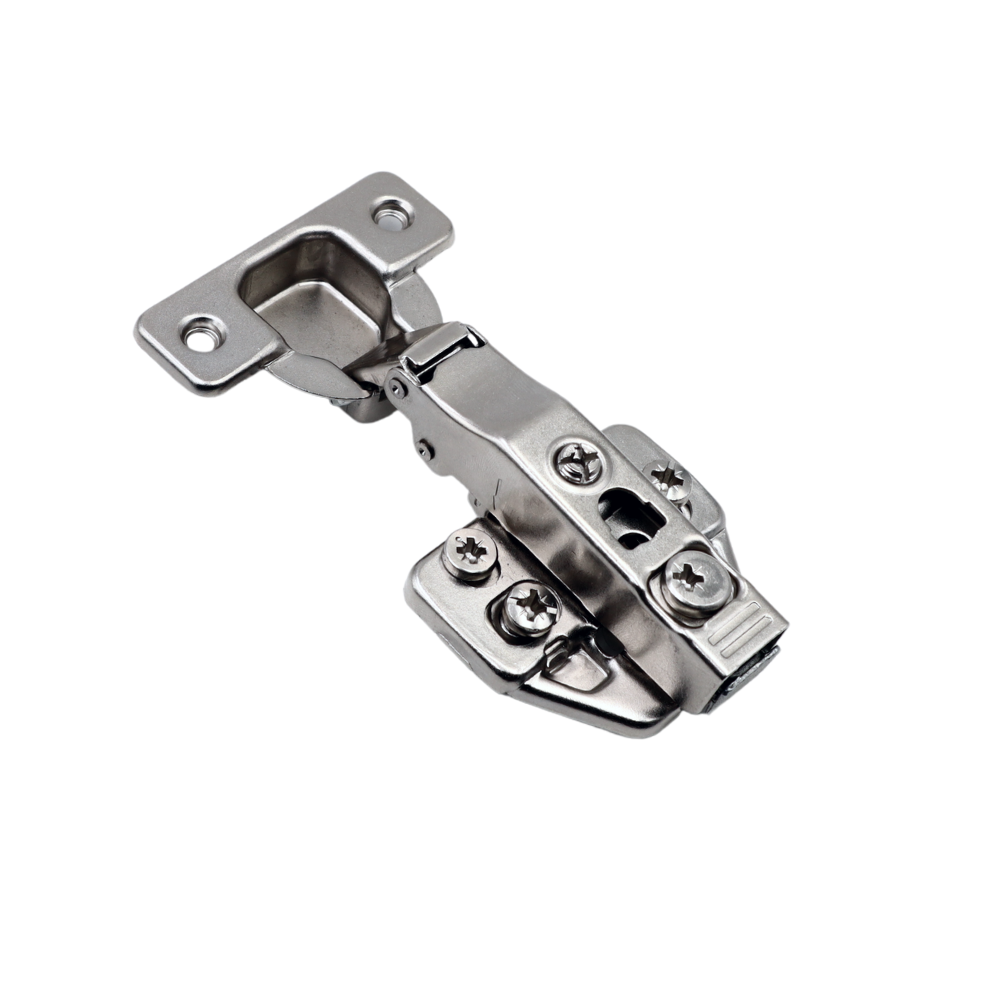

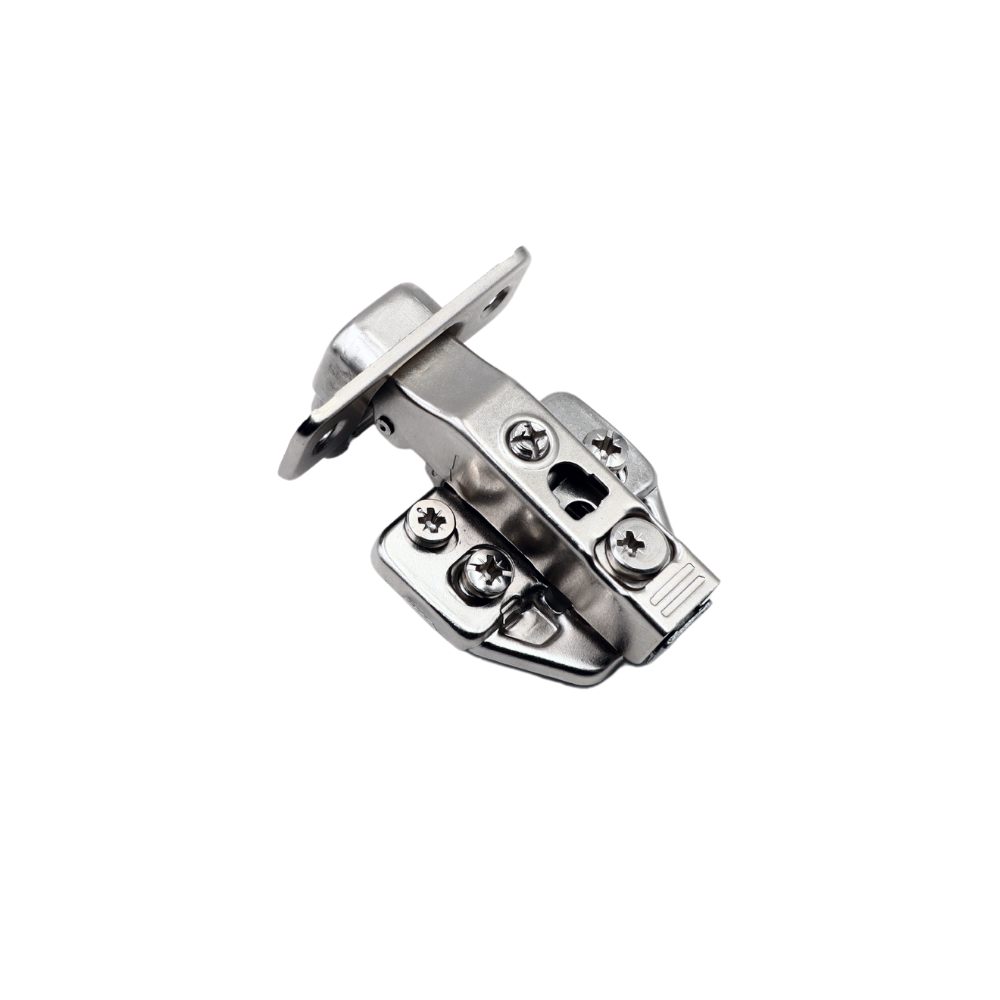

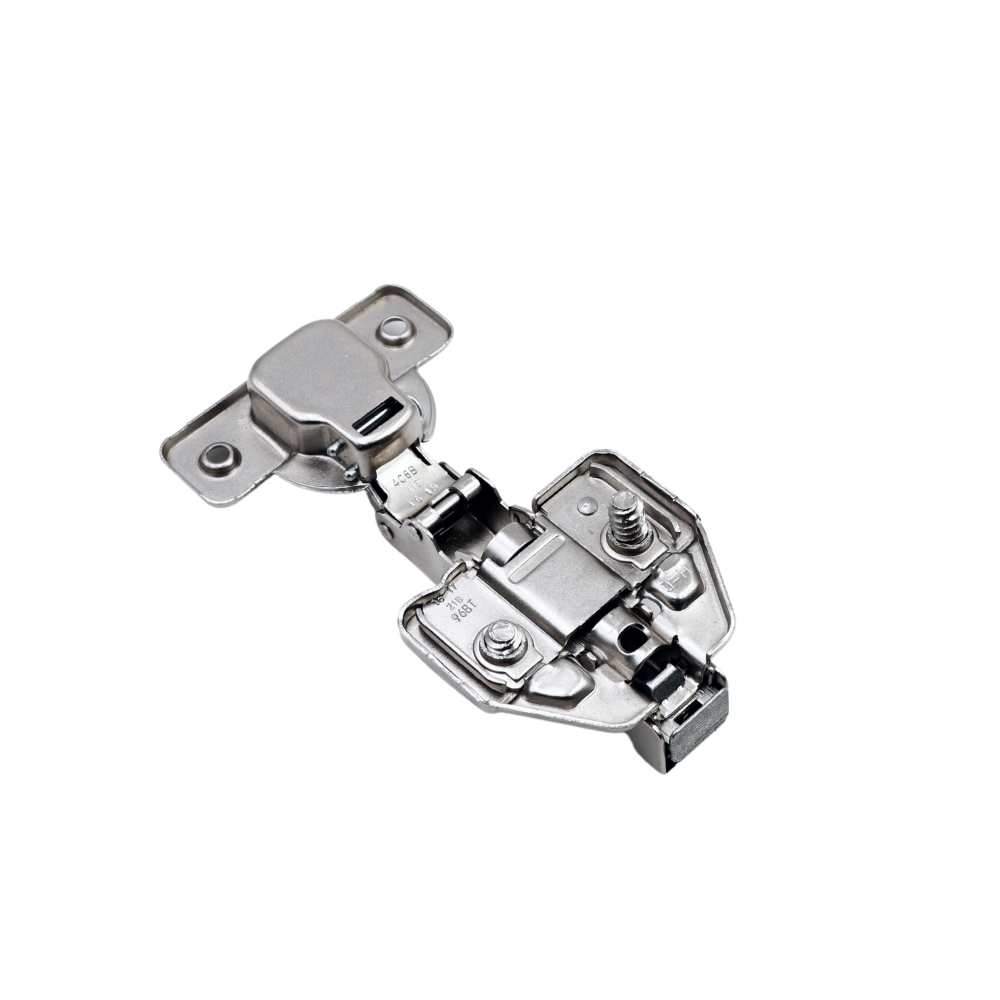

3D Push-to-Open Springless Hinge with H0 Clip-On Plate - Corner Application

3D Push-to-Open Springless Hinge with H0 Clip-On Plate - Corner Application

£3.42 Incl. VAT
£4.28
-20%
£3.42 Incl. VAT
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Product data
Nickel-plated steel · 110° opening · H0 clip-on plate

3D Push-to-Open Springless Hinge with H0 Clip-On Plate - Corner Application

A springless push-to-open cabinet hinge with a 110° opening angle, supplied with an H0 clip-on mounting plate and Euro screws for handleless corner-application doors.

  • MaterialNickel-plated steel
  • ColourChrome
  • IncludedEuro screws
  • Opening angle110°
  • Suitable forCorner application
  • Mounting plate heightH0
  • Mounting plate typeClip-on mounting
  • DampingNo
3D Push-to-Open Springless Hinge with H0 Clip-On Plate - Corner Application
  • 110° opening
  • 35mm cup

A handleless door that opens on a push

This springless hinge has no closing spring at all: the door is held shut by the push-to-open mechanism and released with a short press on the front, so no handle is needed.

  • No handle required: A light push on the door front releases the catch and swings the door open.

  • 3D adjustment: Height, depth and side can be set after fitting to line the door up with its neighbours.

  • Clip-on plate: The H0 plate clips on and off, so the door can be taken away without losing the settings.

  • Euro screws included: The plate is supplied with Euro screws for direct fixing into the carcass side.

Where a push-to-open hinge is the right choice

  • KitchenHandleless fronts

    A flat slab door with no handle, where the look depends on an uninterrupted front.

  • LivingMedia units

    Cabinets that should read as a plain panel until they are opened.

  • BedroomFitted wardrobes

    Doors in a run where handles would break the line of the fronts.

How to fit the hinge

Ø35 mm cup
  1. 1
    Bore the cup

    Drill the Ø35 mm cup hole in the door at the standard distance from the edge.

  2. 2
    Fix the plate

    Screw the H0 mounting plate to the cabinet side with the supplied Euro screws.

  3. 3
    Clip on and adjust

    Clip the hinge arm onto the plate, then set depth, height and side with the adjusting screws.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Soft-close damping
No
Included in set
Euro screws
Colour
Chrome
Hinge cup diameter
Ø35 mm
Material
Nickel-plated steel
Model
3D push-to-open, corner application
Mounting plate height
H0
Mounting plate type
Clip-on mounting
Opening angle
110°
Made for
Corner application
EAN
5060857459890
SKU
OU3D
