Floating Shelf Support (Concealed)

Floating Shelf Support (Concealed)

4.8 15 reviews
£1.73 Incl. VAT
£1.73 Incl. VAT
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Bestsellers

More shelf supports & fittings

The best-selling products in this category.

Product data
Zinc-coated steel · Minimum shelf thickness 24 mm

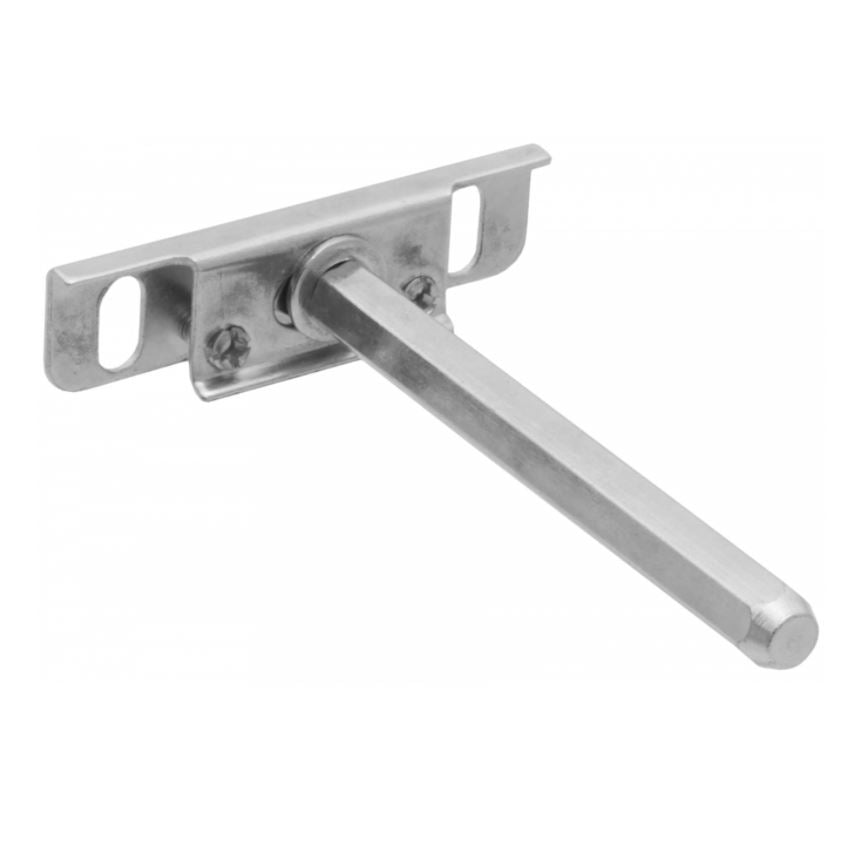

Floating Shelf Support (Concealed)

This floating shelf support is mounted directly inside the shelf board for a fully hidden, seamless wall installation. Three-way adjustment allows precise levelling and angle alignment after fixing to the wall.

  • Minimum shelf thickness24 mm
  • Height adjustment±4 mm
  • Lateral adjustment±4 mm
  • Shelf angle adjustmentYes
Floating Shelf Support (Concealed)

3D adjustable fitting for shelves from 24 mm thickness

The concealed floating shelf bracket is made from durable zinc-coated steel and sits entirely inside the wooden shelf board. It creates a floating shelf effect without visible metal brackets or screw heads on your wall.

  • Hidden installation: The fitting inserts into the shelf core so the board appears suspended freely against the wall.

  • Height adjustment ±4 mm: Allows vertical realignment of the shelf after wall mounting to correct minor drill offsets.

  • Lateral adjustment ±4 mm: Provides horizontal movement to compensate for slight wall fixing discrepancies.

  • Shelf angle adjustment: Enables fine-tuning of the shelf tilt to ensure a perfectly level surface.

Where to install concealed shelf support brackets

  • Living RoomFloating book shelves and wall boards

    Delivers a clean aesthetic across open wall spaces without exposed metalwork.

  • KitchenHidden support for open wall shelving

    Keeps condiment and cookware storage completely flush against tiled or plastered walls.

  • HallwaySeamless display surfaces

    Compensates for uneven wall fixings using built-in height, side, and angle adjustments.

Fitting and adjusting the concealed shelf bracket

Requires a drill and suitable wall fixings for your wall type
  1. 1
    Drill wall holes

    Mark level horizontal points, drill into the wall, and insert appropriate wall plugs.

  2. 2
    Secure the bracket

    Fix the support bracket firmly to the wall using matching screws.

  3. 3
    Slide shelf and align

    Push the pre-drilled shelf onto the bracket rod and adjust the height, side position, and tilt angle.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

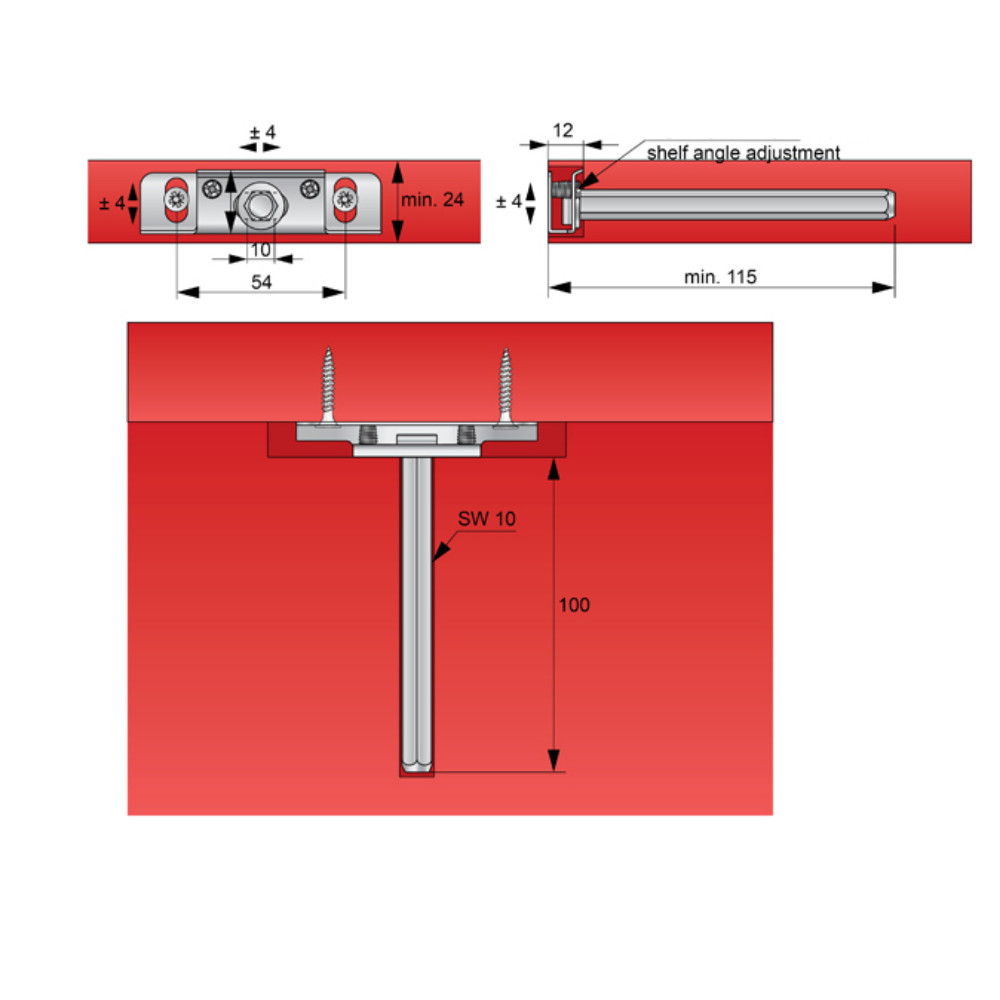

Technical data
Shelf angle adjustment
Yes
Height adjustment
±4 mm
Lateral adjustment
±4 mm
Minimum shelf thickness
24 mm
EAN
5060685600839
SKU
WSN01-100-G20
