Slim Box Drawer System 40 kg - Soft-Close - 18 mm

Product data

Steel drawer sides · Soft-close · 40 kg load

Slim Box Drawer System 40 kg - Soft-Close - 18 mm

A complete slim-sided drawer system for 16 and 18 mm boards, supplied with full-extension runners, integrated soft-close damping and a load rating of 40 kg per drawer.

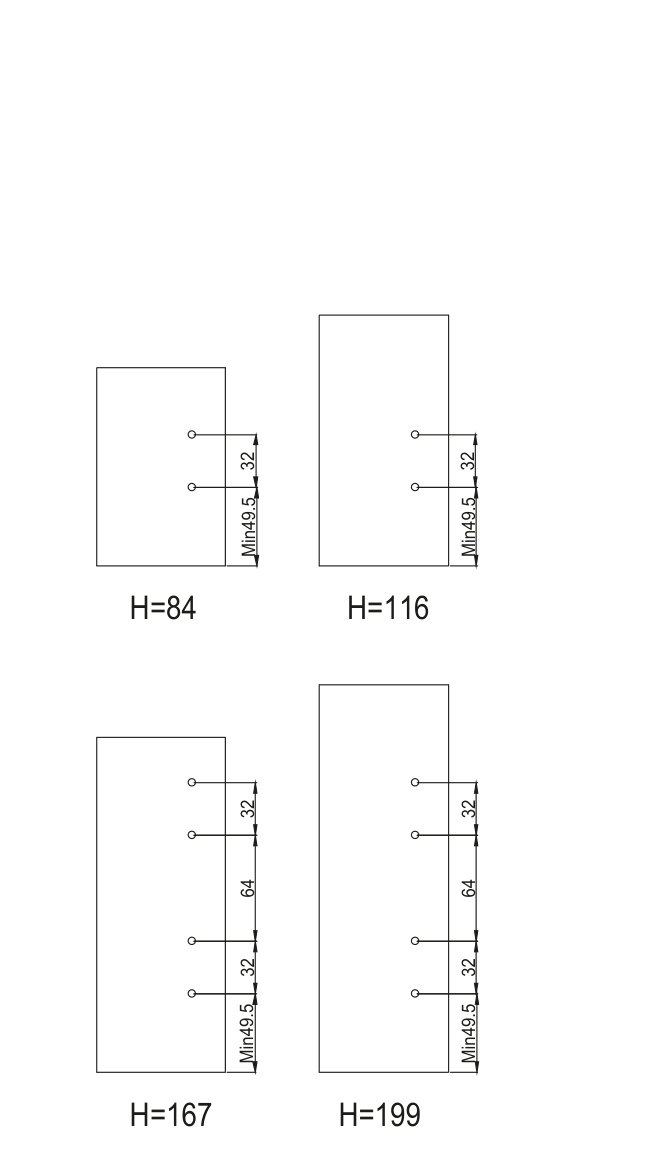

Height84 / 116 / 167 / 199 mm
Material thickness16 / 18 mm
Cabinet widthAdjustable — depends on the cabinet width
Full extensionYes
Soft-closeYes
Overall length250-550 mm

Slim Box Drawer System 40 kg - Soft-Close - 18 mm

40kg load
18mm boards

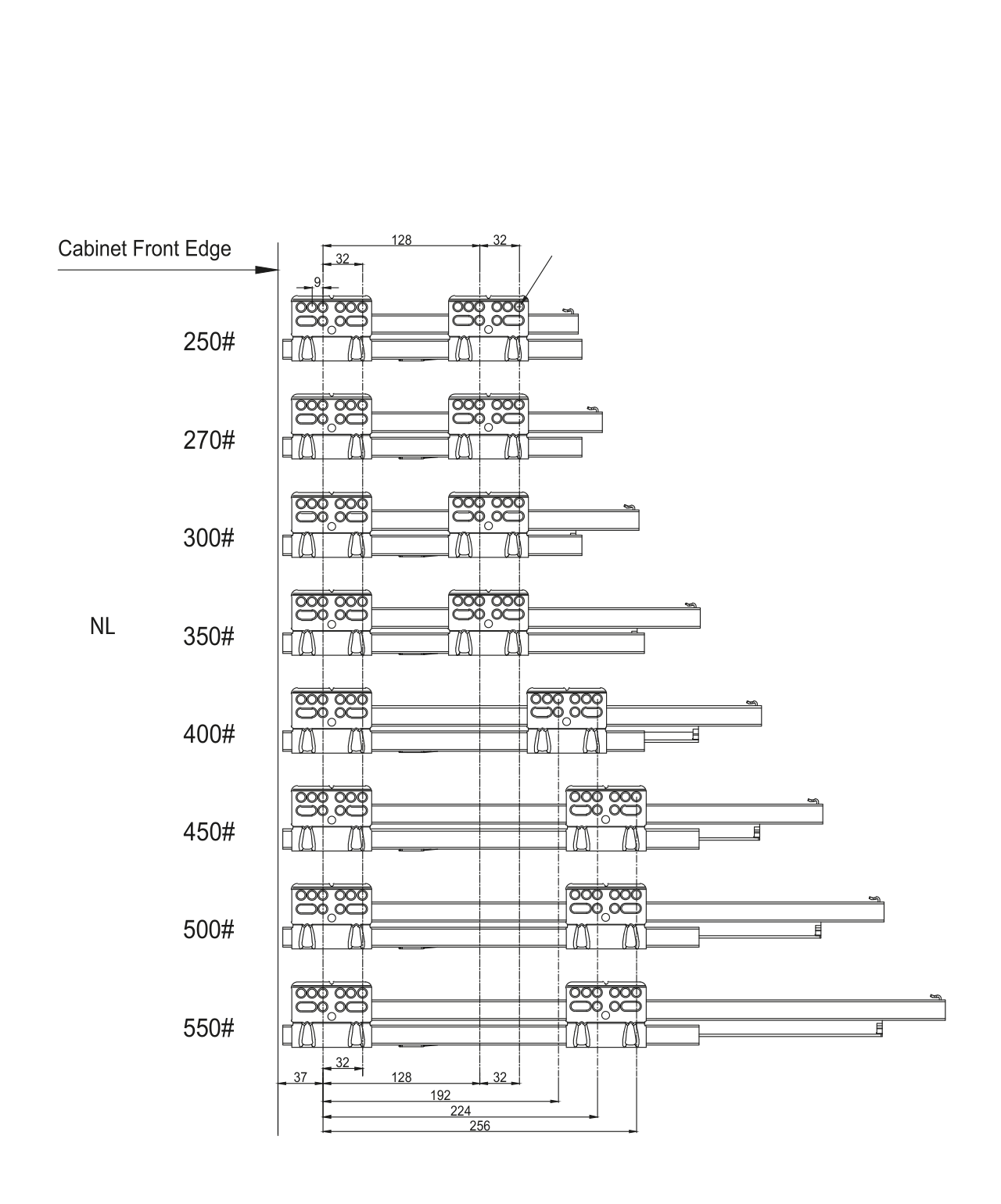

Four side heights and eight nominal lengths from one system

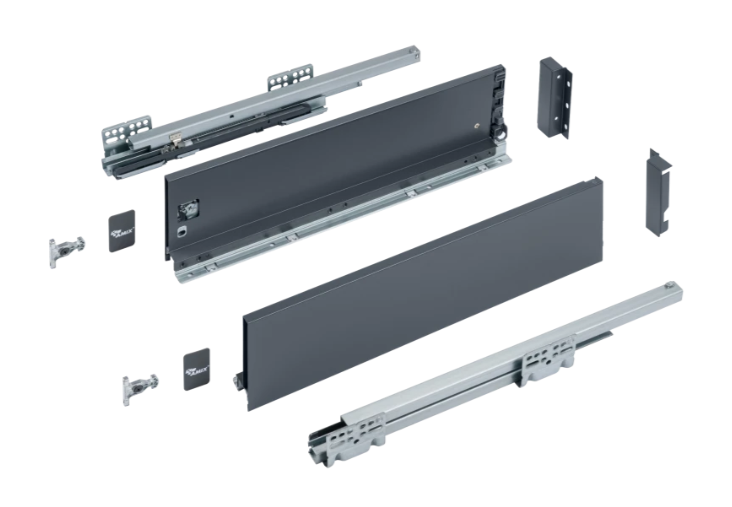

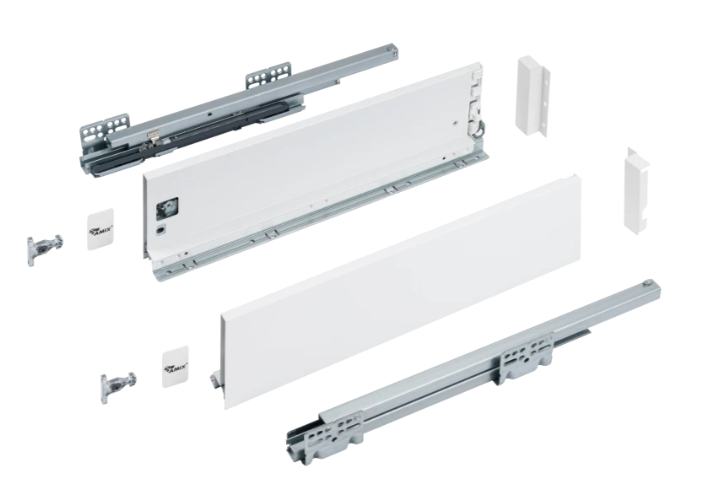

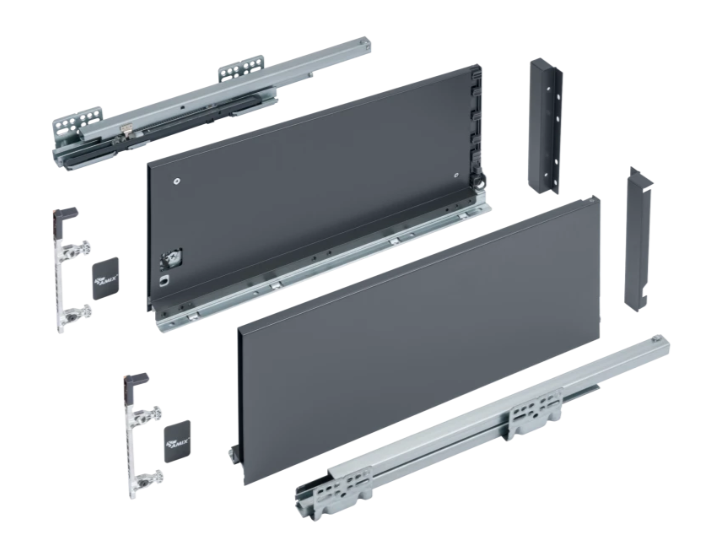

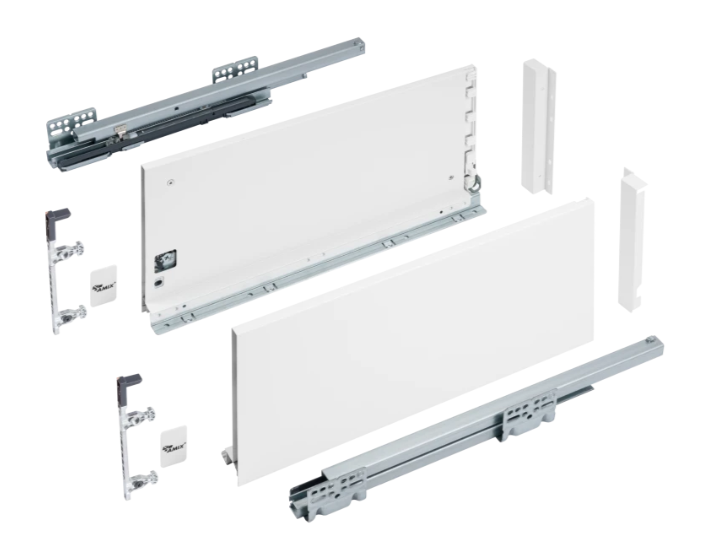

This slim box drawer system combines narrow 13 mm steel sides with a concealed undermount runner, so the drawer box gains usable width while the mechanism stays hidden below the base.

Soft-close on every drawer: The integrated damper catches the last part of the travel and closes the front quietly without slamming.
Full extension: The runner pulls the drawer clear of the cabinet, so the back of the box stays reachable.

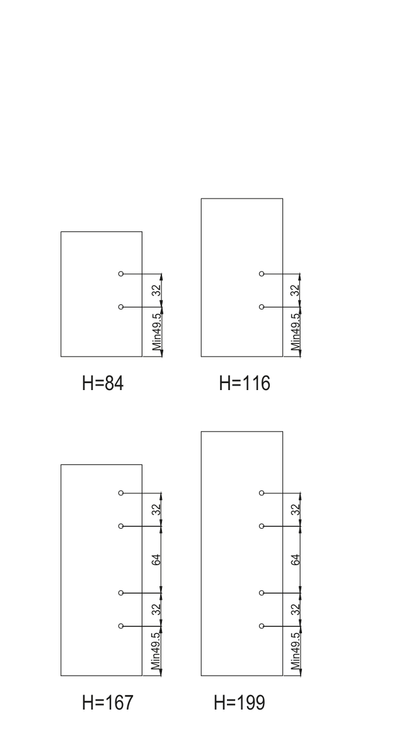

Four-way front adjustment: Height, side and tilt can be corrected after fitting to line the fronts up across a run of cabinets.
16 and 18 mm boards: The same set works with both board thicknesses used in flat-pack and made-to-measure carcasses.

Where a slim box drawer system earns its place

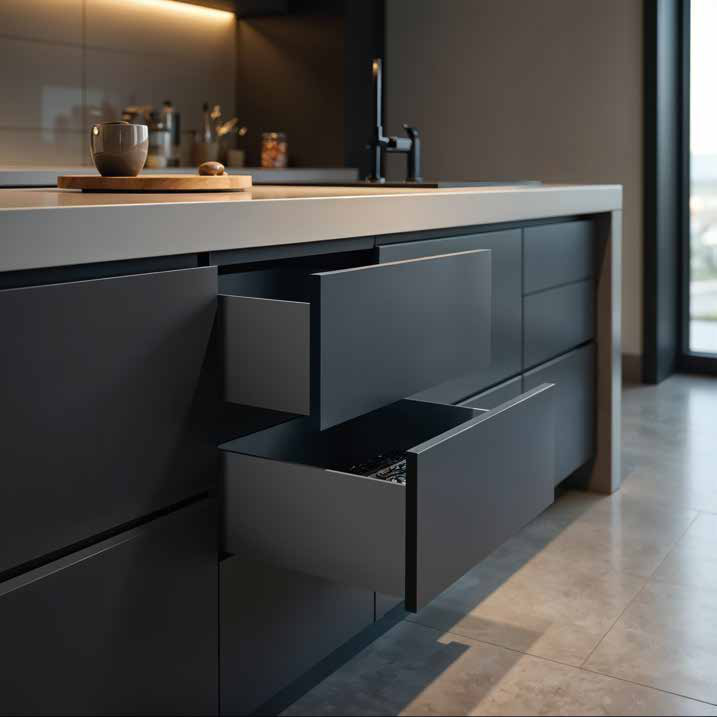

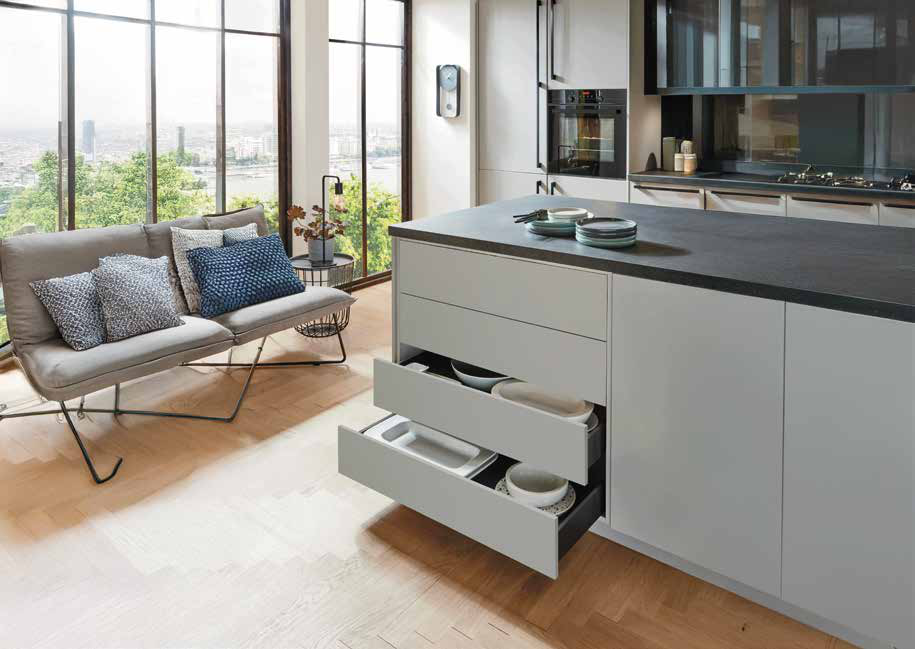

KitchenBase units and pan drawers
Deep drawers under a worktop where the 40 kg rating and quiet closing matter every day.
BedroomWardrobe internal drawers
Narrow sides give a wider drawer box inside a fixed carcass width.
WorkshopTool and parts storage
Full extension keeps the rear of a long drawer usable when it is packed with small parts.

How to fit the slim box drawer system

Set per drawer

1
Prepare the drawer base

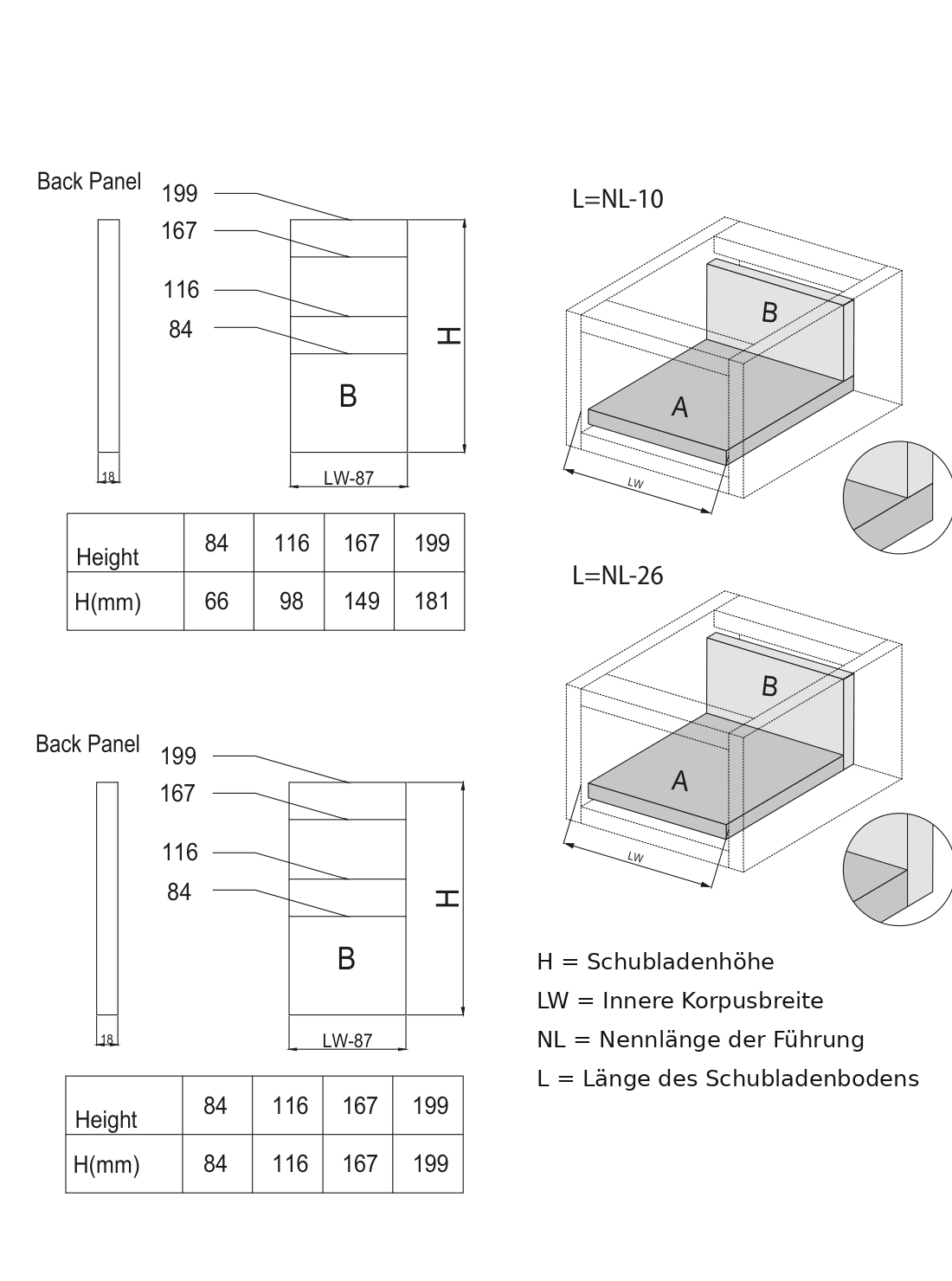

Cut the base to the nominal length of the runner and drill the fixing holes for the back panel bracket.
2
Screw the runners to the cabinet
Fix the left and right runners level to the cabinet sides, keeping the front edges flush.
3
Clip in and adjust
Push the assembled box onto the runners until the clips engage, then set height and tilt with the front adjusters.

2–5 working daysEstimated delivery time
Free deliveryon orders over £49.99
14 daysReturns & exchanges
Shop Pay · Apple PayGoogle Pay & cards

Technical data

Attribute	Value
Cabinet width	Adjustable — depends on the cabinet width
Full extension	Yes
Height	84 / 116 / 167 / 199 mm
Material thickness	16 / 18 mm
Overall length	250-550 mm
Soft-close	Yes
EAN	5904208183266
SKU	ELITE-84X250/ANTR
