Product data
Steel · 40 kg capacity · Full set with screws

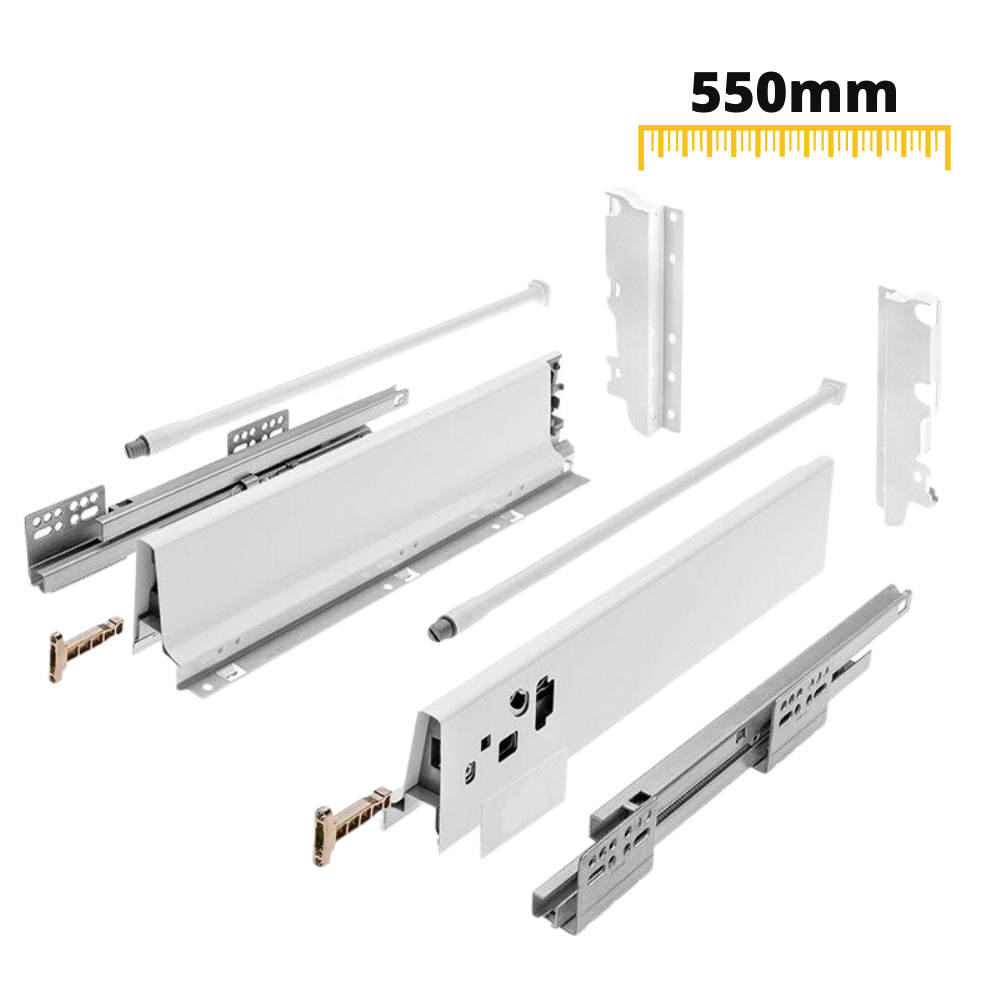

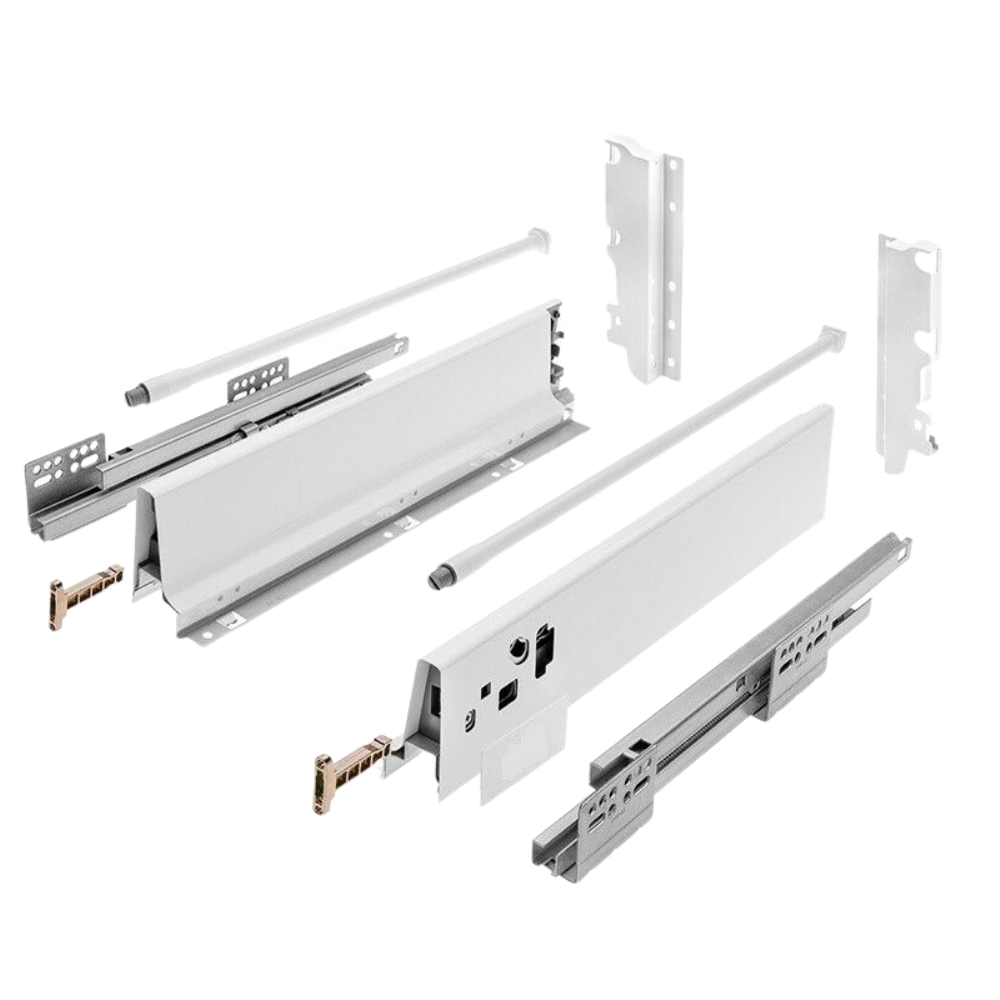

Soft-Close Drawer System, HIGH, H: 185mm, White 550mm

This white drawer system provides a complete steel box solution with a 185 mm side height and an integrated soft-close mechanism. The full extension runners pull out completely to give unrestricted access across the entire 550 mm depth.

  • Length550mm
  • MaterialSteel
  • Maximum weight40kg
  • Additional mechanismSoft-Close
  • Full extensionYes
  • AdjustmentFull (vertical and horizontal)
Soft-Close Drawer System, HIGH, H: 185mm, White 550mm
  • 185mm height

550 mm length with 40 kg load rating for deep units

The Soft-Close Drawer System, HIGH combines steel side rails and soft close drawer runners to support deep storage up to 40 kg. It includes integrated dampers and full 2-way fascia adjustment for clean alignment in domestic and workshop cabinetry.

  • Integrated soft-close mechanism: The built-in damper catches the drawer before it strikes the carcass and pulls it shut quietly without slamming.

  • Full extension opening: The runners slide out completely so you can easily reach cookware or tools stored right at the back of the 550 mm box.

  • 40 kg load rating: Manufactured from rigid steel to hold heavy loads steadily without sagging or jamming under weight.

  • 2-way fascia adjustment: Full vertical and horizontal adjustment mechanisms allow you to align drawer fronts accurately with surrounding units.

Practical uses for high 185 mm drawer sides

  • KitchenPan drawers and deep base units

    The 185 mm high side walls keep stacked pots and tall groceries secure when opening deep 550 mm cabinets.

  • WorkshopHeavy tool storage units

    The 40 kg load capacity and full extension travel allow heavy hand tools to be stored right to the back corner.

  • BedroomWardrobes and storage chests

    The soft-closing action keeps bulky clothing drawers running smoothly and silently in quiet spaces.

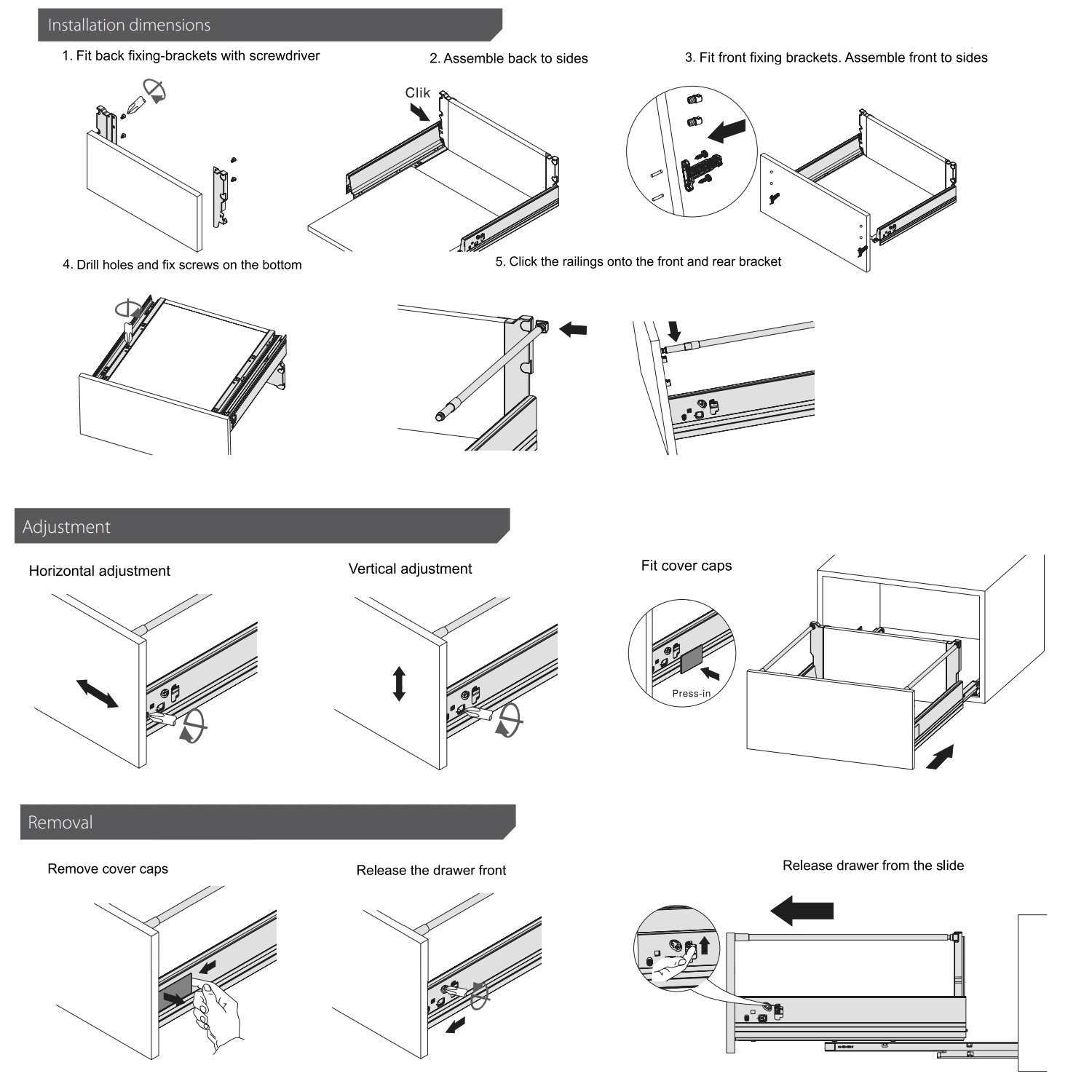

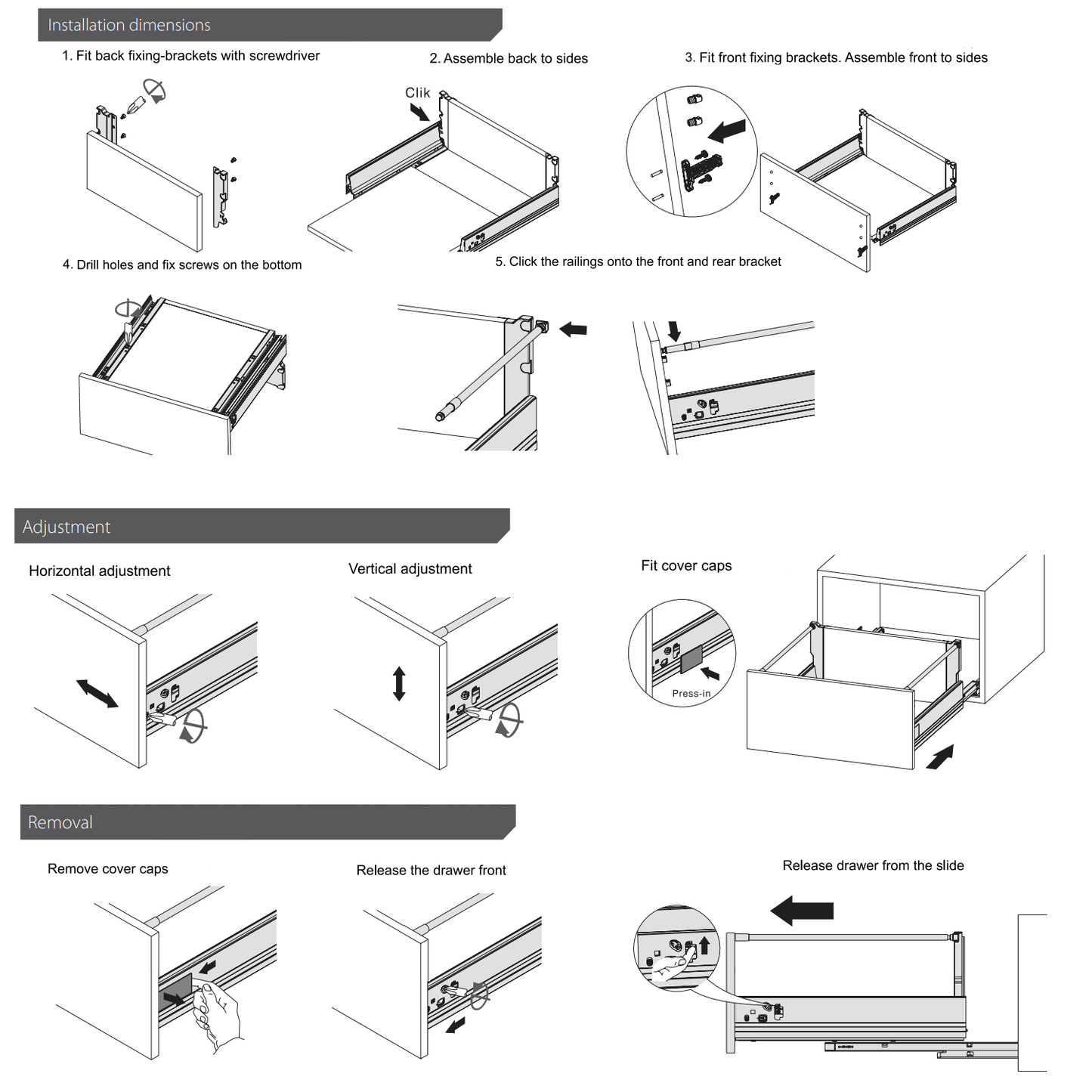

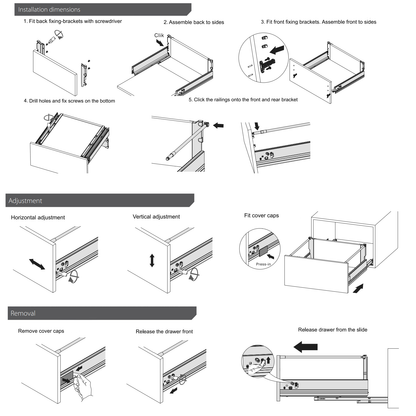

Fitting the drawer system

Side rails and fixing screws are supplied in the set.
  1. 1
    Mount the side rails

    Screw the side rails into the cabinet carcass using the supplied fixing screws.

  2. 2
    Insert the drawer box

    Position the drawer onto the runners and slide it forward until the mechanism clicks securely into place.

  3. 3
    Align the front panel

    Turn the adjustment screws to fine-tune the front vertically and horizontally until reveal gaps are uniform.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Setting
Full (vertical and horizontal)
Included in set
Fixing screws, side rails
Colour
White
Full extension
Yes
Height
185mm
Length
270-550mm
Material
Steel
Maximum weight
40kg
Quantity
1
EAN
5060857452228
SKU
04192.550.1012/B-K
