Cam dowel 24mm with Euro Screw-Thread - 1 pc

Availability: In Stock

Order within , and get it between and

£0.06

20% VAT included

£0.06

Quantity :

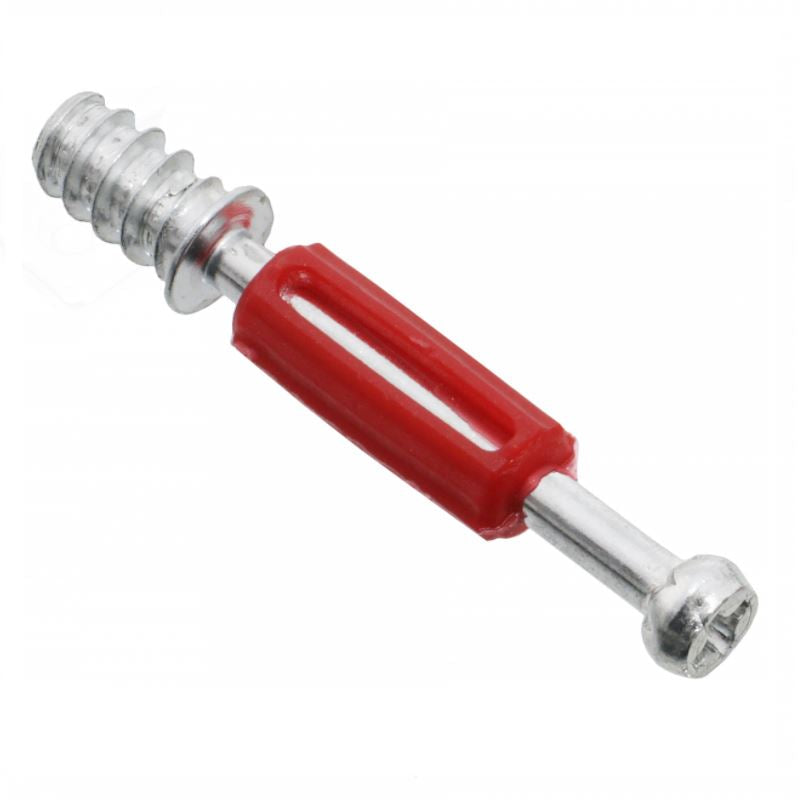

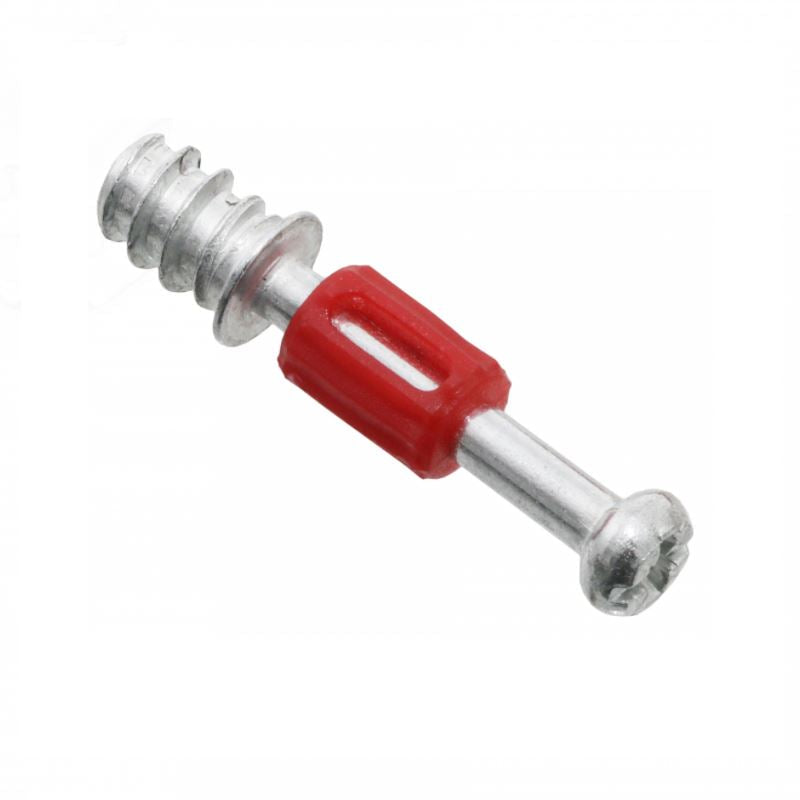

Galvanised steel & plastic · Euro thread

This 24 mm cam dowel creates rigid, completely concealed corner and panel joints in flat-pack and custom cabinetry.

This 24mm cam dowel screw anchors directly into pre-drilled carcase panels to deliver high tensile strength when locked by a matching cam lock.

Direct Euro thread: Drives straight into system drillings to form a solid grip in chipboard or MDF without tearing the core material.
Concealed panel assembly: Keeps the entire locking joint hidden on the inside of the cabinet for a clean exterior finish.
Composite construction: Combines zinc-coated steel with a durable plastic sleeve to withstand high clamping forces.
Precise 24 mm reach: Maintains the exact spacing needed for positive cam engagement and tight cabinet seams.

CabinetryWardrobes and cupboards
Joins carcase side panels securely to fixed base and top panels in standard flat-pack units.
RepairReplacing broken fittings
Serves as an exact 1-piece replacement for sheared or worn-out cam pins in existing modular furniture.
WorkshopBespoke carcass builds
Provides repeatable, knock-down panel connections in custom shelving units and storage furniture.

Supplied as 1 piece

1

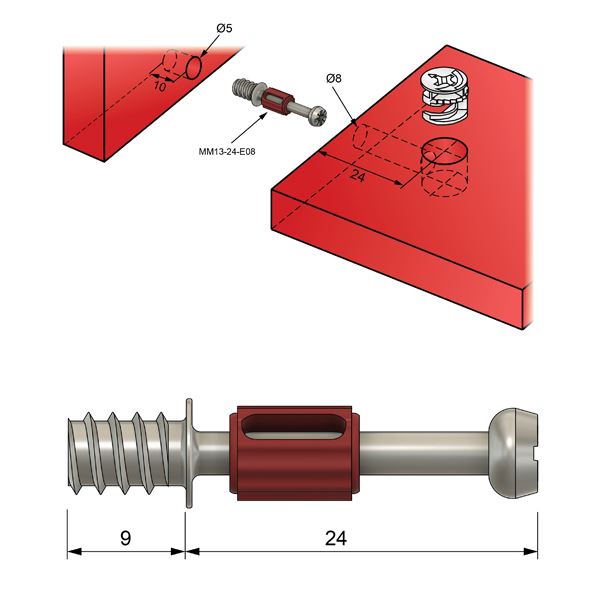

Drive into the side panel
Screw the Euro thread straight into the pre-drilled hole in the cabinet side until seated flush.
2
Align the shelf or divider
Guide the protruding 24 mm pin into the edge boring of the adjoining horizontal board.
3
Lock the cam housing
Rotate the internal cam lock in the panel face to draw the dowel head tight and close the joint.
