Nickel-plated steel · 14 mm adjustment

Ø6 Screw Fastening

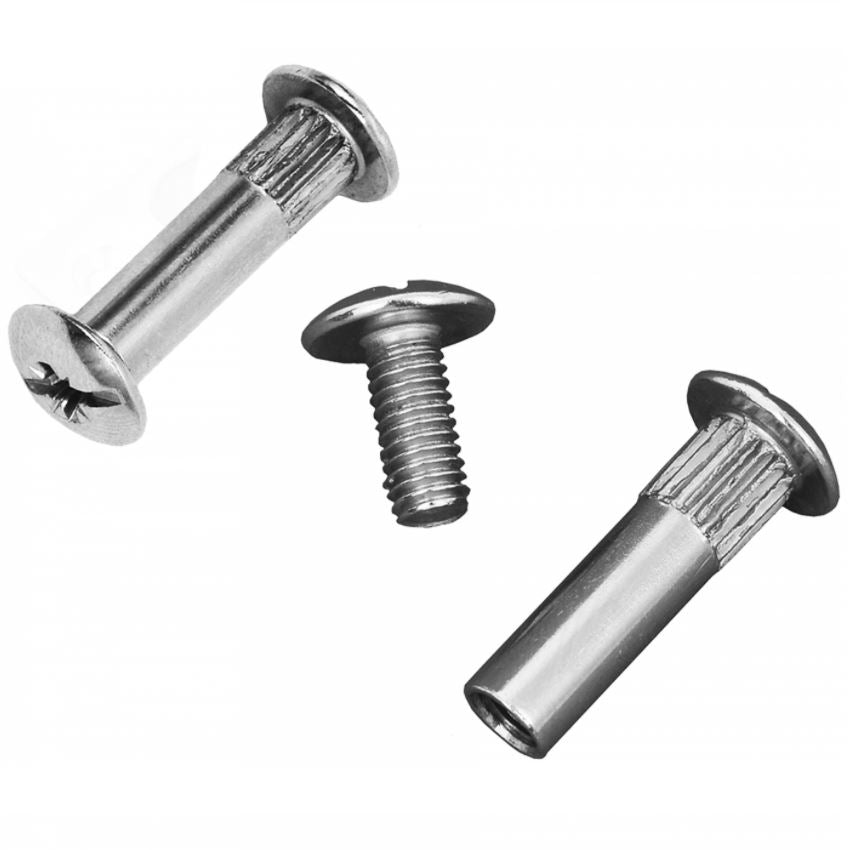

This Ø6 Screw Fastening securely pulls adjacent furniture carcasses and panels together into a flush unit. Made from nickel-coated steel, it features a 14 mm adjustable length range to accommodate varying board thicknesses.

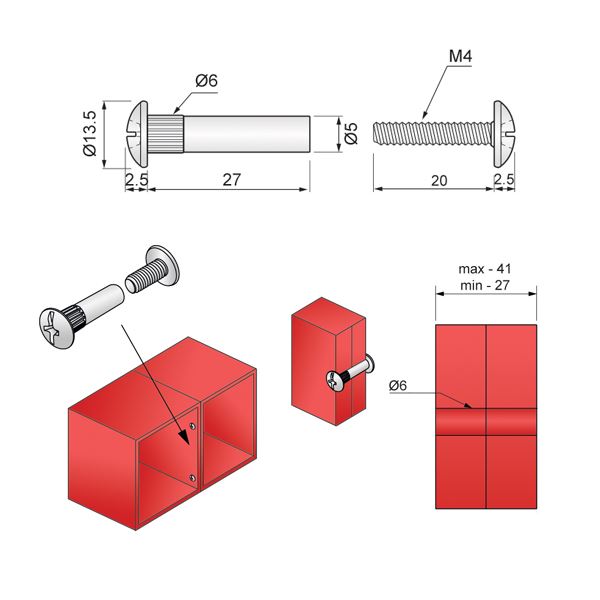

  • Plug diameterØ 6 mm
  • Plug length27 mm
  • Adjustable length14 mm
  • MaterialNickel coated steel
  • ColourNickel (G02)
Ø6 Screw Fastening

Ø 6 mm connector with 14 mm adjustment range

The Ø6 Screw Fastening sleeve connector provides a solid connection between adjacent cabinet carcasses, acting as reliable screw dowels for modular furniture builds. Its nickel-plated steel body ensures durable clamping force across side panels.

  • Ø 6 mm plug diameter: Fits directly into standard 6 mm through-holes for quick alignment of side panels.

  • 14 mm adjustable length: Compensates for varying panel thicknesses to ensure a tight, gap-free joint.

  • 27 mm plug length: Provides sufficient sleeve depth to guide the bolt securely during tightening.

  • Nickel-coated steel: Offers strong mechanical resistance and a clean, corrosion-resistant metallic finish.

Where to use Ø 6 mm carcass connectors

  • KitchenJoining base and wall cupboards

    Secures side-by-side kitchen units together to keep front profiles completely level and flush.

  • BedroomConnecting modular wardrobes

    Locks individual wardrobe carcasses into a continuous, stable storage bank.

  • OfficeShelving unit coupling

    Eliminates gaps between adjoining bookcase frames for an aligned, rigid run.

Fitting the connecting bolt

Requires matching 6 mm drill holes through both side panels
  1. 1
    Align the panels

    Position the two cabinets flush against each other and line up the pre-drilled 6 mm holes.

  2. 2
    Insert the sleeve

    Push the 27 mm long threaded sleeve fully into the hole from one side of the carcass.

  3. 3
    Tighten the screw

    Thread the matching screw from the opposing side and tighten with a screwdriver until both panels are clamped firmly together.
