Nickel-plated steel · ±8 mm adjustable

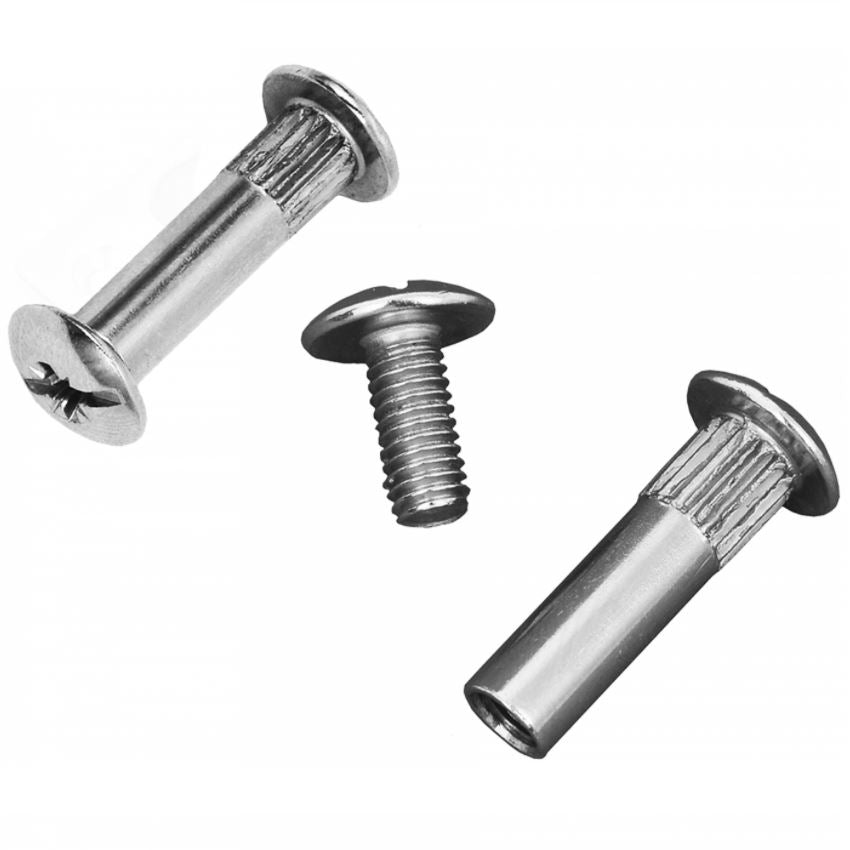

Ø8 Screw Fastening

This Ø8 mm screw fastening provides a firm, rigid connection between adjacent furniture carcasses or panels. With an adjustable length of ±8 mm, it compensates for board thickness variations during assembly.

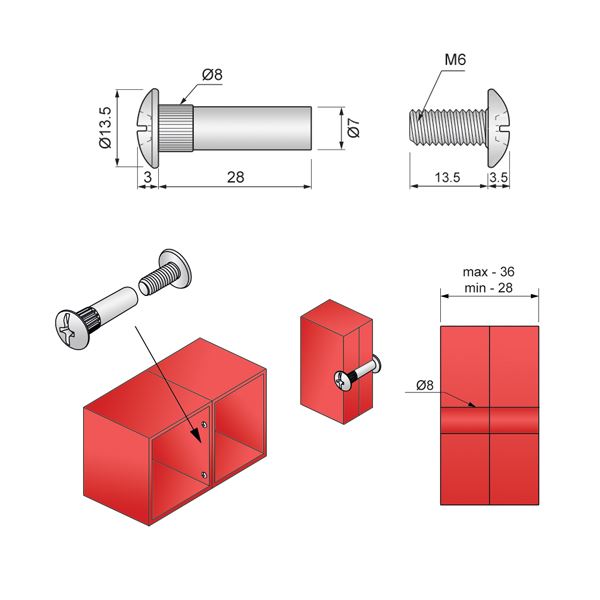

  • Screw diameterØ 8 mm
  • Adjustable length±8 mm
  • Plug length28 mm
  • MaterialNickel-plated steel
  • ColourNickel (G02)
Ø8 Screw Fastening

Connecting connector for Ø 8 mm system holes

The Ø8 Screw Fastening is engineered to join cabinet units and panels securely through standard 8 mm pre-drilled holes. Its threaded two-part design pulls components flush while allowing depth fine-tuning.

  • Adjustable length of ±8 mm: Absorbs panel manufacturing tolerances and allows precise alignment without stressing the material.

  • Exact Ø 8 mm diameter: Seats tightly into standard 8 mm holes to prevent movement or twisting between joined carcasses.

  • Nickel-plated steel construction: Delivers solid mechanical strength and corrosion resistance for long-term interior cabinet stability.

  • 28 mm plug length: Ensures ample thread engagement to clamp side-by-side boards together securely.

Applications for Ø 8 mm furniture connections

  • CabinetryJoining adjacent cabinet carcasses

    Pulls neighbouring side panels together flush in kitchen or utility runs, keeping the units rigid and aligned.

  • FittingAttaching filler panels and trims

    Holds decorative end panels or fascias in place while the adjustable length prevents surface strain.

  • MaintenanceReplacing worn screw dowels

    Swaps directly into existing 8 mm connector holes to re-tighten loose modular furniture units without re-drilling.

Fitting in 3 steps

Requires a standard screwdriver for tightening
  1. 1
    Check the hole size

    Ensure both panels feature a matching, aligned through-hole with an 8 mm diameter.

  2. 2
    Insert the female sleeve

    Push the 28 mm plug sleeve into the hole from one side of the joined panels.

  3. 3
    Drive the screw and adjust

    Insert the screw from the opposite side, tighten into the sleeve, and adjust the ±8 mm depth until secure.
