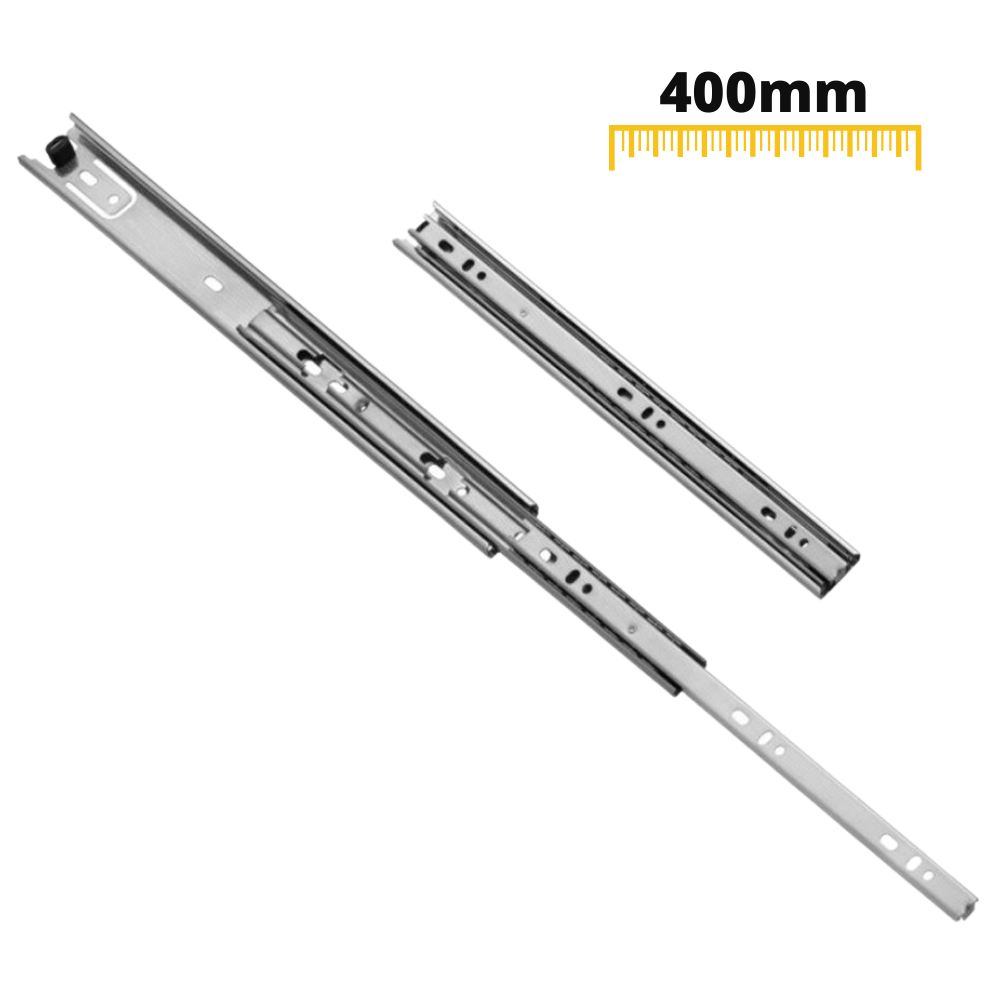

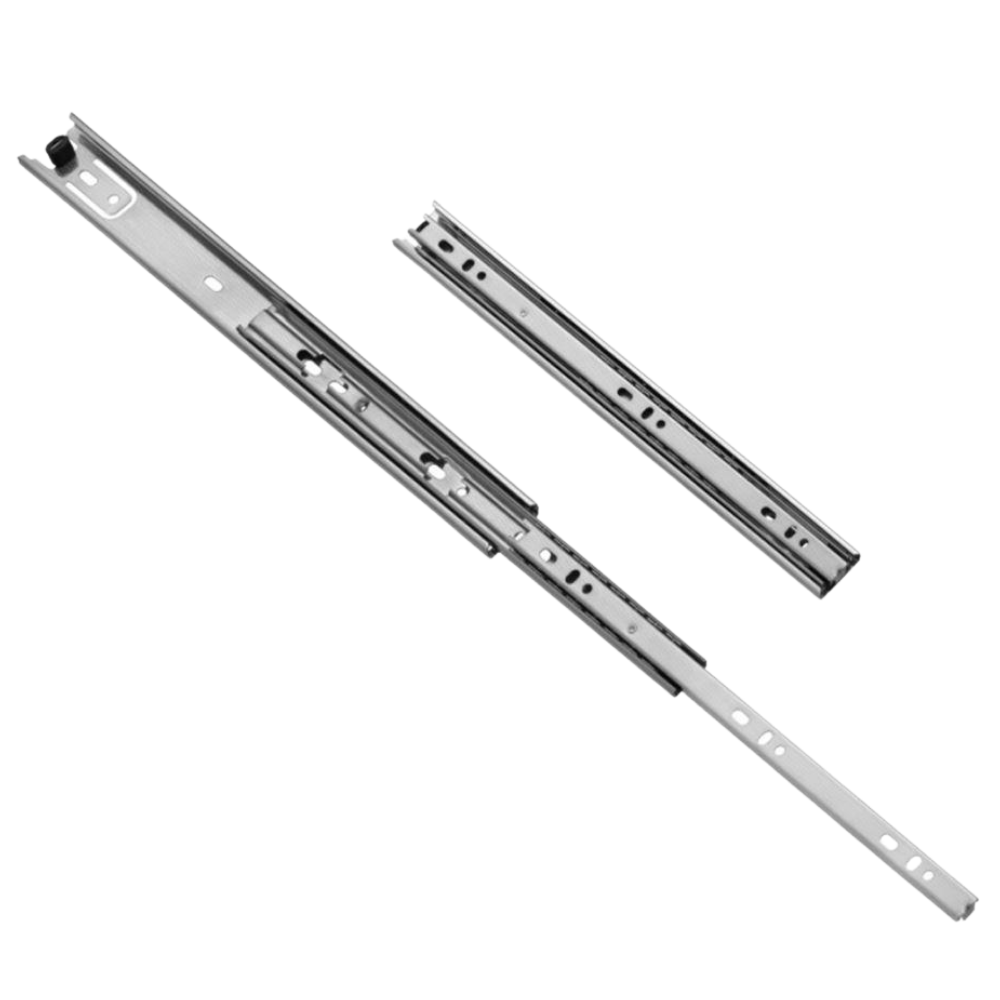

Drawer runners ball bearing 400mm - H30 (right and left side)

Drawer runners ball bearing 400mm - H30 (right and left side)

£4.12 Incl. VAT
£4.12 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£3.92 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Bestsellers

More drawer runners

The best-selling products in this category.

Product data
Pair for 1 drawer · Zinc-coated steel · Up to 15 kg

Drawer runners ball bearing 400mm - H30 (right and left side)

These 400mm drawer runners deliver smooth ball bearing movement and 100% full extension for effortless access to the very back of your storage unit.

  • Length400mm
  • Maximum weight15kg
  • Full extensionYes
  • Additional mechanismRubber brake
  • MaterialZinc-coated steel
  • ColourZinc
Drawer runners ball bearing 400mm - H30 (right and left side)
  • 30mm height
  • 0.8mm material thickness

400 mm length with integrated rubber brake

These zinc-coated steel side drawer runners combine durable ball bearings with full extension travel to handle everyday loads up to 15kg without sticking.

  • 100% full extension: Pulls the entire 400mm length out of the carcass so you can reach items stored at the far back with ease.

  • Integrated rubber brake: Damps the final closing motion and stops the drawer box from bouncing open on its own.

  • 15kg load capacity: Carries standard household weights reliably on smooth steel ball bearings.

  • Zinc-coated steel body: Protects the metal profile against corrosion to maintain long-lasting sliding performance.

Applications for 400mm 15kg ball bearing runners

  • KitchenCutlery and utensil drawers

    Provides total access to the full 400mm depth so no items get lost behind the worktop line.

  • Home OfficeDesk pedestals and filing units

    Supports everyday stationery, paperwork, and notebooks within the 15kg load limit.

  • BedroomSideboards and bedside tables

    Replaces stiff or broken friction tracks with smooth-running ball bearing movement.

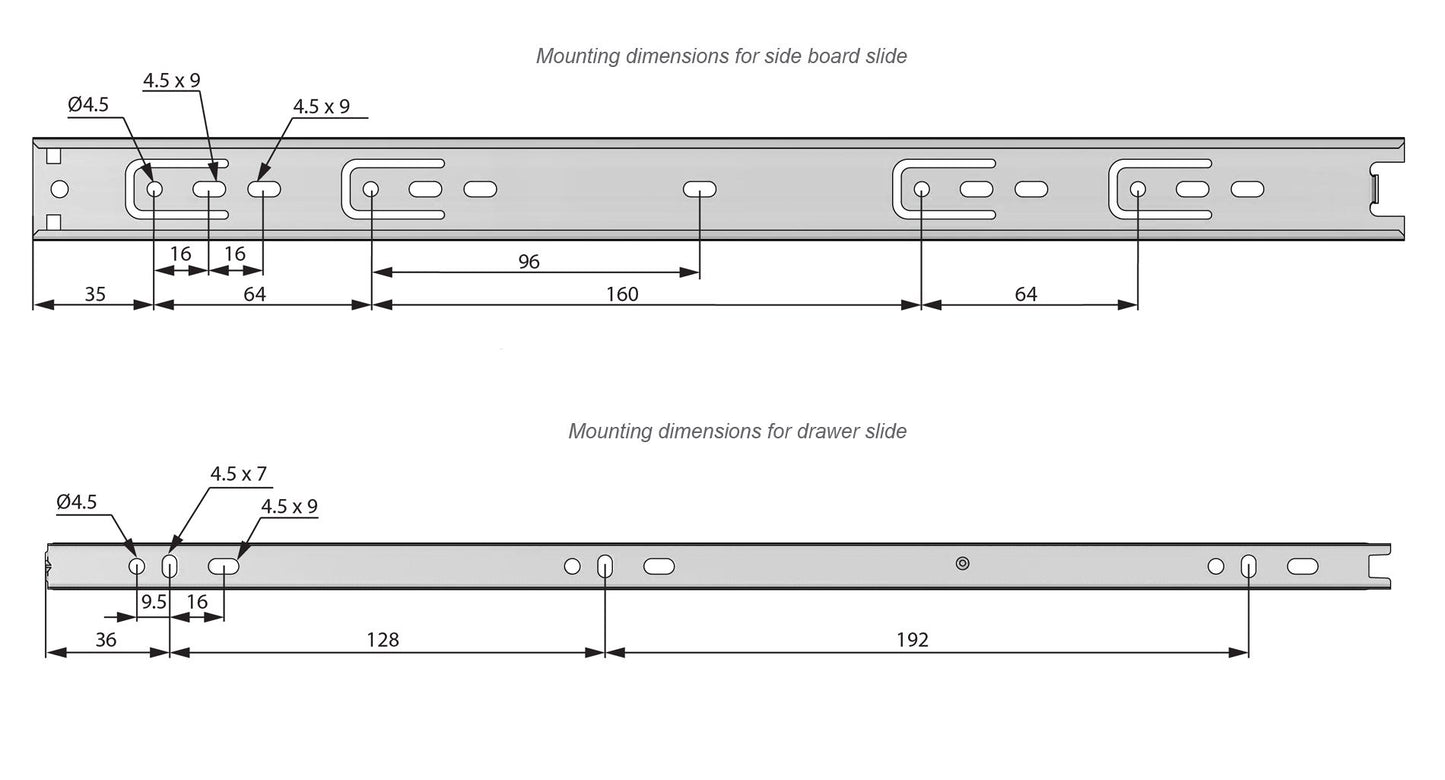

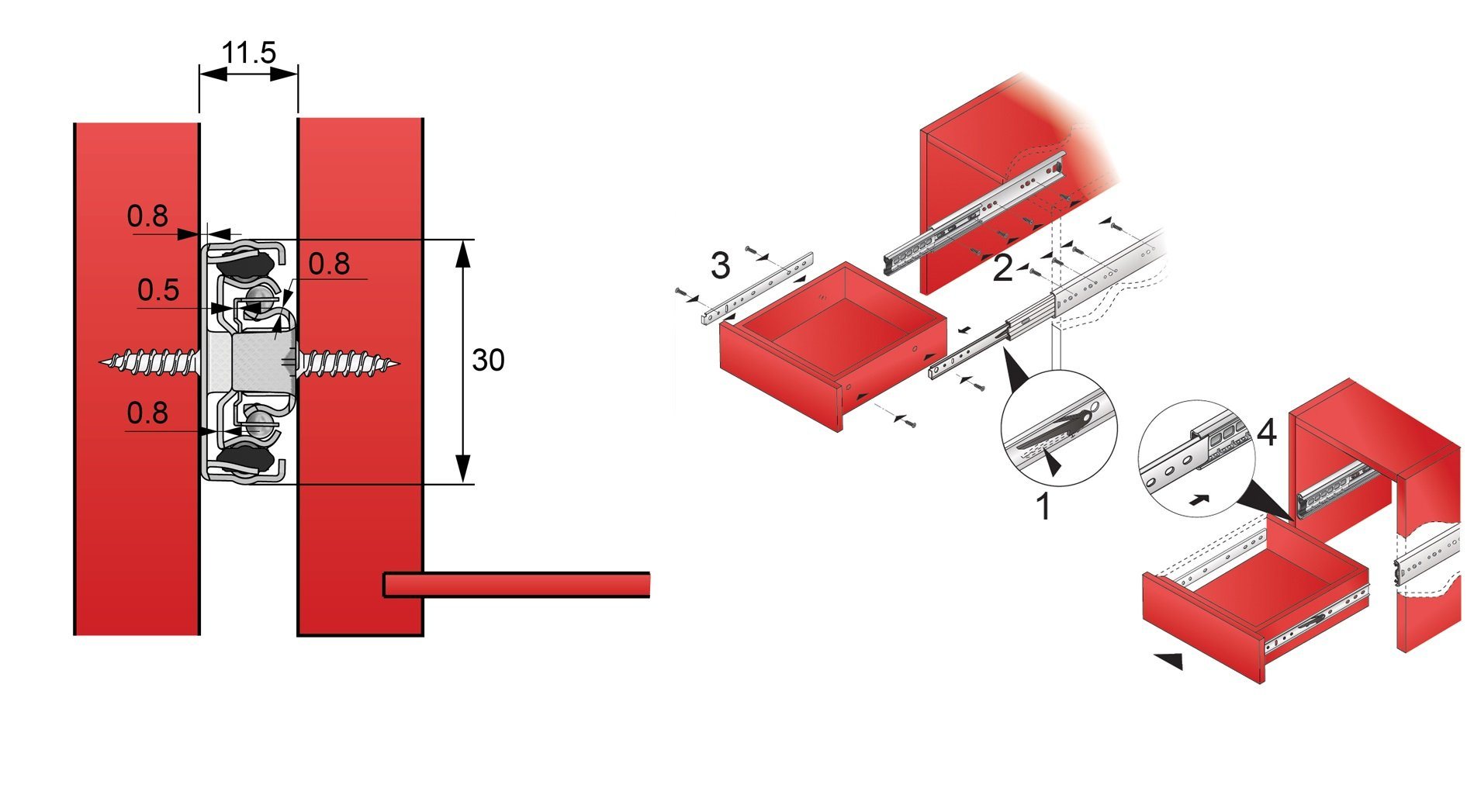

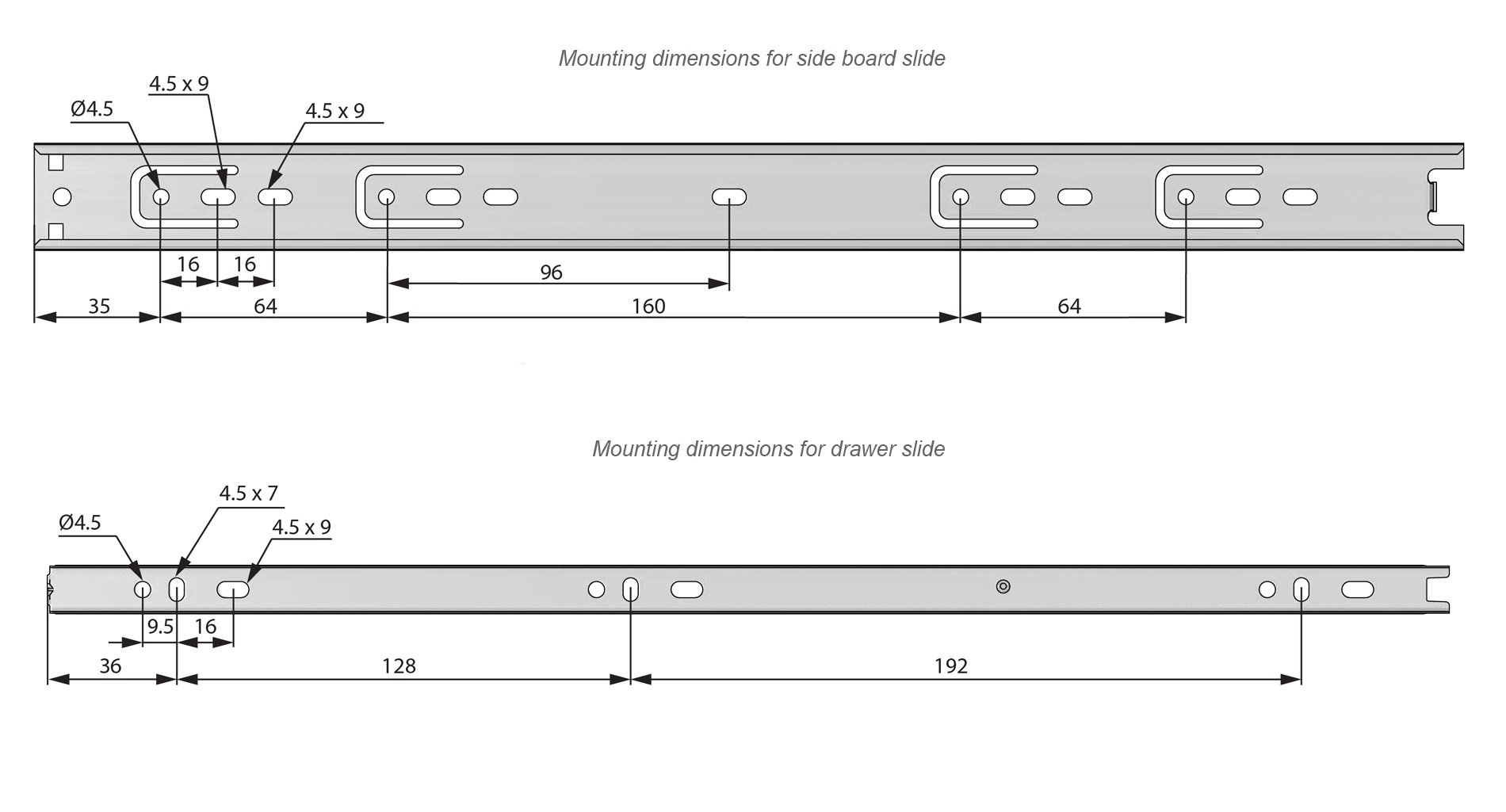

Fitting the drawer runners

Supplied as a pair (1 left and 1 right runner for 1 drawer).
  1. 1
    Separate the tracks

    Release the quick-disconnect catch on the inner arm to separate the drawer track from the carcass runner.

  2. 2
    Fix the outer tracks to the cabinet

    Align the outer runner horizontally along the inside of the cabinet carcass and secure it with screws.

  3. 3
    Attach inner tracks and insert

    Screw the inner track flush onto the drawer side, then slide the drawer into the carcass until it clicks home.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Rubber damper
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Height
30mm
Length
250-500mm
Material
Galvanised steel
Material thickness
0.8mm
Maximum weight
15kg
EAN
5060685609092
SKU
PK30N-A-400
