M6 threaded insert 8x13mm - 1000 pcs
Biscuits & Dowels

M6 threaded insert 8x13mm - 1000 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£65.92
20% VAT included
£65.92
Klarna
ZnAl alloy · Zinc finish · Pack of 1000

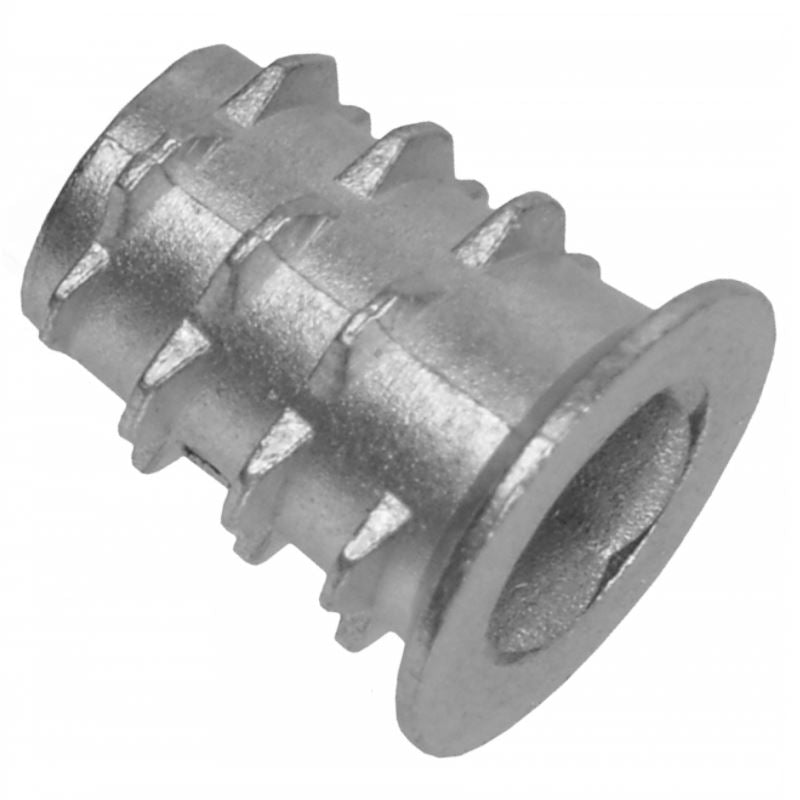

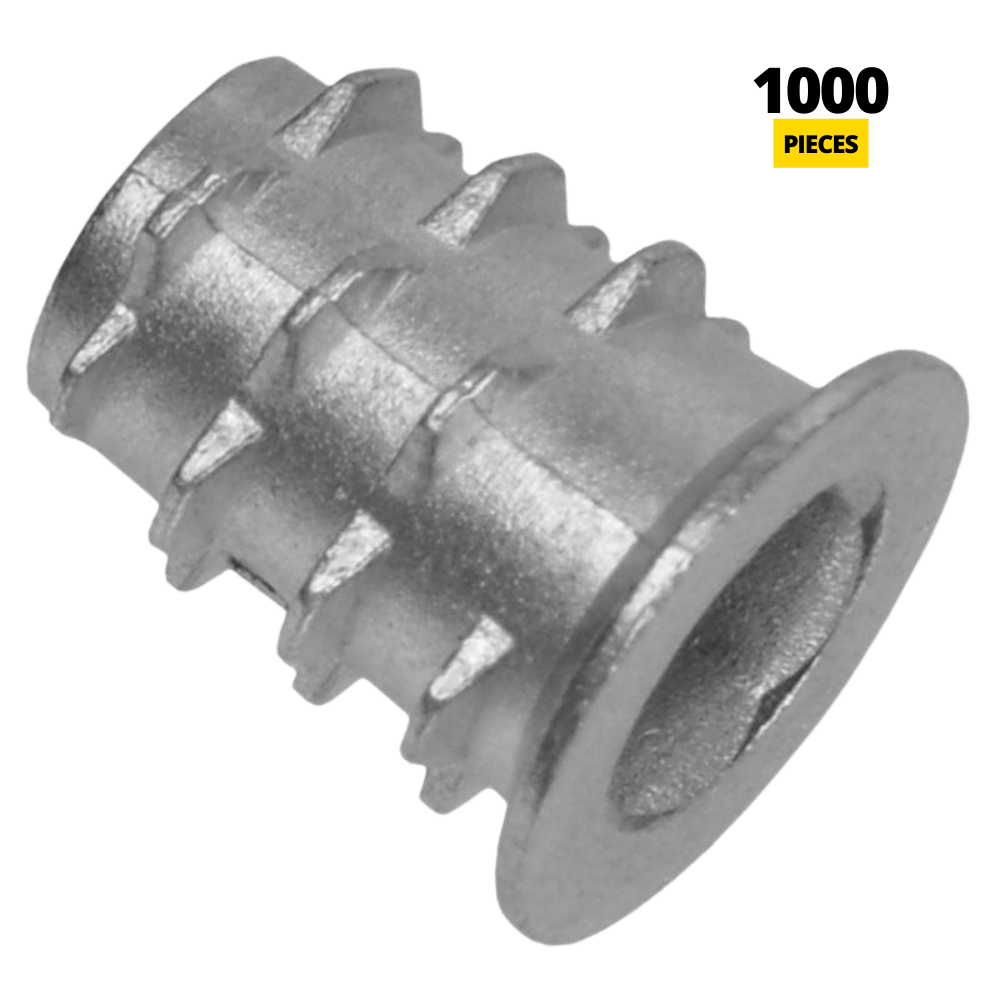

M6 threaded insert 8x13mm - 1000 pcs

This M6 threaded insert creates a durable metric internal thread in timber and wood-based panels. It provides a reliable anchor for connecting bolts and prevents screw holes from stripping under repeated assembly.

  • Thread diameterM6
  • Dimensions8x13mm
  • MaterialZnAl
  • Finish colourZinc
  • Screw typeM6
  • Quantity1000 pieces
M6 threaded insert 8x13mm - 1000 pcs

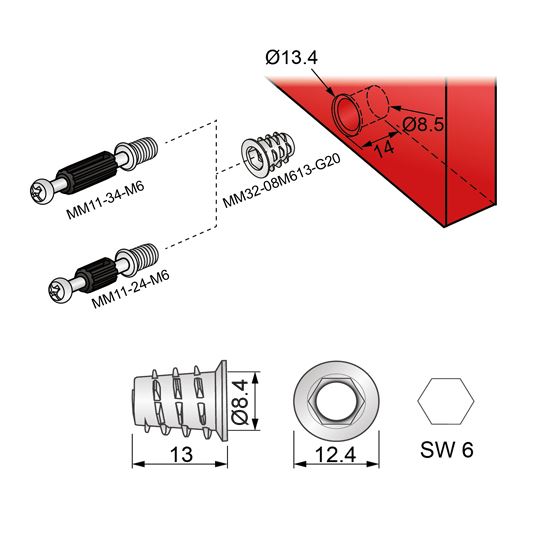

M6 internal thread with 8x13 mm outer dimensions

The 8x13mm threaded insert provides a heavy-duty anchor inside timber panels for metric bolts. It allows cabinet carcasses and joinery components to be assembled, dismantled, and reassembled without damaging the core wood.

  • Strong pull-out resistance: The external body grips firmly into timber panels to distribute tensile loads across the board.

  • Reusable metric thread: Allows repeated insertion and removal of M6 bolts without degrading the surrounding wood fibres.

  • Robust ZnAl alloy: Manufactured from a durable zinc-aluminium alloy with a zinc finish for structural rigidity.

  • Bulk trade pack: Supplied in a quantity of 1000 pieces to cover workshop production runs and large-scale cabinet builds.

Applications for 8x13mm M6 inserts

  • CabinetryCarcass and wardrobe construction

    Forms sturdy connections for flat-pack units, allowing flat-packed cupboards and wardrobes to be taken apart and rebuilt cleanly.

  • WorkshopBatch furniture manufacturing

    Acts as a reliable dowel insert anchor for metric connecting bolts in bespoke cabinetry and timber framing.

  • RepairStripped screw hole reinforcement

    Restores solid fixing points in damaged furniture panels where traditional woodscrews have torn free.

Installing the M6 threaded insert

Requires a pre-drilled pilot hole of matching outer diameter.
  1. 1
    Drill pilot hole

    Drill a straight, perpendicular hole into the timber workpiece to match the outer body diameter.

  2. 2
    Insert the fitting

    Screw the insert squarely into the pre-drilled hole until the top edge sits flush with the panel surface.

  3. 3
    Fasten hardware

    Align your furniture component and thread an M6 bolt directly into the internal metal thread.
