Product data
Zinc-coated steel · Up to 136 kg · 1 pair

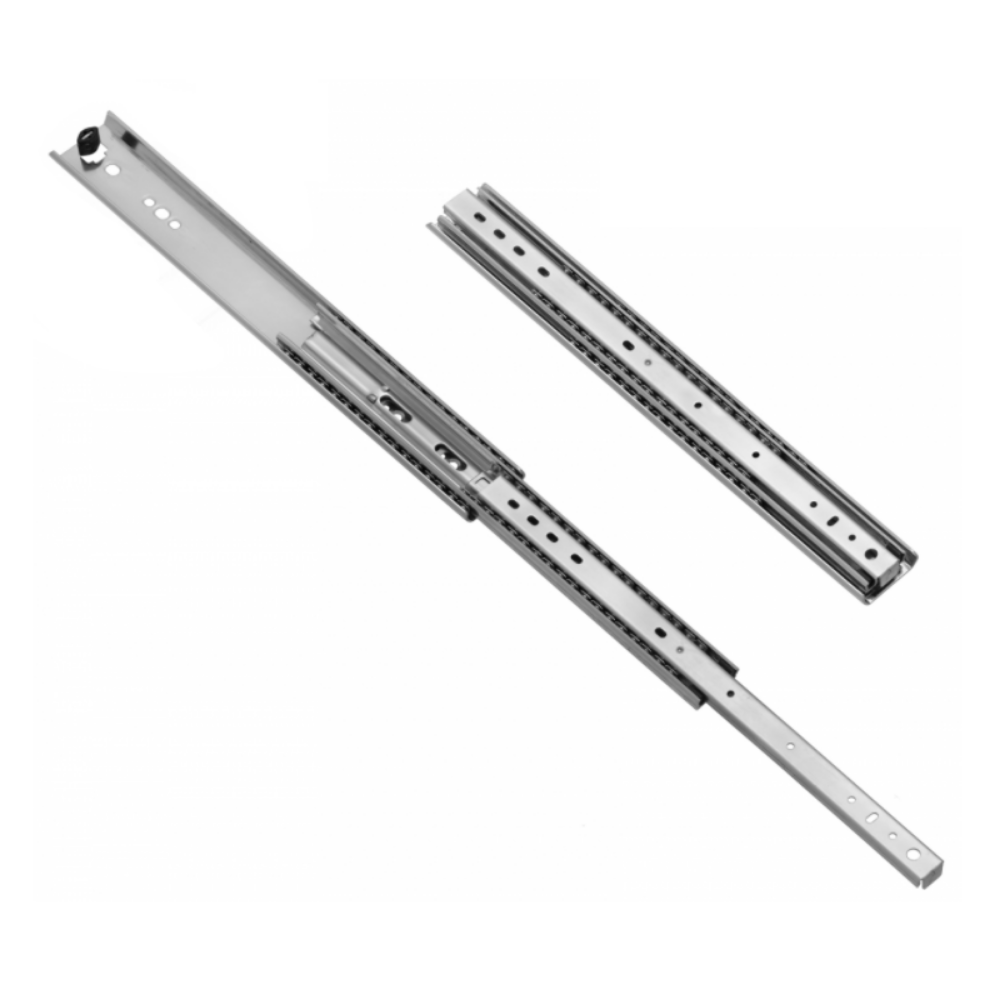

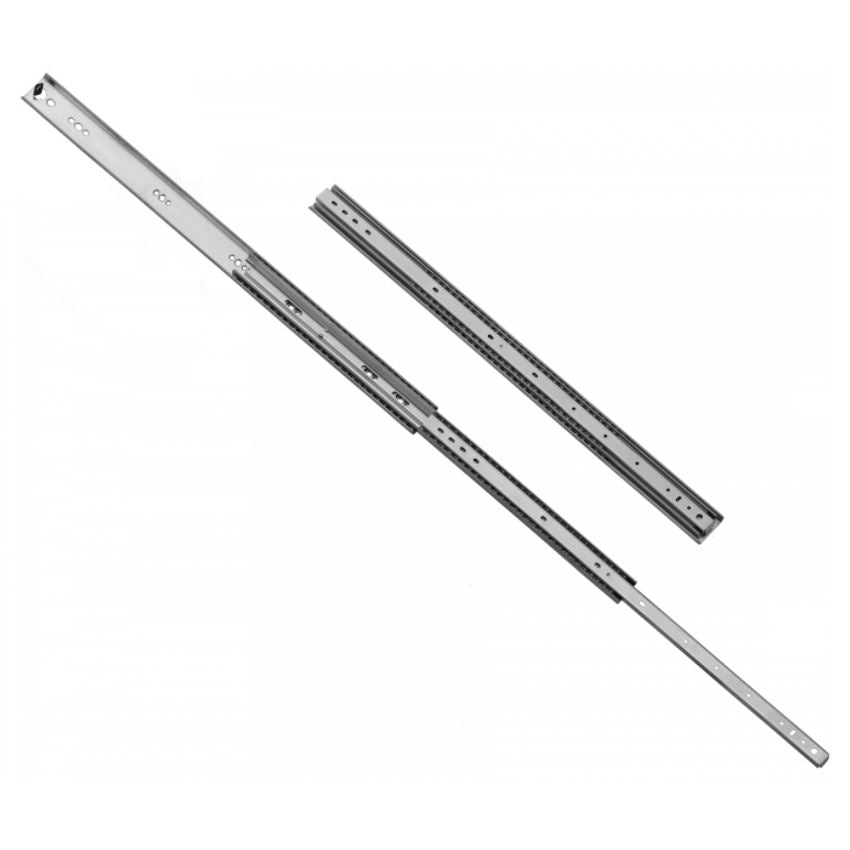

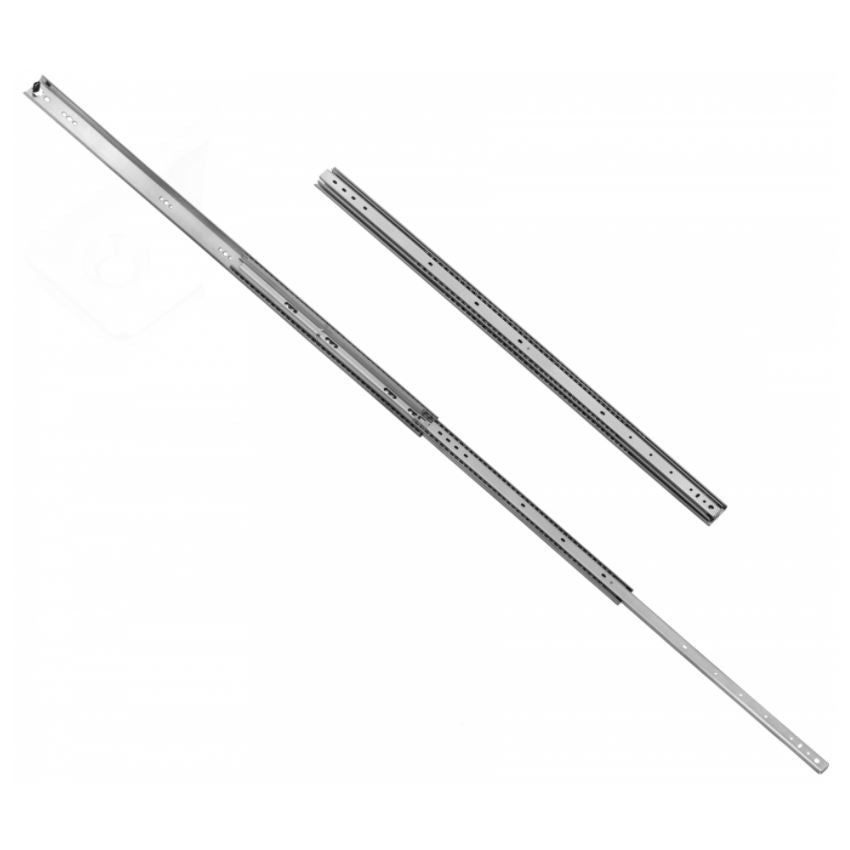

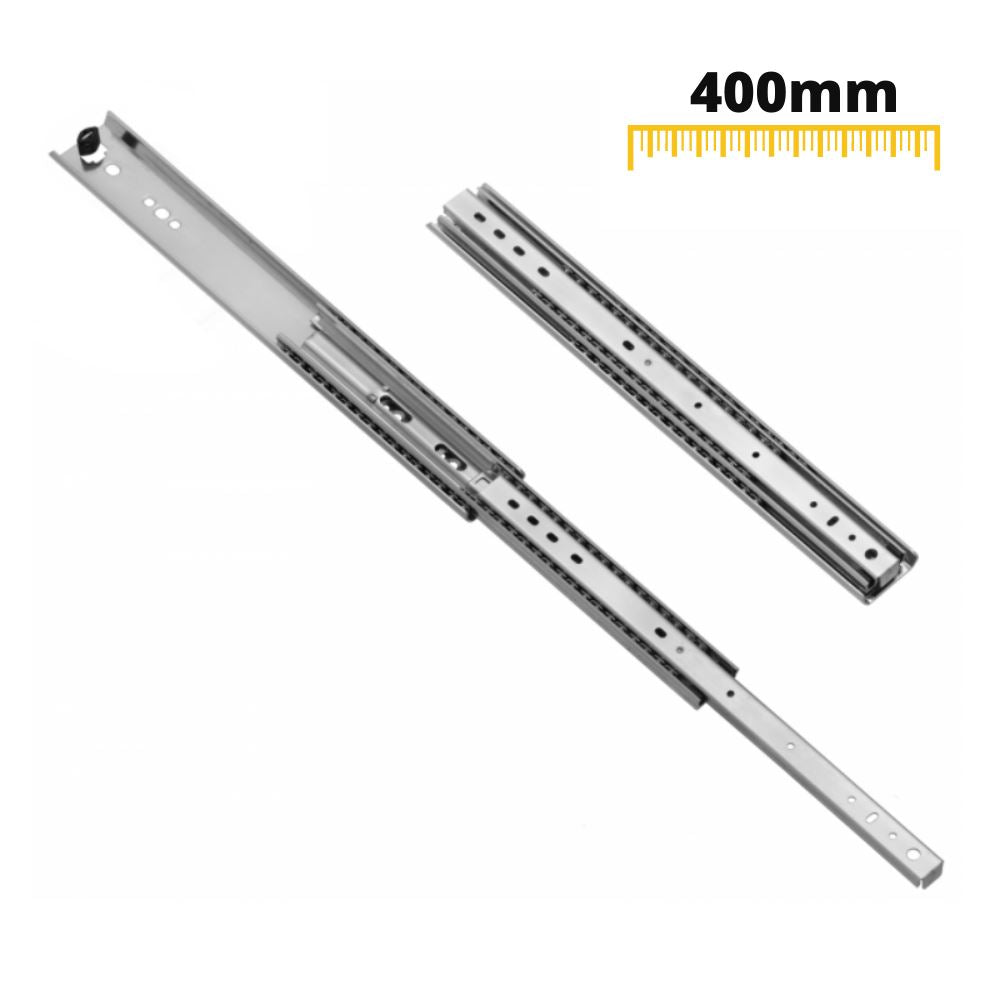

Drawer runners ball bearing 400mm - H53 (right and left side)

This pair of heavy-duty ball bearing drawer runners delivers complete access to deep storage with a substantial 136 kg load capacity. Built from 2.0 mm thick zinc-coated steel, they provide solid support for demanding workshop, utility, and domestic storage.

  • Length400mm
  • Maximum weight136kg
  • Full extensionYes
  • MaterialZinc coated steel
  • Material thickness2.0/2.0/2.0mm
  • ColourZinc
Drawer runners ball bearing 400mm - H53 (right and left side)
  • 53mm height

400 mm full extension slides for loads up to 136 kg

Engineered for heavy loads, these 400 mm ball bearing drawer runners feature robust steel construction and smooth-running steel bearings. The full extension design pulls the entire drawer clear of the carcass for unhindered access to stored items.

  • High 136 kg load capacity: Engineered from thick steel profiles to hold heavy equipment, tools, or bulk supplies without sagging under full load.

  • Complete full extension: Pulls out the entire length of the 400 mm drawer box so you can reach items stored right at the back.

  • 2.0 mm steel thickness: Triple-profile steel construction ensures the rails resist twisting and maintain smooth travel during repeated use.

  • Zinc-coated finish: Provides reliable surface protection against corrosion in workshops, garages, and utility cupboards.

Applications for 400 mm heavy-duty slides

  • WorkshopHeavy tool storage drawers

    Supports bulky power tools, hand tools, and heavy hardware components without binding under weight.

  • UtilityDeep pantry and larder pull-outs

    Carries full loads of tinned goods, cast iron cookware, and heavy domestic provisions with ease.

  • OfficeArchive and filing units

    Allows smooth, stable opening for dense document boxes, catalogues, and heavy commercial stationery.

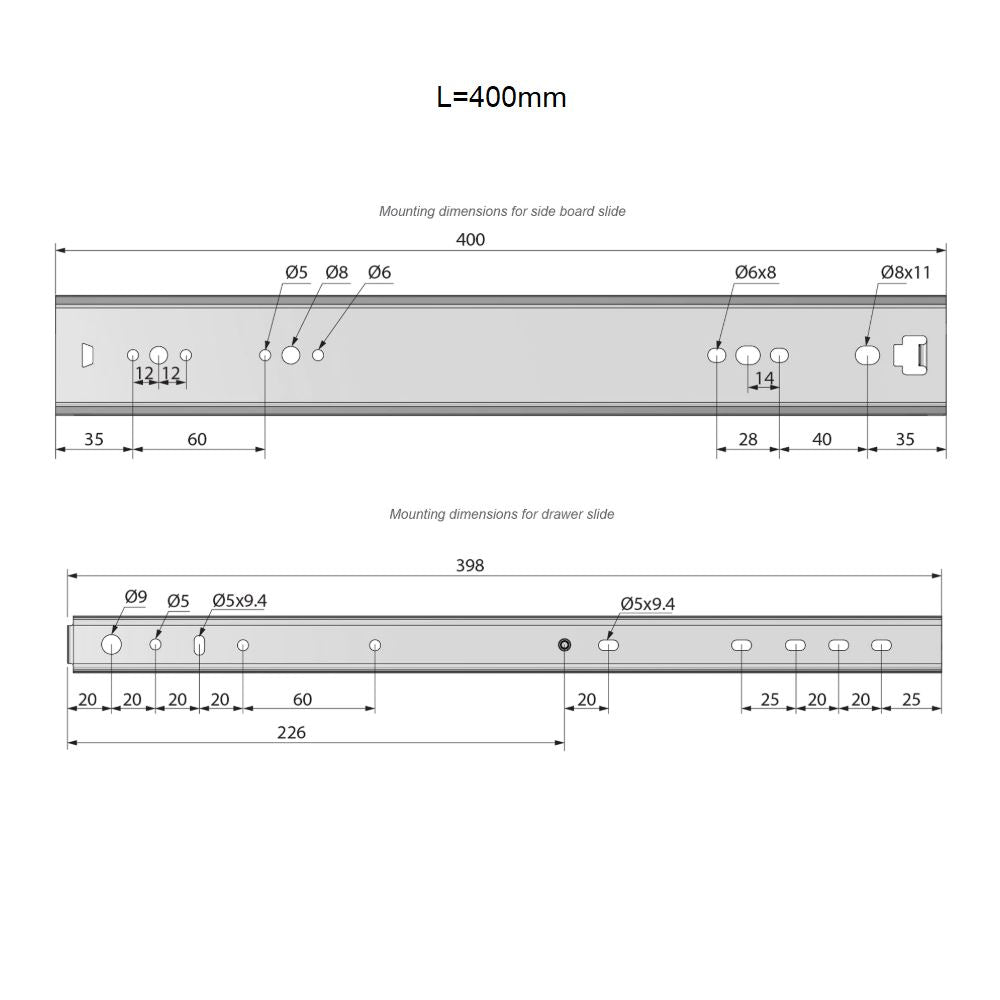

Fitting the drawer slides

Supplied as a pair (left and right side) for one drawer.
  1. 1
    Separate the slide sections

    Depress the internal disconnect lever on each runner to detach the drawer member from the outer cabinet rail.

  2. 2
    Mount the outer rails to the carcass

    Position the cabinet tracks horizontally along the internal side walls at matching heights and secure with appropriate fixings.

  3. 3
    Fix the inner rails and engage

    Screw the inner members to the sides of the drawer box, align the tracks with the carcass rails, and push closed until they lock into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
None
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Height
53mm
Length
400-1500mm
Material
Galvanised steel
Material thickness
2.0/2.0/2.0mm
Maximum weight
136kg
EAN
5060685604615
SKU
PK53N-E-0400
