Product data
Pair · Right and left side · Up to 45 kg

Drawer runners ball bearing 550mm - H45 (right and left side)

These 550 mm ball bearing drawer runners deliver smooth, full-extension travel and support loads of up to 45 kg. Supplied as a matched pair for both sides of the drawer, they are built for dependable day-to-day use in deep storage units.

  • Length550mm
  • MaterialZinc coated steel
  • Maximum weight45kg
  • Full extensionYes
  • Material thickness1.0/1.0/1.2mm
  • Additional mechanismRubber brake
Drawer runners ball bearing 550mm - H45 (right and left side)
  • 45mm height

Zinc coated steel slides with full extension for 550 mm deep cabinets

These heavy-duty drawer runners feature precision steel ball bearings and durable zinc-coated steel profiles with 1.0/1.0/1.2 mm material thickness. A detachable inner profile and an integrated rubber brake ensure straightforward fitting and controlled closing.

  • Full extension access: The 100% opening travel pulls completely clear of the carcass so you can reach the very back of deep 550 mm drawers.

  • 45 kg load capacity: Sturdy steel ball bearings reliably carry heavy loads such as kitchen pots, workshop tools, and bulky hardware.

  • Detachable inner member: The release lever lets you separate the drawer profile from the carcass track for simple installation and removal.

  • Integrated rubber brake: The built-in end stop prevents the drawer from bouncing open or rolling out accidentally when closed.

Ideal applications for 550 mm drawer runners

  • KitchenDeep pan drawers and larders

    Supports up to 45 kg of cookware, dinnerware, and dry groceries while pulling clear for easy loading.

  • WorkshopTool storage and benches

    The 1.0/1.0/1.2 mm thick zinc-coated steel profiles withstand heavy hand tools and equipment.

  • BedroomFitted wardrobes and chests

    Allows 550 mm deep drawers to pull out completely so you can view all stored clothing and linens.

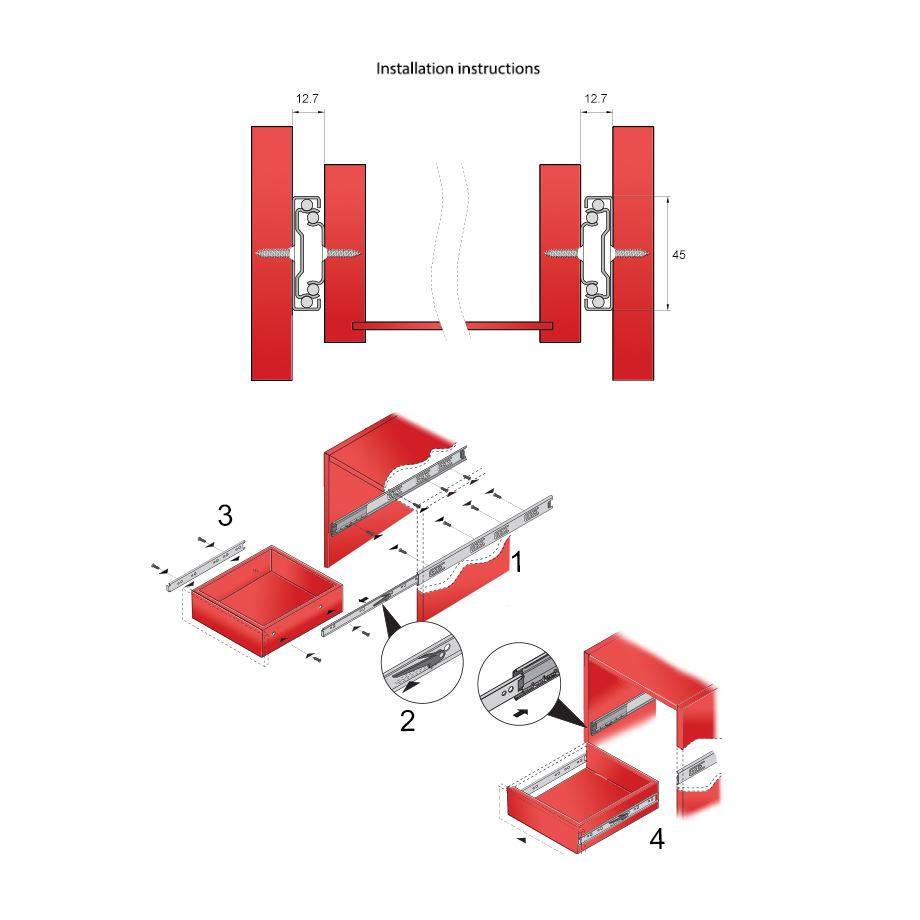

Installing your 550 mm drawer slides

Supplied as a set for one drawer (right and left hand)
  1. 1
    Separate the slide profiles

    Depress the internal disconnect lever to slide out and remove the inner runner from the outer frame.

  2. 2
    Fix the outer carcass rail

    Align the outer track horizontally against the inside wall of the cabinet and screw it firmly in place.

  3. 3
    Attach inner rail and insert

    Fix the separated rail along the side of the drawer box, then align the tracks and slide the drawer in until it clicks.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Rubber damper
Colour
Zinc
Manufacturer
Furnica
Detachable sliding arm
Yes
Full extension
Yes
Height
45mm
Length
250-700mm
Material
Galvanised steel
Material thickness
1.0/1.0/1.2mm
Maximum weight
45kg
EAN
5060685600761
SKU
PK45N-B-550
