Product data
ZnAl alloy · Zinc finish · Single piece

Furniture Cam Lock 15mm, a=7.5mm (1 pc)

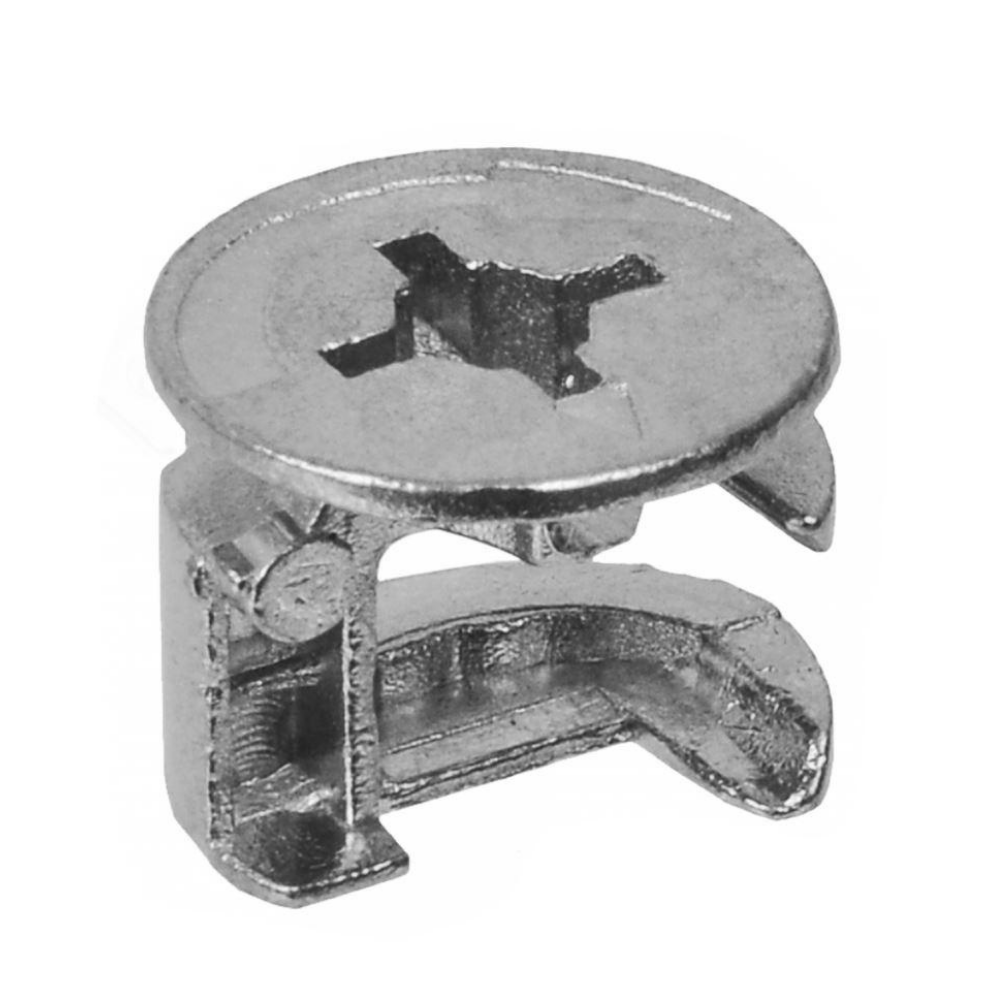

This 15 mm furniture cam lock provides a robust, concealed mechanical joint for flat-pack furniture panels. Cast from hard-wearing ZnAl alloy, it securely engages the connecting pin to draw cabinet panels tightly together.

  • Cam diameter15 mm
  • Height7.5 mm
  • Material thickness15 mm
  • MaterialZnAl
  • ColourZinc
  • Quantity1 pc
Furniture Cam Lock 15mm, a=7.5mm (1 pc)
  • 15mm diameter
  • 7.5mm height
  • 15mm material thickness

7.5 mm height for 15 mm board thickness

The furniture cam lock creates a strong internal joint by pulling the dowel pin tight as it rotates inside a standard 15 mm drill hole. Its compact 7.5 mm profile is engineered specifically for furniture side panels and shelves made from 15 mm board.

  • Standard 15 mm fit: Drops neatly into pre-drilled 15 mm holes across standard flat-pack cabinetry.

  • Durable ZnAl casting: Resists deformation and rounding when tightened firmly with a screwdriver.

  • Hidden joint assembly: Locks panels firmly together without leaving visible screw heads on exterior surfaces.

  • Compact 7.5 mm depth: Matches 15 mm board construction for a flush, secure fit without protruding.

Where this 15 mm furniture cam connector is used

  • CupboardsWardrobe and carcass assembly

    Joins structural cabinet side panels to top and bottom shelves cleanly from the inside.

  • RepairFlat-pack hardware replacement

    Directly replaces worn, damaged or rounded cam lock fittings in self-assembly units.

  • ShelvingFixed intermediate shelves

    Provides rigid structural support for fixed internal shelf partitions in 15 mm panels.

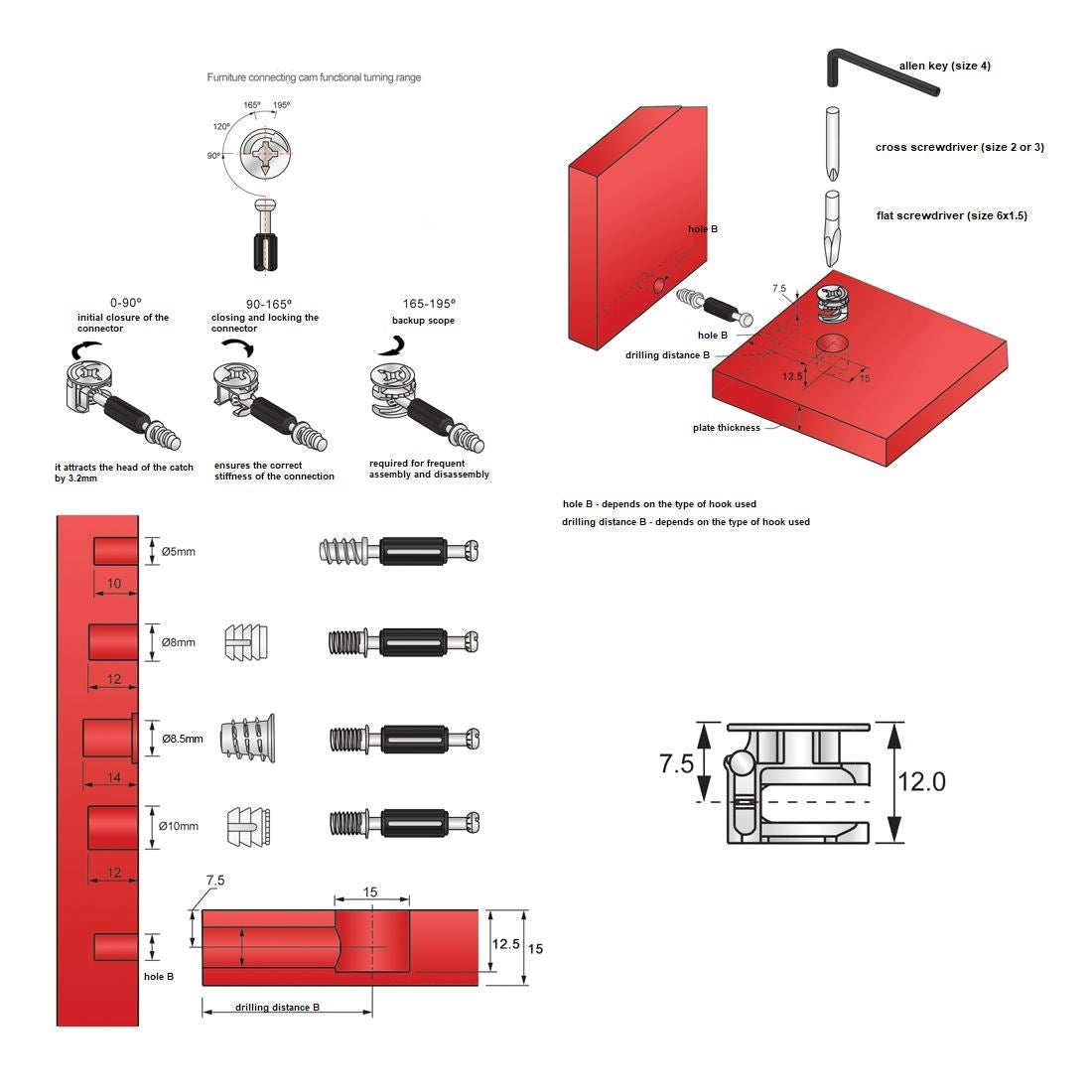

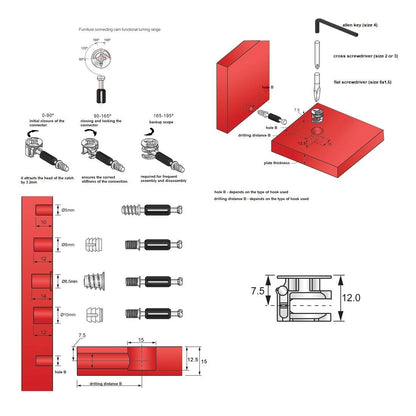

Fitting the cam lock nut

Requires a matching cam dowel pin and a standard screwdriver for locking.
  1. 1
    Position into recess

    Push the cam lock flush into the pre-drilled 15 mm hole on the inside face of the panel.

  2. 2
    Align connecting dowel

    Bring the adjoining furniture panel in place so the pre-installed dowel pin enters the side opening of the cam.

  3. 3
    Rotate to secure

    Turn the cam clockwise using a screwdriver until it pulls the joint fully closed and holds firmly.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Cam diameter
15mm
Colour
Zinc
Diameter
15mm
Height
7.5mm
Material
ZnAl
Material thickness
15mm
Quantity
1 pcs
EAN
5060685602079
SKU
MM01-1515-G20/1
