Product data

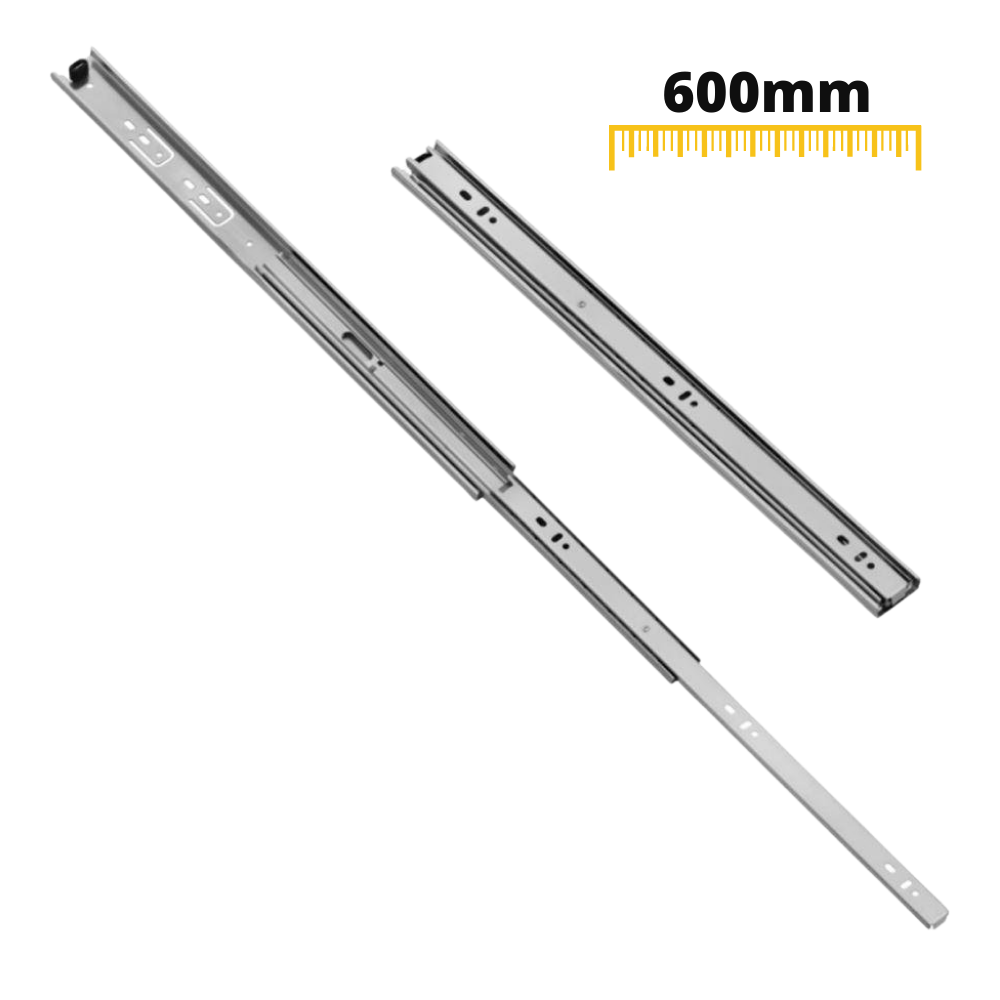

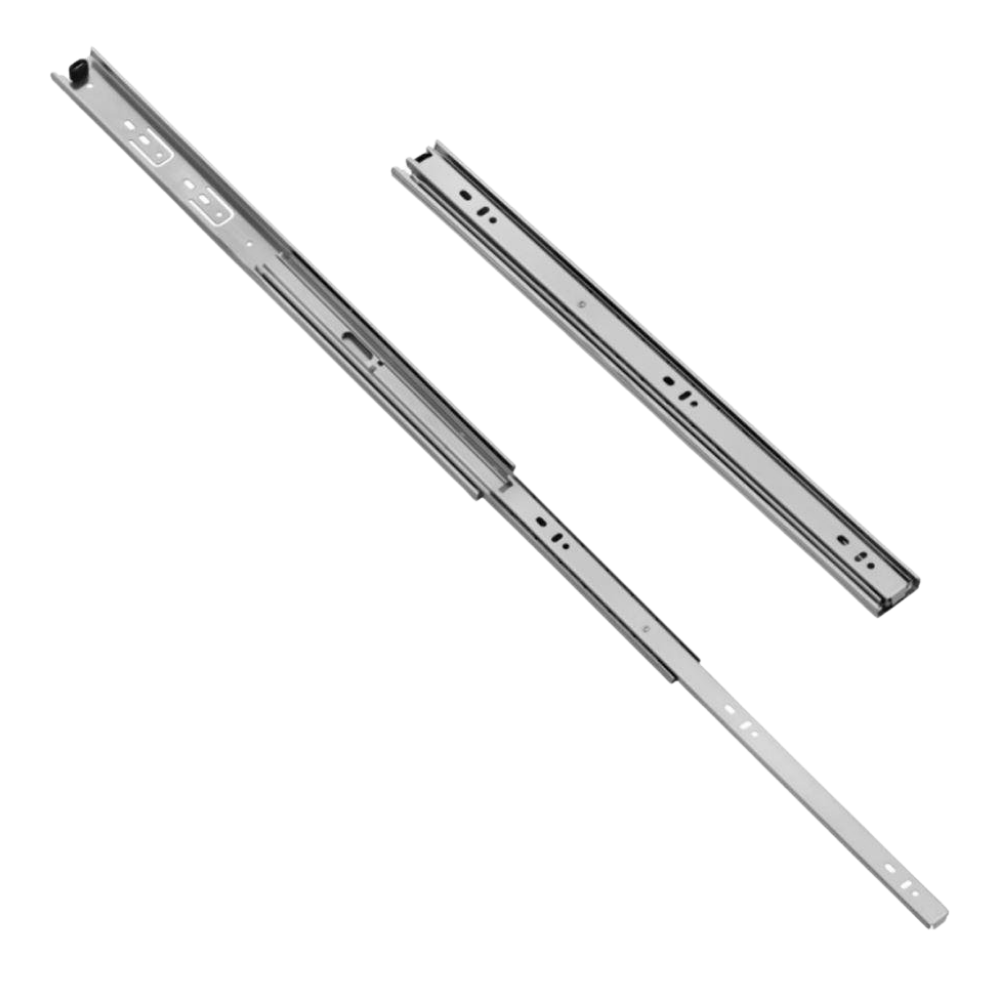

Set of Ball Bearing Slides (left and right), H35
This pair of zinc-coated steel drawer runners provides smooth ball-bearing movement, full extension, and a reliable load capacity of up to 25 kg. Featuring an integrated rubber brake and a detachable sliding arm, it ensures straightforward installation and full access to drawer contents.
- Full extensionYes
- Maximum weight25 kg
- MaterialZinc-coated steel
- Additional mechanismRubber brake
- Material thickness0.8 mm
- Detachable sliding armYes

- 35mm height
35 mm profile with full extension and rubber brake
The H35 ball bearing slide drawer pair is engineered for stable, everyday use across domestic and office furniture. The complete set includes both left and right fittings to equip one standard pull-out compartment.
-
Full extension design: Pulls out 100 percent to grant unrestricted access to items stored right at the back of the drawer.
-
25 kg load rating: Formed from 0.8 mm steel to reliably hold everyday utensils, stationery sets, or workshop hardware.
-
Detachable sliding arm: Allows the inner member to separate via a release lever for quick, tool-free drawer insertion and removal.
-
Integrated rubber brake: Provides controlled travel and prevents the drawer from bouncing back or sliding open accidentally.
Applications for the H35 drawer slide set
-
KitchenCutlery and utensil drawers
Maintains smooth operation under daily loads and opens fully so every corner of the drawer is within reach.
-
OfficeDesk pedestals and filing units
Supports paperwork, catalogues, and stationery organisation up to the 25 kg total weight capacity.
-
WorkshopTool and hardware storage units
The durable zinc-coated steel construction resists everyday wear while the rubber brake cushions the final stop.

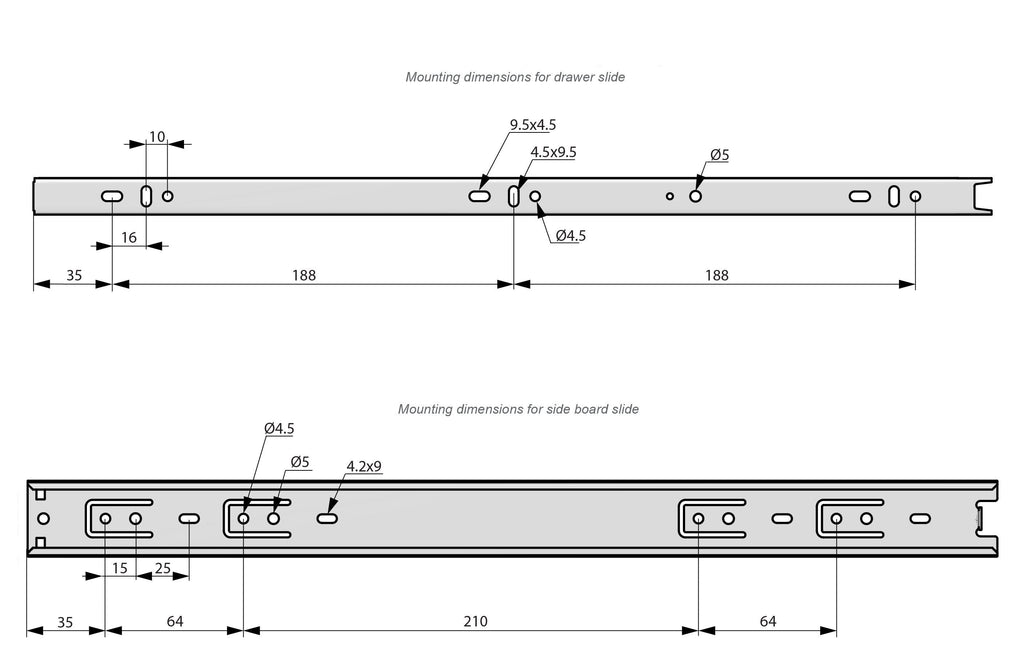

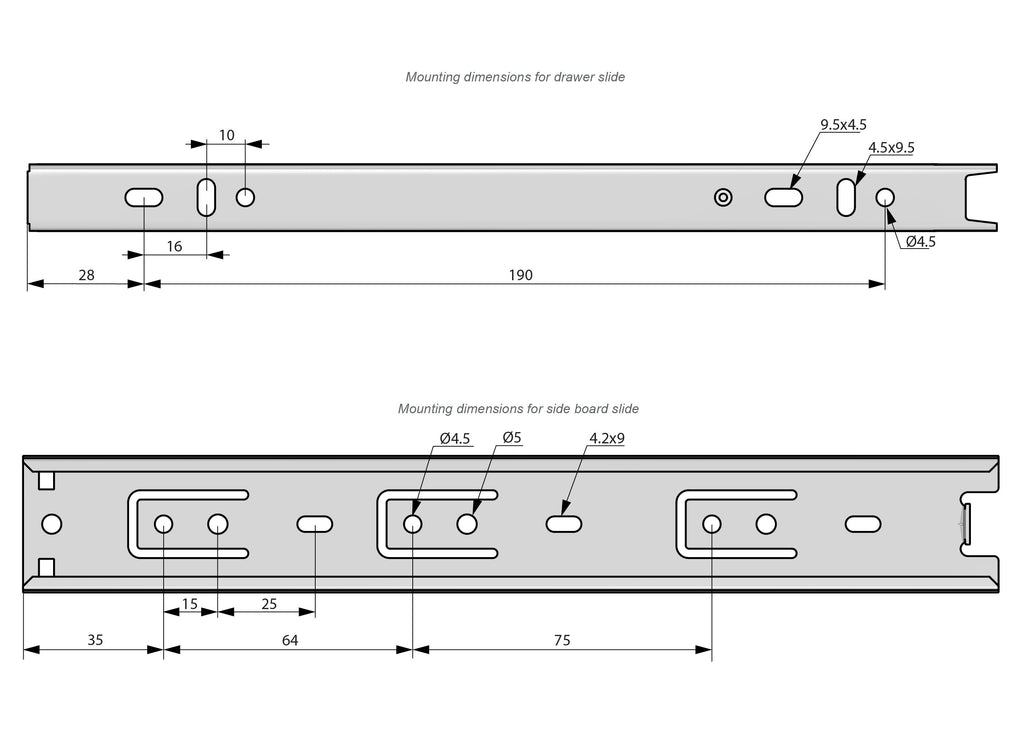

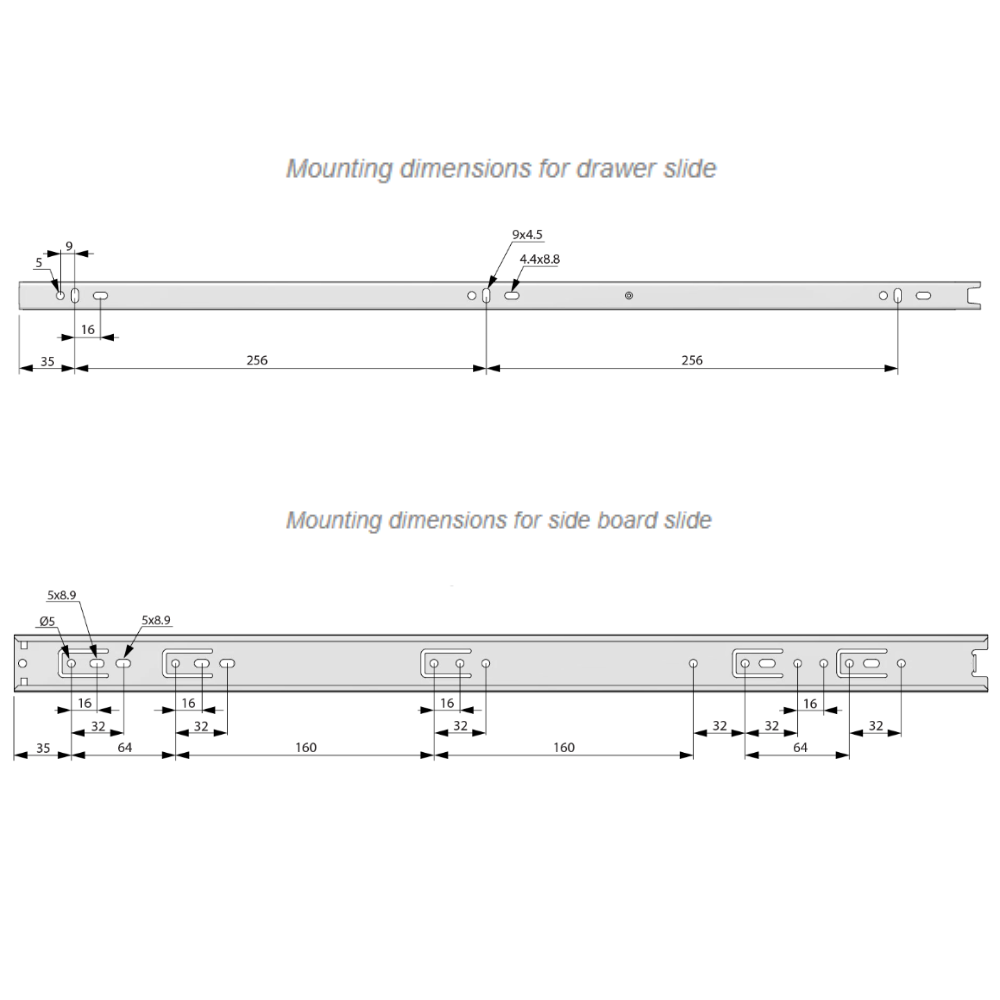

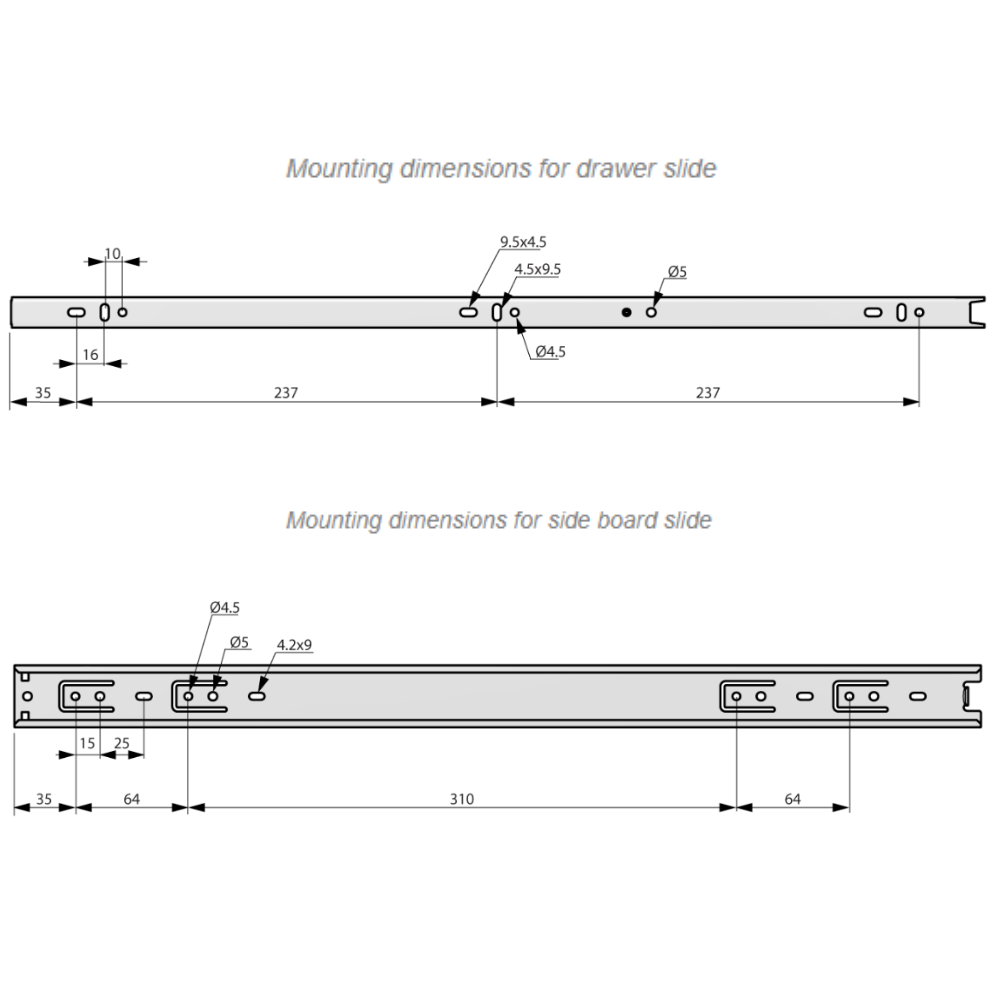

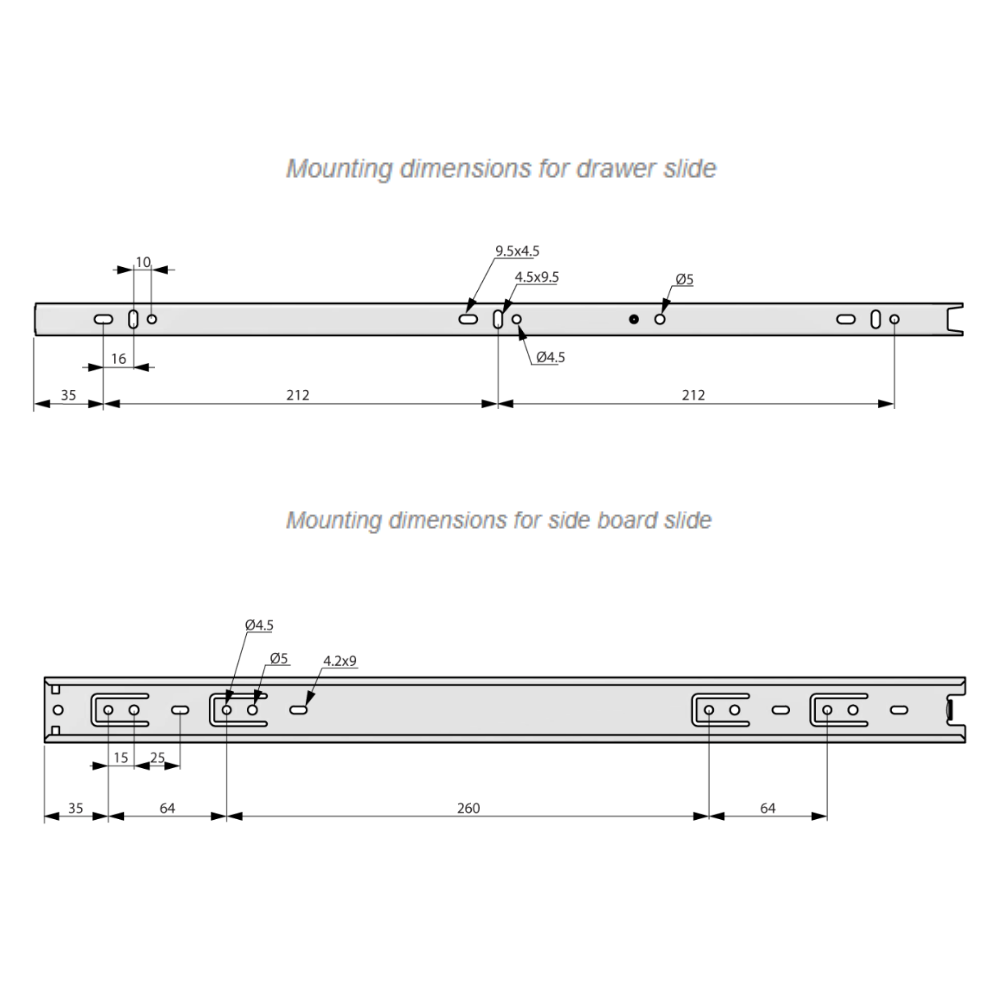

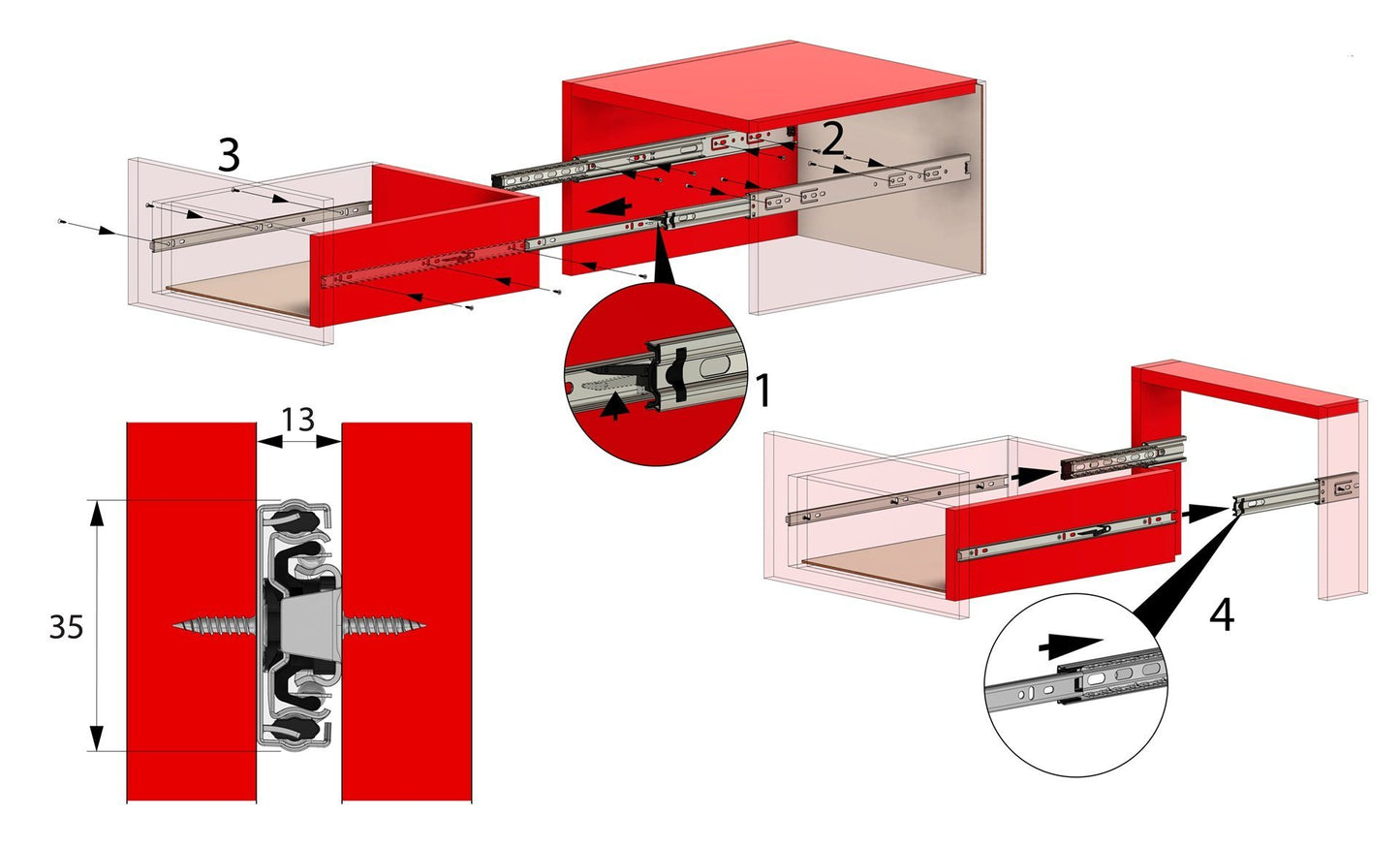

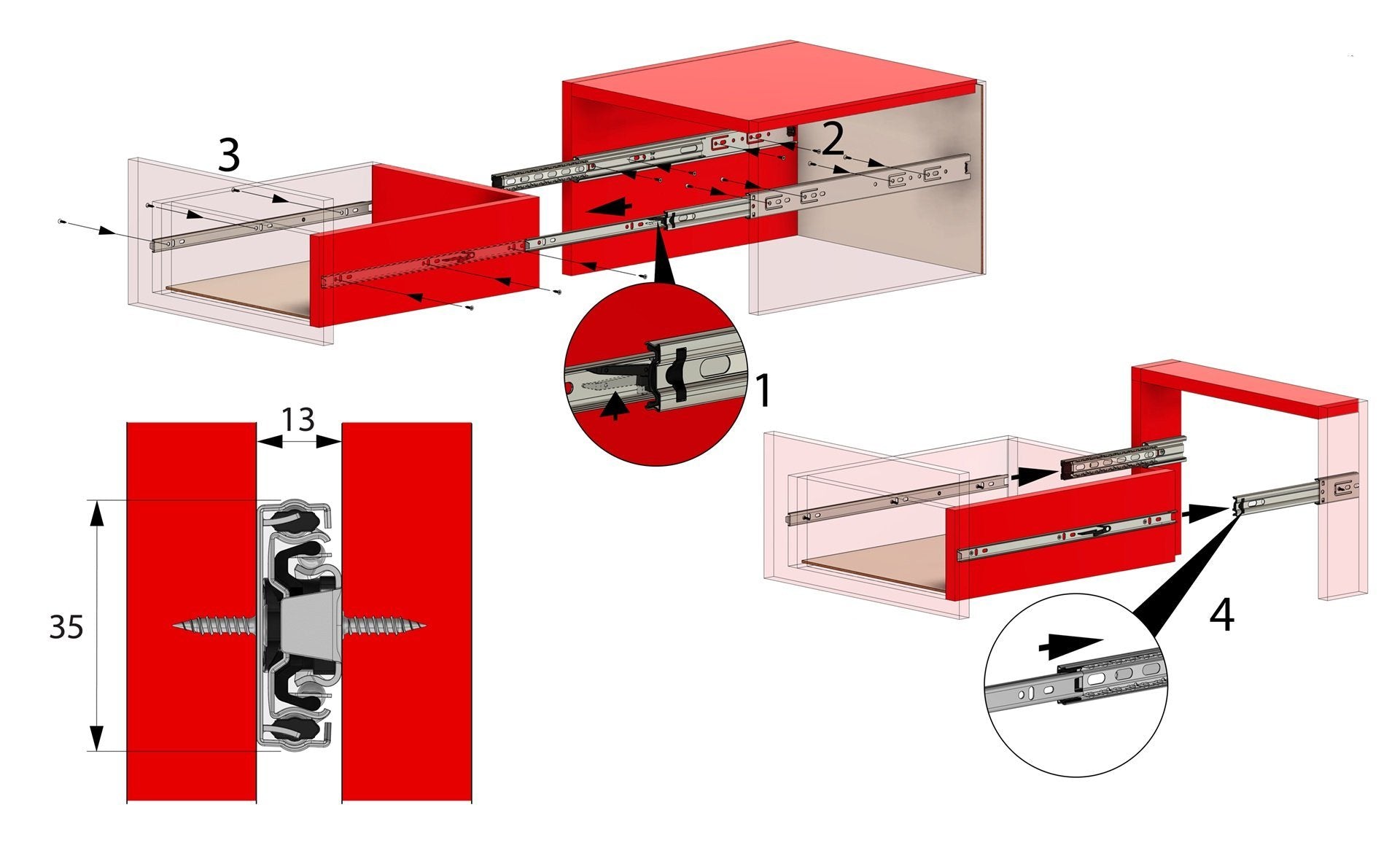

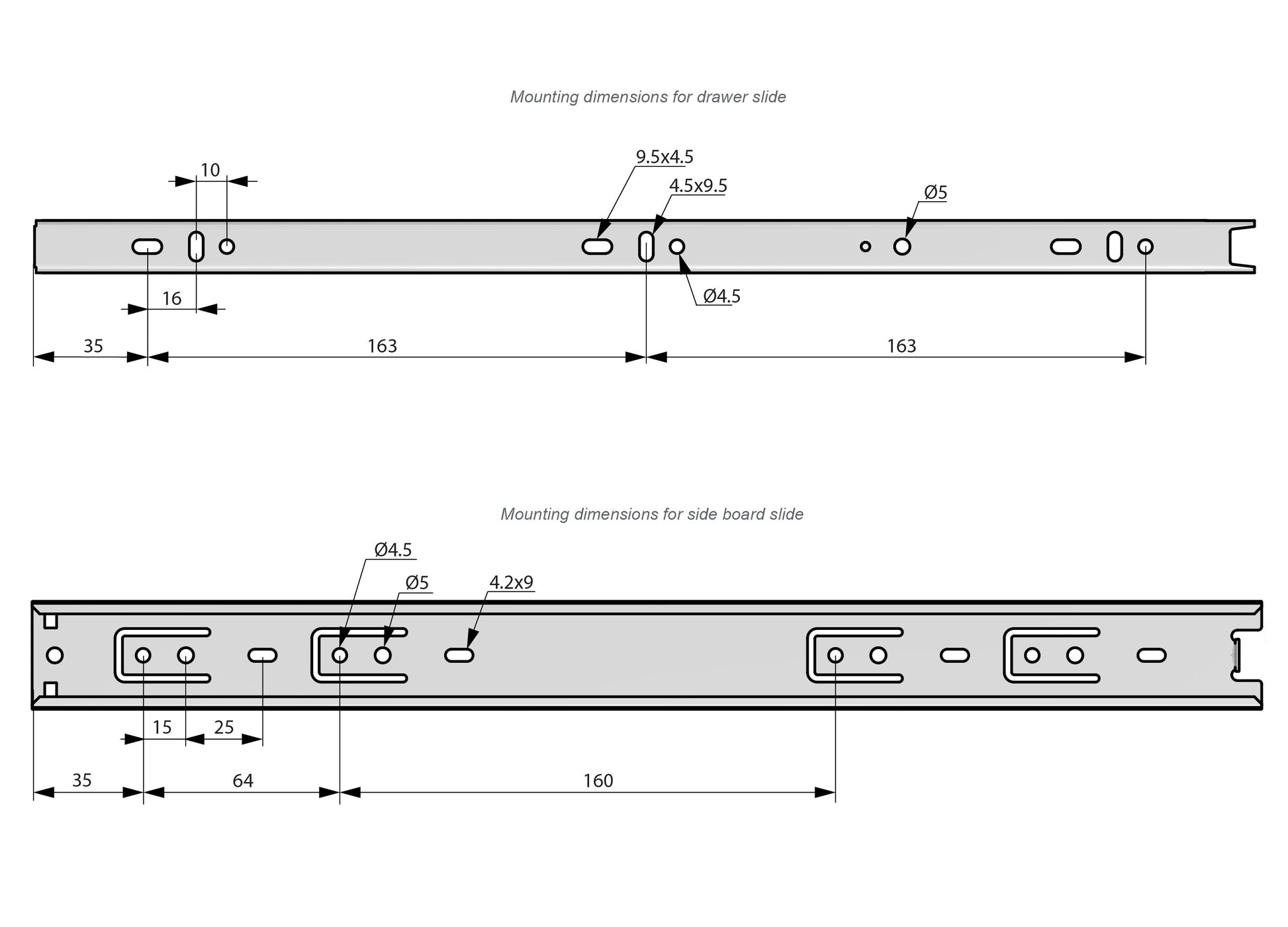

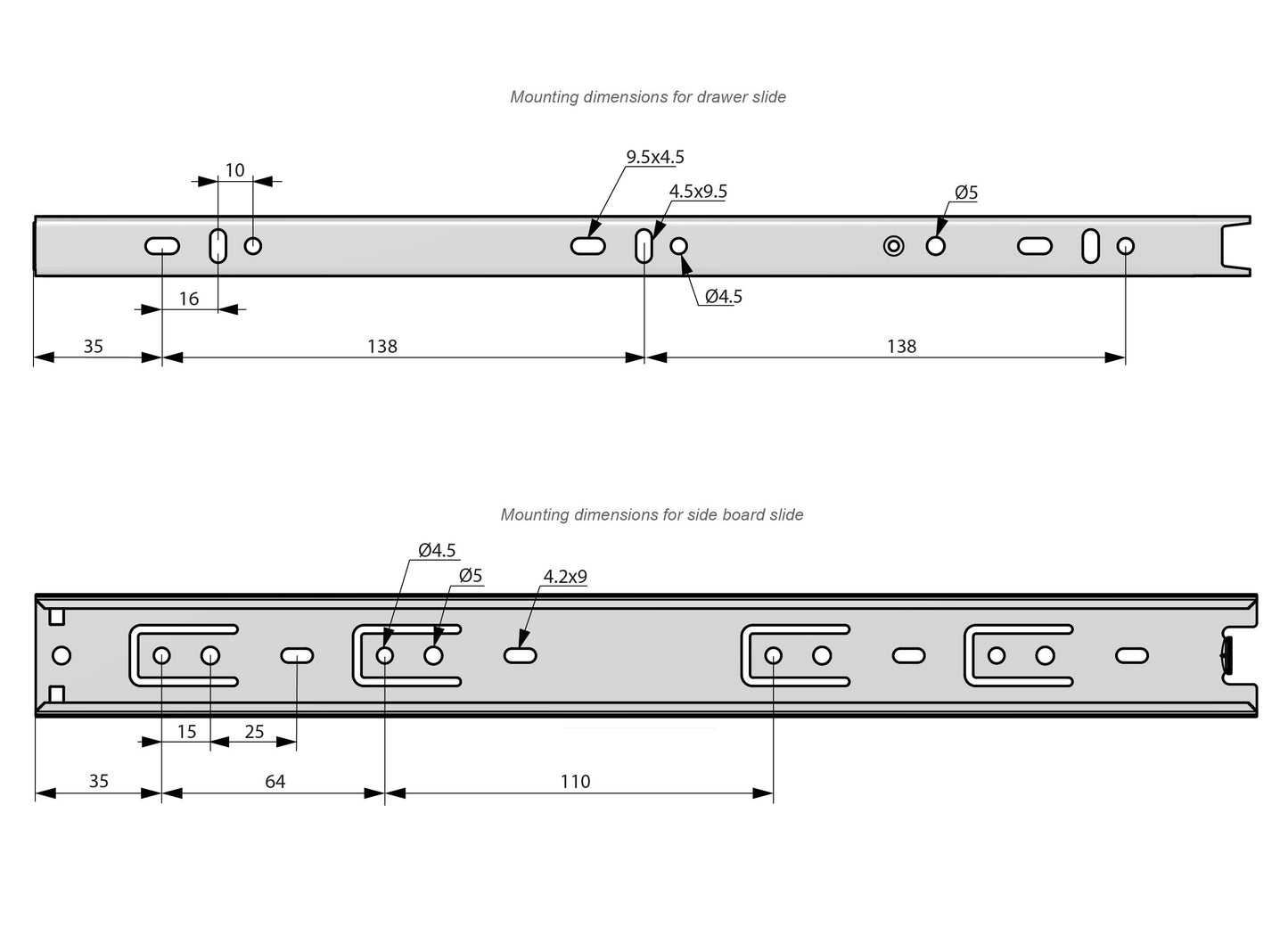

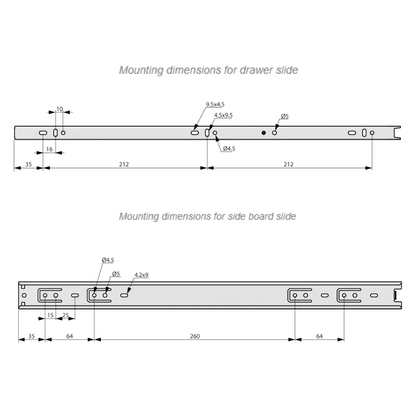

Fitting the drawer runner set
Supplied as a matched pair for left and right cabinet sides.-
1Separate the slide members
Depress the release lever on the detachable sliding arm and pull the inner drawer rail away from the outer cabinet member.
-
2Attach the cabinet rail
Position the outer casing horizontally against the inside wall of the cabinet carcass and secure it with screws.
-
3Fix the drawer rail and engage
Fasten the separated inner rail onto the side of the drawer box, align both sides with the cabinet slides, and push inward until fully engaged.
- 2–5 working daysEstimated delivery time
- Free deliveryon orders over £49.99
- 14 daysReturns & exchanges
- Shop Pay · Apple PayGoogle Pay & cards
Technical data
| Attribute | Value |
|---|---|
Additional mechanism |
Rubber damper
|
Manufacturer |
Furnica
|
Detachable sliding arm |
Yes
|
Detachable sliding arm |
Yes
|
Full extension |
Yes
|
Height |
35mm
|

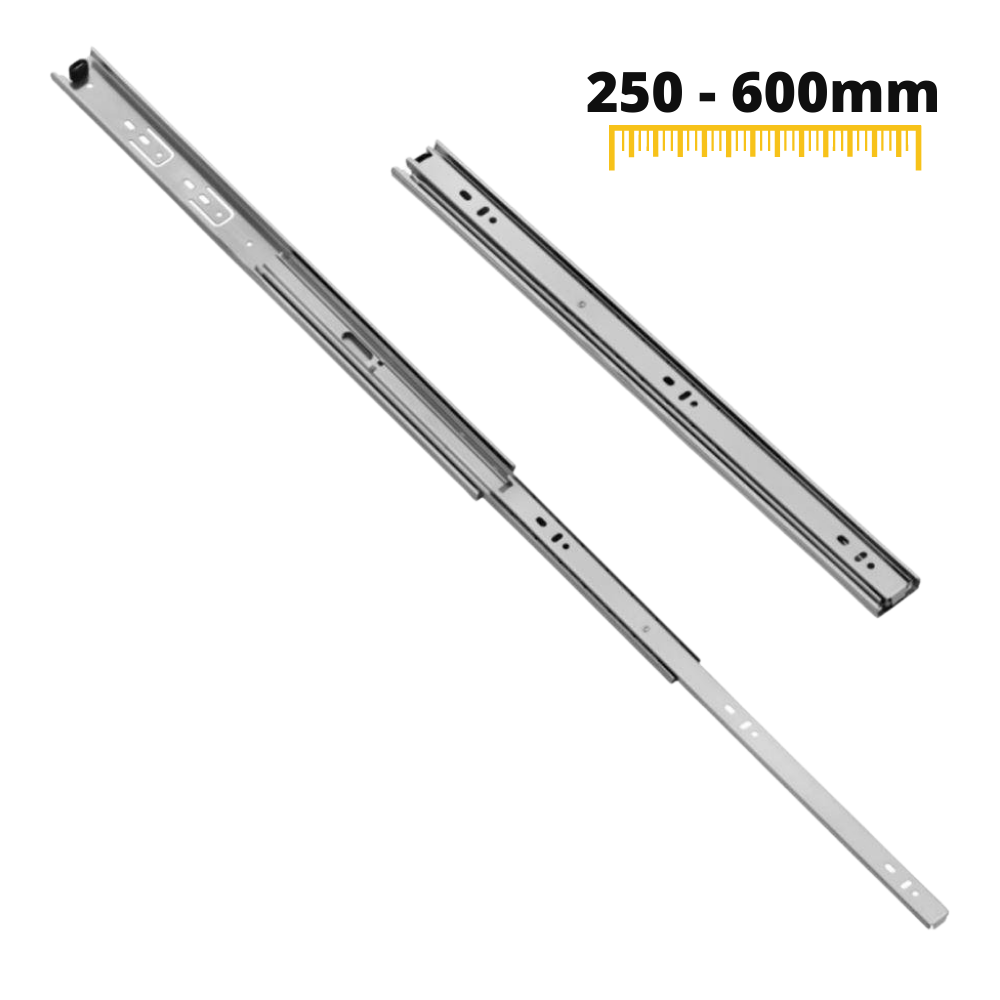

Length |
250-600mm
|
Material |
Galvanised steel
|
Material thickness |
0.8/0.8/0.8mm
|
Maximum weight |
25kg
|
EAN |
5060685609122 |
SKU |
PK35N-A-250 |
