Set of Auto-Lock Ball Bearing Slides (left and right), H45

Product data

45 mm height · Up to 45 kg load capacity

Set of Auto-Lock Ball Bearing Slides (left and right), H45

This pair of ball bearing drawer runners combines a full extension mechanism with an integrated auto-lock draw-up feature. Made from zinc-coated steel, it supports loaded drawers up to 45 kg with complete access to contents.

Height45 mm
Maximum weight45 kg
Full extensionYes
Additional mechanismAuto draw-up with reset
MaterialZinc coated steel
Material thickness1.0/1.0/1.2 mm

Set of Auto-Lock Ball Bearing Slides (left and right), H45

Zinc-coated steel drawer slide set with 45 kg capacity

The H45 auto-lock ball bearing slides provide 100% full extension drawer slide functionality, pulling the drawer fully open so nothing remains hidden at the back. Built from zinc-coated steel with a material thickness of 1.0/1.0/1.2 mm, the mechanism handles heavy household and workshop storage reliably.

Full extension travel: The 100% extension lets you pull the entire drawer clear of the carcass to access items right at the back.
Auto draw-up with reset: The built-in self-closing mechanism pulls the drawer shut over the final millimetres and holds it securely closed.
45 kg weight capacity: Solid zinc-coated steel construction ensures smooth running even when loaded with heavy pots, pans or tools.
Dismantlable slide arm: A quick-release lever lets you separate the inner runner for straightforward fitting and drawer removal.

Where to fit the H45 ball bearing slides

KitchenPots and pan drawers
Carries high-load base cabinet drawers effortlessly while full extension gives complete reach to cookware.
WorkshopTool storage cabinets
Supports up to 45 kg of hand tools and parts, keeping heavy drawers stable and easy to pull open.
BedroomWardrobe deep storage
Provides smooth travel on deep clothes storage drawers with an auto-lock pull that prevents accidental opening.

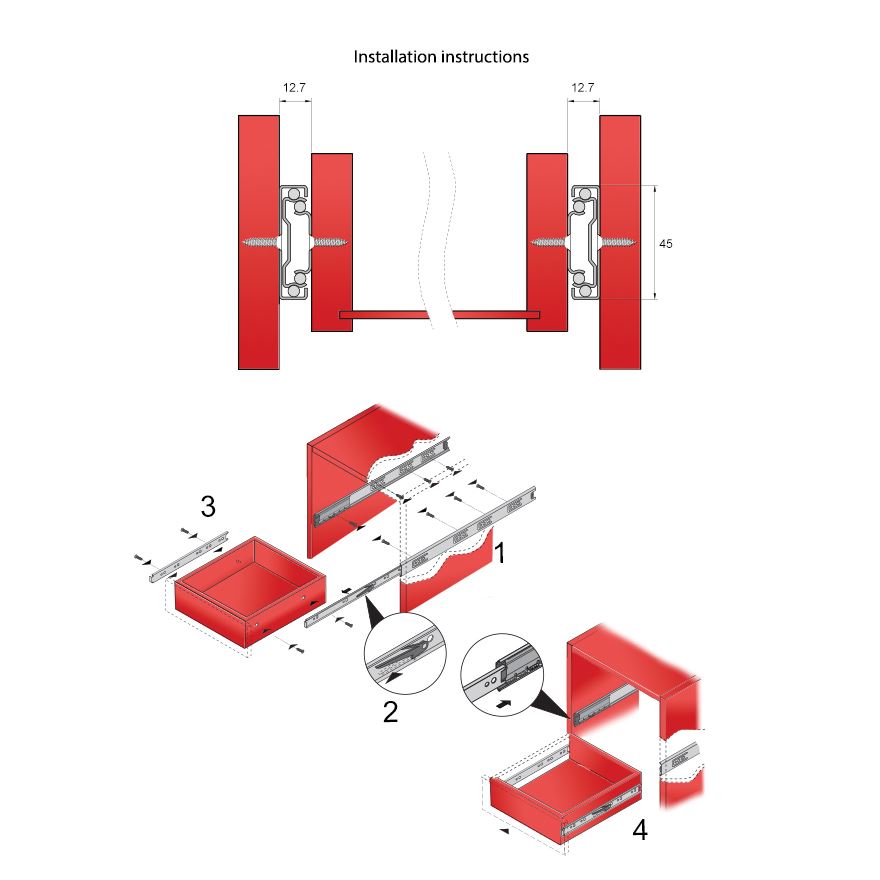

Fitting the runners to cabinet and drawer

Supplied as a matched left and right pair. Choose fixings suited to your panel material.

1
Separate the runner members
Press the release lever on the dismantlable slide arm to detach the inner drawer profile from the main carcass runner.
2
Mount the carcass runners
Fix the outer tracks horizontally to the cabinet side panels at the required height using appropriate screws.
3
Attach inner rails and engage
Screw the inner rails flush onto the drawer box sides, align them with the carcass runners, and push closed until they click into place.

2–5 working daysEstimated delivery time
Free deliveryon orders over £49.99
14 daysReturns & exchanges
Shop Pay · Apple PayGoogle Pay & cards

Technical data

Attribute	Value
Additional mechanism	Automatischer Selbsteinzug
Colour	Zinc
Manufacturer	Furnica
Full extension	Yes
Height	45 mm Auto-Lock

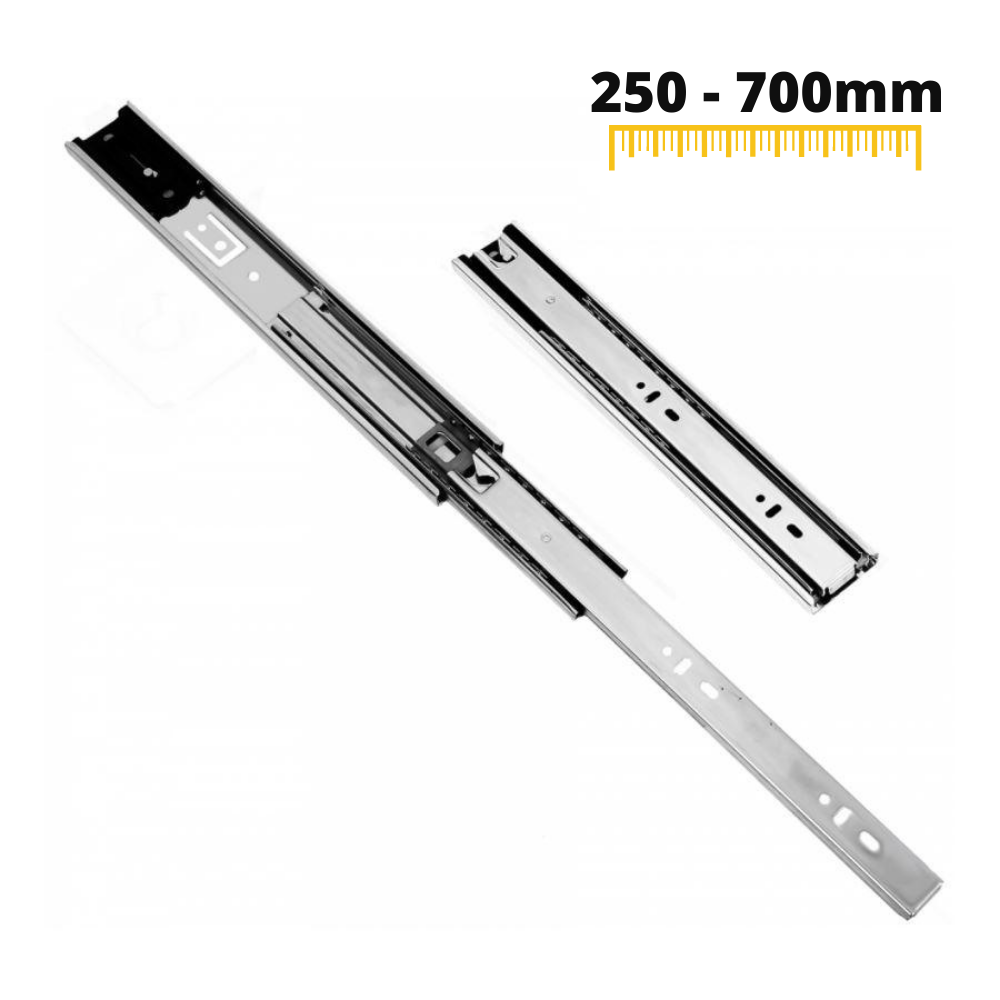

Length	250-700 mm
Material	Galvanised steel
Material thickness	1.0/1.0/1.2mm
Maximum weight	45kg
EAN	5060685604431
SKU	PK45C-B-250
