Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 300mm

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 300mm

£13.17 Incl. VAT
£13.17 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£12.52 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Undermount · Up to 35 kg · Zinc coated steel

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 300mm

These 300 mm undermount drawer runners mount discreetly beneath the drawer box, combining built-in soft-close damping with a 35 kg load capacity.

  • Length300mm
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • MaterialZinc coated steel
  • Maximum drawer side thickness19mm
  • Full extensionNo
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 300mm

Undermount 300 mm runners for drawer sides up to 19 mm

Concealed undermount drawer runners keep all mechanical hardware completely hidden under the drawer base while delivering smooth 3/4 extension. The integrated soft-close mechanism cushions the closing movement and pulls the drawer quietly into place.

  • Integrated soft-close action: The built-in damper catches the closing drawer and gently pulls it shut to eliminate slamming.

  • Sturdy 35 kg load rating: Manufactured from zinc coated steel to support loaded drawers reliably without twisting.

  • Concealed undermount design: Fittings sit out of sight beneath the drawer bottom, leaving the wooden drawer sides clean and visible.

  • Accommodates 19 mm sides: Engineered specifically to fit standard drawer boxes built with side panel thicknesses up to 19 mm.

Ideal applications for 300 mm undermount runners

  • KitchenCompact base cabinets

    Well suited for shallow kitchen base units and utensil drawers where silent soft closing is essential.

  • Living roomSideboards and media units

    Perfect for furniture where visible side-mounted metal slides would compromise the interior woodwork.

  • BedroomBedside tables and chests

    Provides silent, smooth closing for nightstand and wardrobe drawers at any time of day.

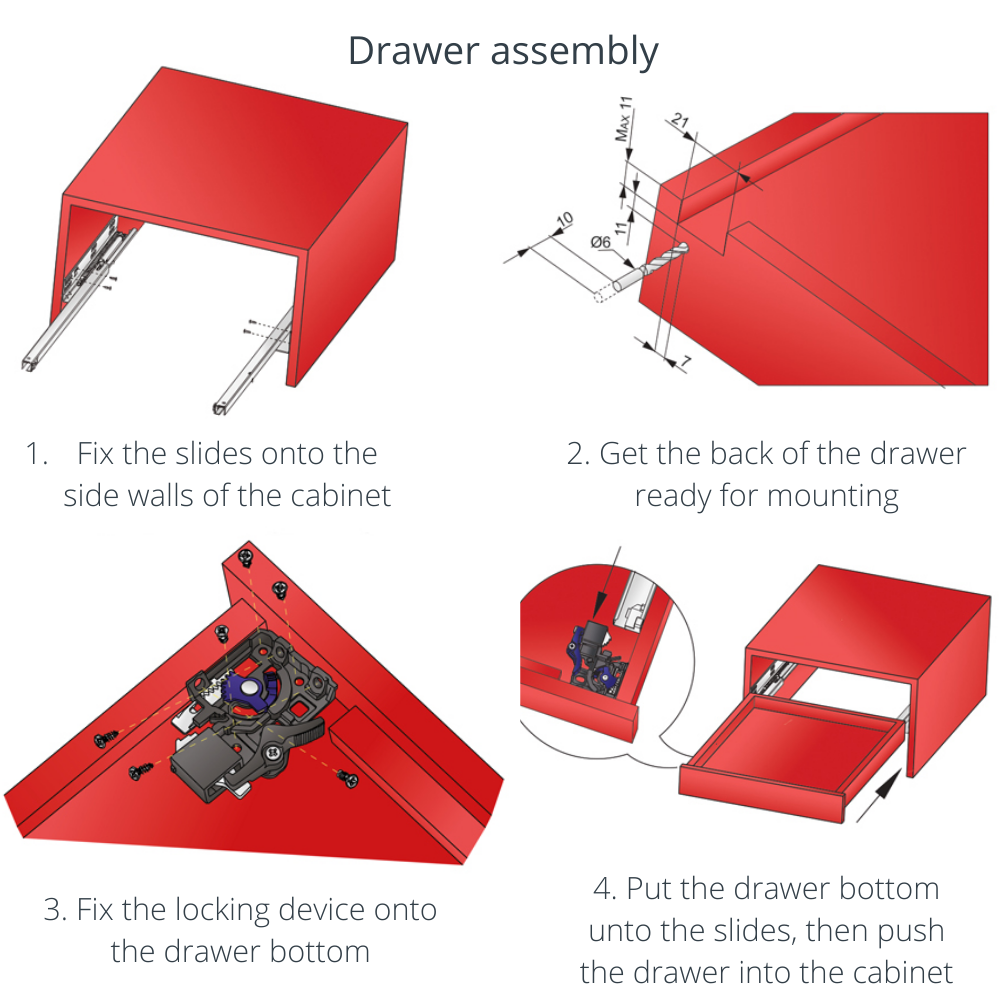

Fitting your undermount drawer runners

Set includes 2 runners for 1 drawer (left and right)
  1. 1
    Fix the runners inside the cabinet

    Align and secure both cabinet rails horizontally to the inner cabinet side panels using suitable screws.

  2. 2
    Prepare the drawer box

    Ensure the drawer base features the required rear cut-outs and front fixing points to match the runners.

  3. 3
    Engage and secure the drawer

    Rest the drawer onto the extended rails and push backwards until the locking mechanisms engage securely.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604073
SKU
PTCS-19S-300

Product safety information

Furnica LTD
85 Uxbridge Road,
London W5 5BW, United Kingdom
office@furnica.co.uk
