Product data
Concealed undermount · Up to 35 kg

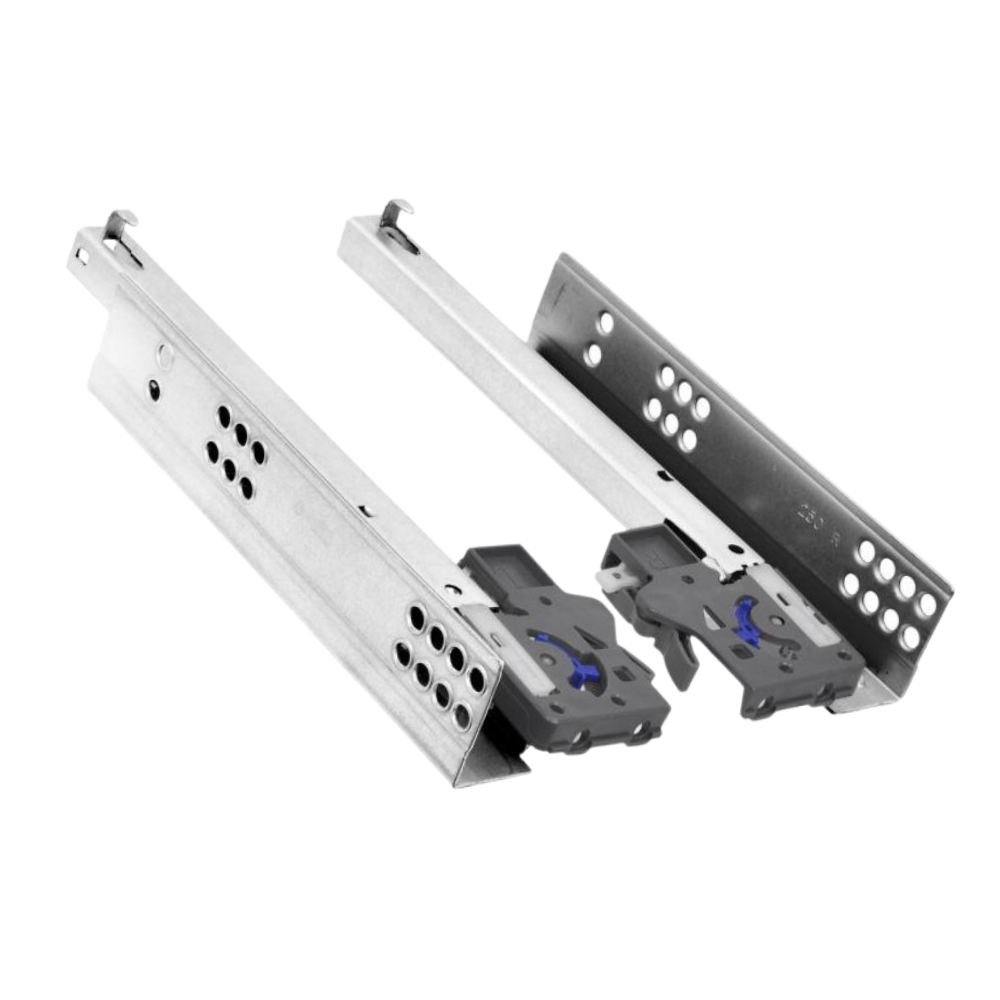

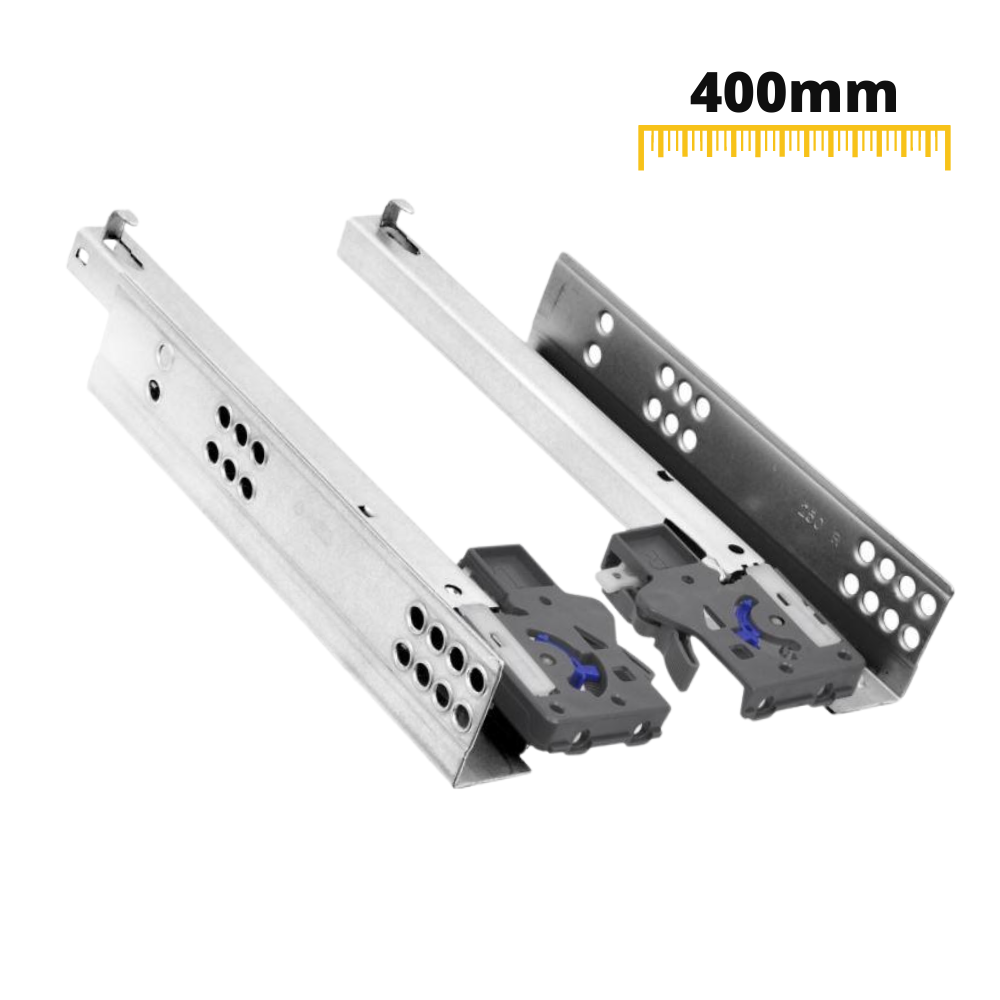

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 400mm

These concealed undermount drawer runners provide a clean look with integrated soft-close damping and a sturdy 35 kg load capacity. Built for 400 mm depths, they mount underneath the drawer base to keep metal hardware completely hidden from view.

  • Length400mm
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • Extension type3/4 Extension
  • Material thickness19mm
  • MaterialZinc coated steel
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 400mm

Concealed 400 mm runners for side panels up to 19 mm

These soft close drawer runners feature a 3/4 extension mechanism designed for drawers with side panel thicknesses up to 19 mm. Made from zinc coated steel, the slides fit directly beneath the drawer box to keep side profiles sleek and unobtrusive.

  • Integrated soft-close damping: The built-in mechanism catches the drawer during closure and pulls it gently and quietly shut.

  • Concealed undermount design: Fittings mount under the base of the drawer so no visible metal slides disrupt the exterior finish.

  • 35 kg load capacity: Zinc coated steel construction ensures rigid support and smooth movement even when fully loaded.

  • Up to 19 mm side thickness: Engineered to fit standard drawer construction with side material thickness measuring up to 19 mm.

Applications for 400 mm undermount slides

  • KitchenBase unit drawers

    Ideal for cookware and crockery storage where reliable 35 kg support and quiet closing are essential.

  • Living roomSideboards and media units

    Provides an uncluttered, modern appearance by keeping the runner hardware hidden beneath the drawer box.

  • BedroomWardrobes and chests

    Allows smooth 3/4 extension access for clothing drawers while eliminating slamming noises.

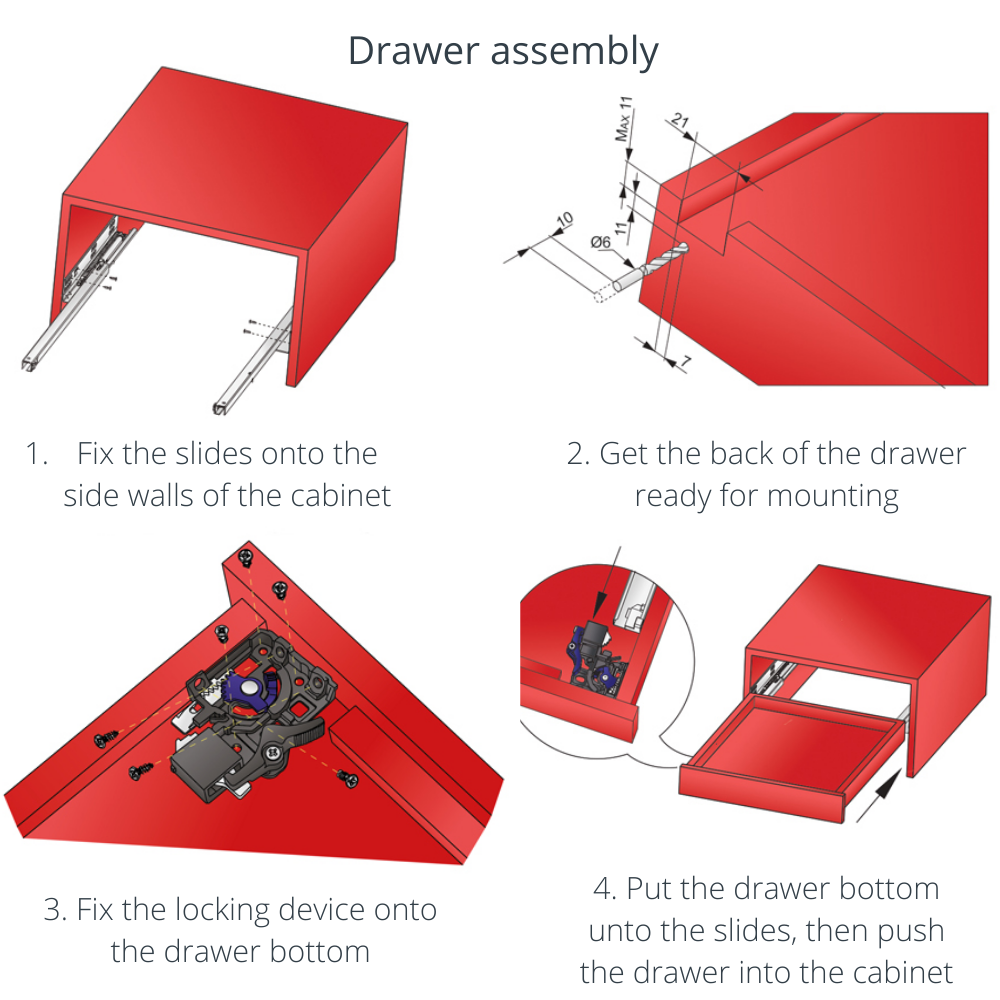

Fitting the concealed drawer runners

Includes 1 pair of runners (left and right) for 1 drawer
  1. 1
    Attach cabinet runners

    Fix the left and right runners horizontally to the inside walls of the cabinet using appropriate wood screws.

  2. 2
    Prepare the drawer box

    Ensure the required rear notches and mounting holes are prepared underneath the drawer body.

  3. 3
    Engage the drawer

    Slide the drawer box onto the undermount tracks until the locking mechanism clicks securely into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604097
SKU
PTCS-19S-400
