Product data
Concealed undermount · Up to 35 kg

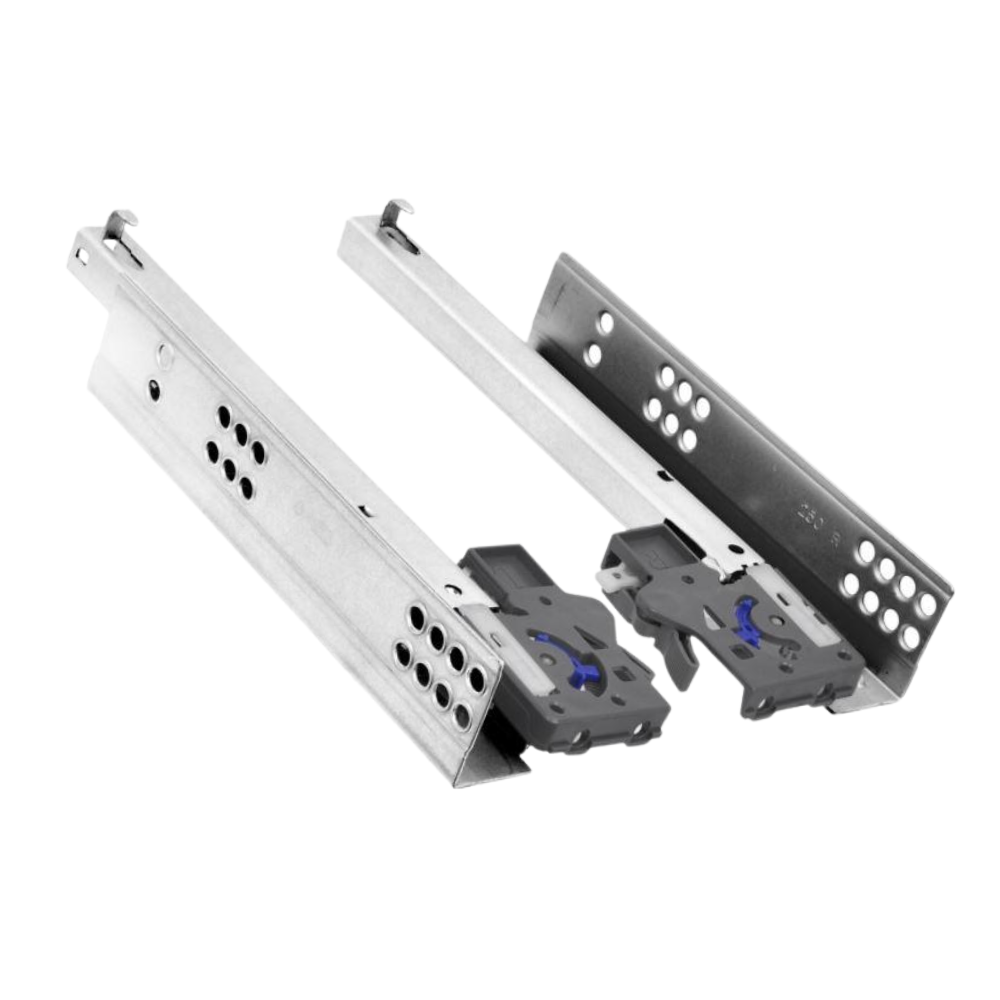

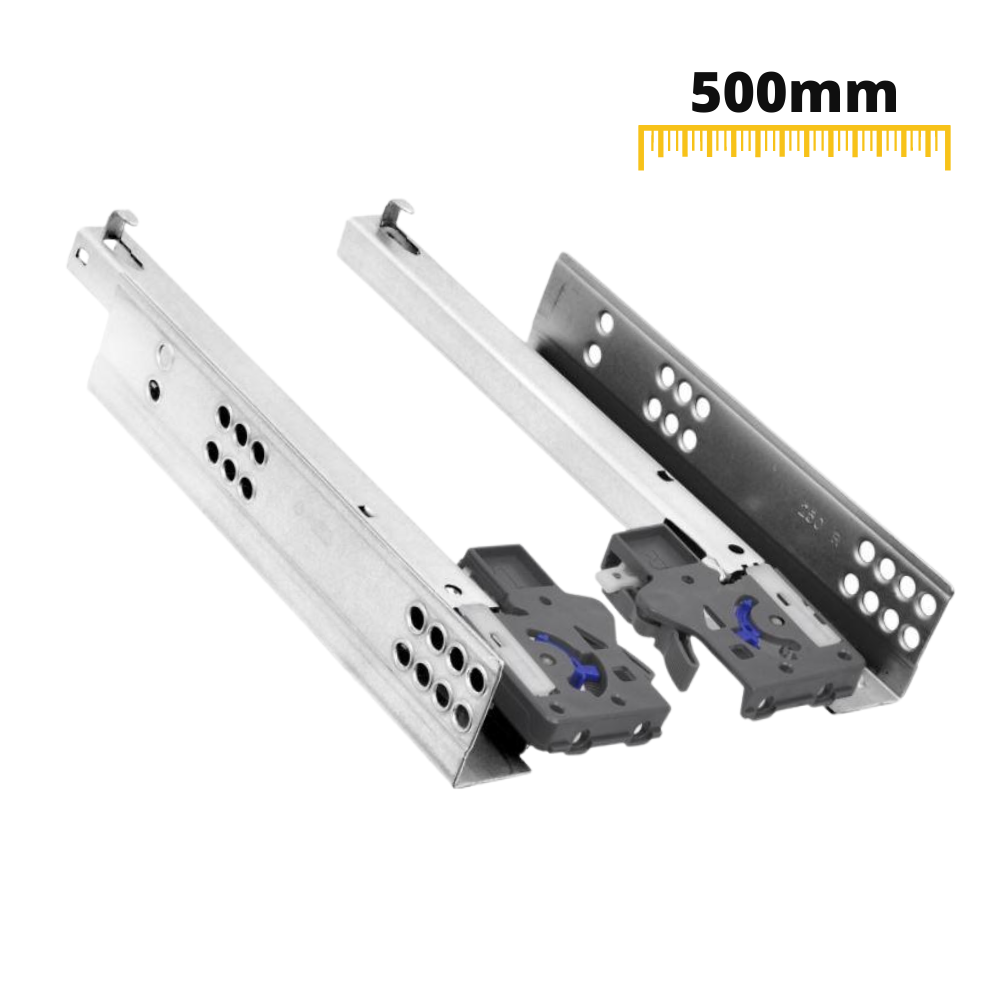

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 500mm

These 500mm drawer runners fit beneath the drawer base to keep the mechanism completely out of sight while offering integrated soft-close damping. Built from galvanised steel, they support loads up to 35 kg on drawer boxes with side panels up to 19 mm thick.

  • Length500mm
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • Material thickness19mm
  • Full extensionNo
  • MaterialZinc coated steel
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 500mm

500 mm undermount runners with soft-close for 19 mm side panels

Concealed 3/4 extension drawer slide pair delivers quiet, controlled closing by mounting underneath the drawer bottom rather than on the side. The built-in hydraulic damping mechanism cushions the drawer front and pulls it shut smoothly every time.

  • Integrated soft-close mechanism: The built-in damper catches the drawer on closing and quietly pulls it shut to prevent slamming.

  • Concealed undermount design: Mounting under the base keeps all metal hardware hidden from view when the drawer is open.

  • 35 kg load rating: Solid zinc coated steel construction supports fully loaded storage boxes without sagging.

  • Fits up to 19 mm sides: Specially dimensioned to accommodate drawer boxes built with thicker 19 mm side material.

Practical applications for 500 mm concealed runners

  • KitchenPots and pan drawers

    Carries heavy cookware up to 35 kg while soft-close damping ensures pots do not rattle shut.

  • Living roomSideboards and media units

    Maintains clean timber edges with no visible side rails when drawers are opened.

  • BedroomWardrobe inner drawers

    Provides silent 3/4 extension access to clothing without disturbing light sleepers in the morning.

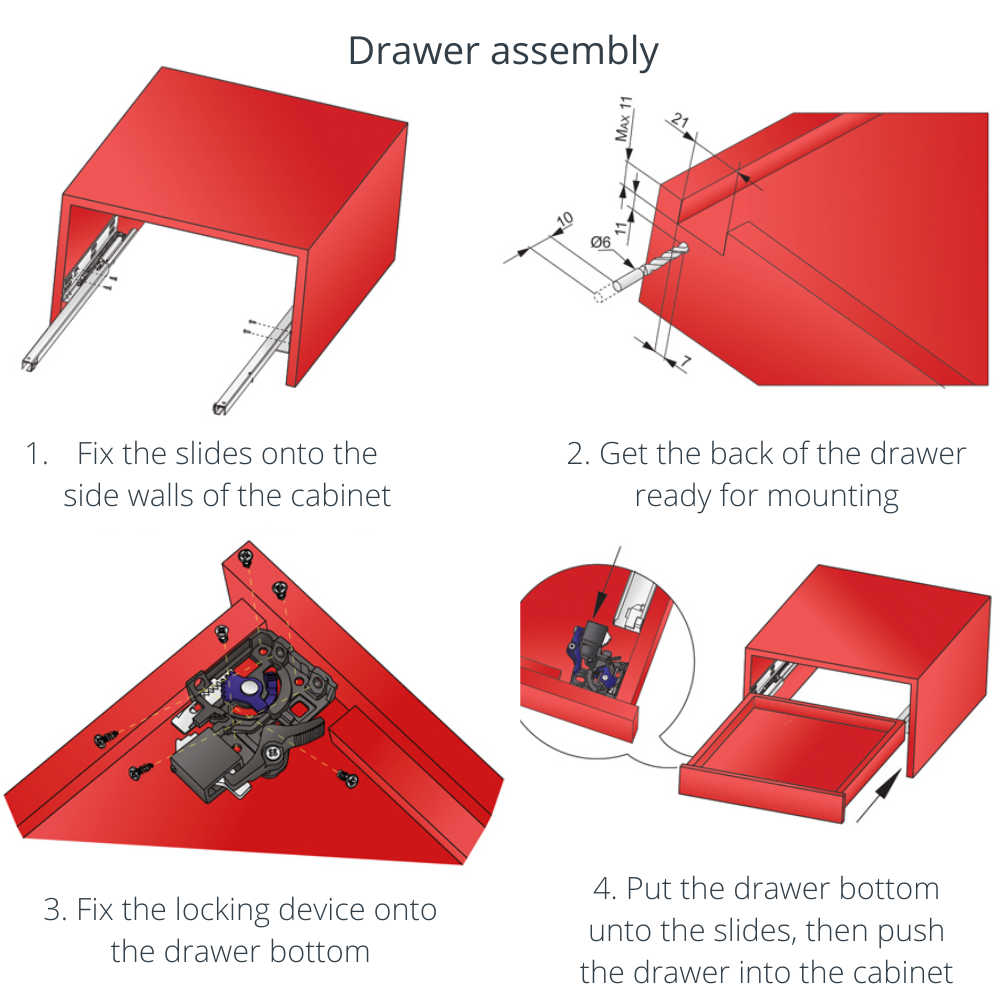

Fitting the undermount drawer slides

Set includes 2 runners (left and right) for 1 drawer.
  1. 1
    Mount the cabinet members

    Secure the left and right runners level against the inner carcass sides using suitable wood screws.

  2. 2
    Prepare the wooden drawer box

    Drill the rear locating holes and ensure appropriate notches are cut into the drawer base.

  3. 3
    Engage the drawer

    Place the drawer onto the extended rails and slide inward until the locking catches click firmly into position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604110
SKU
PTCS-19S-500
