Product data
Concealed undermount · Up to 35 kg

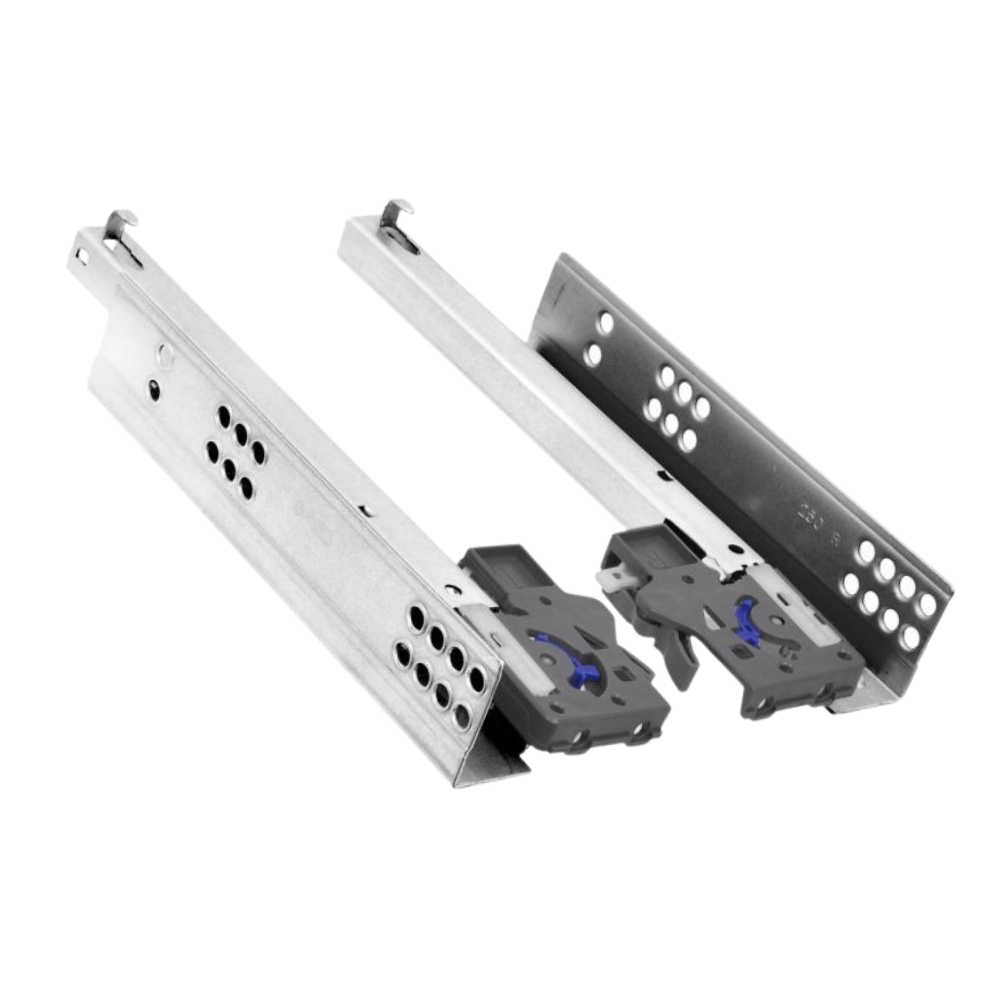

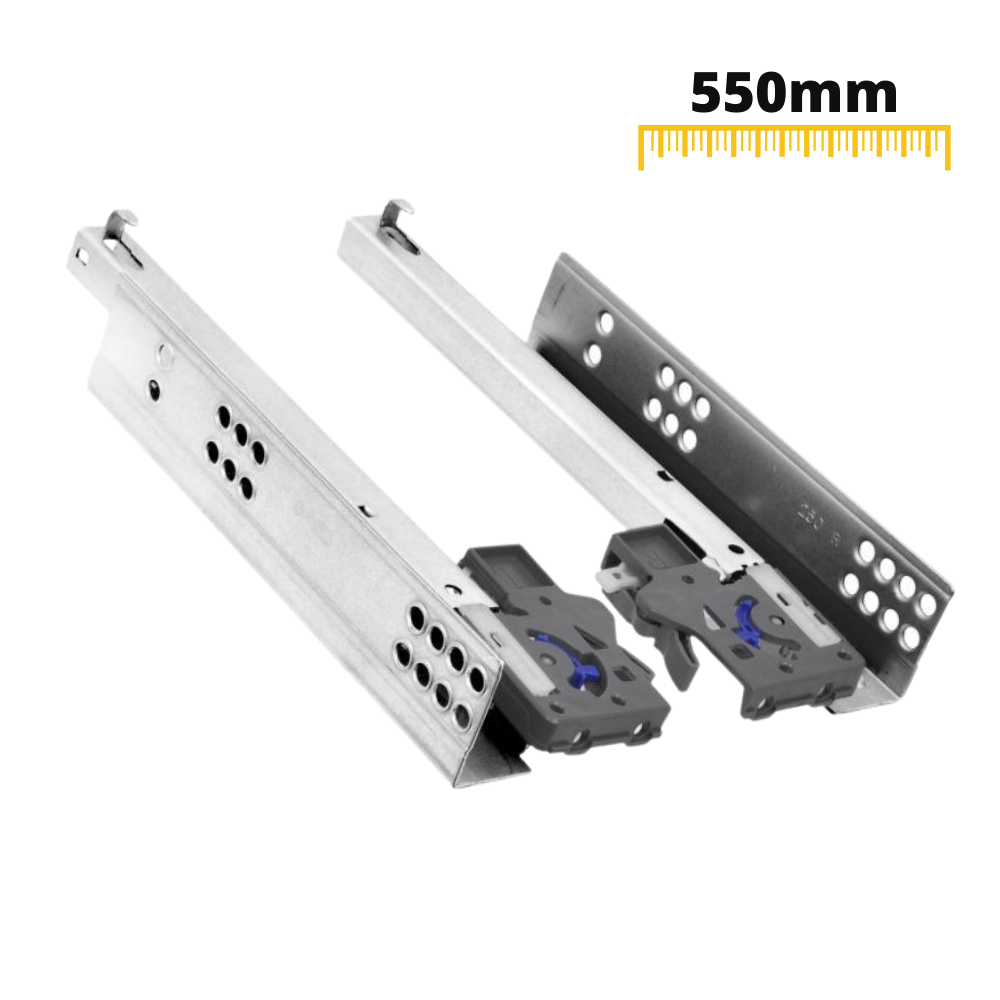

Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 550mm

These 550mm undermount drawer runners fit completely beneath the drawer box to keep side profiles clean while adding integrated soft-close damping.

  • Length550mm
  • Additional mechanismSoft-Close
  • Maximum weight35kg
  • Full extensionNo
  • Material thickness19mm
  • MaterialZinc coated steel
Soft-Close Concealed Undermount Drawer Runners, 3/4 Extension - 550mm

550mm undermount runners for up to 19mm drawer side thickness

Concealed drawer runners combine a 3/4 extension mechanism with integrated soft-close damping for smooth, controlled motion. Mounted directly under the drawer base, they support drawer sides up to 19mm thick with a maximum weight capacity of 35kg.

  • Integrated soft-close action: The built-in damping mechanism catches the drawer during closure and pulls it silently shut.

  • Concealed undermount design: Fitting underneath the drawer base keeps all metal running gear hidden from view when the drawer is open.

  • 35kg load capacity: Manufactured from zinc coated steel to provide rigid support for loaded storage drawers.

  • Wide drawer side compatibility: Engineered to accommodate drawer box side material thicknesses up to 19mm.

Applications for 550mm concealed drawer runners

  • KitchenDeep base unit drawers

    Ideal for 550mm deep kitchen base units carrying cookware or crockery up to 35kg with quiet closing.

  • BedroomWardrobe drawers

    Provides smooth, quiet drawer operation in bedroom furniture without showing side-mounted metal slides.

  • Living roomSideboards and storage units

    Maintains an uninterrupted timber aesthetic for timber drawer boxes with side panels up to 19mm thick.

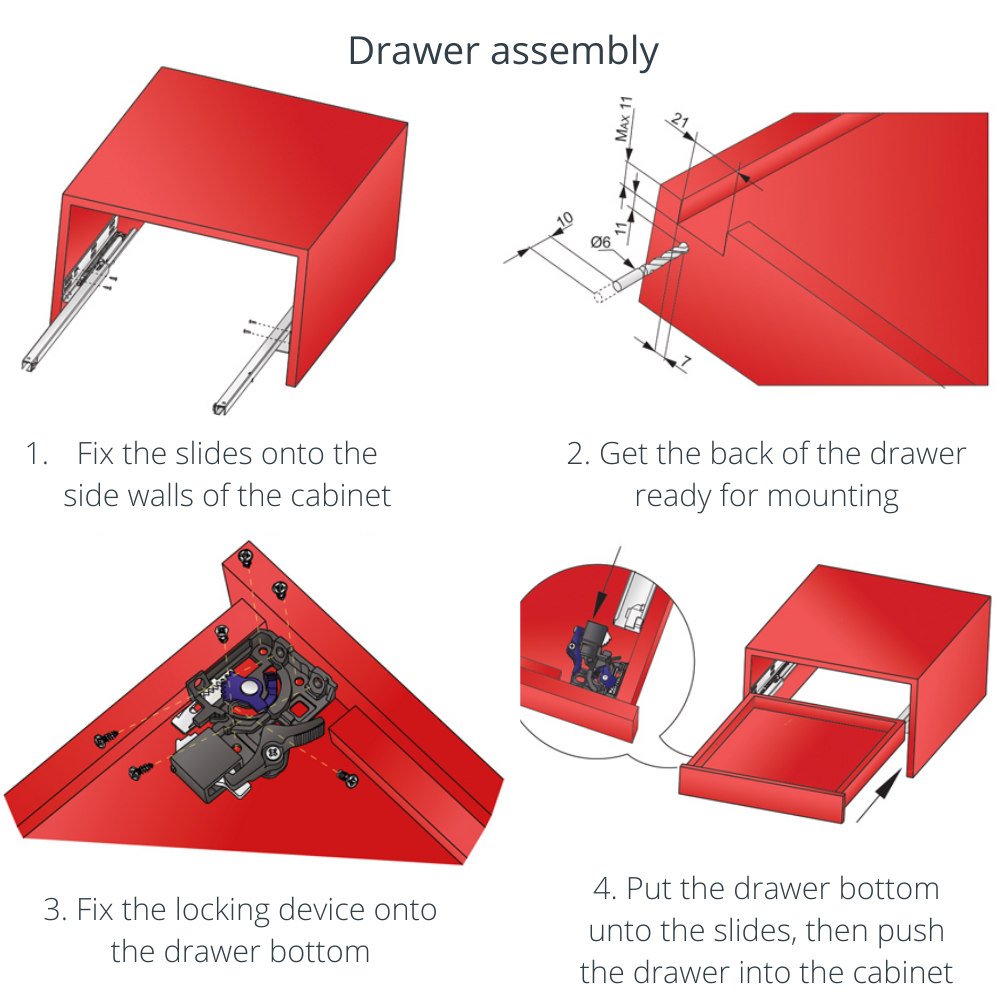

Fitting the concealed undermount runners

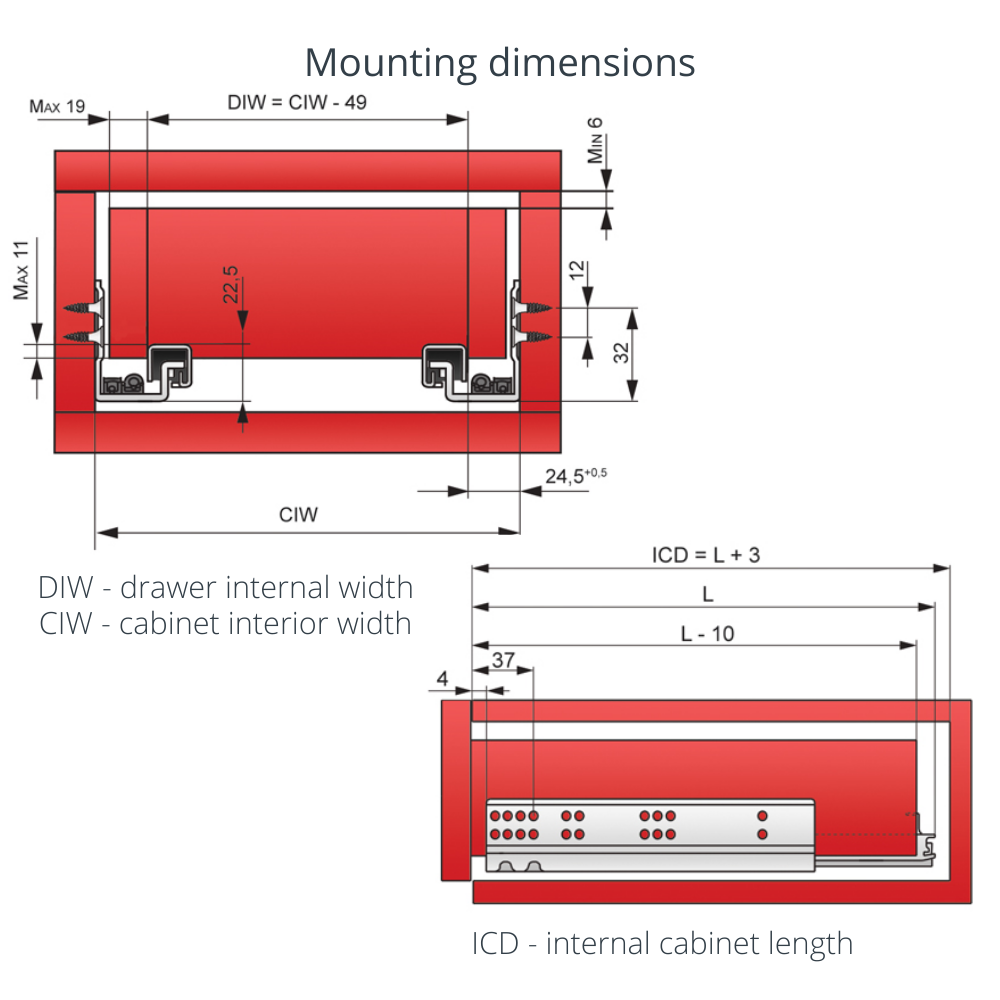

Ensure cabinet depth and drawer box dimensions match a 550mm runner length before installation.
  1. 1
    Fix the runners to the cabinet sides

    Position the left and right runners horizontally inside the cabinet carcass at the required height and secure them with appropriate screws.

  2. 2
    Prepare the drawer box

    Ensure the drawer box base and rear panel are notched and drilled according to the undermount profile specifications.

  3. 3
    Fit the drawer onto the runners

    Rest the drawer box directly onto the 550mm runner tracks and slide it backward until fully engaged on the mechanism.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Full extension
No
Length
250-600mm
Material
Galvanised steel
Max. drawer side thickness
19mm
Maximum weight
35kg
Product type
3/4 extension
EAN
5060685604127
SKU
PTCS-19S-550
