Product data
Concealed mounting · Up to 25 kg load

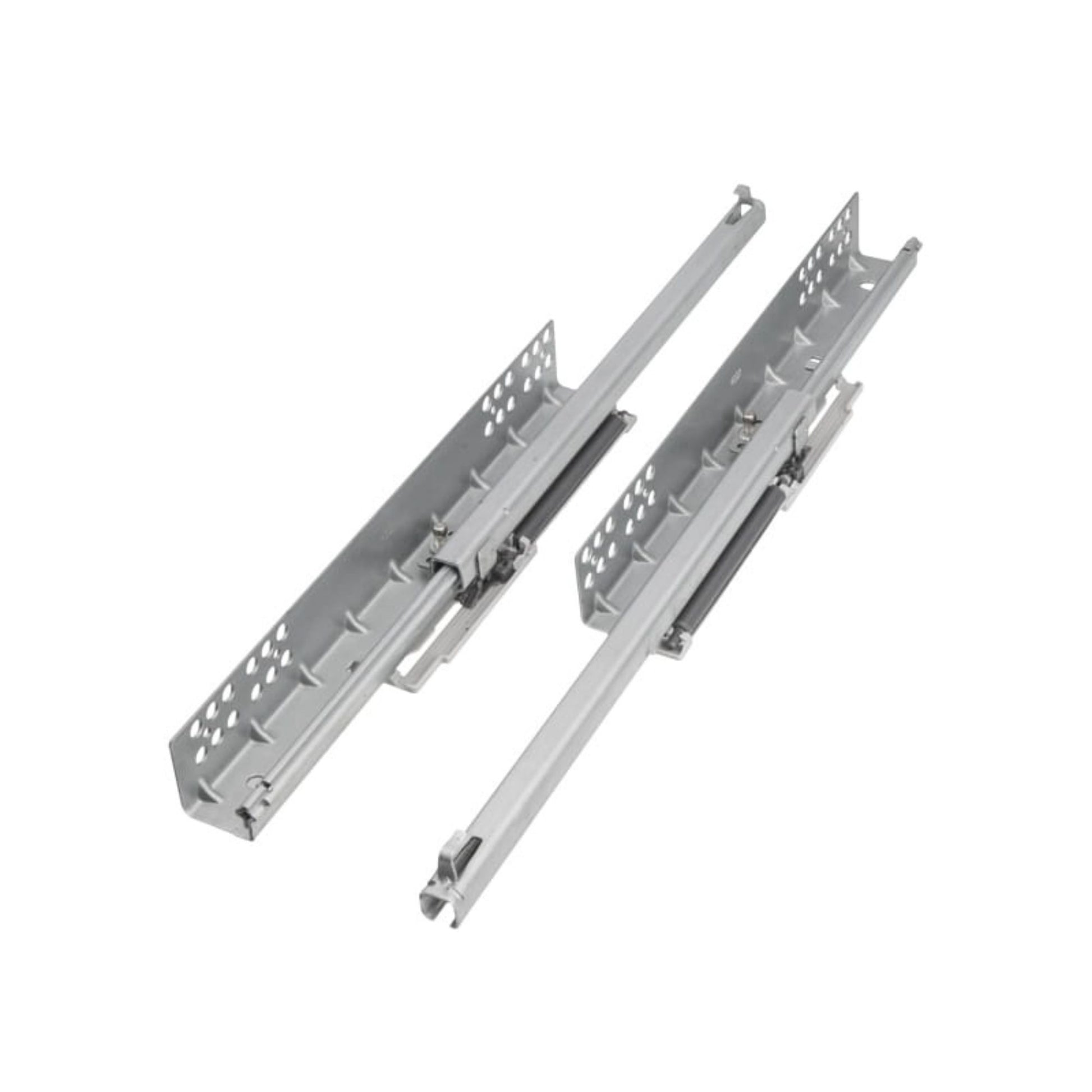

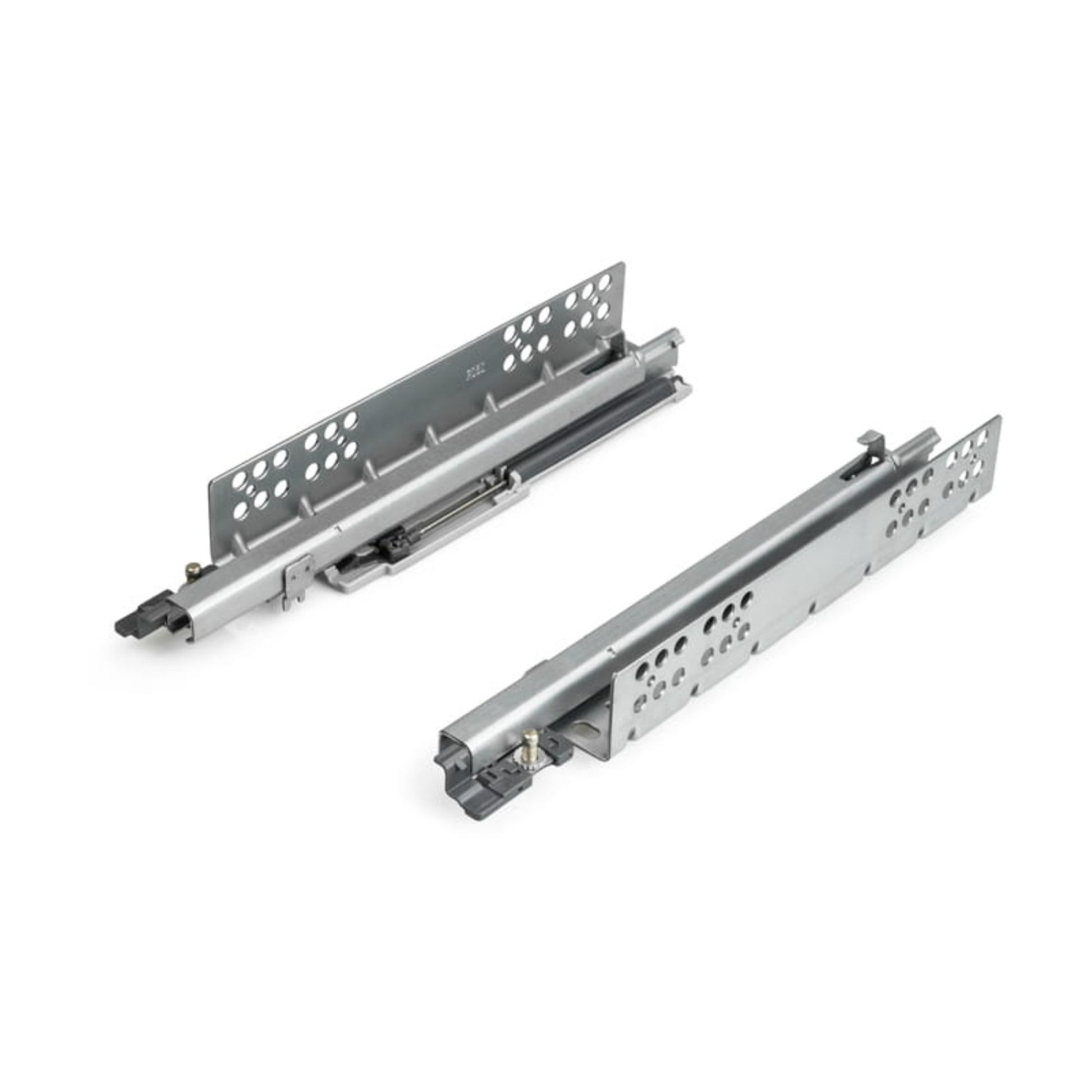

Soft-Close Concealed Undermount Drawer Runners ECO - 250mm

These concealed undermount drawer runners fit under the drawer base to keep metal hardware out of sight. Built with an integrated soft-close mechanism and rated for up to 25 kg, they ensure smooth, quiet operation.

  • Additional mechanismSoft-Close
  • Full extensionNo
  • Maximum weight25 kg
  • MaterialZinc coated steel
  • Maximum drawer side thickness16 mm
Soft-Close Concealed Undermount Drawer Runners ECO - 250mm
  • 300mm length

Concealed partial extension with soft-close for 16 mm drawer sides

These 250 mm undermount drawer runners are manufactured from zinc coated steel and mount underneath the drawer base for a clean, invisible installation in cabinets with drawer side panels up to 16 mm thick.

  • Concealed undermount fitting: The runners sit hidden beneath the drawer bottom so no side-mounted metal tracks interrupt the look of your furniture.

  • Integrated soft-close damping: The built-in mechanism slows the drawer during the final centimetres and pulls it gently shut without slamming.

  • 25 kg load capacity: Robust zinc coated steel construction supports daily household storage with dependable stability.

  • Built for 16 mm sides: Precision engineered to fit standard drawer boxes with side wall thicknesses of up to 16 mm.

Where to install 250 mm concealed undermount runners

  • KitchenCompact kitchen drawers

    Keep hardware completely out of view under the drawer base to maintain a neat appearance in shallow kitchen units.

  • BedroomBedside tables and sideboards

    Prevent loud impacts and rattling in living spaces thanks to the smooth, self-closing damping action.

  • OfficeDesk pedestals and organisers

    Hold office supplies and stationery securely with the solid 25 kg load rating and sturdy steel frame.

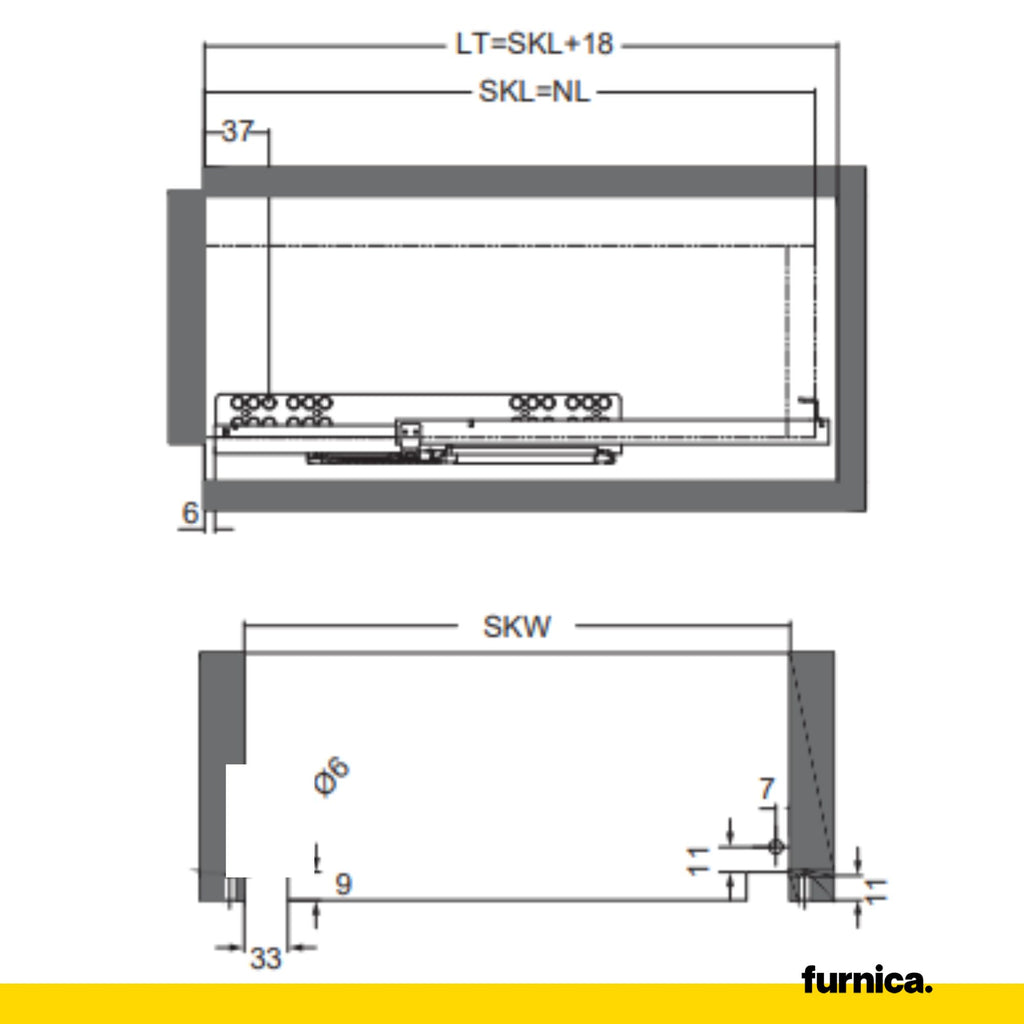

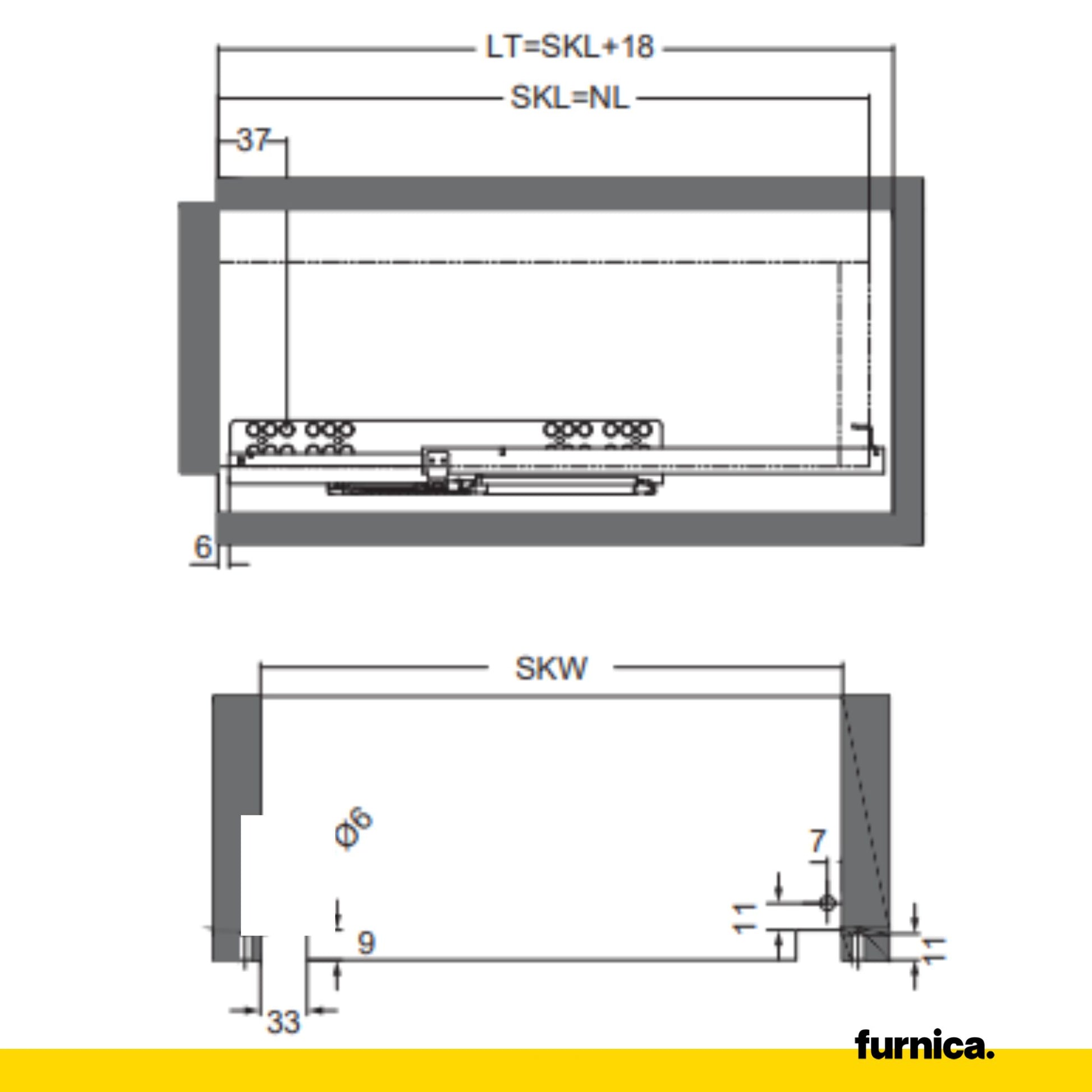

Fitting the undermount drawer runners

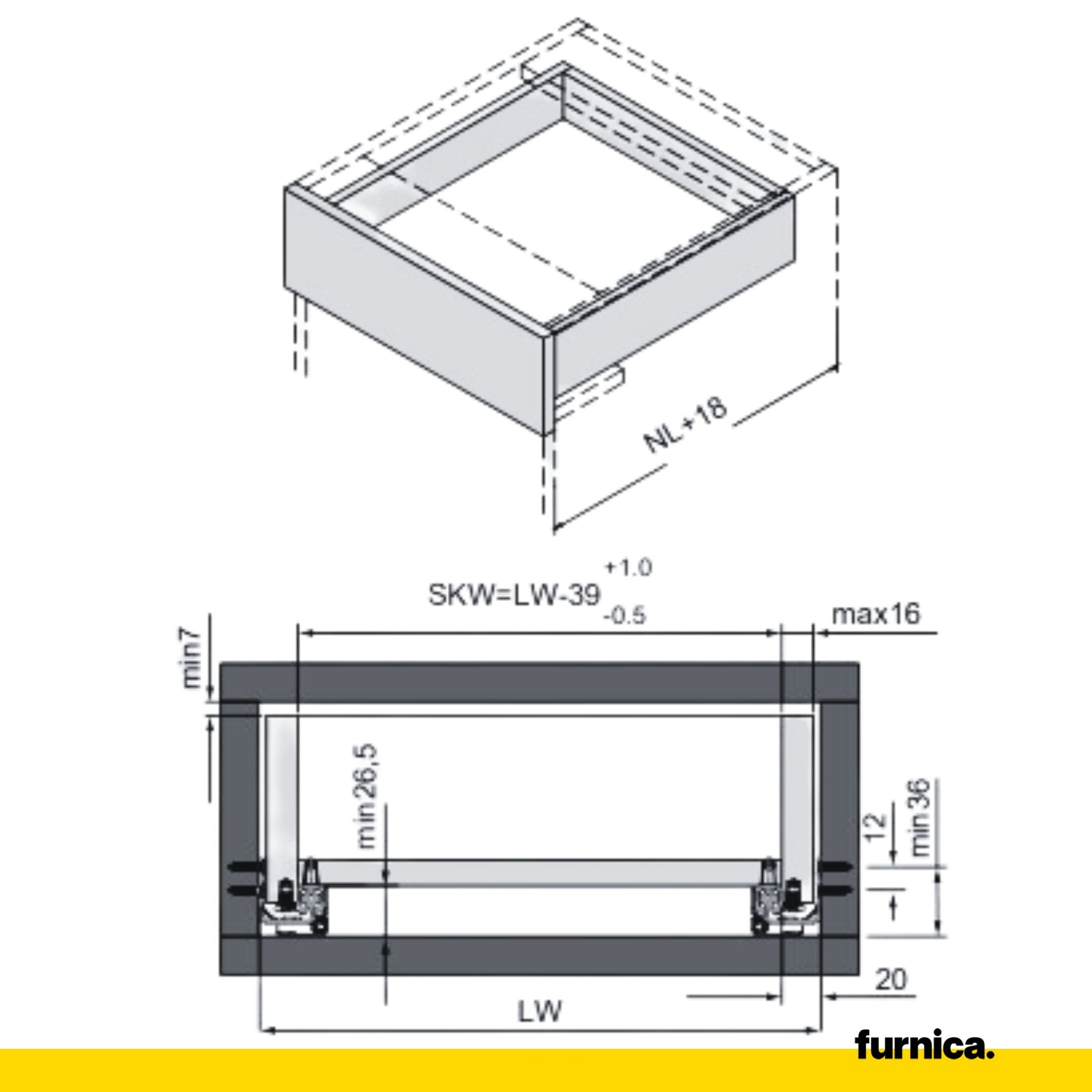

Suitable for drawer side panels up to 16 mm thick.
  1. 1

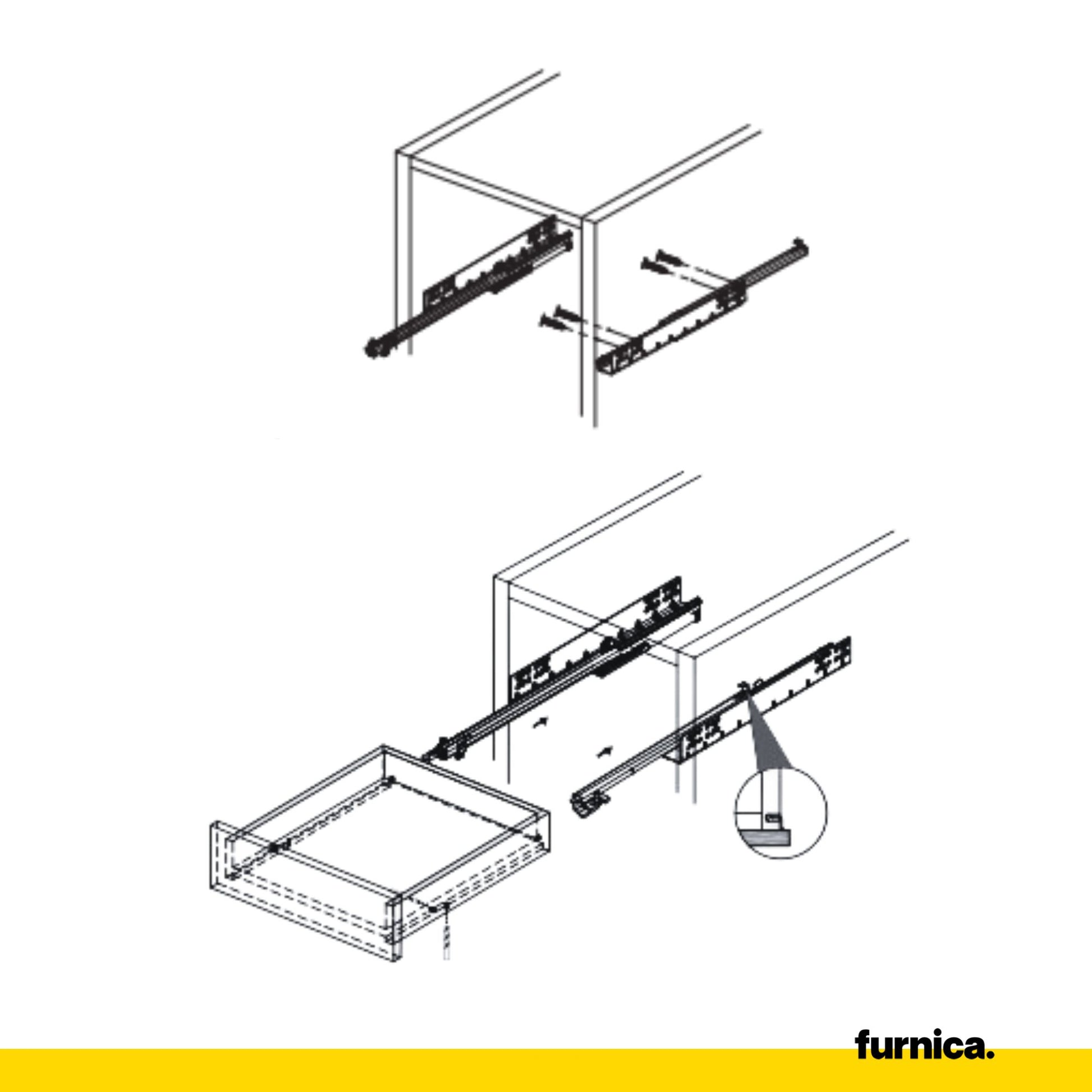

    Mount the cabinet runners

    Fix the runners horizontally to the inside walls of your cabinet carcass at your required height using suitable screws.

  2. 2
    Prepare the drawer box

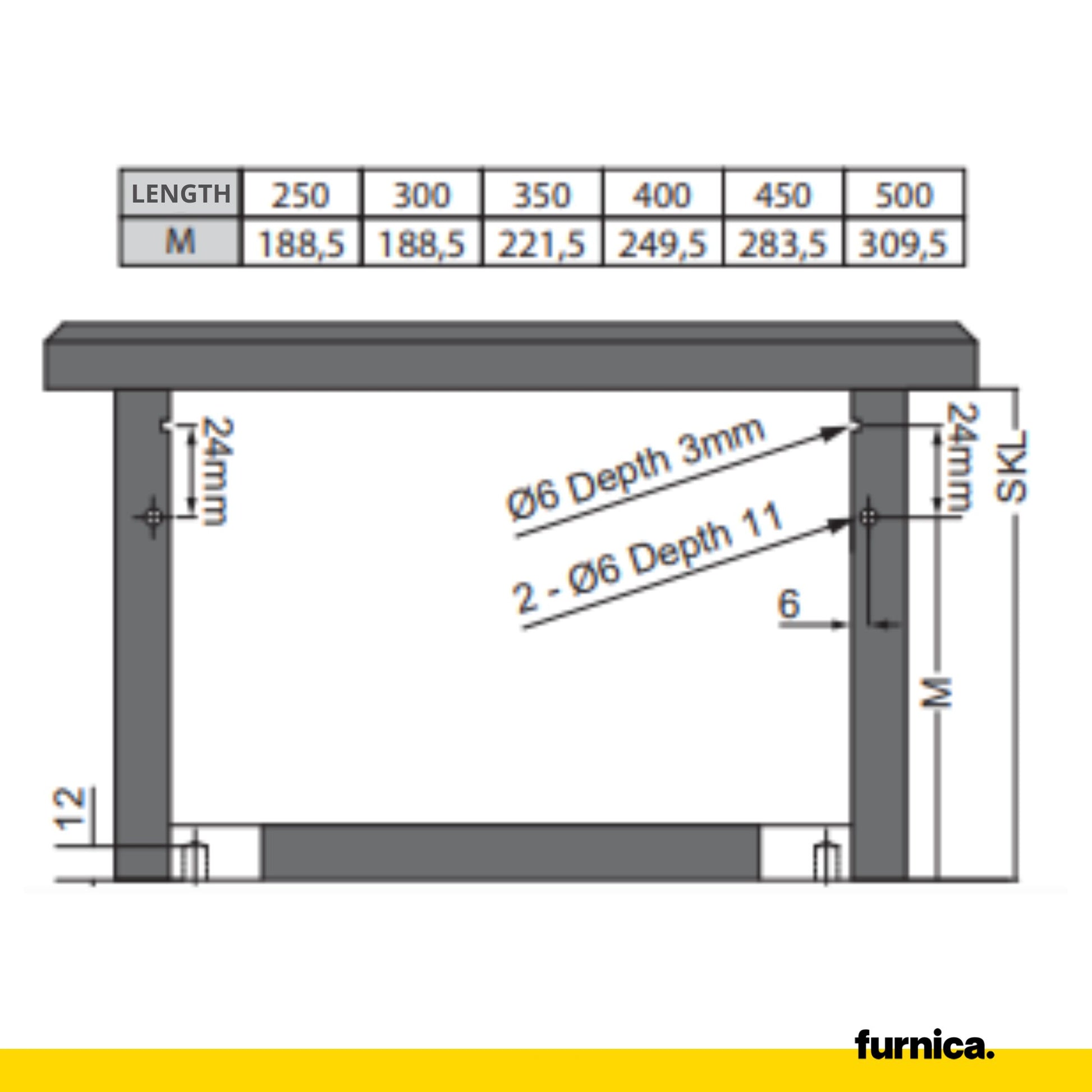

    Check that the drawer base and rear panel are notched and drilled to accommodate undermount slide hooks.

  3. 3
    Engage and secure the drawer

    Slide the drawer box onto the tracks until the rear hooks and front locking mechanisms engage firmly into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Manufacturer
Furnica
Full extension
No
Length
300mm
Material
Galvanised steel
Max. drawer side thickness
16mm
Maximum weight
25kg
Product type
Partial extension
EAN
5060974239429
SKU
PTCS-19P-250
