Product data
Galvanised steel · Up to 25 kg

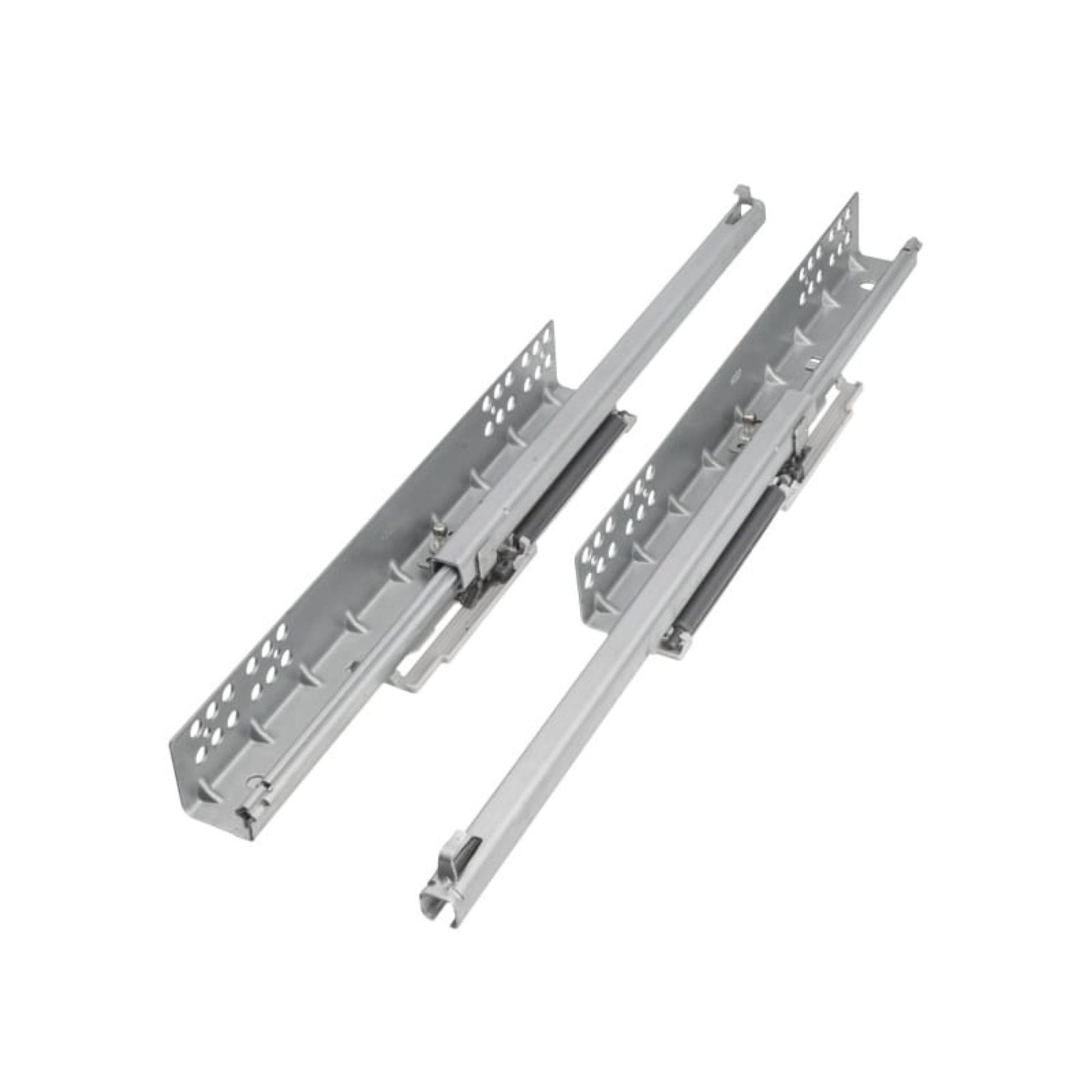

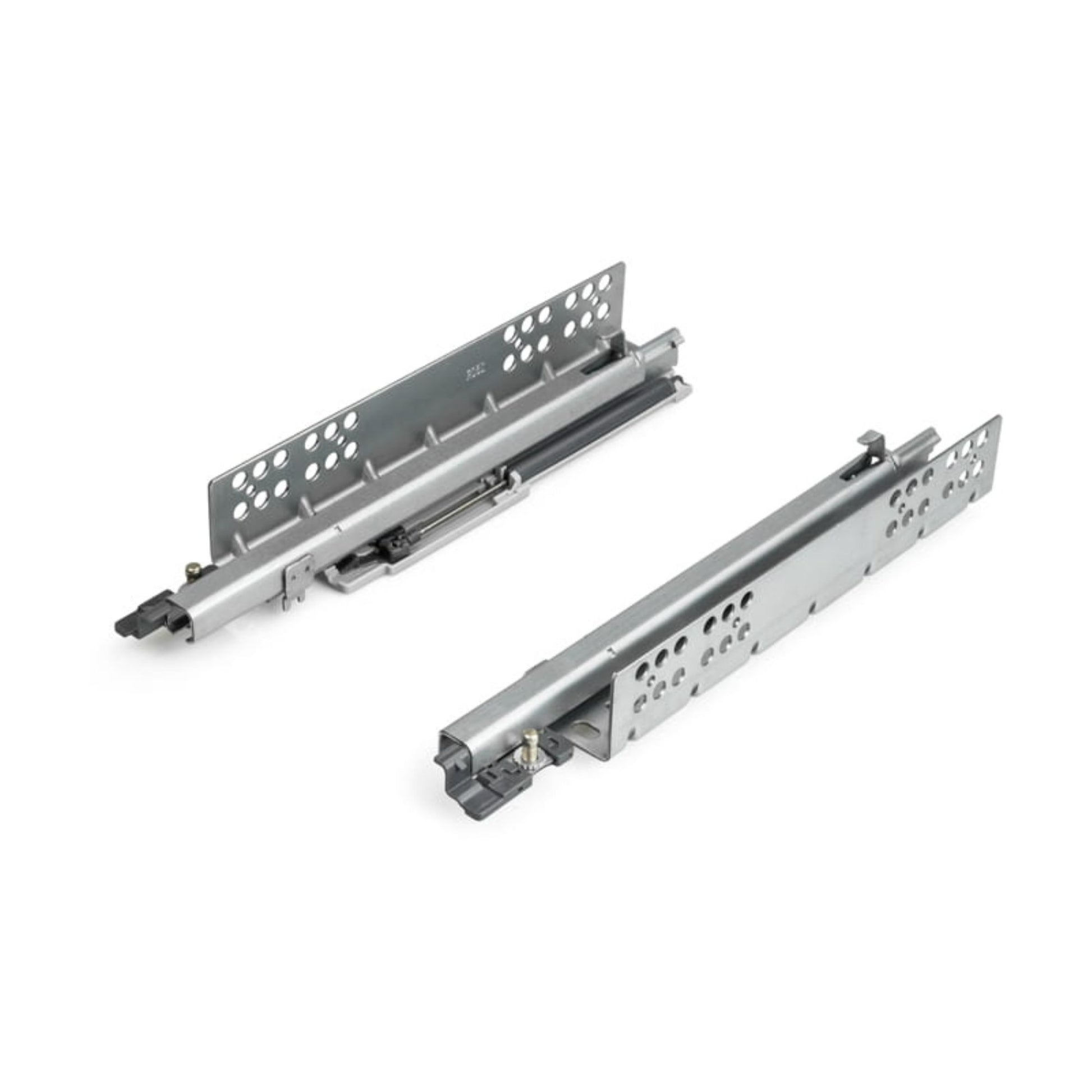

Soft-Close Concealed Undermount Drawer Runners ECO - 300mm

These undermount drawer runners fit completely beneath the drawer box to keep side fittings hidden. Integrated soft-close action catches the drawer and pulls it smoothly shut under loads of up to 25kg.

  • Additional mechanismSoft-Close
  • Extension typePartial extension
  • Maximum weight25kg
  • Maximum drawer side thickness16mm
  • MaterialZinc coated steel
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners ECO - 300mm
  • 300mm length

Concealed 300mm runners for up to 16mm drawer sides

Concealed undermount drawer runners combine a hidden installation profile with a quiet soft-close mechanism. Manufactured from zinc coated steel, they are engineered for wooden drawer boxes with a side panel thickness up to 16mm.

  • Concealed undermount fixing: Fittings mount underneath the drawer base, keeping external cabinet lines clean with no metal rails visible on the sides.

  • Integrated soft-close damping: Brakes the closing motion over the final centimetres to prevent slamming and pull the drawer shut silently.

  • 25kg load capacity: Durable zinc coated steel construction reliably supports fully loaded drawers during daily domestic use.

  • Engineered for 16mm panels: Sized specifically to match standard drawer boxes constructed with side thicknesses up to 16mm.

Applications for 300mm concealed undermount runners

  • KitchenBase unit drawers

    Undermount fixing keeps side profiles invisible to maintain sleek cabinetry lines across kitchen base units.

  • Living roomSideboards and chests

    The soft-close drawer runner mechanism prevents loud slamming and protects cabinet carcasses in shared living spaces.

  • Home officeDesk drawers and filing storage

    Carries loads up to 25kg to ensure smooth movement under stacks of paperwork, stationery, and office equipment.

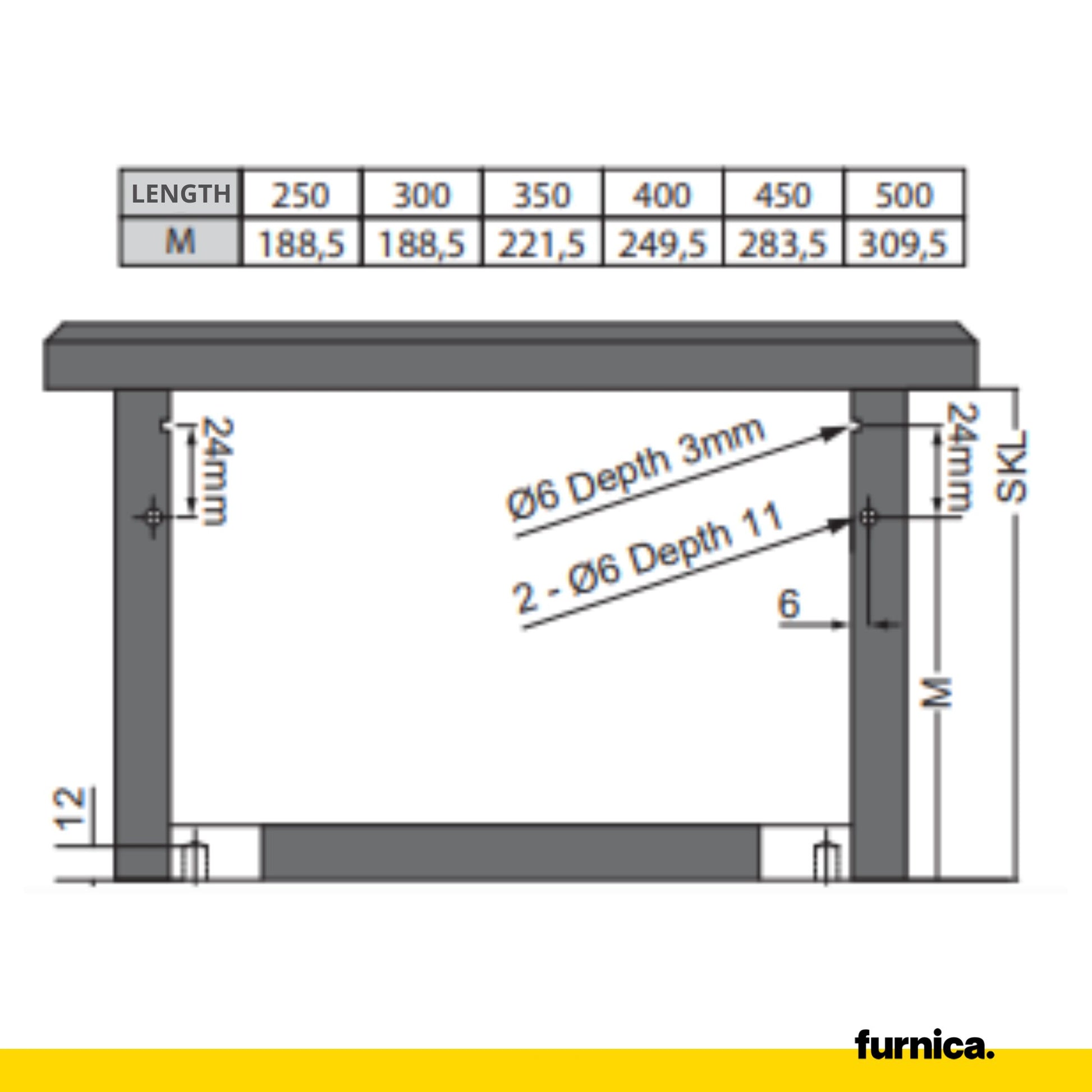

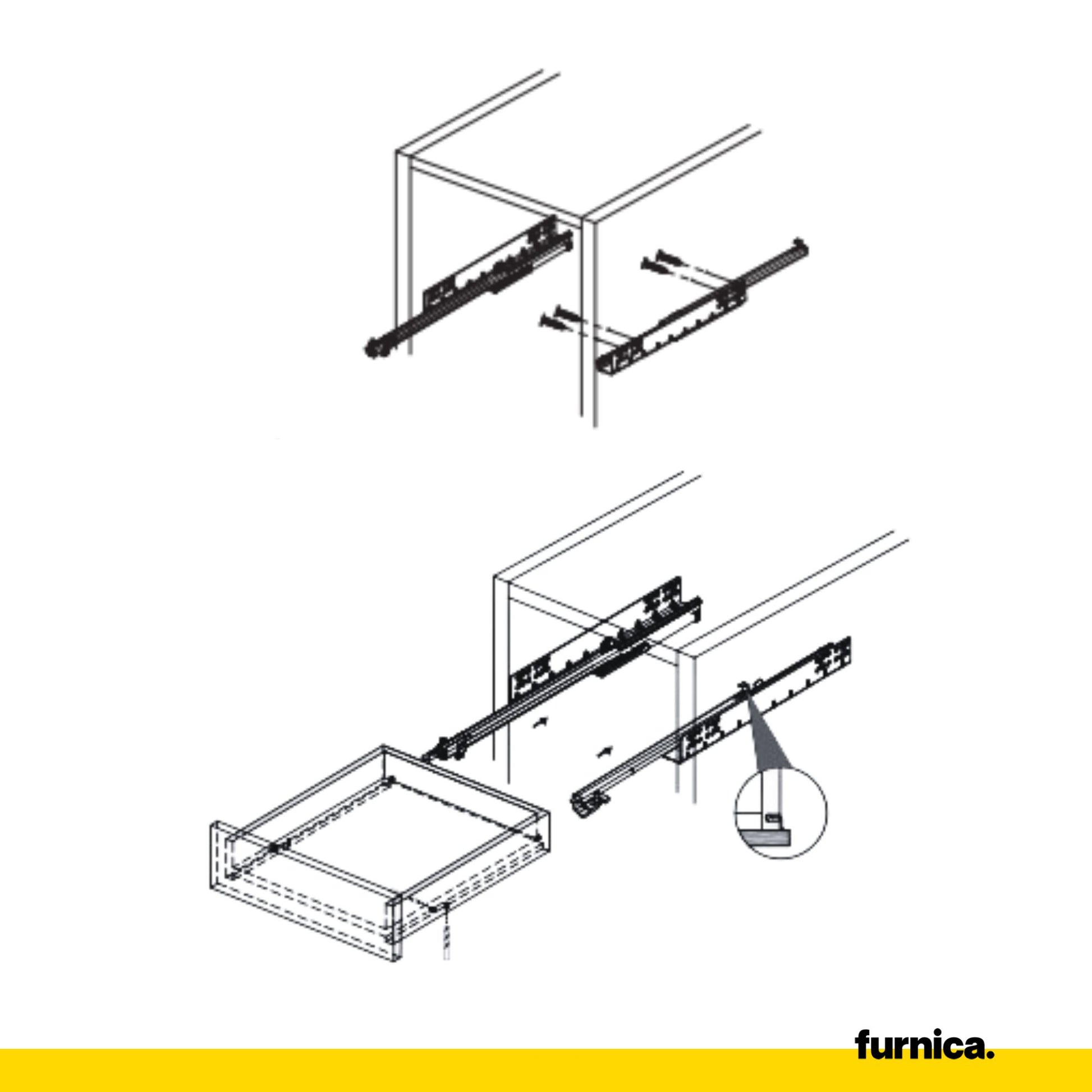

Fitting concealed undermount runners

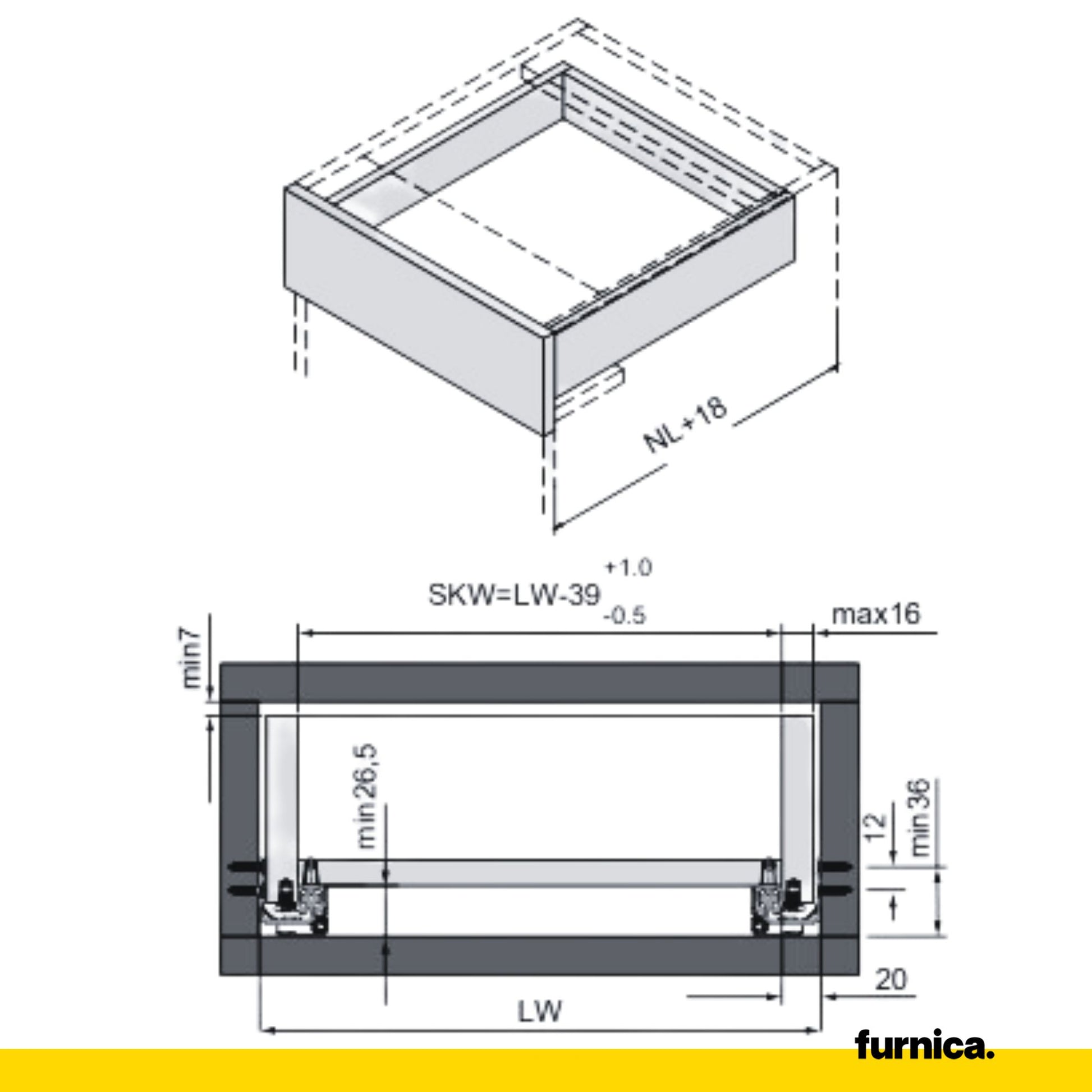

For drawer box side panels up to 16mm thickness.
  1. 1
    Fasten carcass runners

    Align the cabinet tracks horizontally along the internal side walls at the required height and screw securely into place.

  2. 2
    Prepare drawer base

    Ensure the drawer bottom panel is notched and prepped to accommodate undermount hardware and rear engagement hooks.

  3. 3
    Engage and lock drawer

    Slide the drawer box onto the extended tracks until the front catch mechanism clicks into a secure position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-Close
Colour
Zinc
Manufacturer
Furnica
Full extension
No
Length
300mm
Material
Galvanised steel
Max. drawer side thickness
16mm
Maximum weight
25kg
Product type
Partial extension
EAN
5060685604301
SKU
PTCS-19P-300
