Product data
Concealed undermount · Up to 35 kg

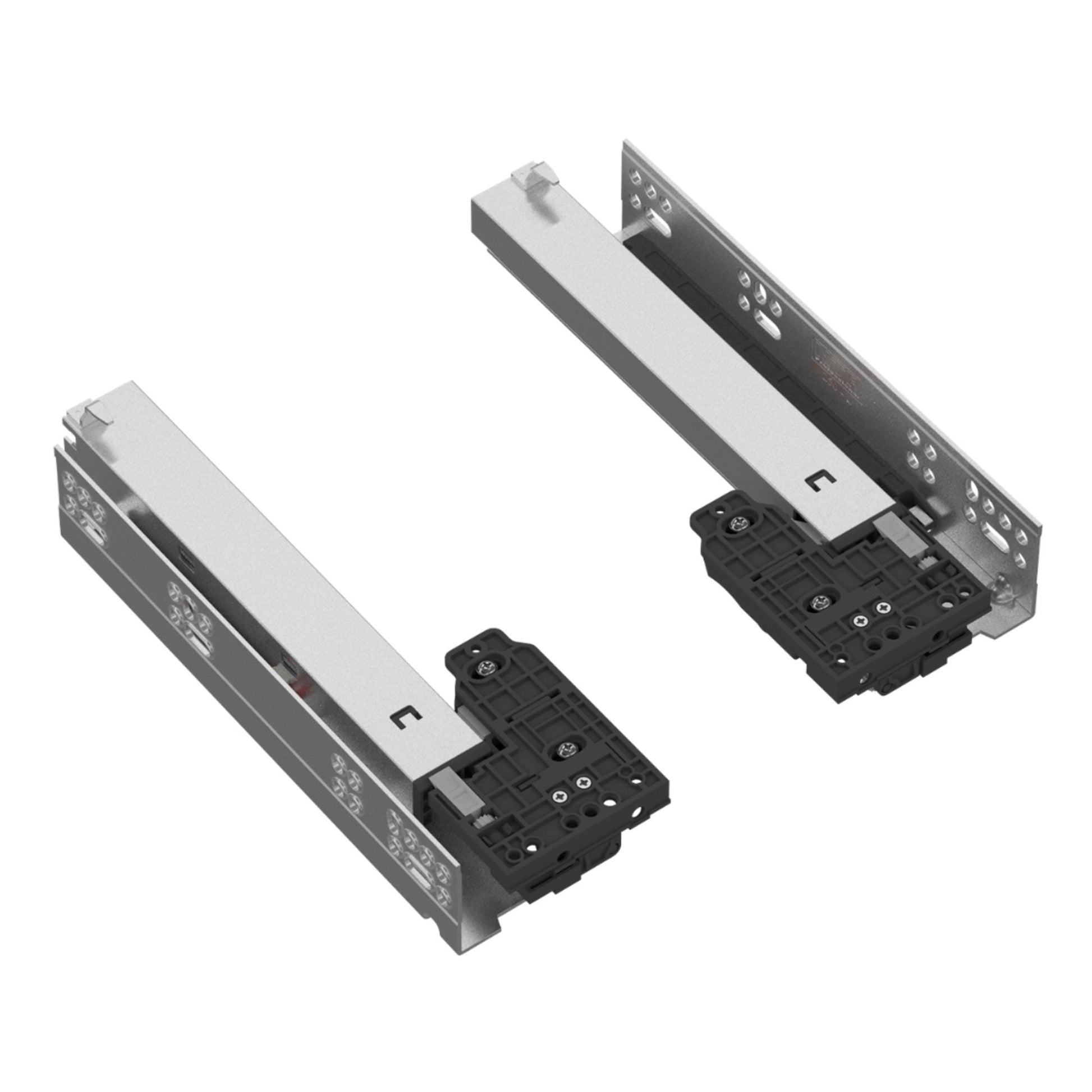

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 250mm

These 250mm concealed undermount drawer runners offer complete drawer access with integrated soft-close damping for smooth, silent closing.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35kg
  • MaterialZinc coated steel
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 250mm
  • 600mm length
  • 16mm material thickness

250mm undermount runners for wooden drawers up to 16 mm side thickness

Concealed beneath the drawer base, these zinc coated steel runners provide a completely hidden installation without visible side fittings. The full extension mechanism pulls the drawer fully out for unhindered access right to the back.

  • Integrated soft-close mechanism: The built-in damper catches the drawer on the final centimetres and pulls it gently shut without slamming.

  • 100% full extension: Enables unobstructed access to the entire interior of shallow 250mm drawer boxes.

  • 35 kg load capacity: Zinc coated steel construction provides reliable stability for solid timber and board drawers.

  • Hidden undermount design: Mounts directly underneath the drawer base to keep all running gear entirely out of sight.

Applications for 250mm concealed drawer runners

  • BedroomBedside tables and compact chests

    The soft-close drawer runner action ensures silent closing without disturbing anyone during late hours.

  • KitchenShallow spice and utensil drawers

    Full extension pulls compact 250mm drawers all the way out so small kitchen items are easy to reach.

  • Living roomSideboards and fitted units

    A drawer runner undermount fitting leaves the wooden drawer sides clean and unblemished by metal tracks.

Fitting concealed undermount runners

For timber drawer boxes with maximum 16 mm side panel thickness
  1. 1

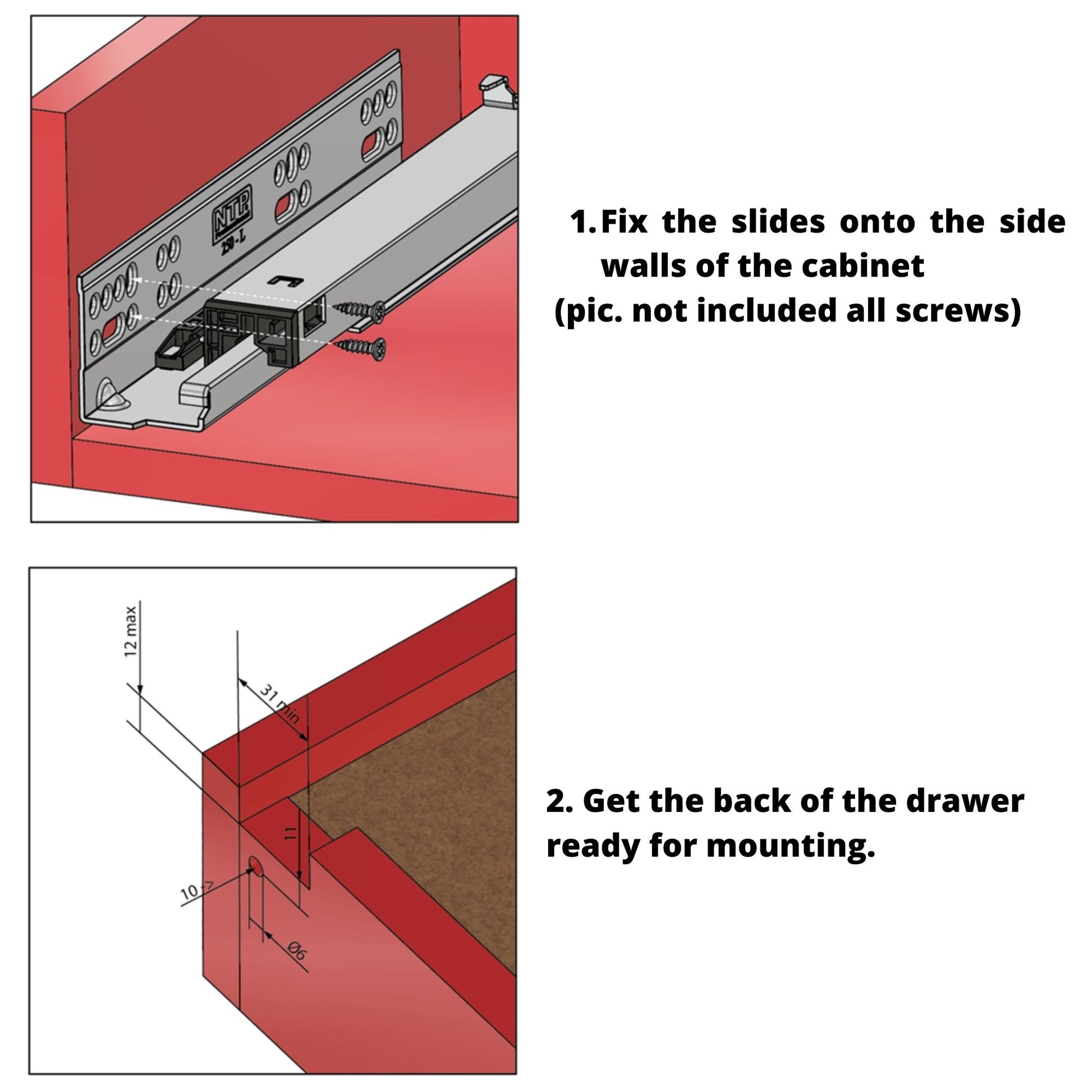

    Fix the runners inside the cabinet

    Screw the left and right steel runners horizontally to the internal side panels of the carcass.

  2. 2

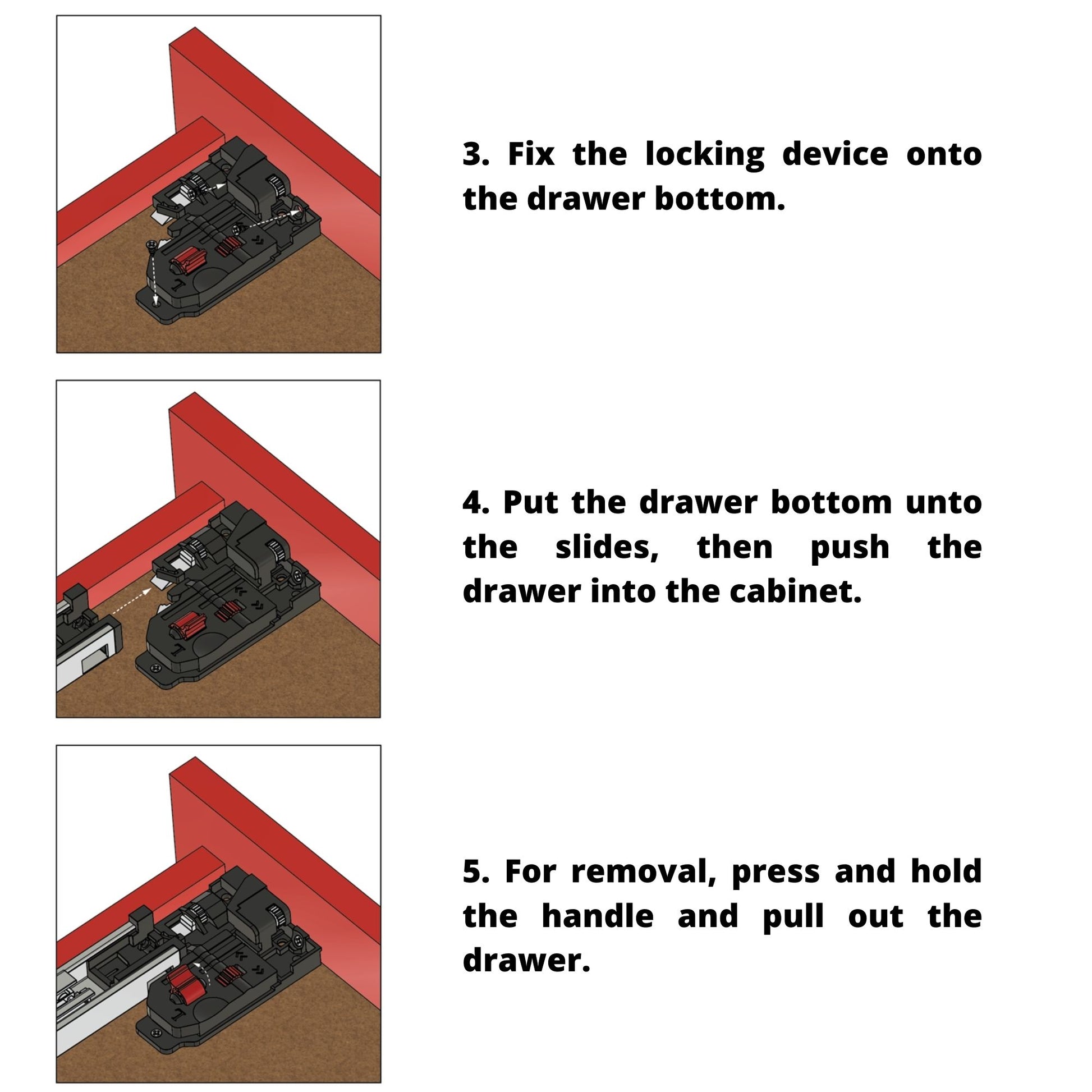

    Attach the front locking clips

    Fasten the plastic front locking brackets directly underneath the front underside of the wooden drawer box.

  3. 3
    Slide on and engage

    Place the drawer onto the extended slides and push inward until the front clips audibly click into position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604141
SKU
PTPS-19S-250
