Soft-Close Concealed Undermount Drawer Runners, Full Extension - 300mm

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 300mm

£19.43 Incl. VAT
£19.43 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£18.46 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Galvanised steel · Up to 35 kg

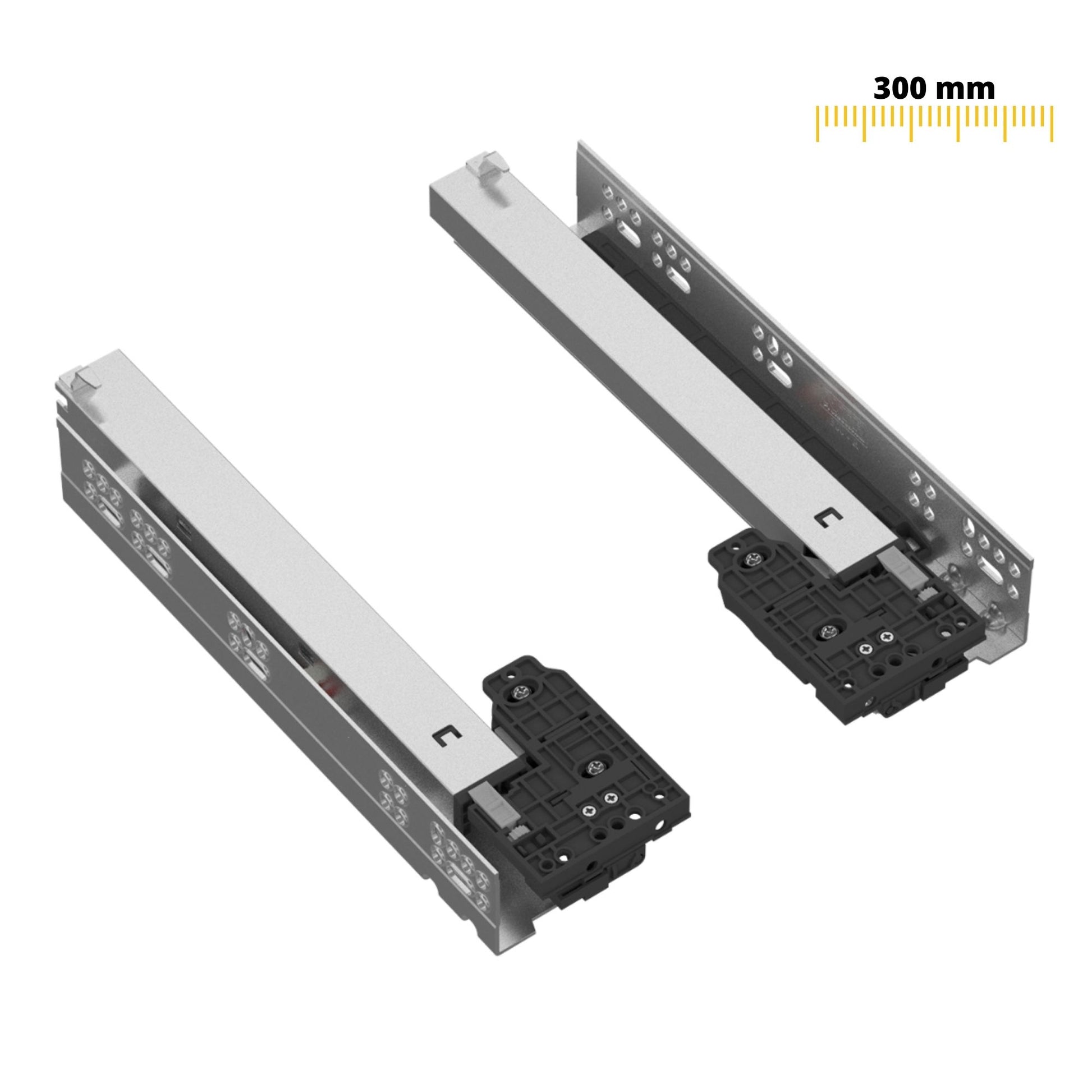

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 300mm

Concealed undermount drawer runners with integrated soft-close damping and full extension for smooth, quiet wooden drawer boxes.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35kg
  • MaterialZinc coated steel
  • ColourZinc
  • Maximum drawer side thickness16mm
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 300mm
  • 600mm length
  • 16mm material thickness

Concealed runners for 16 mm drawer sides

These 300 mm drawer runners mount discreetly beneath the drawer base to keep the running mechanism hidden while providing complete access across the entire drawer depth.

  • Integrated soft-close mechanism: The built-in damper pulls the drawer quietly and gently shut on the final stretch to prevent slamming.

  • 100% full extension: Pulls out completely so you can easily reach contents stored right at the back of the drawer box.

  • 35 kg load capacity: Sturdy zinc-coated steel construction supports heavier loads without sagging or binding.

  • Concealed undermount design: Fittings sit under the drawer bottom rather than on the sides, preserving clean timber side panels.

Where to install these 300 mm runners

  • KitchenCompact base unit drawers

    Ideal for shallow base cabinets or cutlery trays requiring smooth operation and full access to utensils.

  • BedroomBedside tables and compact chests

    Soft-close damping stops drawers from banging shut, maintaining quiet across bedroom furniture.

  • BathroomVanity units

    Zinc-coated steel provides dependable corrosion resistance under wooden vanity drawers.

Fitting the undermount runners

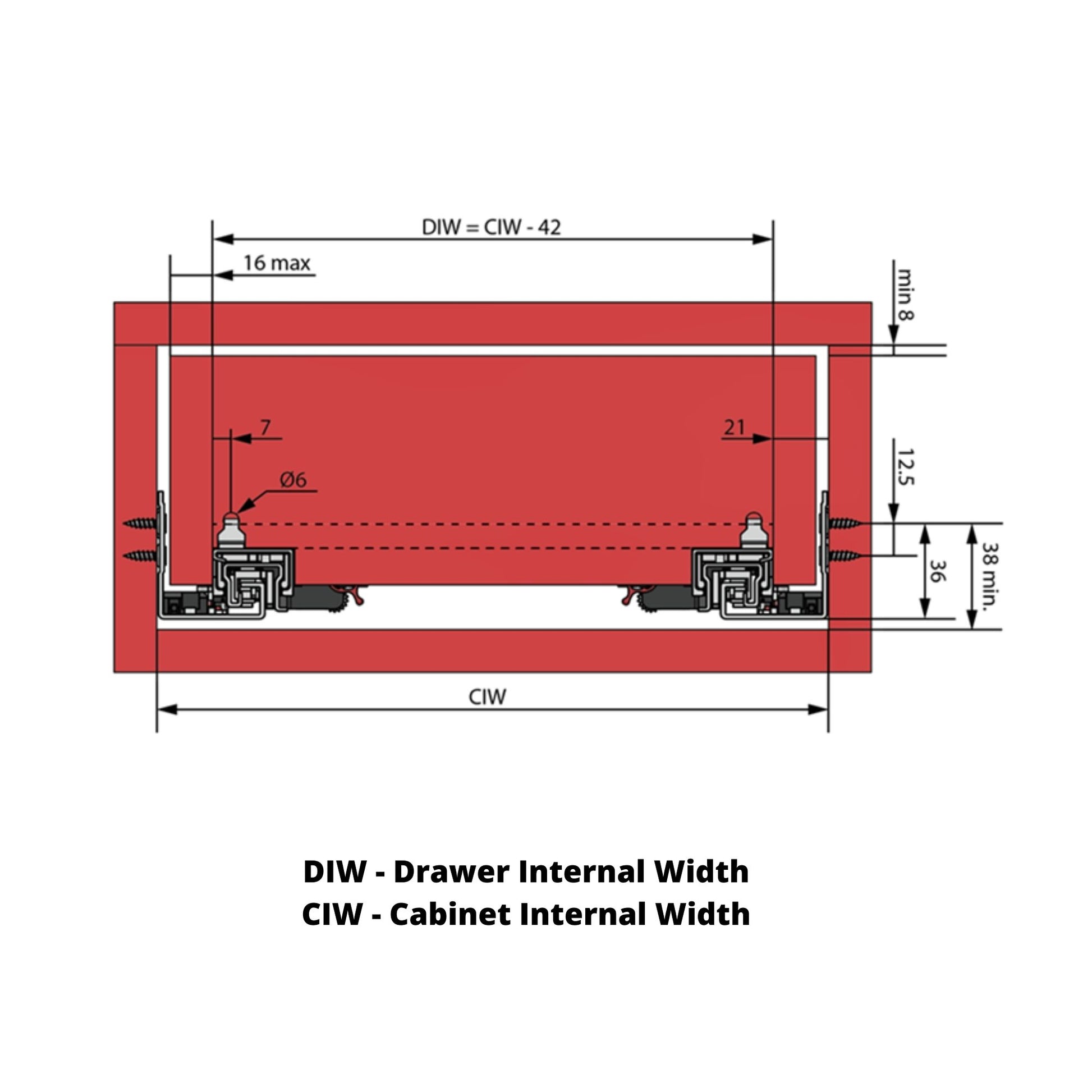

Designed for wooden drawer boxes with up to 16 mm side panel thickness.
  1. 1

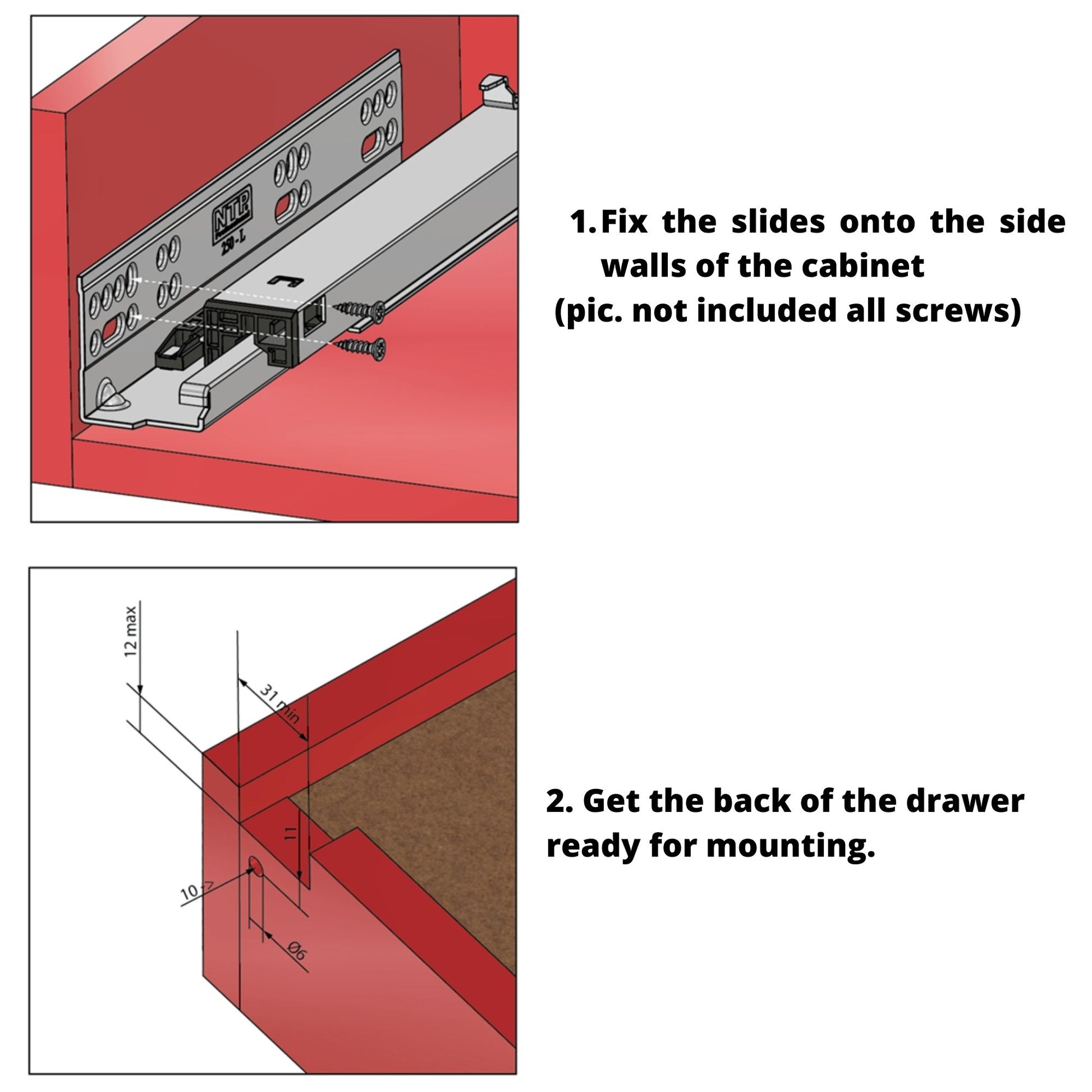

    Fix runners to the carcass

    Screw the left and right runners horizontally to the interior cabinet side walls at the required height.

  2. 2

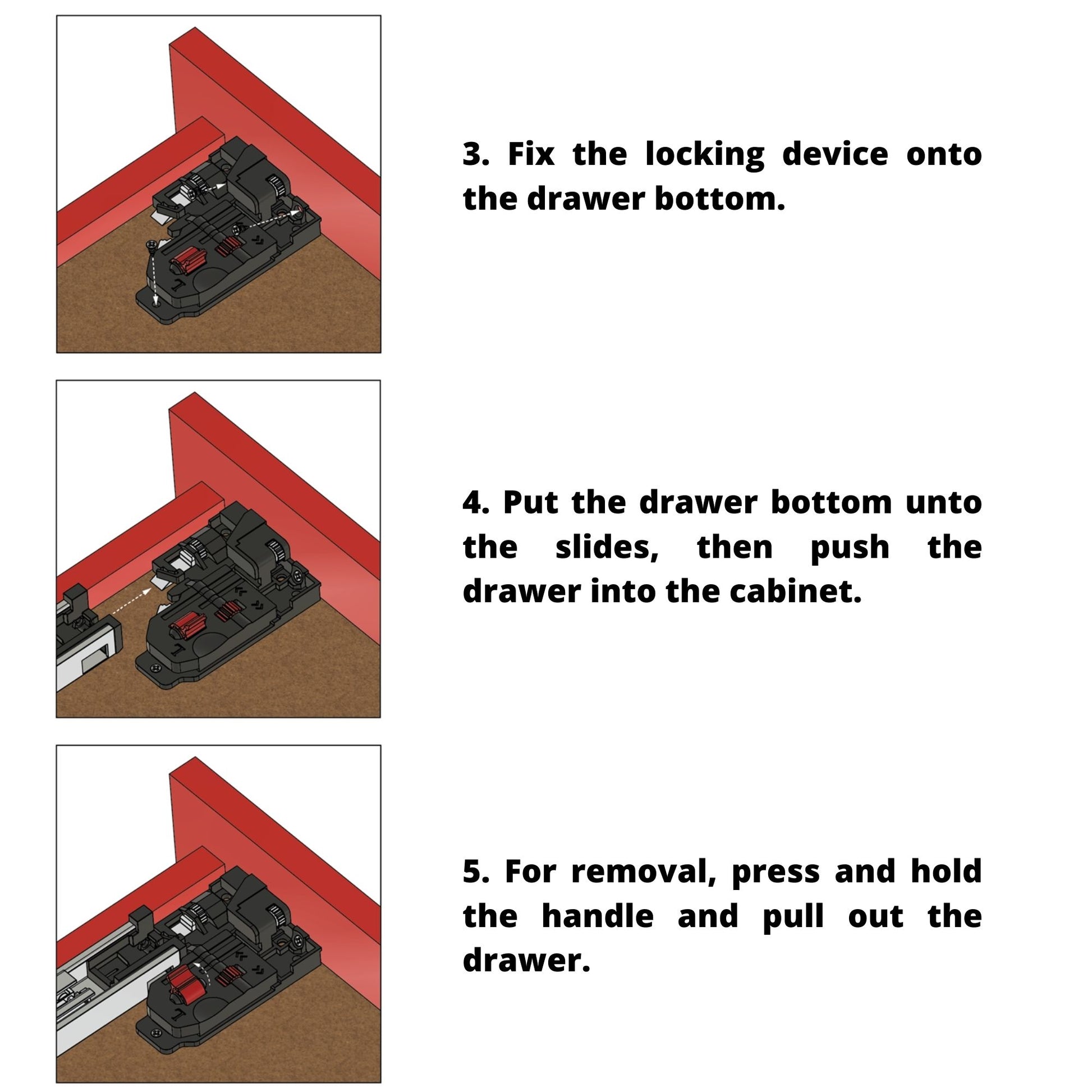

    Mount the locking clips

    Attach the front fixing clips underneath the front corners of the wooden drawer base.

  3. 3
    Engage and align the drawer

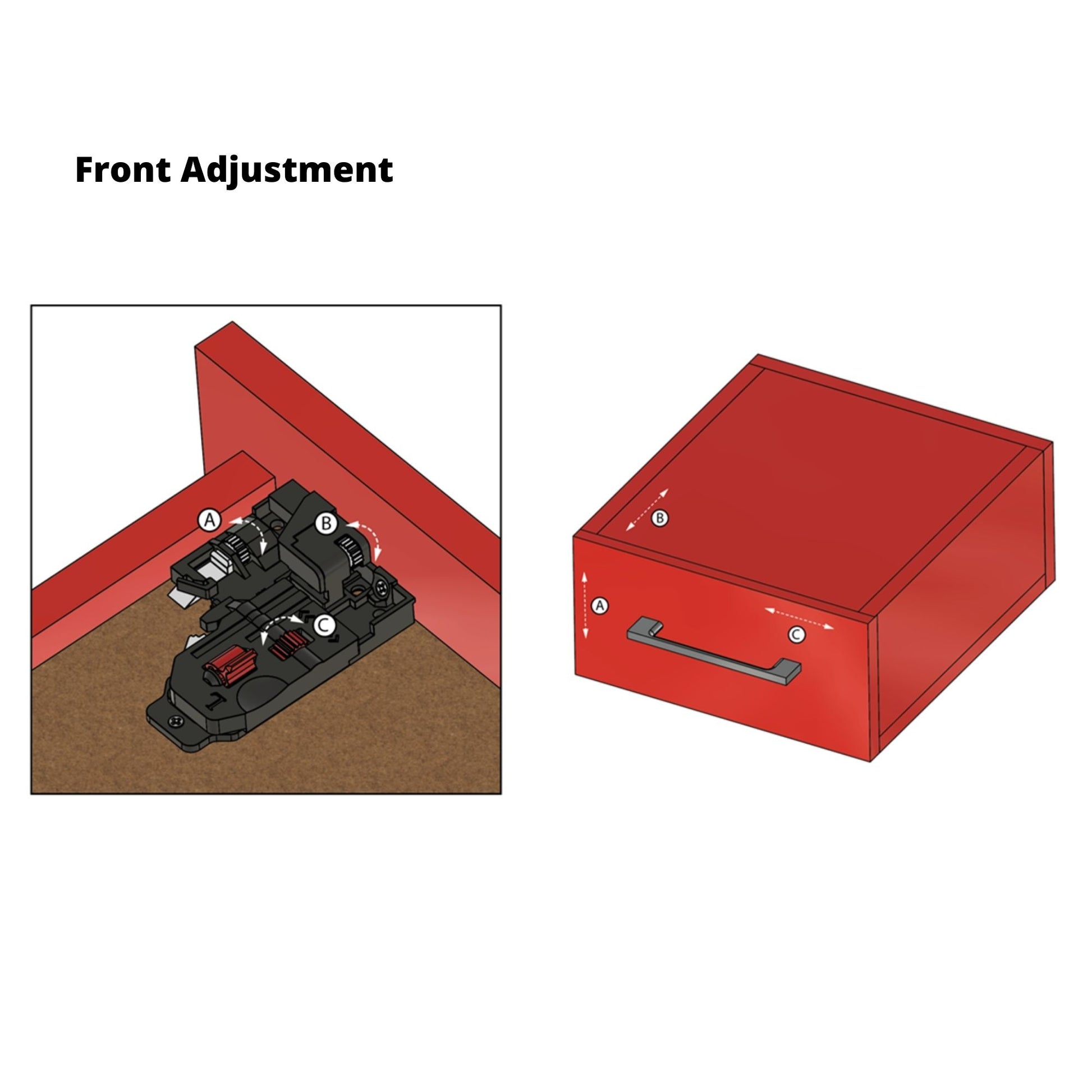

    Slide the drawer box onto the extended runners until the front clips click securely into place, then fine-tune alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604158
SKU
PTPS-19S-300
