Product data
Concealed steel · Up to 35 kg

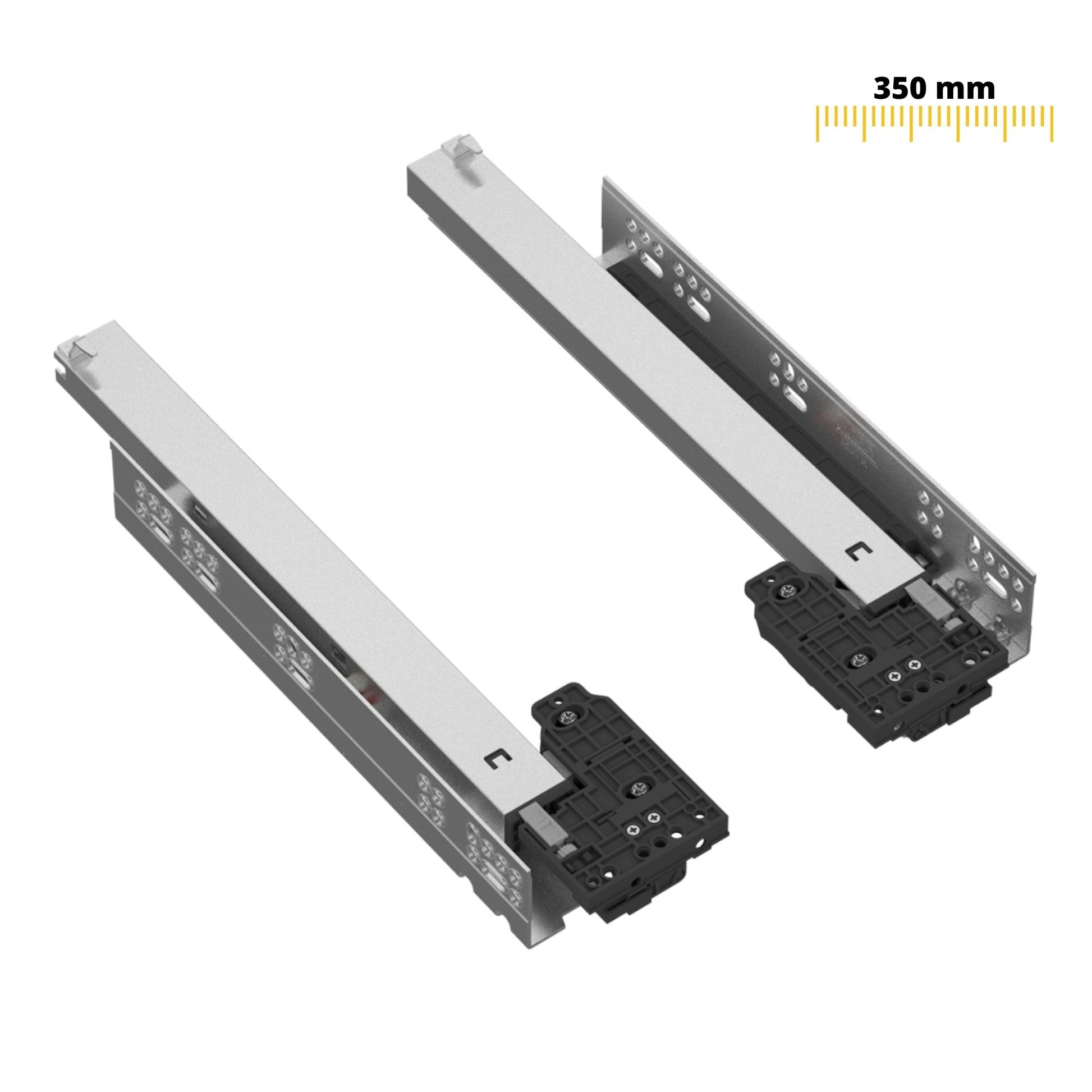

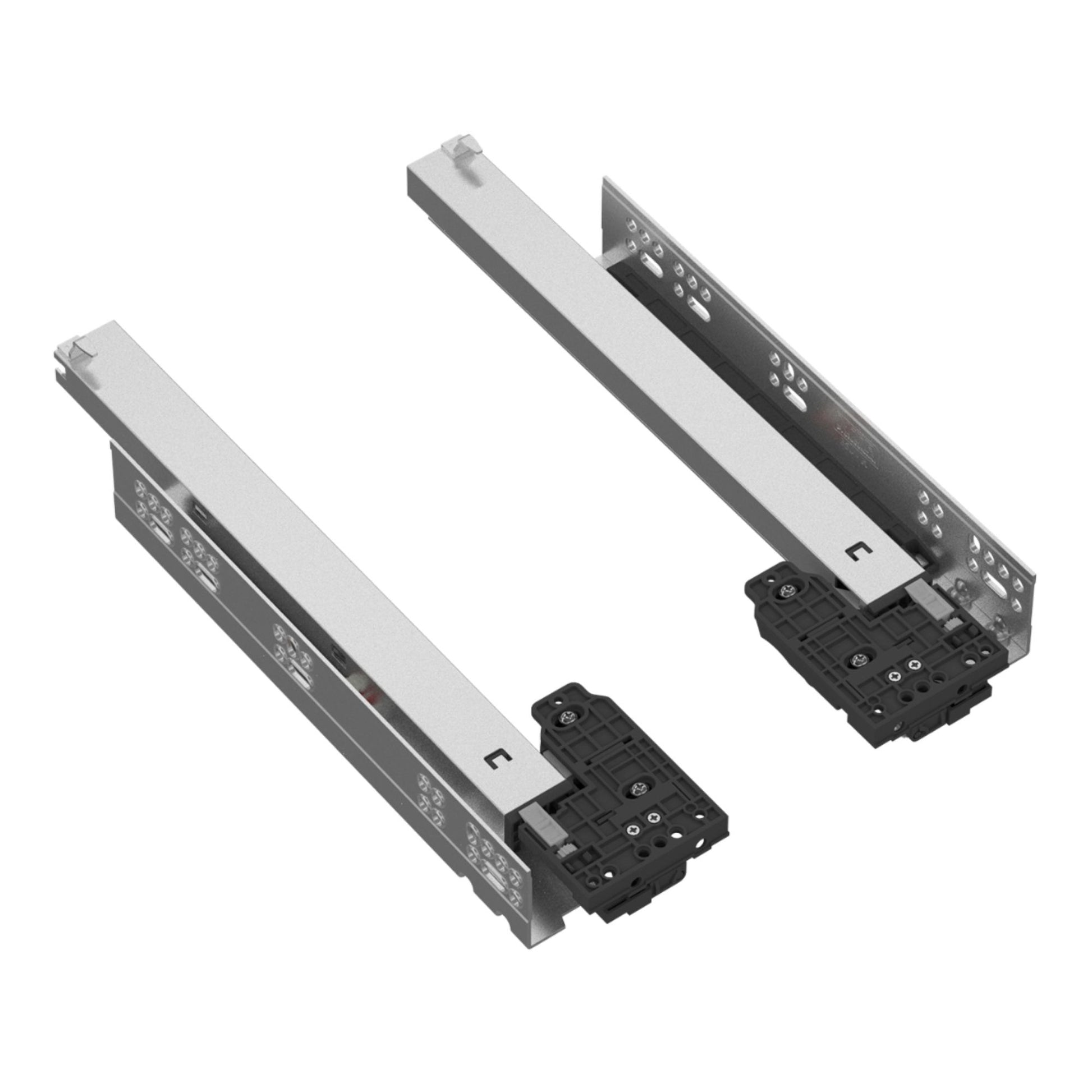

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 350mm

These concealed drawer runners mount underneath the drawer box for an invisible look and feature full extension with integrated soft-close damping.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35 kg
  • MaterialZinc coated steel
  • ColourZinc
  • Maximum drawer side thickness16 mm
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 350mm
  • 600mm length
  • 16mm material thickness

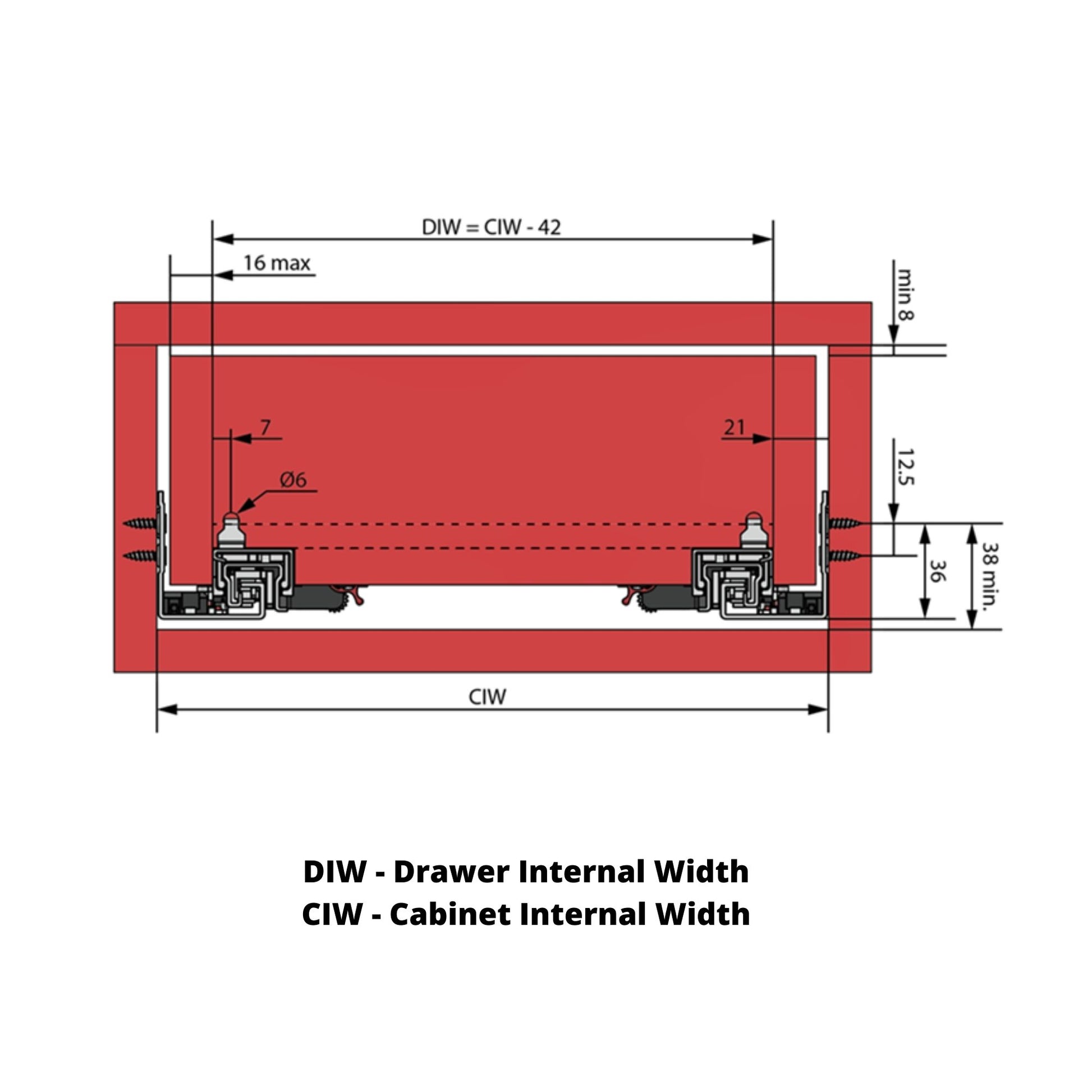

Undermount runners for 16 mm drawer sides

These 350 mm undermount drawer runners fit timber drawer boxes with side thicknesses up to 16 mm, carrying loads up to 35 kg while remaining hidden beneath the drawer base.

  • Full extension slide: Pulls the drawer out completely to give unhindered access to items stored right at the back.

  • Integrated soft-close damping: Catches the drawer box on the final centimetres of travel and pulls it shut quietly without slamming.

  • 35 kg load capacity: Formed from zinc coated steel to support heavy cutlery, cookware and pantry storage without sagging.

  • Undermount concealed fitting: Mounts directly beneath the base so no metallic hardware is visible on the sides of your cabinetry.

Where to install 350 mm undermount drawer runners

  • KitchenBase unit pan and cutlery drawers

    Full extension allows full visibility into deep boxes, and the soft-close mechanism prevents utensils from sliding when shut.

  • BedroomWardrobes and chest of drawers

    Damped closing eliminates loud banging when shutting drawers early in the morning or late at night.

  • Living roomMedia units and sideboards

    Under-drawer installation keeps the external joinery clean and uncluttered by concealing all sliding hardware.

Fitting your undermount drawer runners

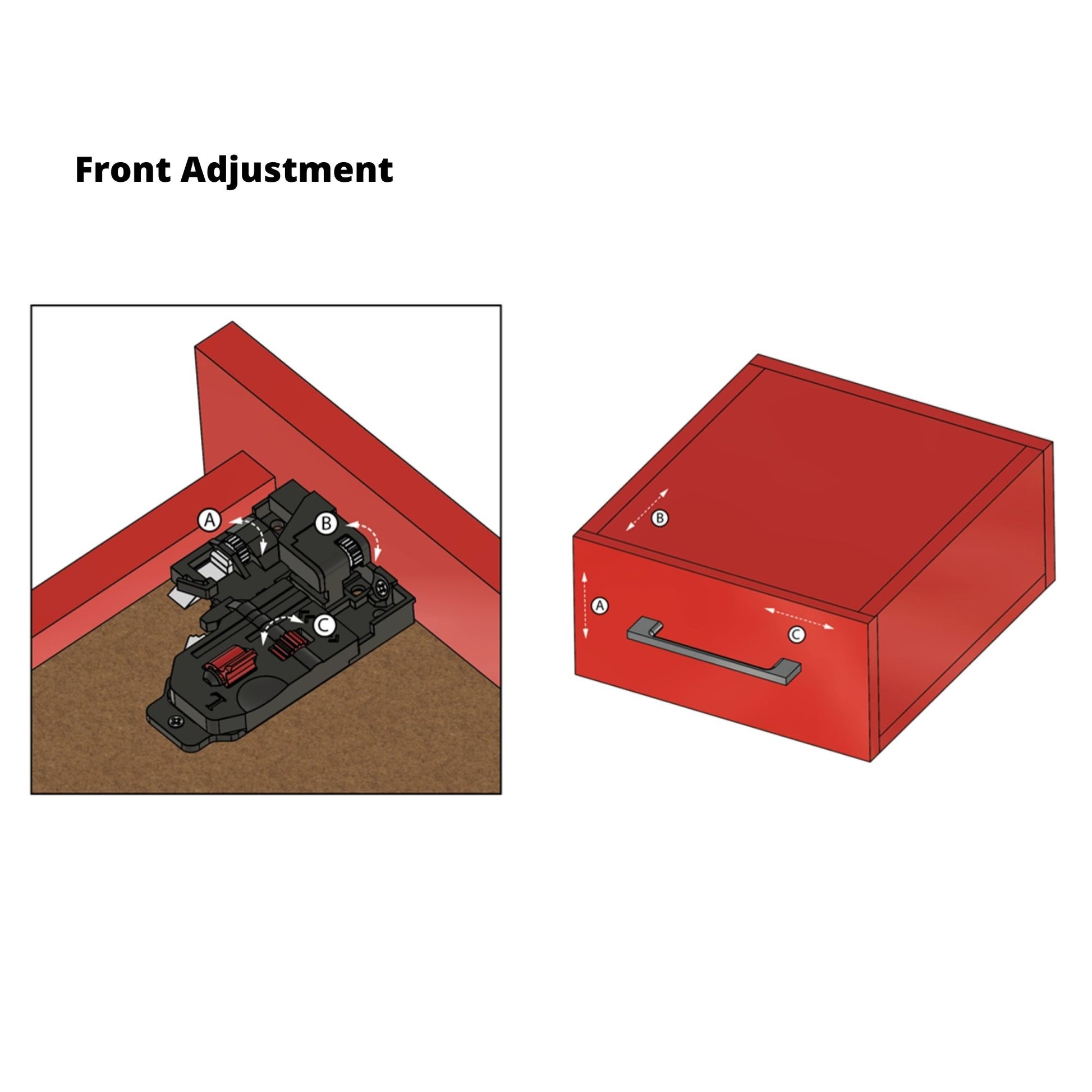

Includes 3D adjustment brackets for precise drawer front alignment
  1. 1

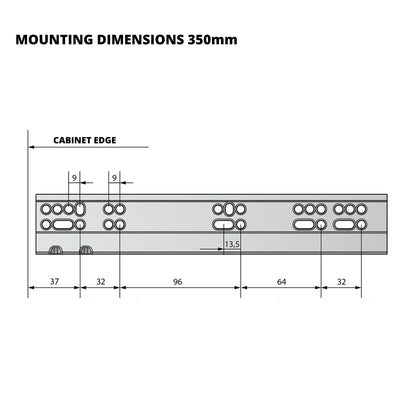

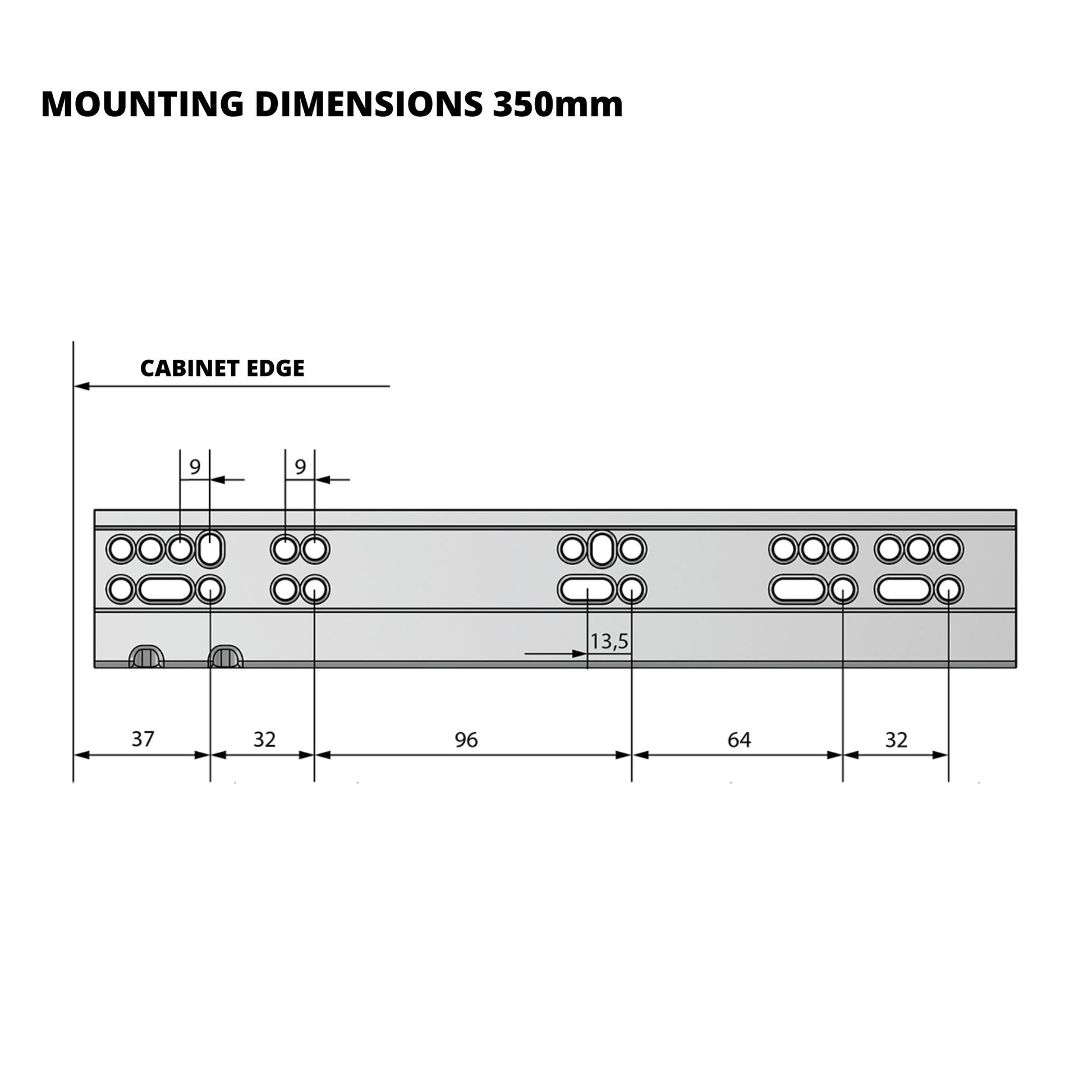

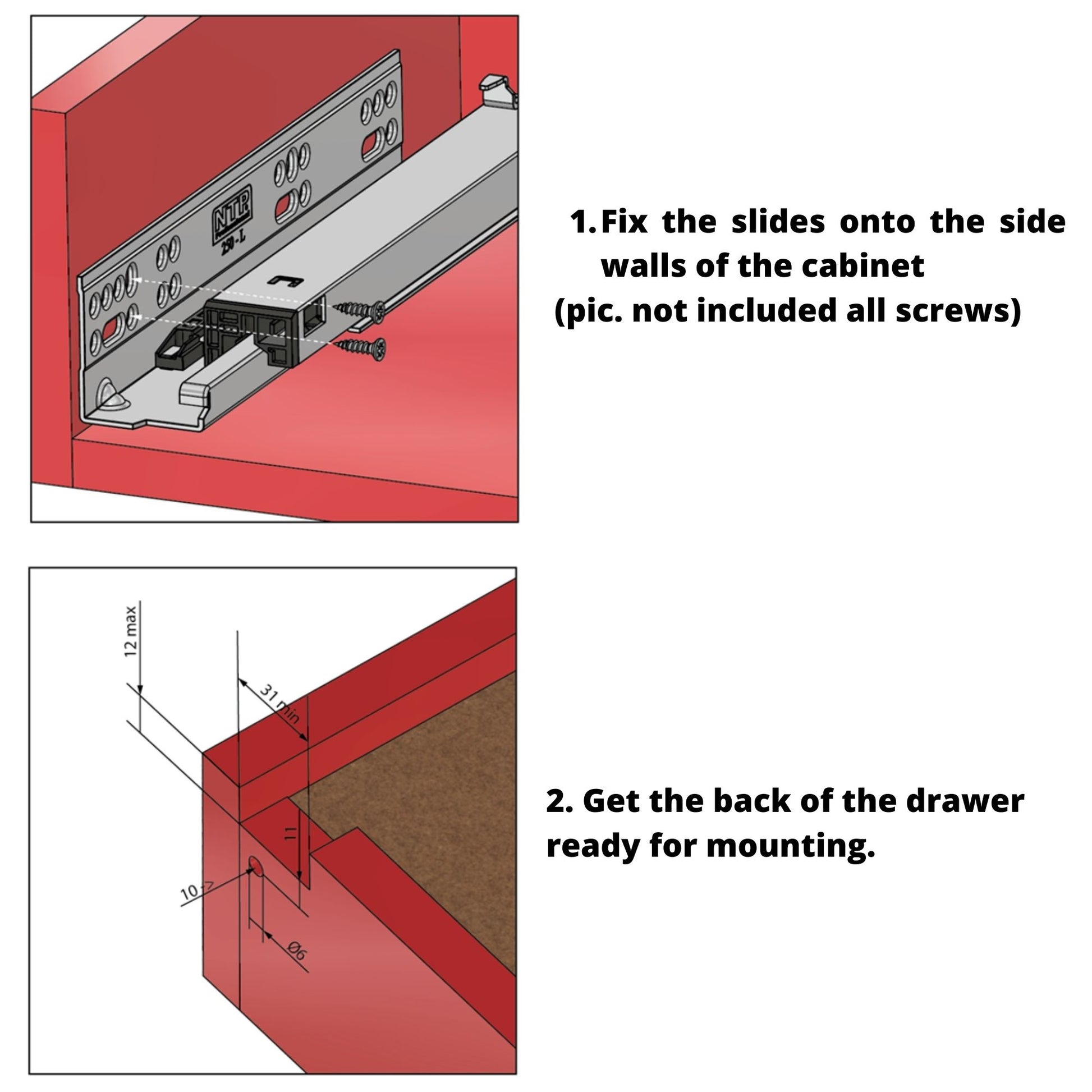

    Fix the runners to the cabinet sides

    Screw the left and right runners horizontally into the internal side panels of the cabinet at your chosen height.

  2. 2

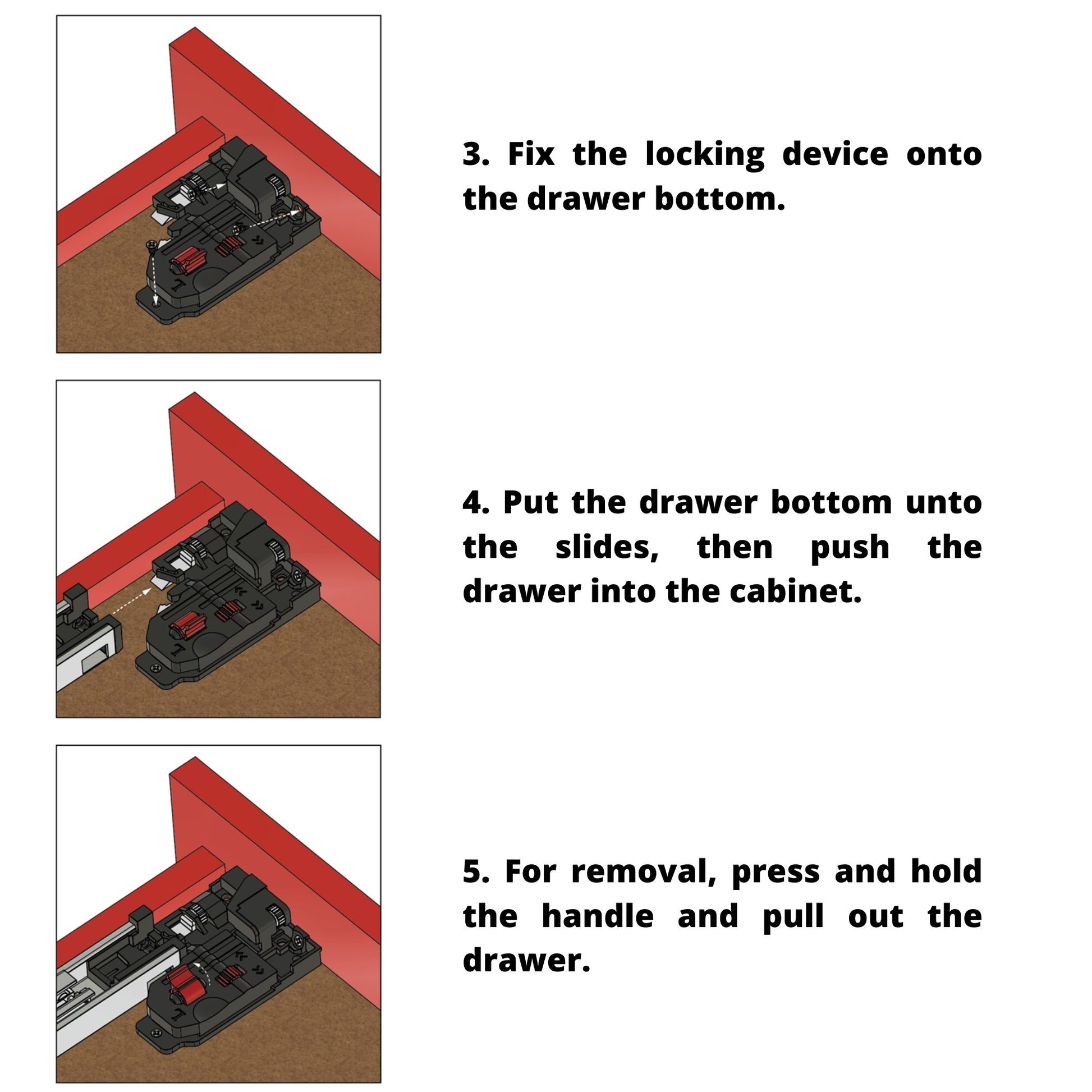

    Attach the locking clips to the drawer base

    Fasten the adjustment brackets to the front underside of the timber drawer box.

  3. 3
    Engage the drawer box and align

    Slide the drawer onto the tracks until the clips click into place, then use the 3D adjustments to level the front panel.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604165
SKU
PTPS-19S-350
