Soft-Close Concealed Undermount Drawer Runners, Full Extension - 400mm

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 400mm

£22.33 Incl. VAT
£22.33 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£21.22 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Matching selection

Matching accessories

In the same colour — other models that match.

Product data
Concealed bottom mount · Galvanised steel · Up to 35 kg

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 400mm

Upgrade your furniture with smooth-running drawer runners that stay hidden beneath the drawer base. The integrated soft-close mechanism gently pulls the drawer shut without slamming while full extension gives complete access to the back.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35kg
  • MaterialZinc coated steel
  • ColourZinc
  • Maximum drawer side thickness16mm
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 400mm
  • 600mm length
  • 16mm material thickness

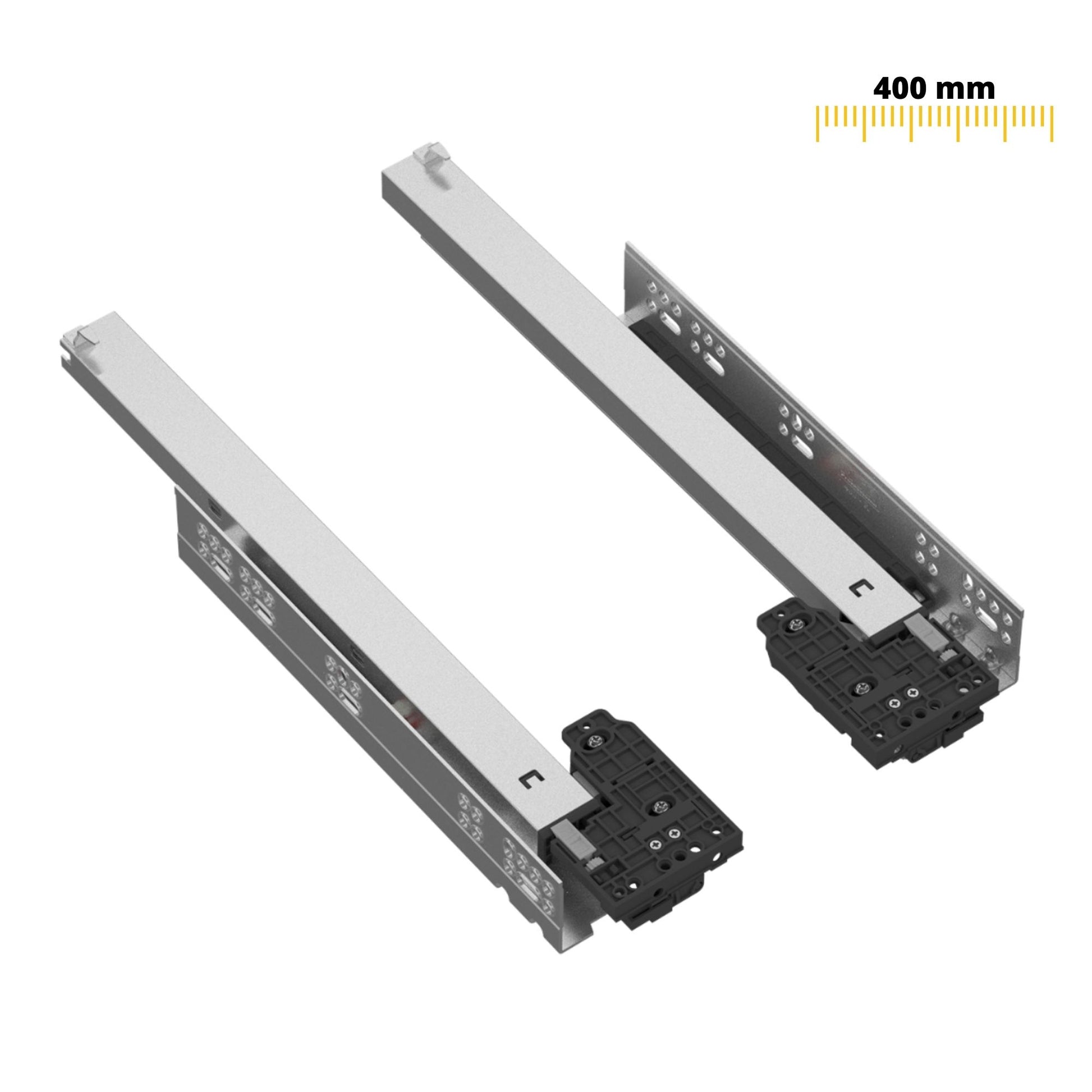

400 mm concealed runners for drawers up to 16 mm side thickness

These 400 mm soft close drawer runners mount directly beneath the wooden drawer box to keep the hardware out of sight. Built from zinc coated steel, they support loads up to 35 kg while providing a controlled, quiet closing action.

  • Full extension design: The full extension drawer slide pulls entirely clear of the carcass so you can reach items stored right at the back.

  • Integrated soft-close: The built-in damper mechanism catches the drawer on the final travel and pulls it shut silently.

  • Concealed undermount fixing: Fitting under the drawer box leaves the side panels completely clean with no visible metal tracks.

  • Sturdy 35 kg capacity: Zinc coated steel construction provides reliable stability for heavier kitchen or bedroom storage.

Where to install 400 mm undermount drawer runners

  • KitchenPots and pan base units

    Full extension ensures easy reach to cookware at the rear while the 35 kg rating handles heavy kitchenware.

  • BedroomChest of drawers and bedside tables

    The quiet soft-close action prevents loud banging in sleeping areas when opening and closing drawers.

  • Living roomSideboards and media cabinets

    The drawer runner undermount design keeps the exterior woodwork looking sleek with hardware hidden from view.

Fitting the concealed drawer runners

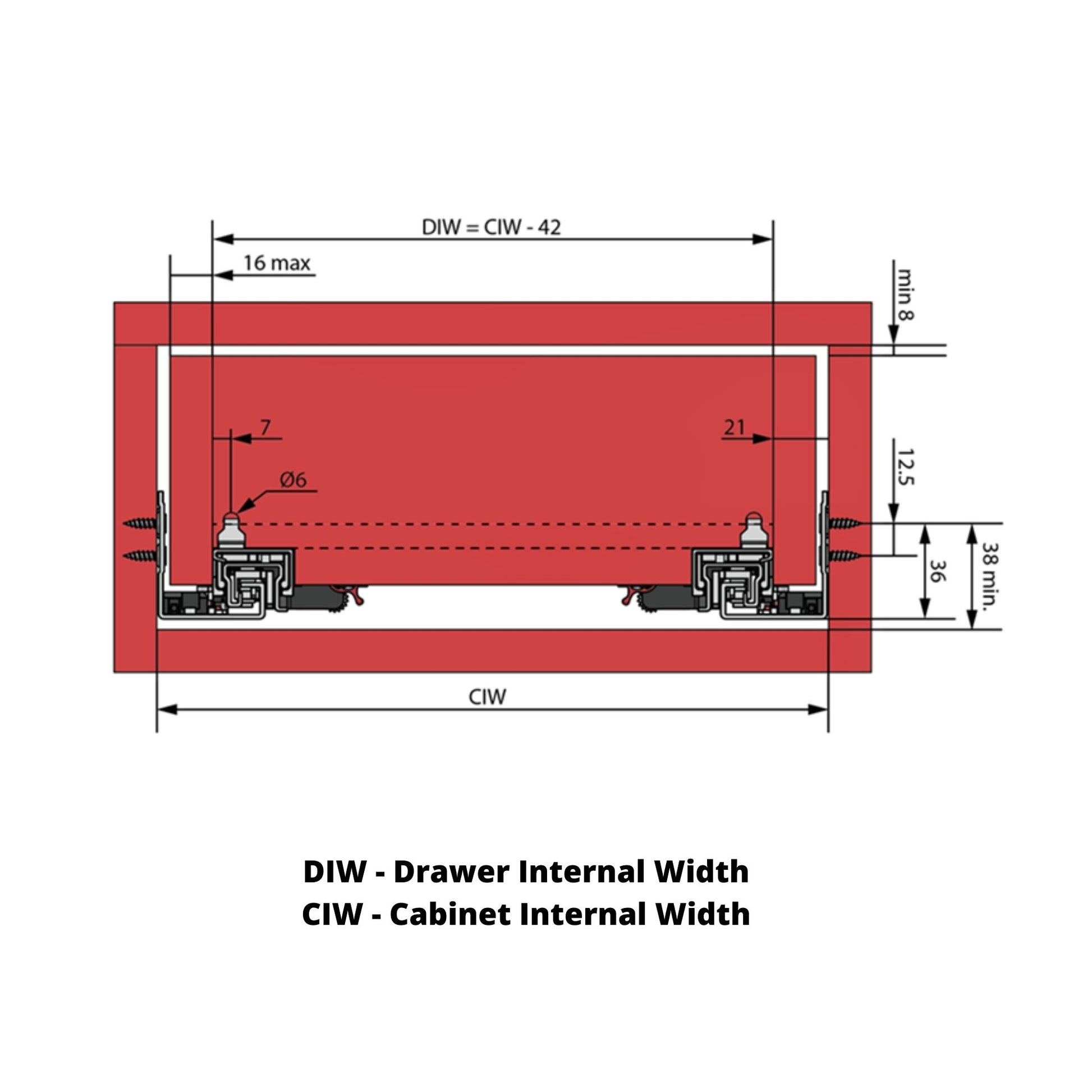

For timber drawer boxes with side panels up to 16 mm thick
  1. 1

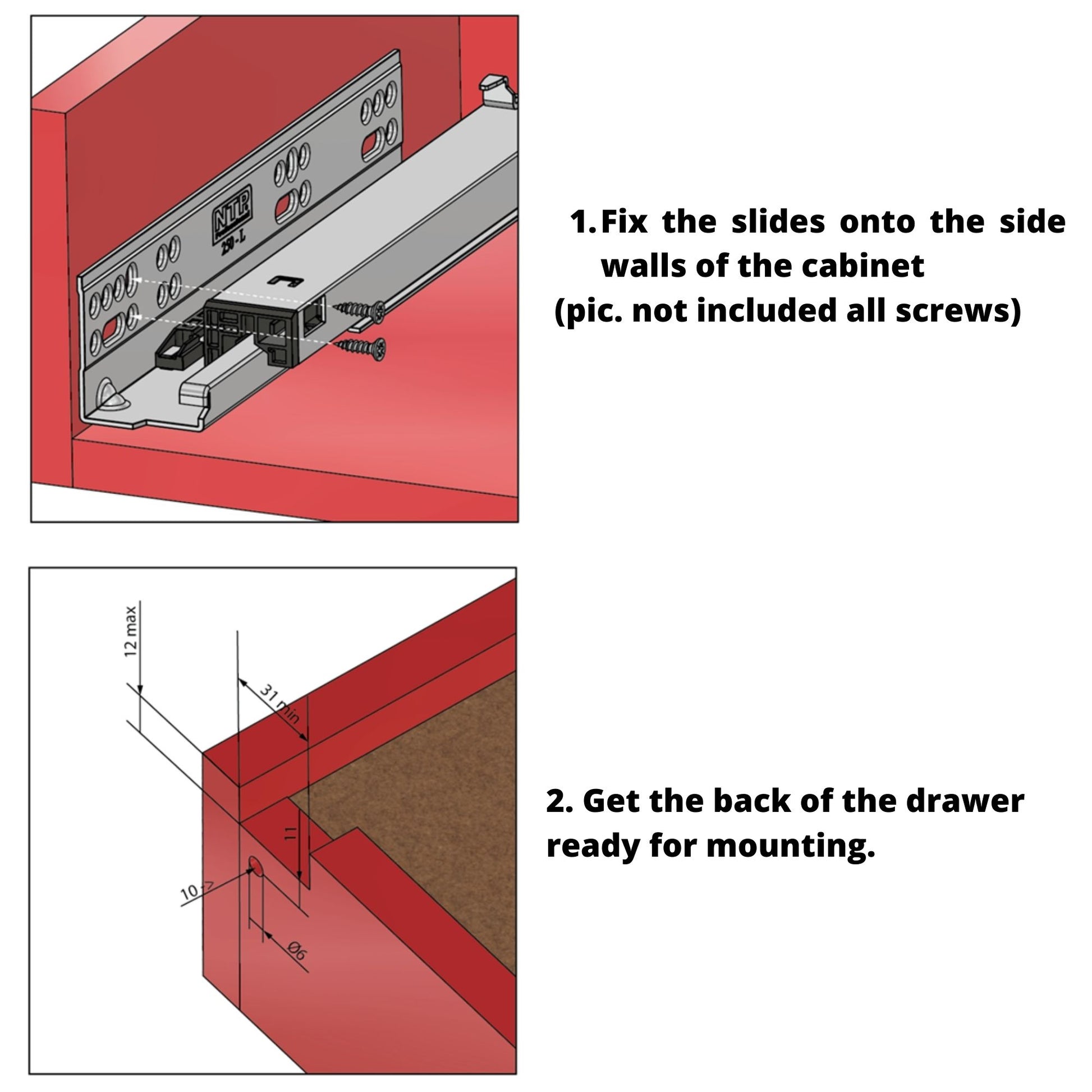

    Mount the runners to the cabinet

    Screw the left and right steel runners horizontally to the interior sides of the carcass at your desired height.

  2. 2

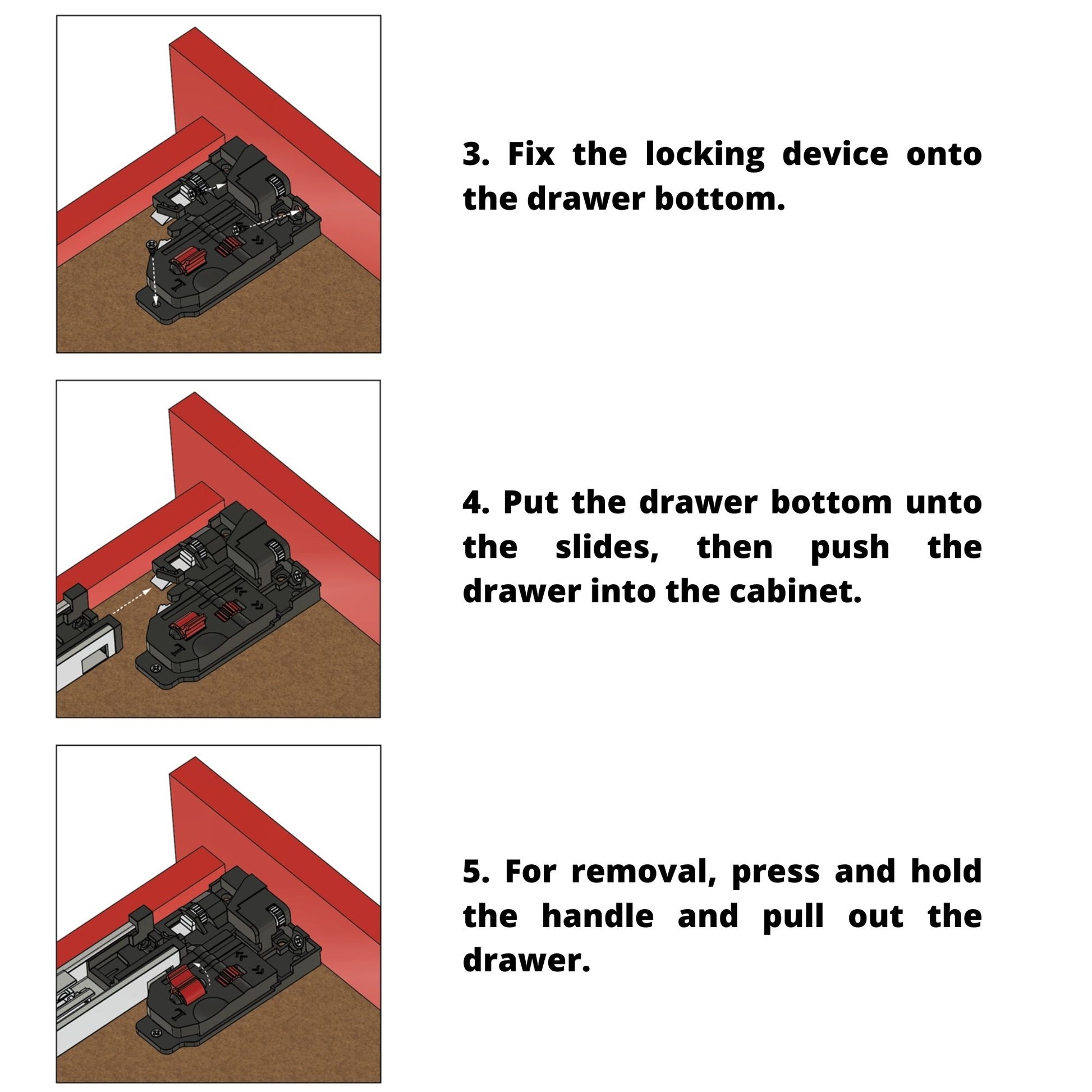

    Attach the locking clips to the drawer

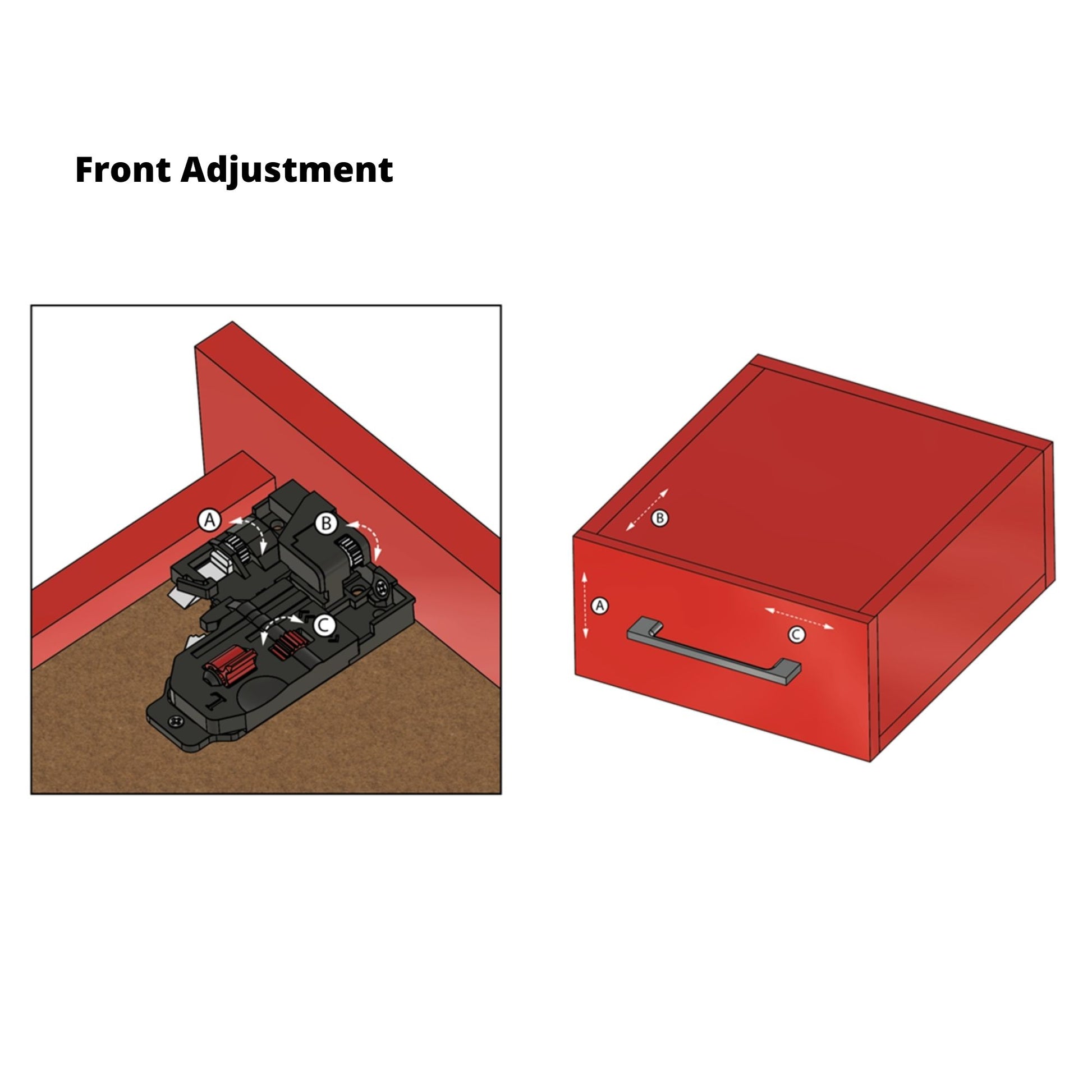

    Fix the front adjustment brackets underneath the front corners of the wooden drawer base.

  3. 3
    Drop in and engage the drawer

    Place the drawer box onto the extended runners and slide it inward until the front clips lock securely into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604172
SKU
PTPS-19S-400
