Product data
Concealed undermount · Up to 35 kg

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 450mm

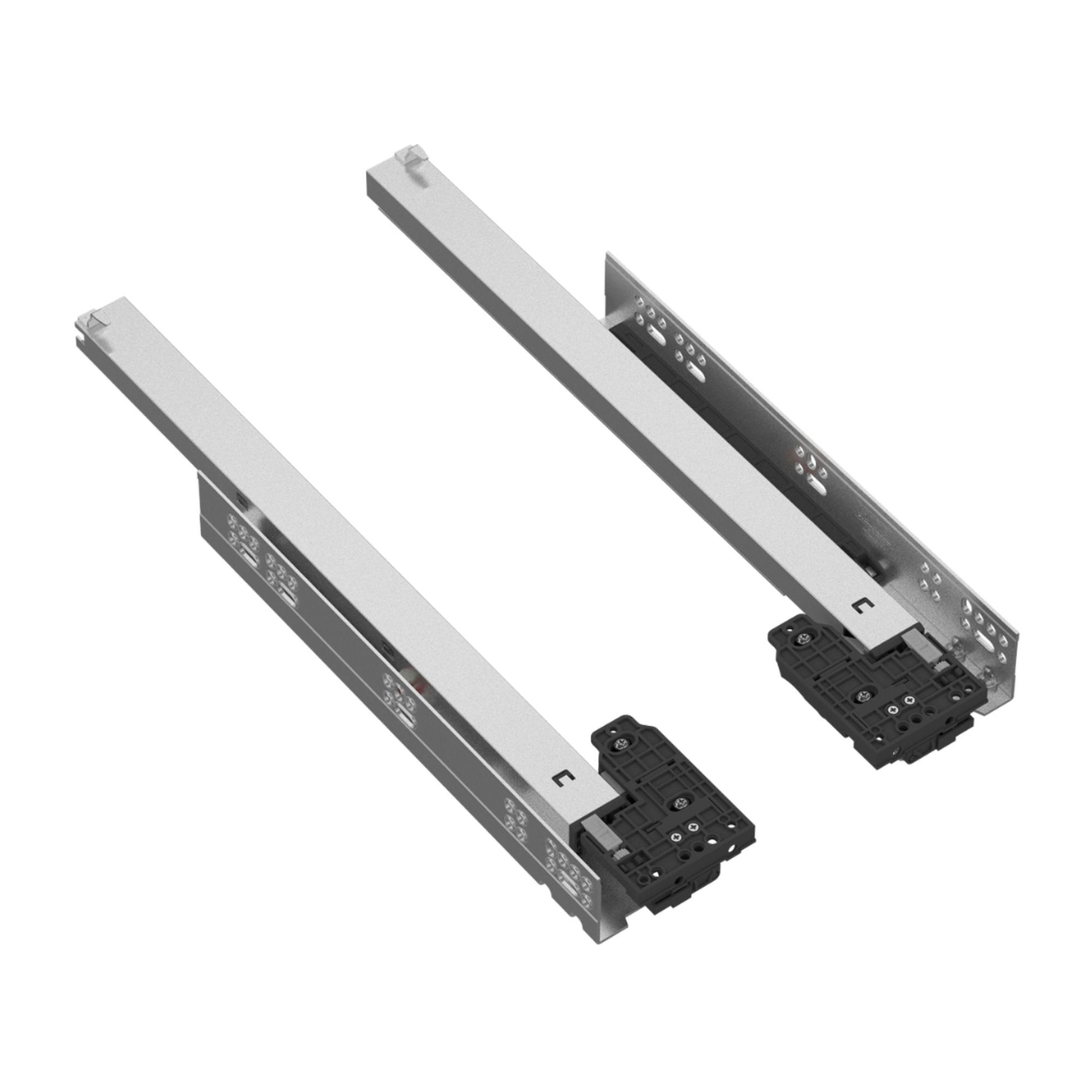

These concealed drawer runners mount underneath the drawer box for an invisible look and pull the drawer shut silently with integrated soft-close damping. Full extension allows clear, complete access across the entire 450 mm drawer depth.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35 kg
  • MaterialZinc coated steel
  • Max drawer side thickness16 mm
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 450mm
  • 600mm length
  • 16mm material thickness

Concealed undermount runners for wooden drawers up to 16 mm side thickness

These soft close drawer runners feature heavy-duty zinc coated steel construction designed for seamless installation beneath the drawer base. They provide a smooth glide and prevent drawer slamming in everyday domestic cabinetry.

  • Full extension access: The full extension drawer slide design pulls out completely so you can reach items stored right at the back without reaching around obstructions.

  • Integrated soft-close damping: An internal mechanism catches the drawer over the final centimetres of travel and gently pulls it shut without banging.

  • Concealed undermount design: Fitting underneath the drawer box keeps the runners completely hidden from sight whenever the drawer is pulled open.

  • 35 kg load capacity: Rated for a maximum weight of 35 kg to comfortably support heavily loaded kitchen pans, tools, or deep clothing drawers.

Where these 450 mm undermount runners fit best

  • KitchenPots and pan drawers

    The 35 kg weight rating supports heavy cookware sets, while the full extension motion ensures easy lifting from the rear of standard kitchen base units.

  • BedroomDressers and chests of drawers

    The soft-closing action eliminates loud drawer slamming, making it suitable for quiet bedroom furniture and bedside units.

  • Living roomSideboards and media consoles

    Concealed undermount fitting keeps the side profile of solid timber or panel drawer boxes clean and visually uncluttered.

Fitting the undermount drawer runners

Designed for timber drawer boxes with maximum 16 mm side panel thickness
  1. 1
    Mount the runners to the cabinet sides

    Screw the runner rails horizontally to the inner cabinet side panels using the designated fixing holes.

  2. 2

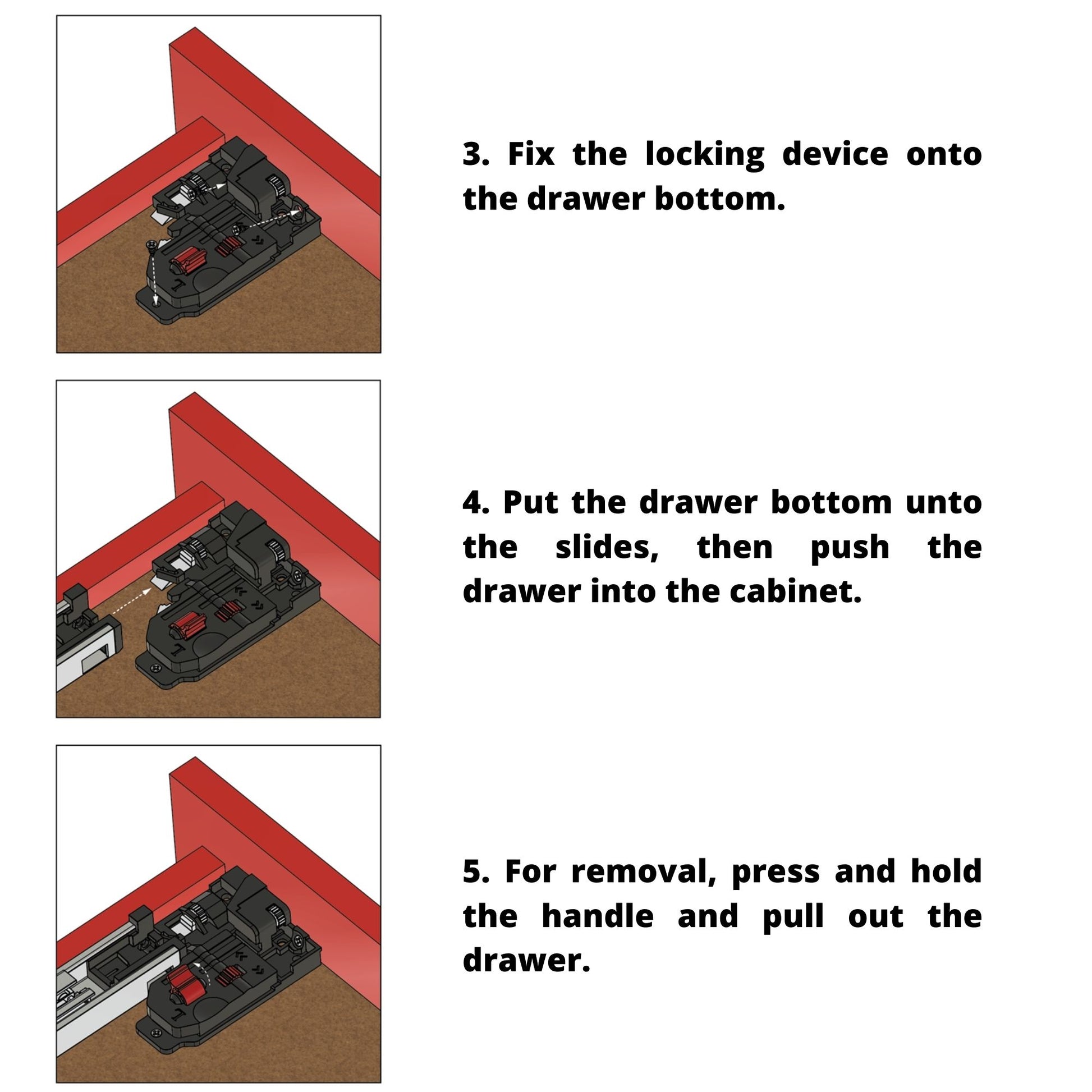

    Secure the locking clips to the drawer base

    Fix the front adjustment brackets underneath the wooden drawer bottom near the front edge.

  3. 3
    Slide on and engage

    Place the drawer box onto the extended runners and slide it backward until the front clips click securely into position.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604189
SKU
PTPS-19S-450
