Product data
Galvanised steel · up to 35 kg

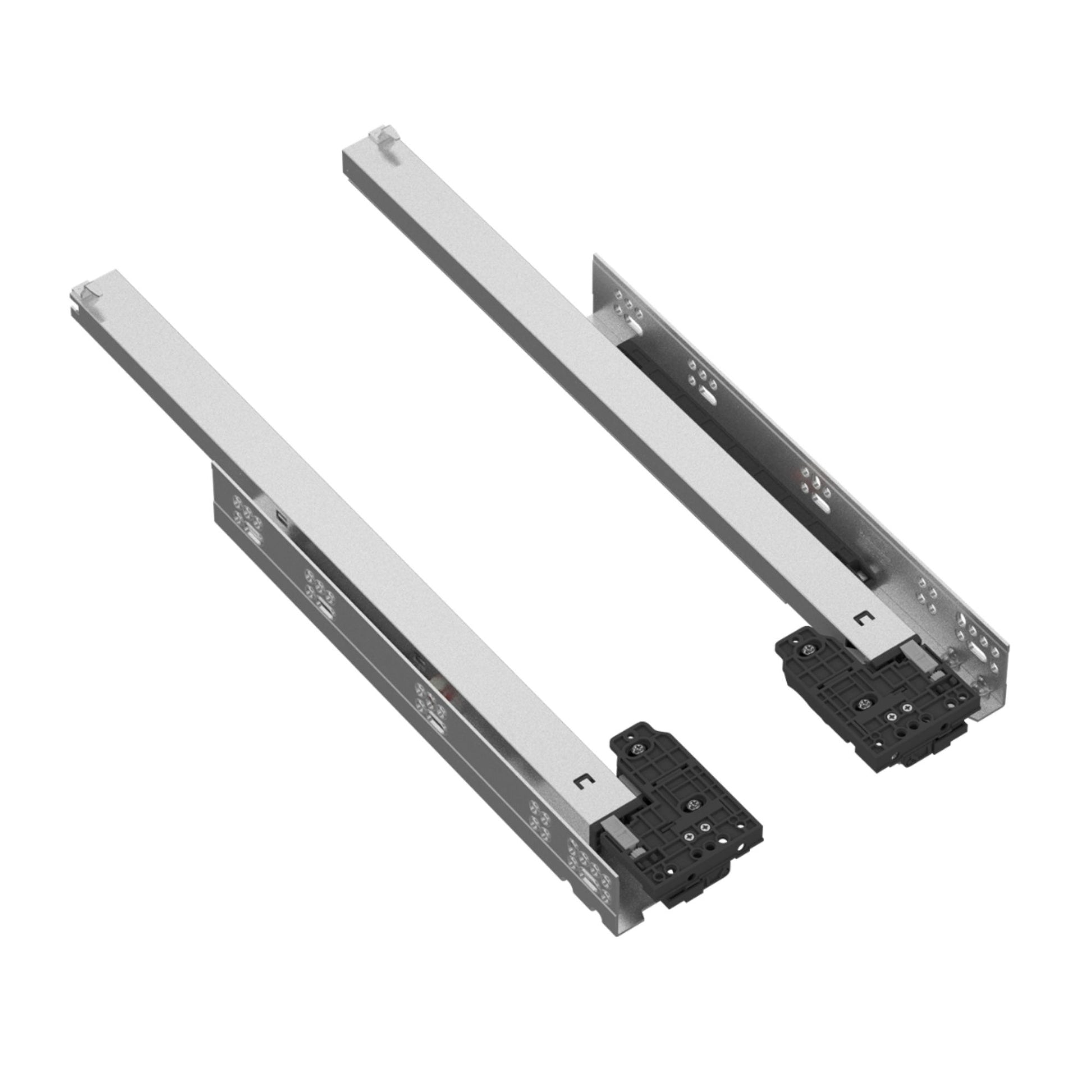

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 500mm

Concealed undermount drawer runners designed for wooden drawers with up to 16 mm side panel thickness, combining full extension with an integrated soft-close mechanism.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35 kg
  • MaterialGalvanised steel
  • ColourZinc
  • Maximum drawer side thickness16 mm
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 500mm
  • 600mm length
  • 16mm material thickness

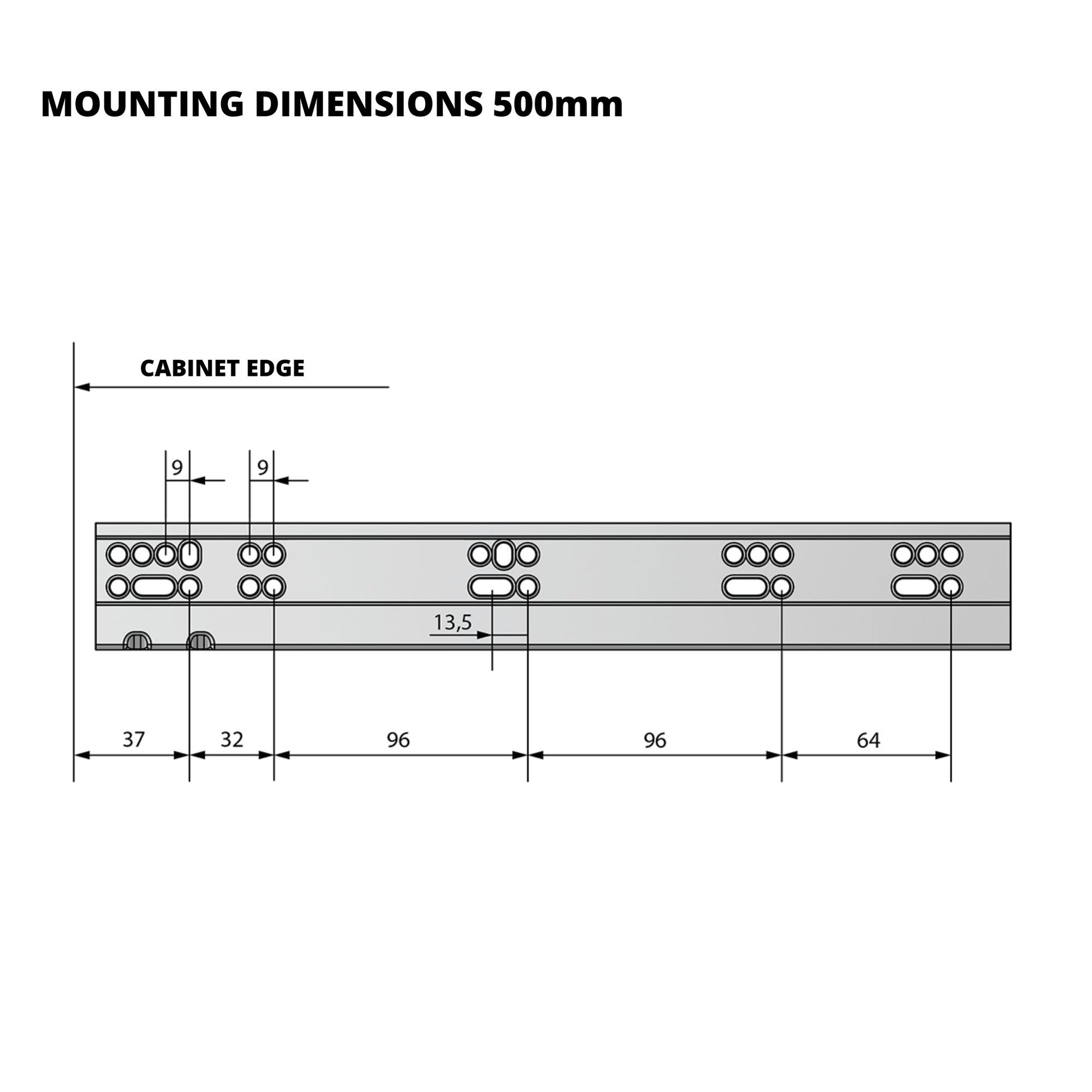

Concealed 500mm undermount fitting with 35 kg load capacity

These concealed drawer runners mount underneath the drawer base to keep the hardware out of sight while offering unrestricted access to the entire drawer box.

  • Full extension travel: Pulls the drawer out completely so you can reach items stored right at the back of the cabinet.

  • Soft-close damping: Catches the drawer over the final centimetres and pulls it shut quietly without slamming.

  • 35 kg load capacity: Manufactured from zinc-coated steel to support heavy pans, tableware and packed storage boxes.

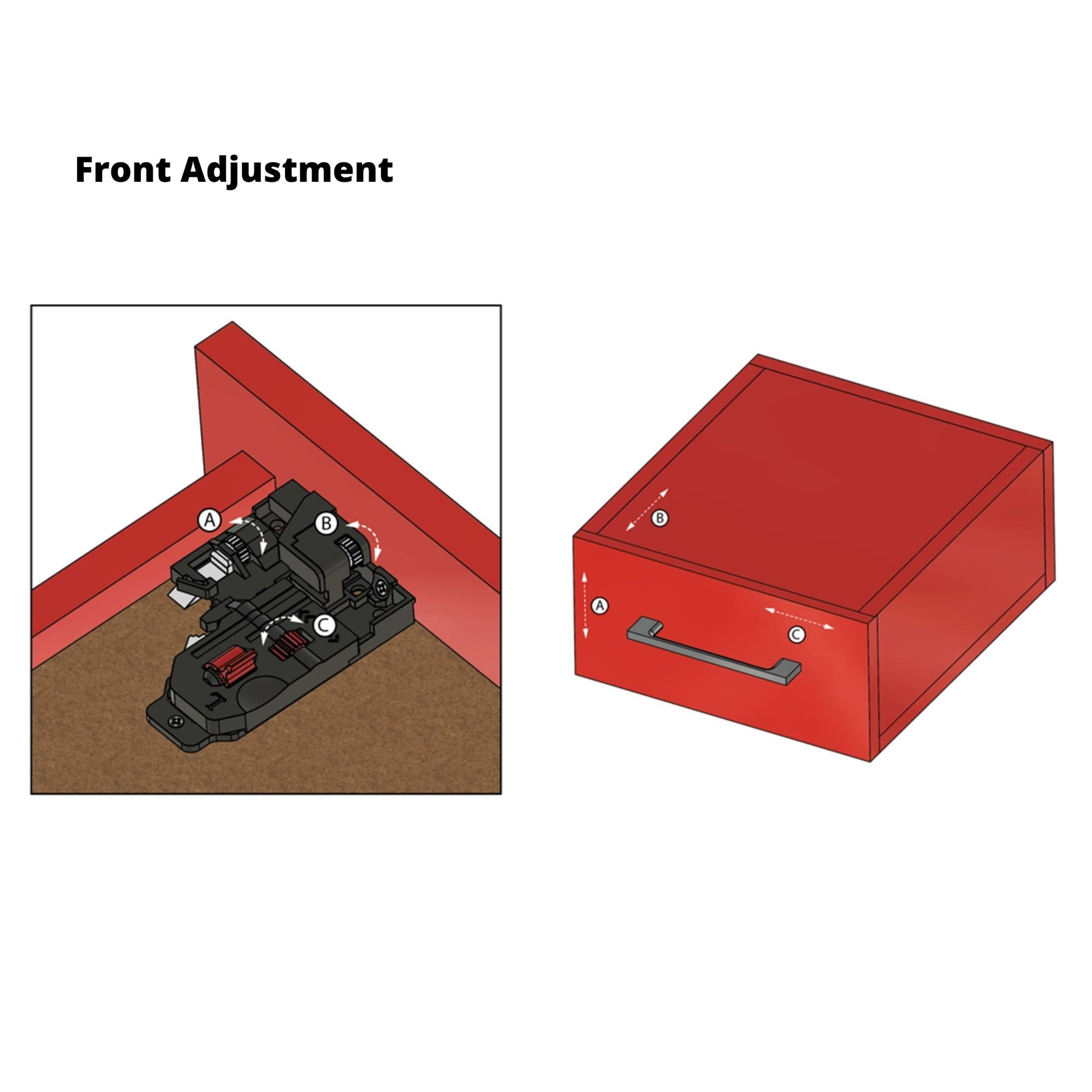

  • 3D adjustment brackets: Allows precise alignment of the drawer front height and side position via the front clips.

Where to install 500mm undermount drawer runners

  • KitchenBase units and pan drawers

    Supports deep wooden drawers holding heavy pots and crockery with silent closing.

  • BedroomChest of drawers and wardrobes

    Hidden under-base fitting keeps wooden furniture interiors tidy and closes quietly.

  • Living roomSideboards and storage units

    Full extension travel gives full access across the entire 500mm depth of the drawer box.

Fitting the undermount drawer runners

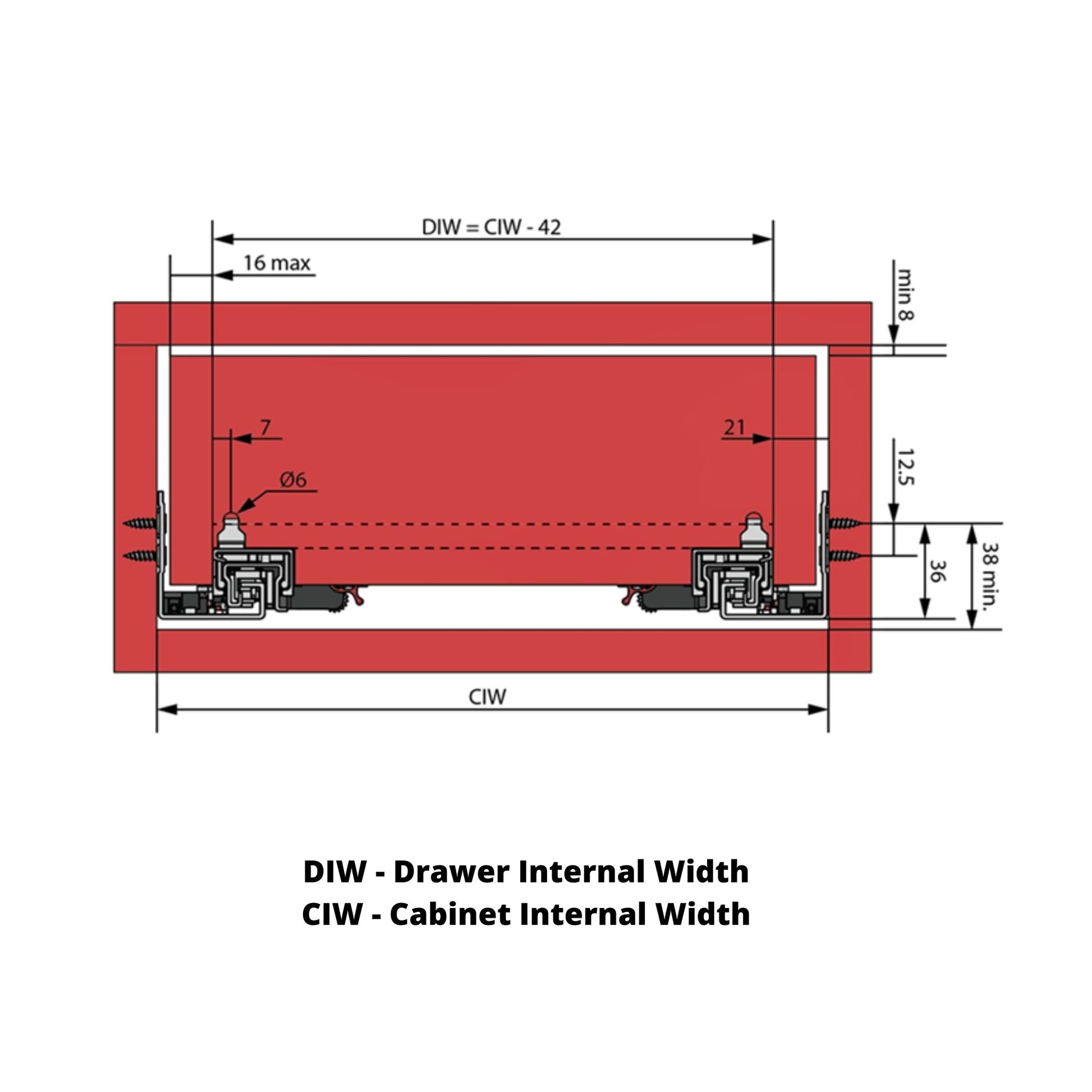

Designed for wooden drawer boxes with maximum 16 mm side panels
  1. 1

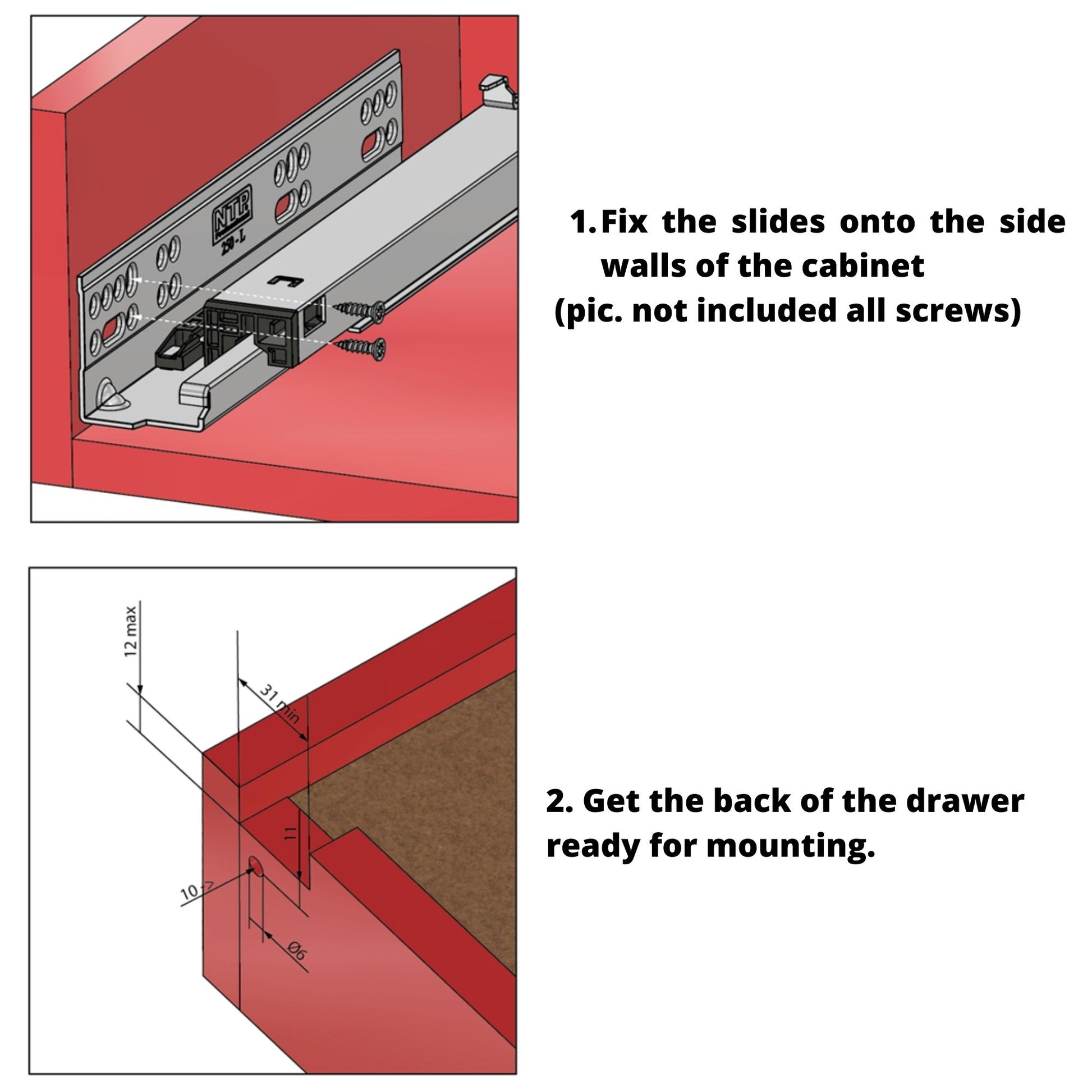

    Screw the runners to the cabinet sides

    Position the steel runners level inside the cabinet carcass at your chosen height and secure them with screws.

  2. 2

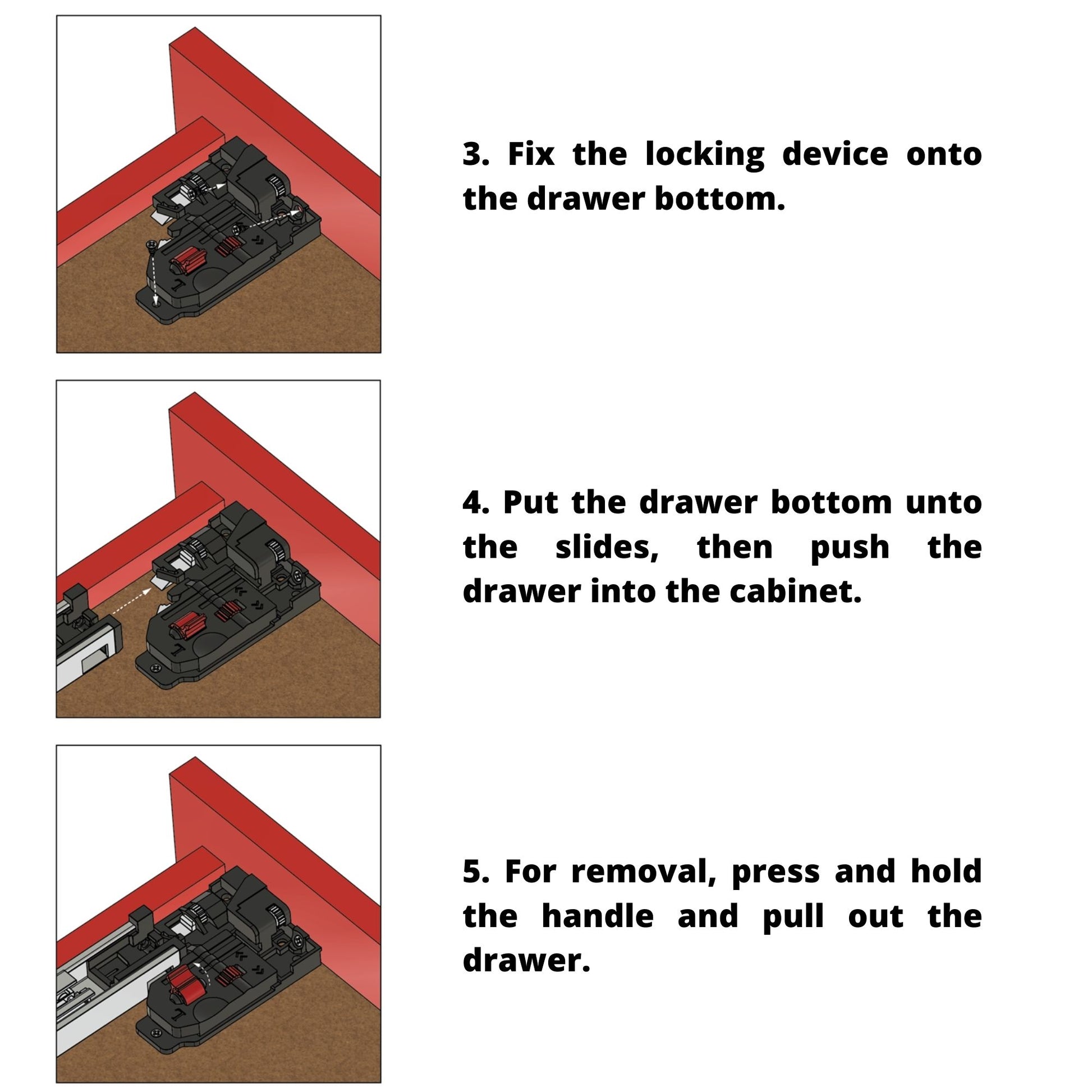

    Attach the locking clips

    Fix the front adjustment brackets underneath the front corners of the wooden drawer base.

  3. 3
    Engage the drawer box

    Slide the drawer onto the runners until the clips click into place, then fine-tune the front alignment.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604196
SKU
PTPS-19S-500
